Granite Profiling Diamond Wire – Precision Shaping for Complex Stone Projects

When you're cutting intricate granite profiles, you need more than standard quarry wire. Granite Profiling Diamond Wire from Jinfu'en delivers exceptional precision for your CNC stone fabrication. With over 30 years of manufacturing expertise, we engineer this specialized wire to handle complex 2D and 3D shapes with dimensional tolerances within ±0.5mm.

Our continuous electroplating process ensures superior diamond retention at speeds up to 50 m/s. The jointless endless design eliminates vibration points, allowing your 8.8mm wire to execute tight-radius turns with remarkable stability. Whether you're producing architectural columns, custom monuments, or luxury countertops, our wire reduces material waste by up to 15% compared to traditional carving methods while delivering a mirror-like finish that cuts your polishing time significantly.

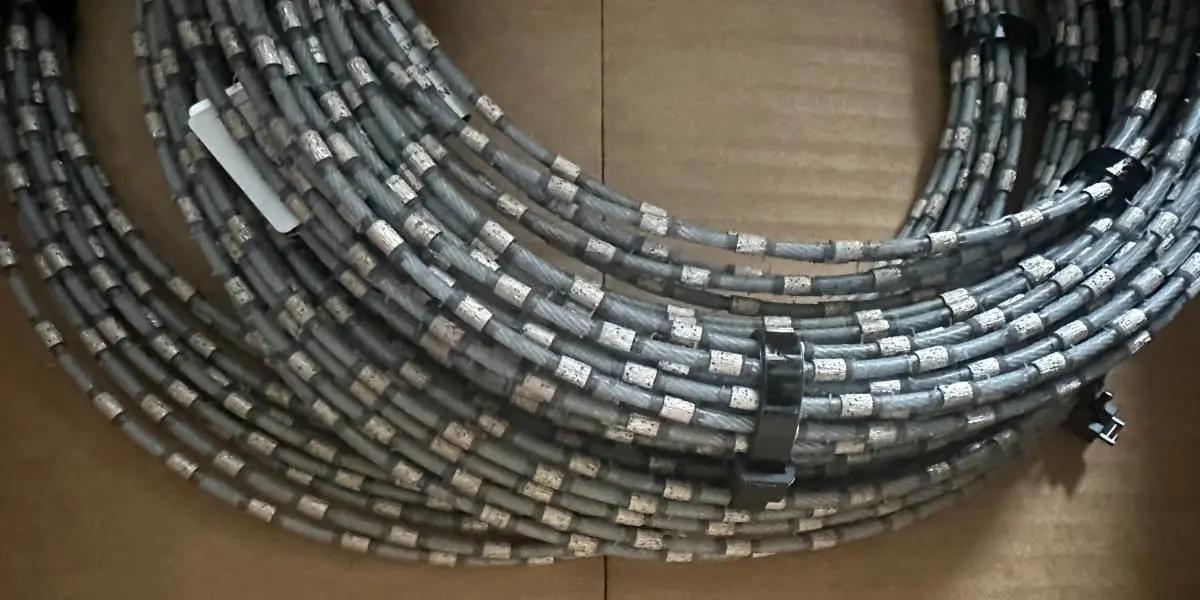

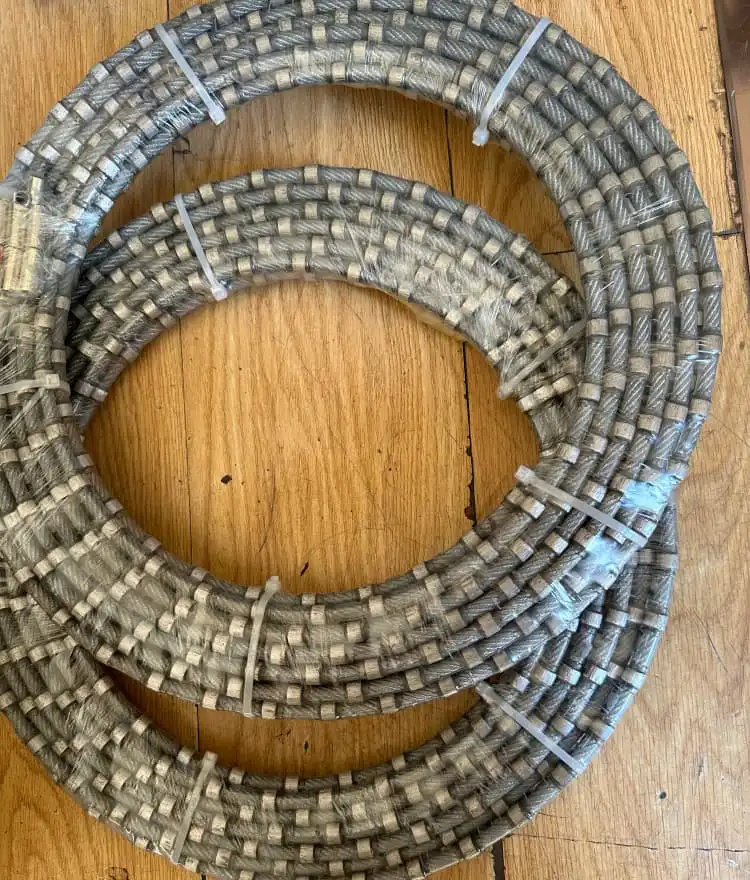

Granite Profiling Diamond Wire

What Makes Granite Profiling Diamond Wire Different?

Traditional cutting methods struggle with deep profiling and radius work. You've probably experienced cable breakage during high-tension curves or the frustrating "bowing" effect on thick cuts.

Our Granite Profiling Diamond Wire solves these pain points through engineering innovation. We use high-tensile steel carriers combined with specialized diamond beads that maintain path verticality even at maximum cutting depths.

The wire features bead diameters from 5.3mm to 9.0mm with a high-density configuration of 37-40 beads per meter. This ensures smooth, low-vibration operation across your entire cutting path.

Our injection-molded vulcanized rubber coating protects against abrasive granite slurry. It maintains precise bead spacing under extreme centrifugal forces, giving you consistent results cut after cut.

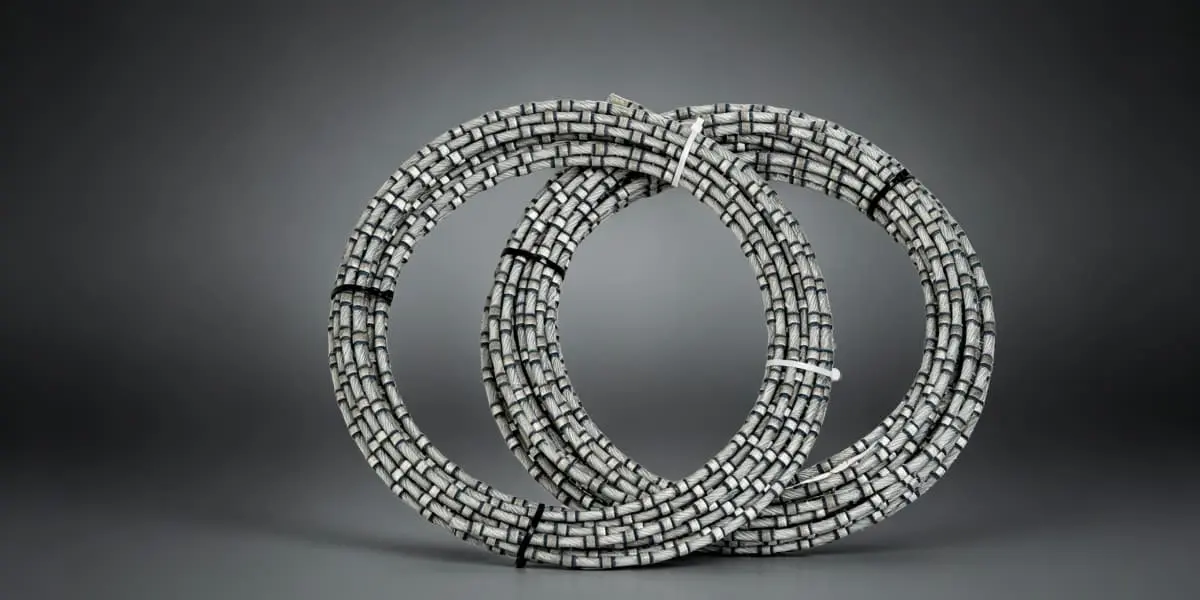

Granite Profiling Diamond Wire

Technical Parameters

Specification	Value
Bead Diameter	5.3mm – 9.0mm
Bead Density	37 – 40 beads/meter
Wire Diameter	8.8mm (standard)
Maximum Linear Speed	50 m/s
Tensile Strength	1800 – 2200 kg
Diamond Mesh Size	30/40 or 40/50
Bond Matrix	Cobalt-based / Iron-cobalt alloy
Recommended Cooling Flow	25 – 30 L/min
Dimensional Tolerance	±0.5mm
Coating Material	Vulcanized rubber / TPU

Beaddia(mm)	Fixed by	Beads/m	Technique	CuttingMaterial	LineSpeed(m/s)	Efficiency(m²/h)	Life Time(m²/m)
Φ6.3	HighStrengthPlastic	36/37	Sintered	Soft marble	28-35	1.2 - 1.5	10-15
Φ7.3	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6 - 1.2	8-10
Φ8.8	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6 - 1.2	8-10
Φ5.3	HighStrengthPlastic	36/37	Sintered	Hardmarble	28-35	0.4 - 0.6	6-8

Key Applications for Your Stone Business

Architectural CNC Fabrication

Create large-scale granite balustrades, arched cornices, and tapered columns. Your projects demand precision, and our wire maintains tight tolerances across extended cutting sessions.

Precision Monument Shaping

The funerary industry requires flawless execution. Cut heart-shaped designs, teardrops, or custom relief patterns into high-density granites like Absolute Black without edge chipping.

Curvilinear Slab Trimming

Luxury interior projects need irregular organic shapes. Our wire trims thick granite slabs for custom countertops and feature walls with exceptional surface quality.

Complex 3D Sculpting

Artistic stone sculptures demand maneuverability. Execute intricate pathing on multi-axis CNC machines while maintaining cutting stability through varying stone hardness.

Why Jinfu'en's Diamond Wire Delivers Superior ROI

Our Granite Profiling Diamond Wire operates at industry-leading cutting speeds while consuming less energy. You'll extend tool life significantly compared to standard profiling wires.

The continuous diamond coating seamlessly bonds to our high-strength core made from special alloy steel or stainless steel. We customize grit sizes to match your specific granite types and cutting requirements.

Harder granites (Class 5) work best with our softer, cobalt-rich bond formulation. This exposes diamonds continuously for consistent cutting performance. For softer granites, we recommend our harder, iron-based bond for maximum economy.

Our direct factory pricing eliminates middleman costs. You get professional-grade performance without the premium markup.

Quality Standards You Can Verify

Every meter of wire undergoes rigorous testing before shipment:

Tensile Failure Analysis ensures breaking points exceed 1800kg safety thresholds. Bead Pull-off Testing verifies minimum 600N adhesion force to prevent stripping during operation.

We use laser micrometers for Concentricity Inspection, guaranteeing perfectly centered diamond segments. This prevents uneven wear and eliminates the "thumping" effect during high-speed rotation.

Hardness Mapping through HRC testing matches wear rates to your intended granite classification. Fatigue Life Testing simulates high-curvature paths to ensure resistance against wire-rope birdcaging or coating delamination.

Our production adheres to ISO 9001 and MPA safety certifications. You can schedule factory inspections and live machine demonstrations to verify our quality standards firsthand.

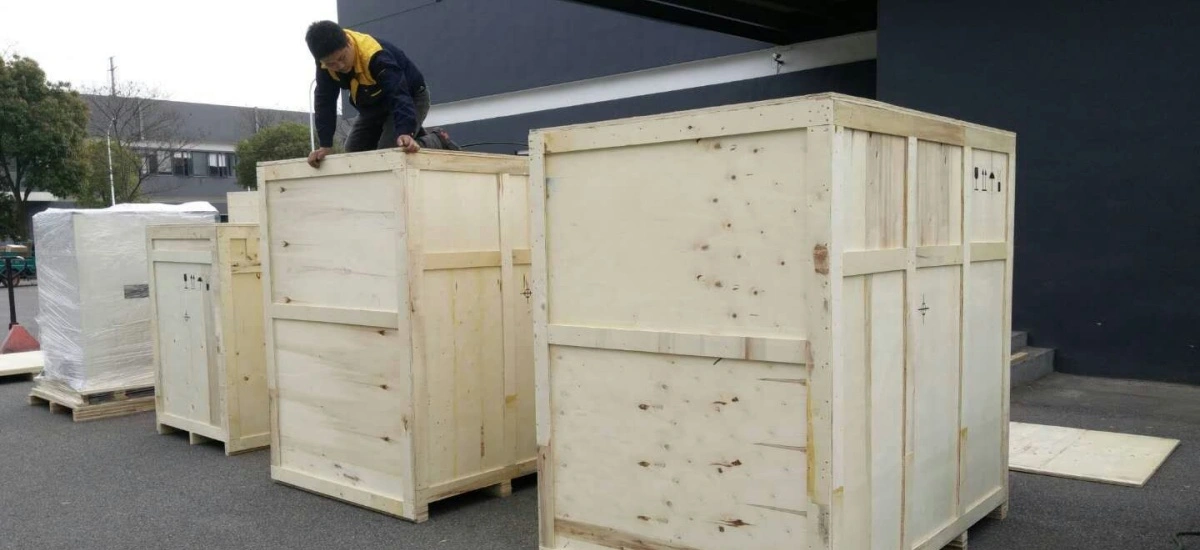

Shipped Granite Profiling Diamond Wire

Frequently Asked Questions

Q: What causes the wire to snap during a radius cut?

A: Snapping typically results from insufficient wire rotation. Apply 1.5-2 twists per meter and reduce CNC feed speed when your wire path changes direction sharply. Avoid excessive tension on tight radius work.

Q: How do I select the right bead bond for different granite types?

A: Match bond hardness to stone hardness inversely. Harder granites require softer, cobalt-rich bonds for continuous diamond exposure. Softer granites work efficiently with harder, iron-based bonds.

Q: What is the ideal linear speed for profiling hard granite?

A: We recommend 22-25 m/s for hard stone. Speeds exceeding 30 m/s can cause diamond "glazing" where beads stop cutting effectively.

Q: How can I prevent the rubber coating from peeling?

A: Peeling indicates overheating. Maintain cooling water flow at 25-30 L/min directed specifically at wire entry and exit points.

Q: How do I sharpen a wire that has become dull?

A: "Open" the wire by cutting into soft, abrasive material like a specialized dressing brick. This strips worn metal matrix and exposes fresh diamond grit.

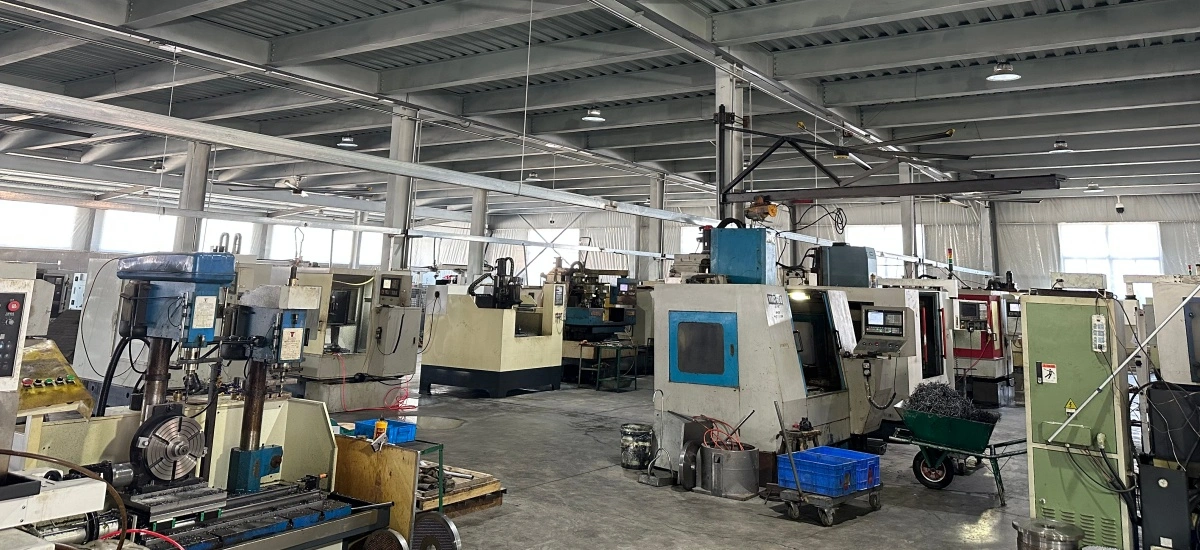

Workshop Granite Profiling Diamond Wire

Get Factory-Direct Pricing Today

Ready to improve your granite profiling efficiency? Jinfu'en Wire Saw provides customized solutions—featuring high-performance Granite Profiling Diamond Wire—with professional technical support from equipment selection through operation training.
