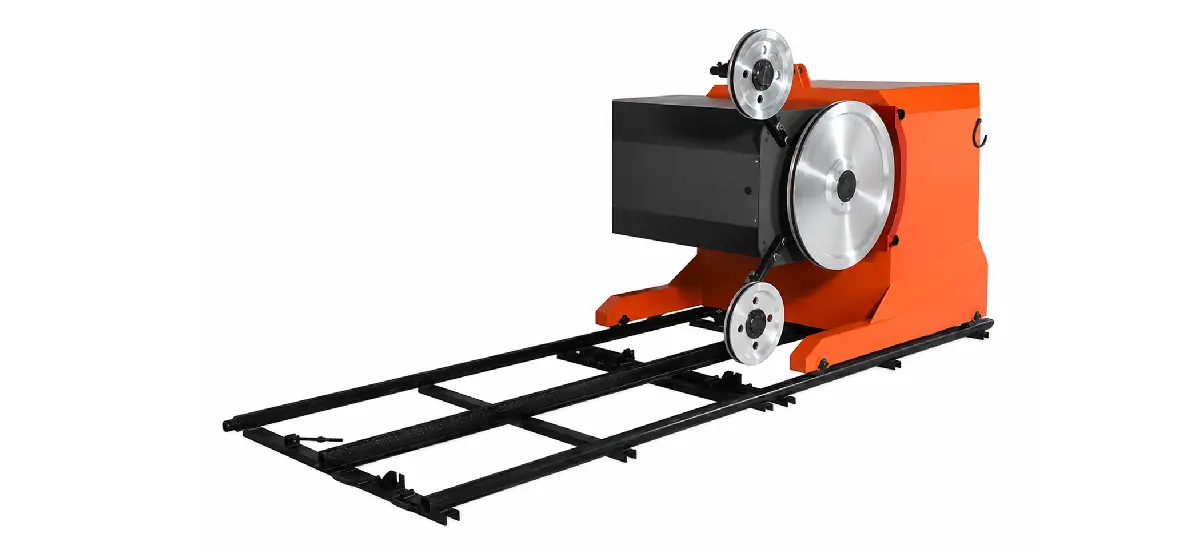

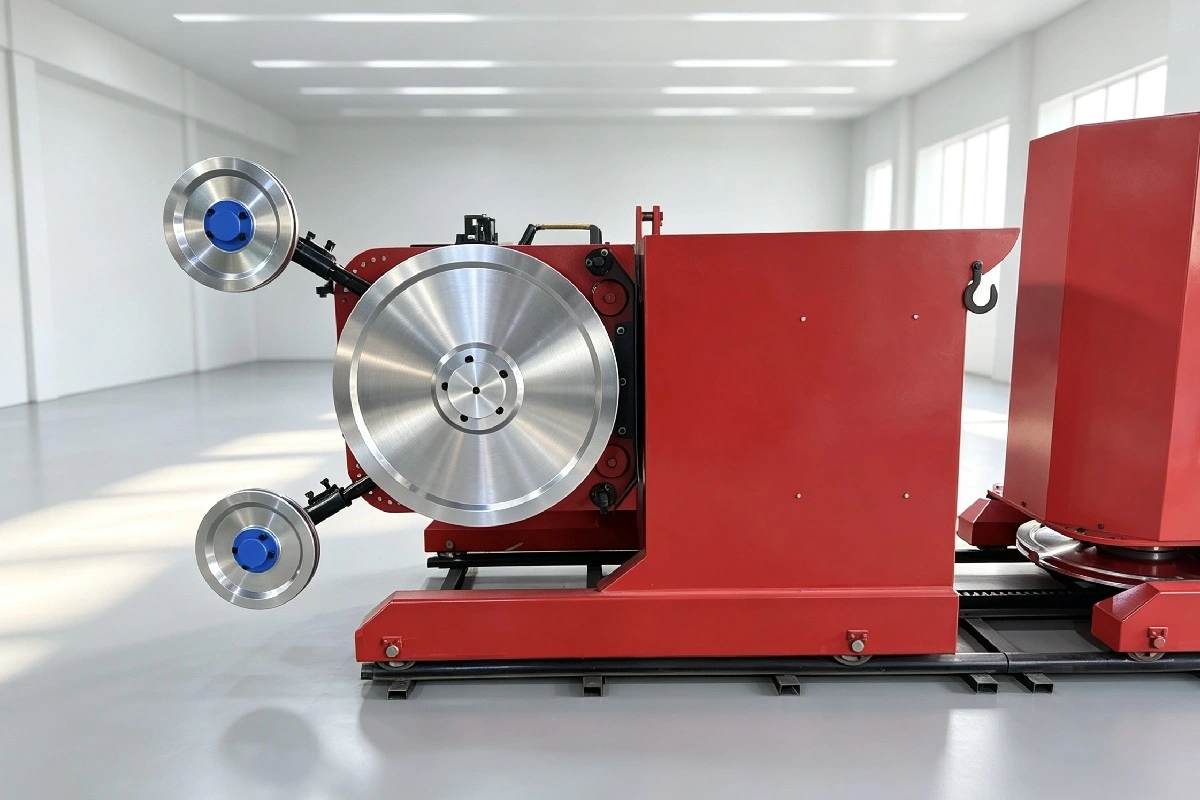

55kW/75KW Permanent Magnet Wire Saw Machine

An innovation in quarry and engineering cutting technology is the 55kW/75KW Permanent Magnet Wire Saw Machine. This cutting-edge technology, produced by Laizhou Jinfuen Machinery with more than 30 years of experience in the field, achieves energy efficiency ratings comparable to IE4/IE5 standards and offers variable linear wire speeds from 0 to 40 m/s.

When compared to traditional induction motors, the device uses 15–30% less electricity while keeping a power factor above 0.95. It is resistant to the extreme conditions found in quarries, such as water, dust, and constant vibration, thanks to its IP55 protection grade construction. For applications involving granite, marble, and reinforced concrete, the integrated Vector Control VFD ensures excellent cutting performance by enabling accurate tensioning adjustments dependent on material hardness.

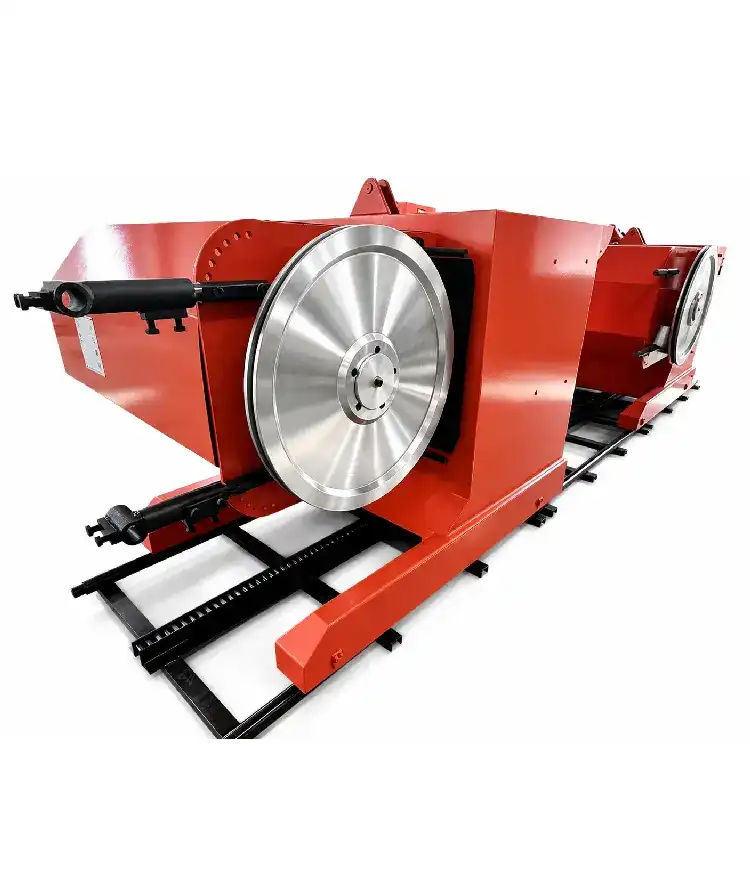

55kW/75KW Permanent Magnet Wire Saw Machine

What Makes This Wire Saw Machine Different?

Our 55kW/75kW Permanent Magnet Wire Saw Machine uses Permanent Magnet Synchronous Motor (PMSM) technology in contrast to conventional belt-driven systems. This invention addresses important business issues that you deal with on a regular basis.

High Torque at Low Speeds

The direct-drive architecture provides constant torque output even during initial cuts. You'll experience fewer wire snapping incidents and smoother operation when cutting through hard granite blocks.

Energy Cost Reduction

Your operational costs decrease significantly. The high-density magnetic flux design eliminates rotor resistance losses, translating to measurable savings on your electricity bills month after month.

Mechanical Stability

Wear points are decreased by the streamlined gearbox architecture. For your quarry operations, fewer moving components mean longer equipment lifespans and reduced maintenance downtime.

55kW/75KW Permanent Magnet Wire Saw Machine

Technical Specifications

MODEL	JFN-45KW	JFN-55KW	JFN-75KW
Main motor power（kw）	45KW	55KW	75KW
Wheeldisc diameter(mm)	800mm	800mm	800mm
Rope saw line speed（m/s）	0-40	0-40	0-45
PLC	√	√	√
Rotation angle	360°
Walking speed（m/h）	0-100
track length(m)	2m*4
Ambient Temperature	-15~+40°
Machine dimensions Size (mm)	232014501450	235014601450	250016001530
Net weight（T）	2.4T	2.6T	2.8T

Primary Applications

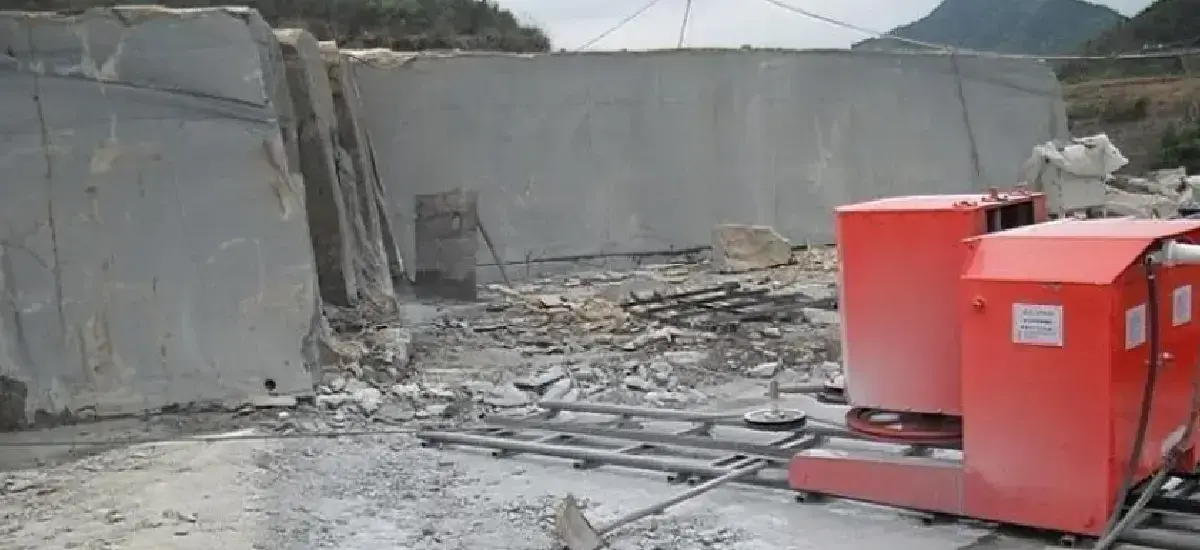

Large-Scale Granite Quarrying

When you're extracting massive granite blocks, high torque capacity becomes essential. The 75kW variant handles primary sizing tasks where traditional saws fail due to wire tension instability. You'll complete cuts faster with fewer interruptions.

Precision Marble Extraction

The constant tension control system minimizes vibration during operation. This protection preserves the structural integrity of your high-value marble slabs and reduces material wastage. Your yield rates improve noticeably.

Reinforced Concrete Demolition

For bridge decommissioning or industrial building removal, the machine slices through thick steel reinforcements and high-strength concrete. The surgical precision under variable load conditions gives you reliable performance on complex B2B civil engineering projects.

Quality Assurance You Can Verify

Every unit undergoes strict factory testing before shipment. Our quality control protocol ensures your investment delivers expected returns.

Motor Insulation Resistance Testing

We verify the PMSM survives high-humidity quarry conditions. This testing prevents premature motor failure in your working environment.

Flywheel Dynamic Balance Verification

Vibration-induced mechanical fatigue gets eliminated through precise balancing. You receive equipment that maintains accuracy throughout its service life.

Full-Load Continuous Run-In

Each machine operates at 110% load for 4-8 hours during testing. The VFD and motor stability get validated before the equipment reaches your site.

Automatic Safety Features

The wire-breakage sensor and emergency brake system respond in under 0.5 seconds. This rapid reaction protects both operators and equipment investment.

55kW/75KW Permanent Magnet Wire Saw Machine

FAQ

Q1: How much can I save on energy costs?

A: You'll typically see a 15-30% reduction in KWh per square meter cut compared to traditional induction motor systems. Actual savings depend on your cutting material and operation hours.

Q2: Will the machine work in extreme temperatures?

A: Yes. High-grade rare earth magnets (N45SH or above) provide sustained performance in demanding environmental conditions by resisting demagnetization up to 150–180°C.

Q3: What maintenance schedule should I follow?

A: Maintenance requirements are much decreased by the brushless design. Only bearing lubrication and cooling system inspections are required every 2,000–3,000 operating hours.

Q4: Can I monitor the machine remotely?

A: IoT-enabled PLCs in modern machines provide real-time monitoring of cutting speed, current draw, and fault reports via mobile applications.

Q5: What happens if the wire snaps during operation?

A: The electromagnetic brake is triggered by the dual-protection mechanism's instantaneous detection of tension drop. In order to protect equipment and guarantee operator safety, the flywheel instantly stops.
