Quarry Guide Wheel

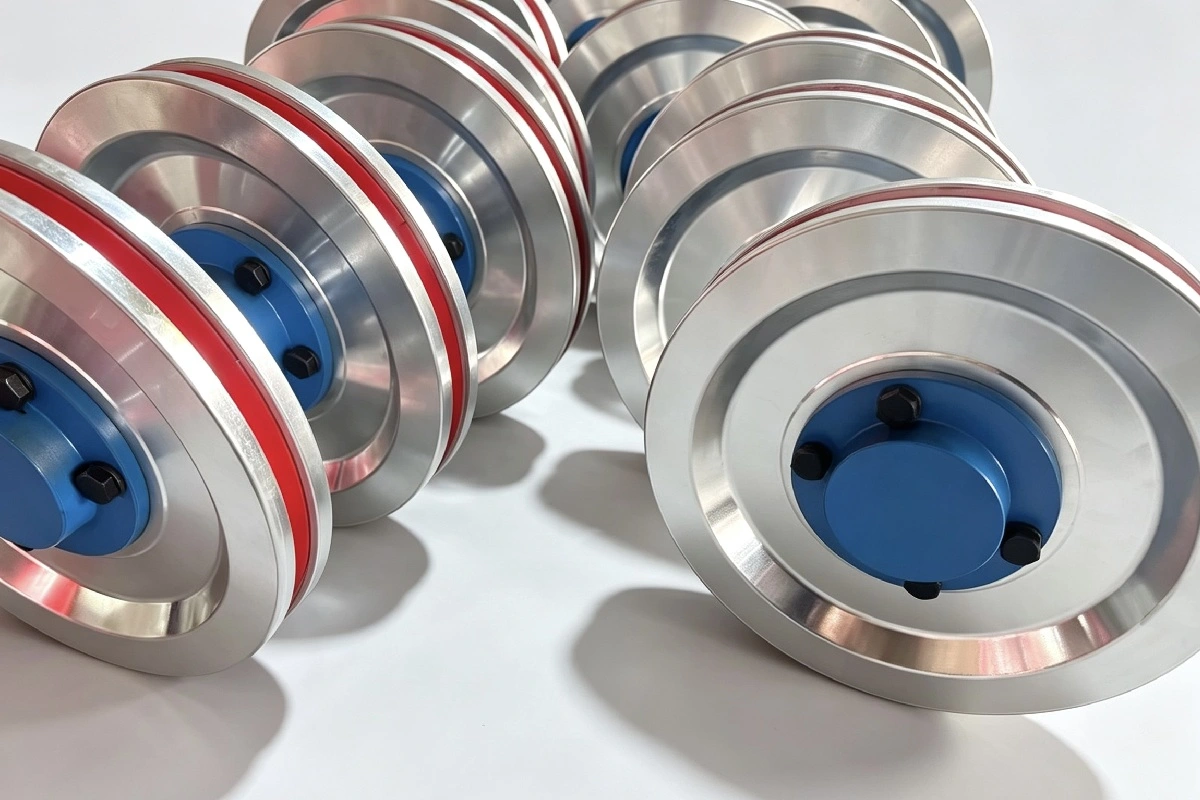

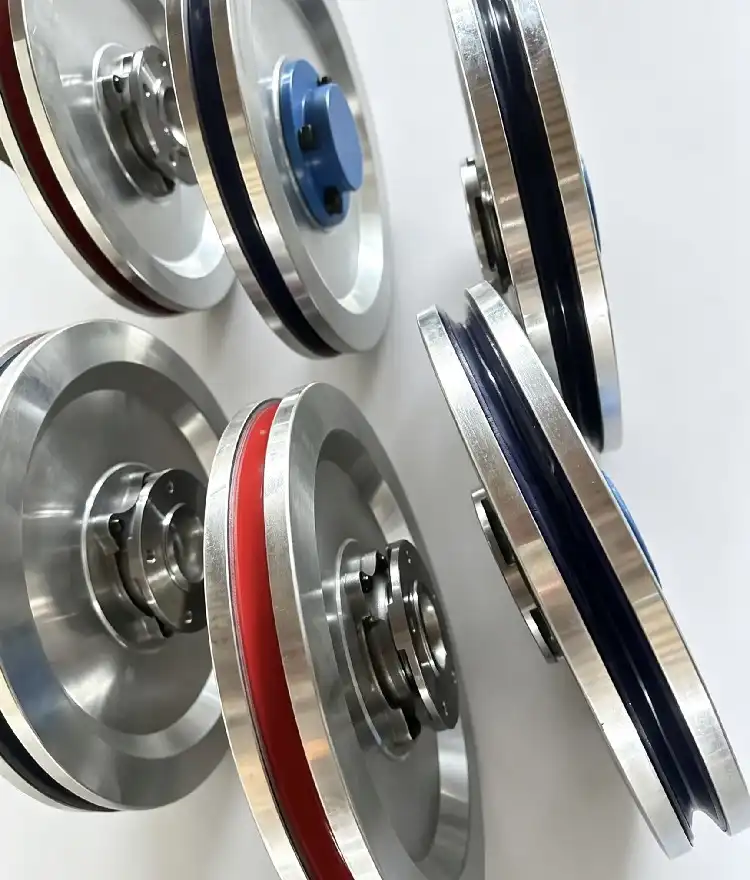

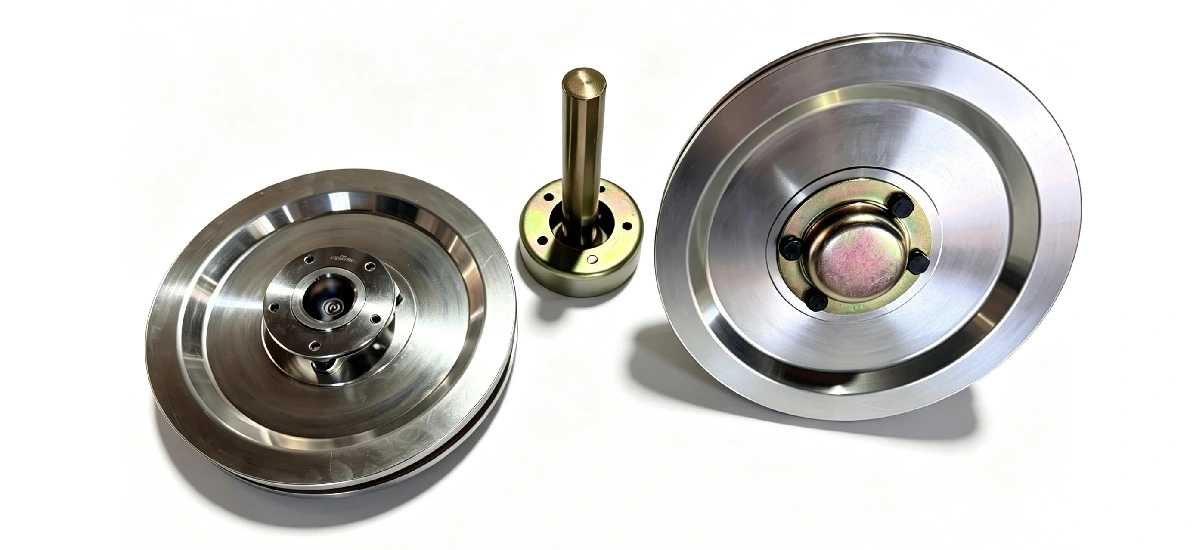

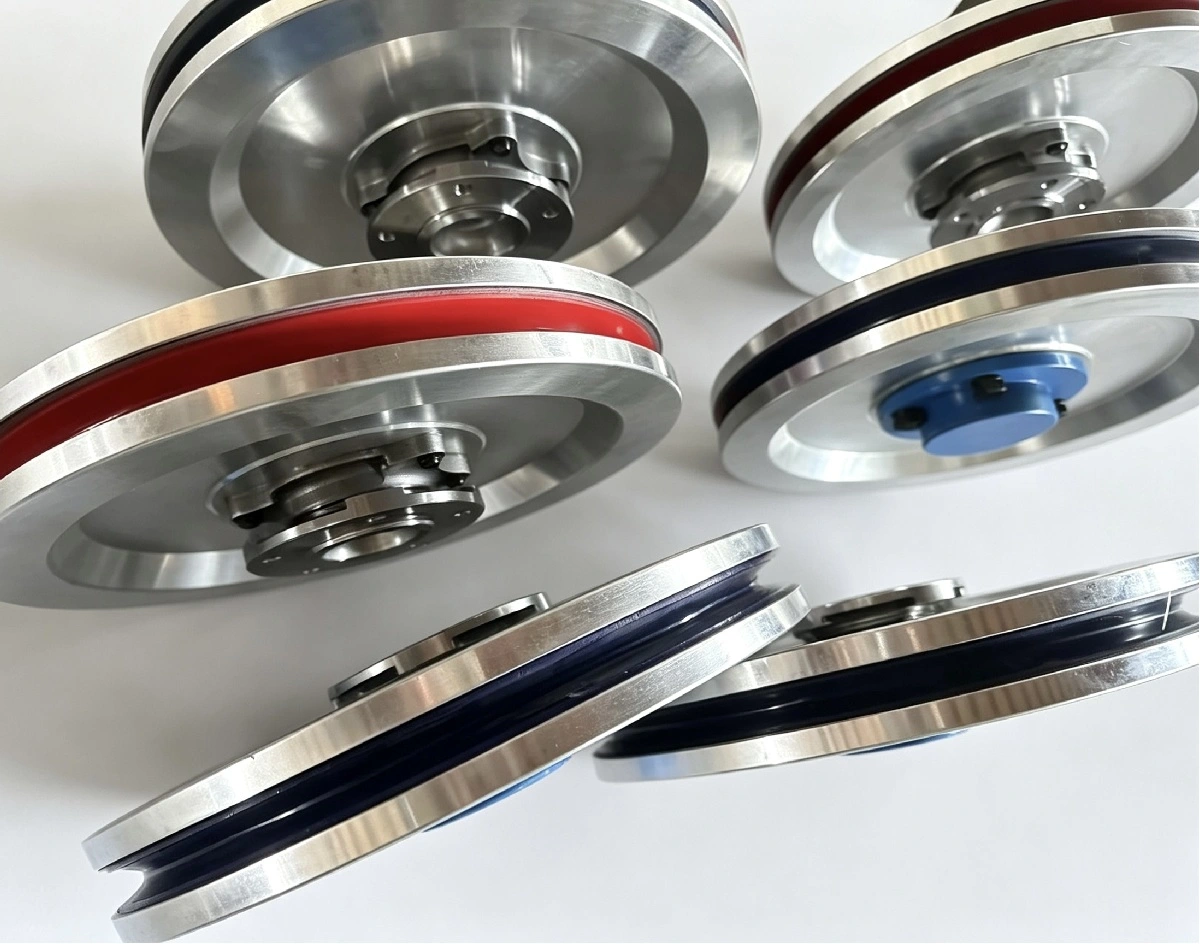

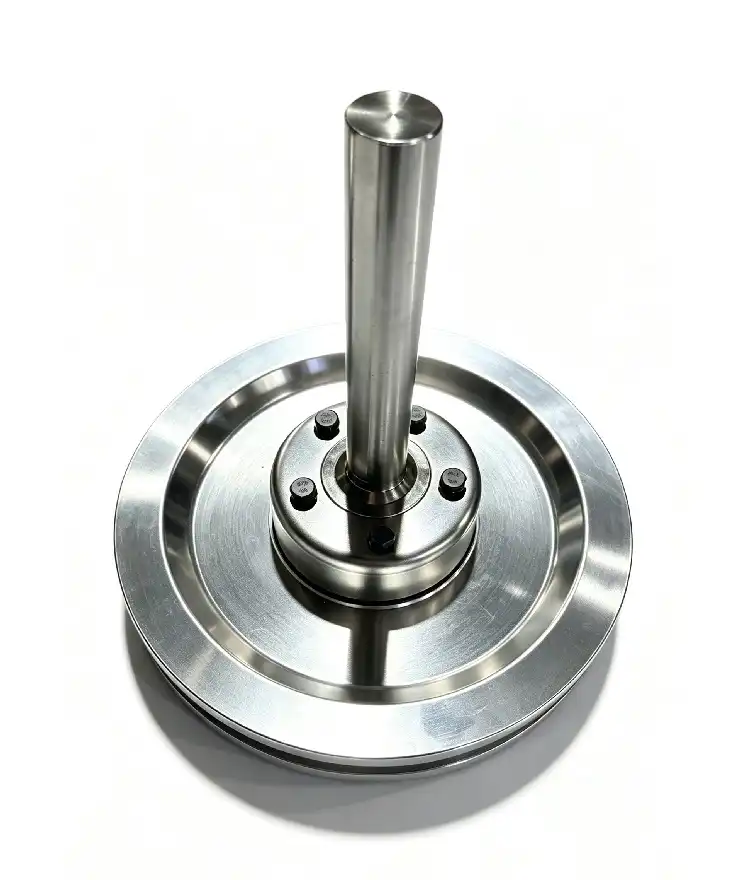

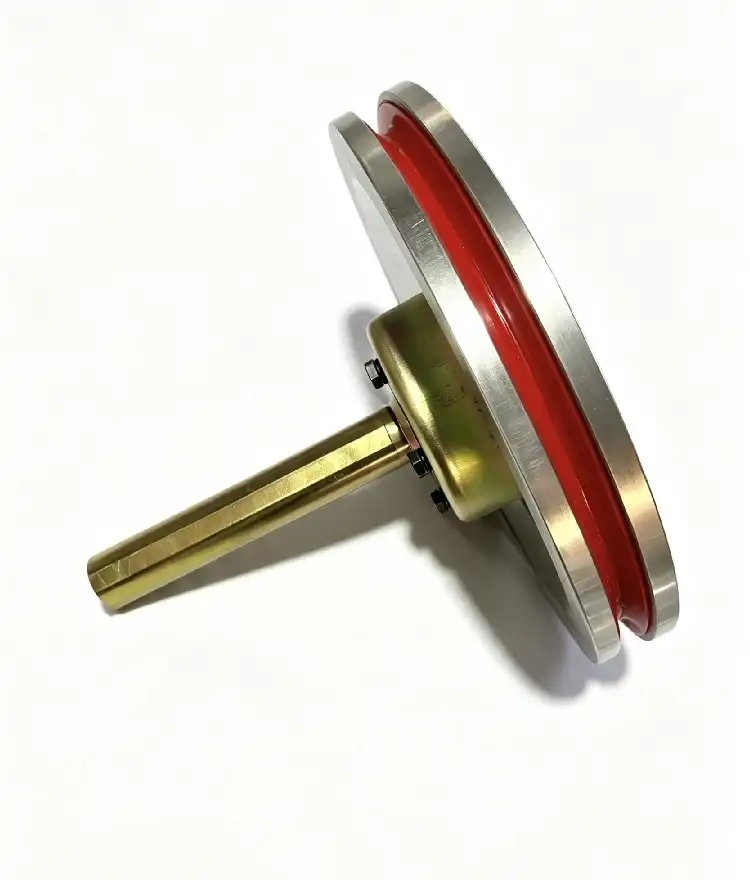

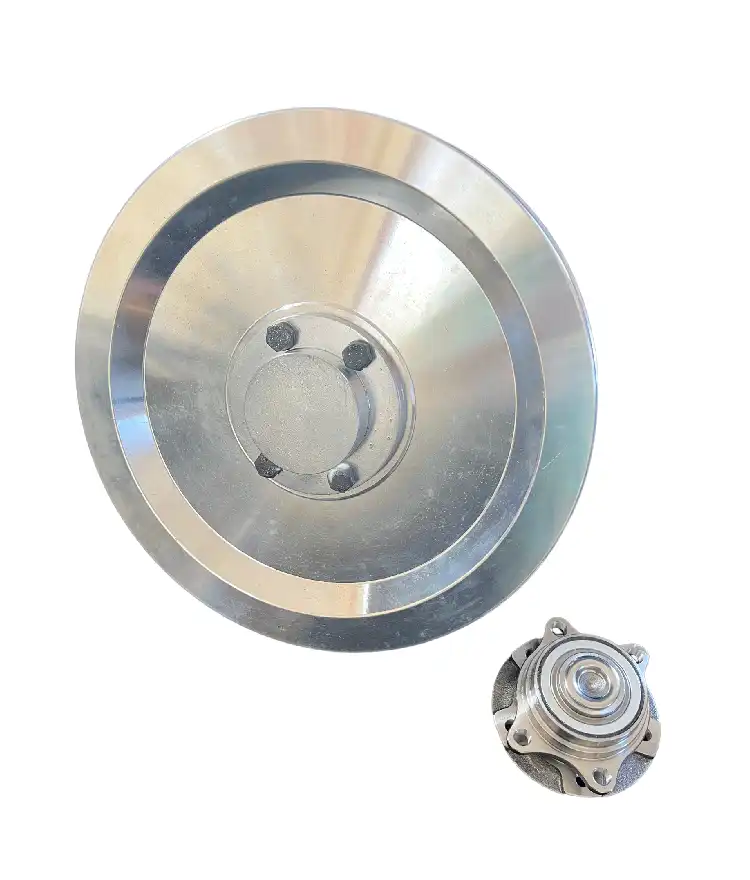

Quarry Guide Wheel – Precision Stone Cutting Components by Jinfu'en

Laizhou Jinfuen Machinery Co., Ltd. brings over 30 years of manufacturing excellence to the production of Quarry Guide Wheels, critical components for diamond wire saw systems in stone extraction. Our guide wheels feature aviation-grade aluminum alloy construction combined with wear-resistant rubber strips rated at Shore A hardness 90-95, ensuring optimal performance in abrasive quarry environments. Engineered with high-precision dynamic balancing (G2.5 standard), our wheels operate smoothly at speeds up to 40m/s while maintaining wire alignment across 50-meter cutting spans. Double-shielded heavy-duty bearings with labyrinth seals prevent slurry ingress, extending service life to 1,000-1,500 cutting hours under standard conditions. Factory-direct pricing and customized delivery within 10-30 days make Jinfu'en your reliable partner for professional quarrying operations.

Key Functions of Quarry Guide Wheels

Your wire saw system demands components that withstand extreme conditions while maintaining precision. The Quarry Guide Wheel directs diamond wire movement with minimal friction, solving critical challenges in stone quarries.

Wire vibration and misalignment cost you productivity. These specialized pulleys stabilize high-speed wire movement, preventing premature diamond bead loss. You'll experience fewer disruptions from wire snapping or wandering cuts.

The low-friction contact surface reduces energy consumption significantly. In slurry-heavy environments where standard components fail, our wheels maintain consistent performance. Your cutting operations continue reliably even under harsh abrasive exposure.

Technical Specifications

Applications Across Stone Industry Operations

Primary Bench Cutting

Large-scale granite and marble extraction requires components that endure constant slurry exposure. Your Quarry Guide Wheels maintain wire alignment through vertical and horizontal configurations. Temperature fluctuations and abrasive conditions don't compromise performance.

Stationary Block Squaring

Stone processing plants depend on geometric precision when producing slabs. Any rotation deviation creates wavy surfaces that increase your polishing costs. Our wheels ensure consistent alignment throughout the cutting cycle.

Engineering Demolition Projects

Reinforced concrete removal presents unique challenges. You need wheels that handle high shock loads and irregular tension. Our design allows safe wire wrapping around complex structures in non-quarry environments.

Quality Advantages That Protect Your Investment

We reduce your total cost of ownership through optimized engineering. The wear-resistant rubber lining extends component lifespan by 15% compared to standard industry models.

Dynamic balance testing eliminates oscillation at high RPMs. This precision protects bearing integrity and reduces maintenance frequency. You'll notice smoother operation from the first installation.

Our lining adhesion tests ensure the PU layer remains bonded under friction and heat stress. CMM verification guarantees bearing seat tolerances within microns, preventing axial play that causes premature failure.

Salt spray testing and hardness uniformity analysis verify corrosion resistance. Each wheel undergoes rotation smoothness inspection to detect micro-frictional resistance before shipping.

Why Choose Jinfu'en for Your Wire Saw Components

Direct factory supply eliminates middleman costs. You receive competitive pricing without sacrificing quality. Our transparent production process welcomes on-site inspections and live demonstrations.

Three decades of experience means we understand your operational challenges. Heavy-duty design supports continuous high-load cutting with minimal downtime. Complete product range simplifies procurement—machines, wheels, and spare parts from one trusted source.

Customized configurations match your specific cutting materials and job site conditions. Whether you work with granite, marble, or reinforced concrete, we tailor solutions to your requirements.

Global logistics integration ensures secure delivery worldwide. Industrial-grade packaging protects against transport damage. We provide full documentation support including CO and Form E certificates for smooth customs clearance.

Frequently Asked Questions

Q: Why does rubber lining wear out faster than expected?

A: Incorrect wire tension or misaligned pulley angles cause premature wear. Ensure the wire enters the groove dead-center for optimal performance.

Q: Can these wheels handle both wet and dry cutting?

A: Yes, though dry cutting requires higher heat-resistant synthetic lining to prevent thermal deformation.

Q: What factors affect bearing lifespan?

A: Proper sealing extends bearing life to 1,500 hours. Highly acidic or silty environments reduce this duration.

Q: How does wheel diameter impact diamond wire longevity?

A: Larger diameter wheels reduce bending fatigue on the steel cable, significantly extending operational life.

Q: Can I replace just the lining instead of the entire wheel?

A: Yes, many of our wheels feature replaceable rims. Re-vulcanization services offer cost-effective maintenance solutions.

Contact Jinfu'en for Professional Solutions

Better quarry operations start with reliable guide wheels. Free evaluation, cutting design—and our Quarry Guide Wheel built into every solution.

Contact Us at sales@goldfenwiresaw.com for customized quotes and expert consultation.
