Granite Mining Diamond Rope – Premium Quarry Cutting Solution

Laizhou Jinfuen Machinery Co., Ltd. delivers industrial-grade Granite Mining Diamond Rope engineered for high-efficiency hard stone extraction. Our product features a precision bead diameter of 11.0–12.0mm with 38–40 beads per meter, ensuring optimal cutting surface contact. The high-carbon steel cable core provides a minimum tensile strength of 2500 MPa, preventing breakage under extreme operating conditions. With vulcanized rubber coating for corrosion resistance and superior bead adhesion, our rope achieves 8–15 square meters cutting capacity per meter. Backed by over 30 years of manufacturing expertise, we deliver factory-direct solutions with customization available and delivery within 10–30 days for global quarrying operations.

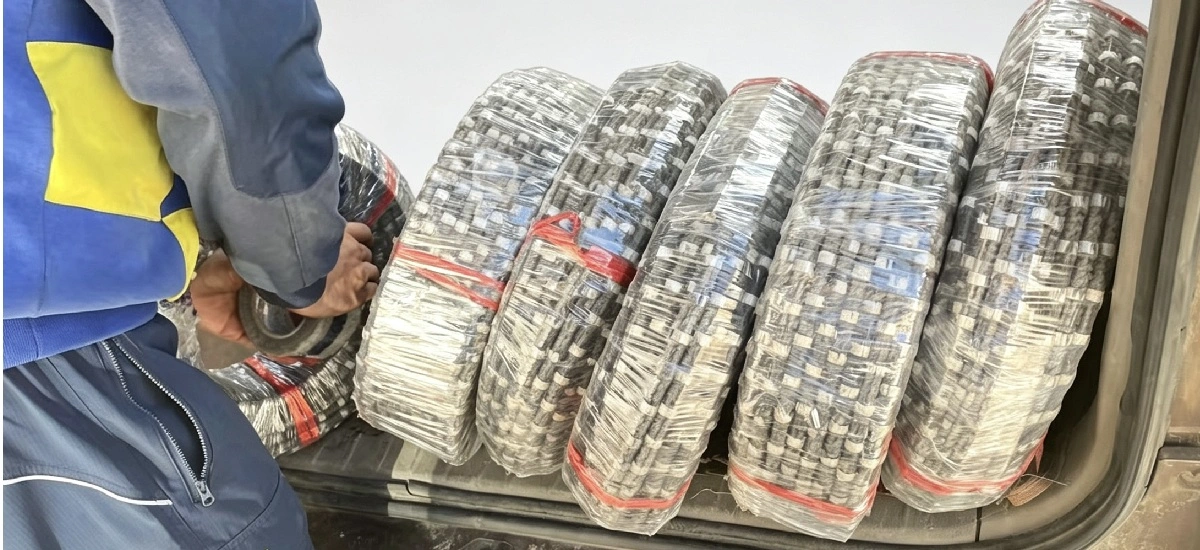

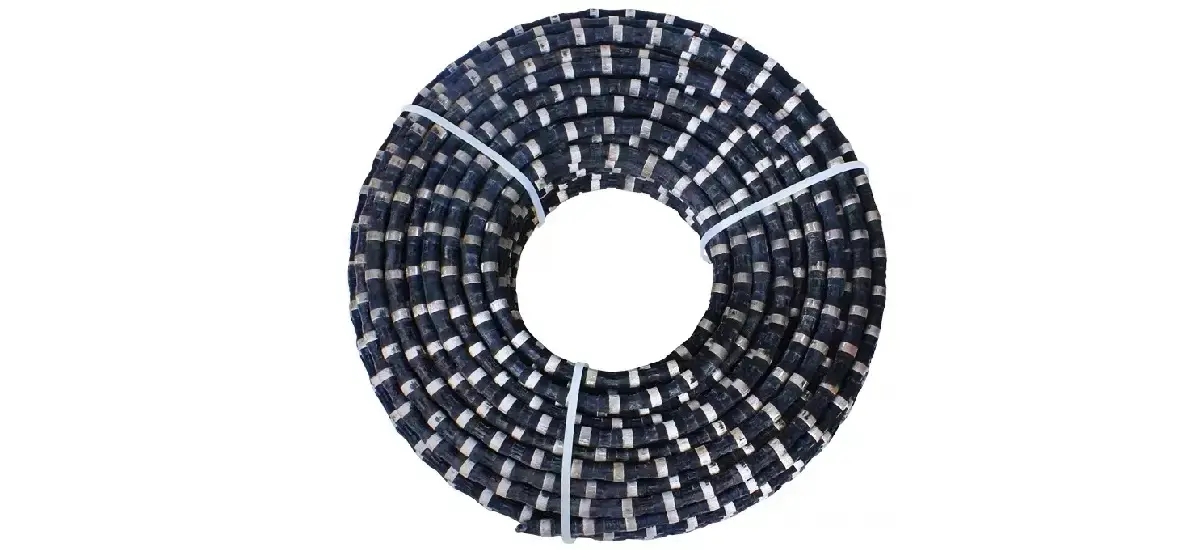

Granite Mining Diamond Rope

What Makes Our Diamond Rope Superior for Granite Extraction

Granite Mining Diamond Rope represents a precision-engineered alternative to traditional blasting methods. It eliminates material wastage and environmental hazards while delivering uniform block extraction.

The multi-strand steel cable construction withstands 18–24 ton operating tension without deformation. Diamond-impregnated beads maintain sharpness throughout extended cutting cycles.

Your quarry benefits from vibration-free mechanical separation. This preserves block integrity in formations with high quartz content and irregular fissure patterns.

Granite Mining Diamond Rope

Technical Specifications

Cutting materials	Line speed (m/s)	Cutting speed (m/s)	Wire life (squaremeter/m)
Low rigidity granite	33-37	15-20	20-40
Mid-hard granite	30-37	8-15	12-25
Hard granite	28-33	4-8	8-15
Abrasive granite	33-37	8-15	15-30

Type	Size	Reinforcement	Beads/m	Stone Hardness	Line speed	Cutting Speed	Life
Granite ore	11.5mm	Rubber+Spring	40/m	Soft Granite	20-30m/s	12-25㎡/h	20-35m²/m
				Mid-hard Granite		10-14㎡/h	12-18m²/m
				Hard Granite		8-10㎡/h	7-10m²/m
Marble mine	11.5mm	Rubber+Spring	40/m	Soft Marble	30-45m/s	8-10㎡/h	35-50m²/m
				Mid-hard Marble		7-9㎡/h	30-45m²/m
				Hard Marble		4-6m²/s	15-20m²/m
Reinforced Concrete	11.5mm	Rubber+Spring	40/m	Common	20-30m/s	1-3㎡/h	1.5-2
				Sharp type		3-4㎡/h	2.5-4

Core Application Scenarios

Large-Scale Bench Cutting

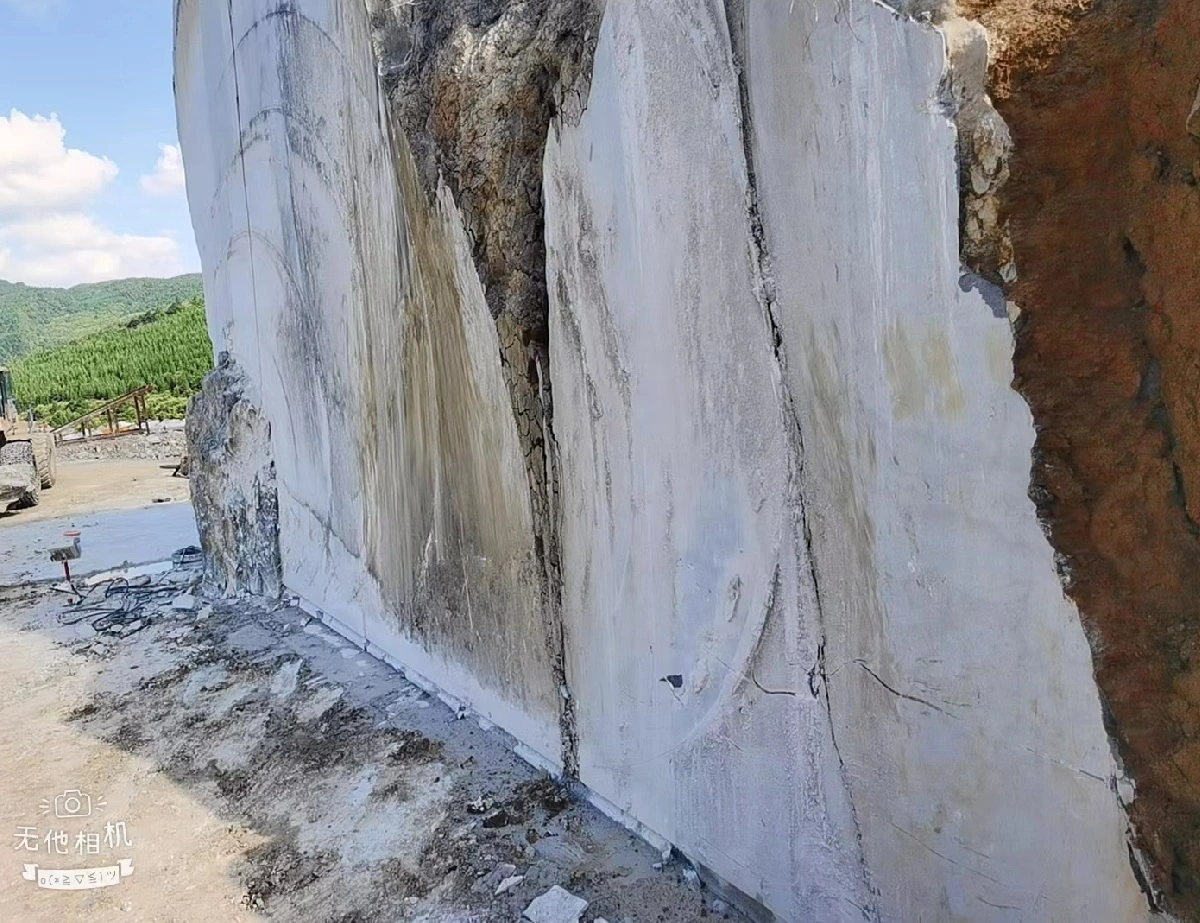

Our Granite Mining Diamond Rope performs vertical and horizontal cuts in open-pit quarries. You can isolate blocks ranging from 100 to 500 cubic meters while maintaining structural integrity.

Block Squaring Operations

After primary extraction, the rope trims irregular edges efficiently. This transforms raw material into marketable square blocks ready for transport to processing facilities.

Complex Geological Conditions

The flexible design adapts to high internal stress environments. You achieve controlled cutting paths that minimize cracking risk in deep-pit mining operations where rigid systems fail.

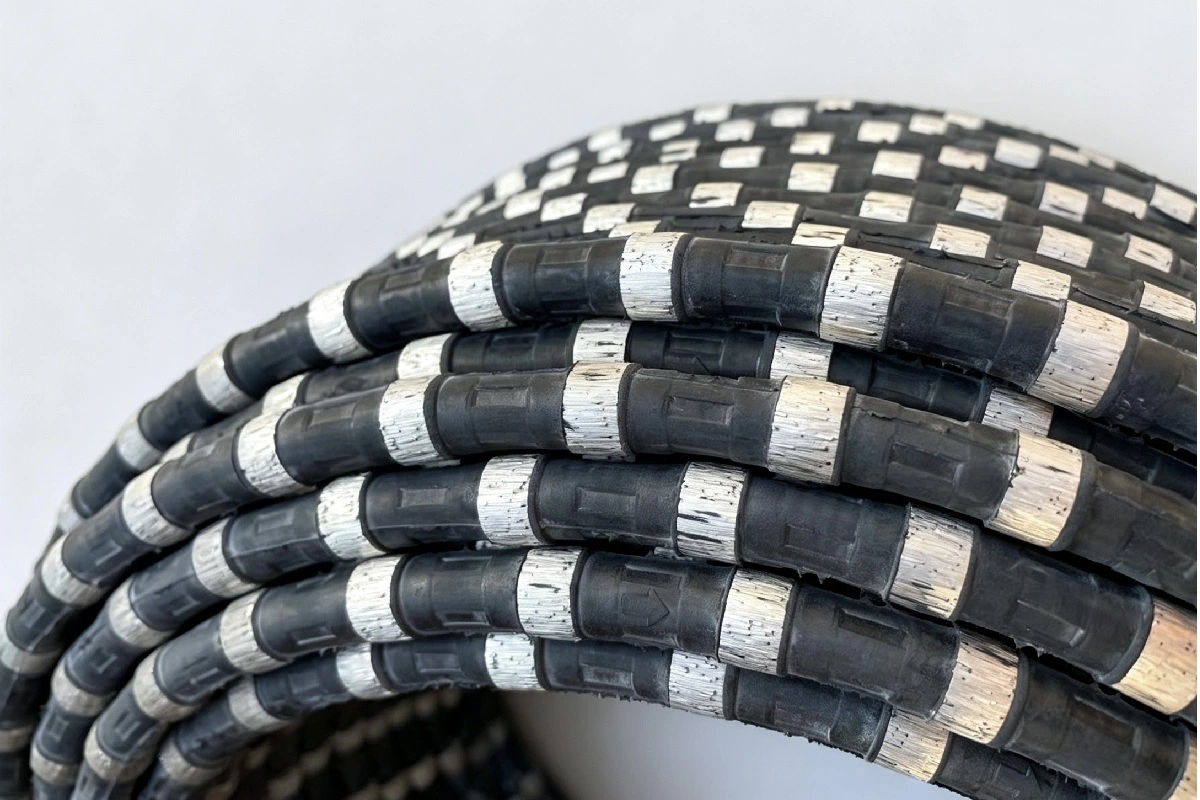

Granite Mining Diamond Rope

Why Quarry Operators Choose Our Diamond Rope

Extended Service Life

Premium synthetic diamond concentration ensures balanced sharpness and longevity. The vulcanized rubber coating protects the steel core from cooling water corrosion.

Reduced Operational Costs

Optimized bead retention minimizes consumable wear. You lower total cost of ownership by up to 15% compared to standard industry alternatives.

Consistent Performance

Every batch undergoes tensile strength verification and steel wire fatigue testing. Our ISO 9001:2015 manufacturing standards guarantee zero structural deformation during operation.

Extreme Condition Reliability

Anti-jamming design maintains stable performance in abrasive slurry environments. The rope operates efficiently across Class I-IV granite hardness levels.

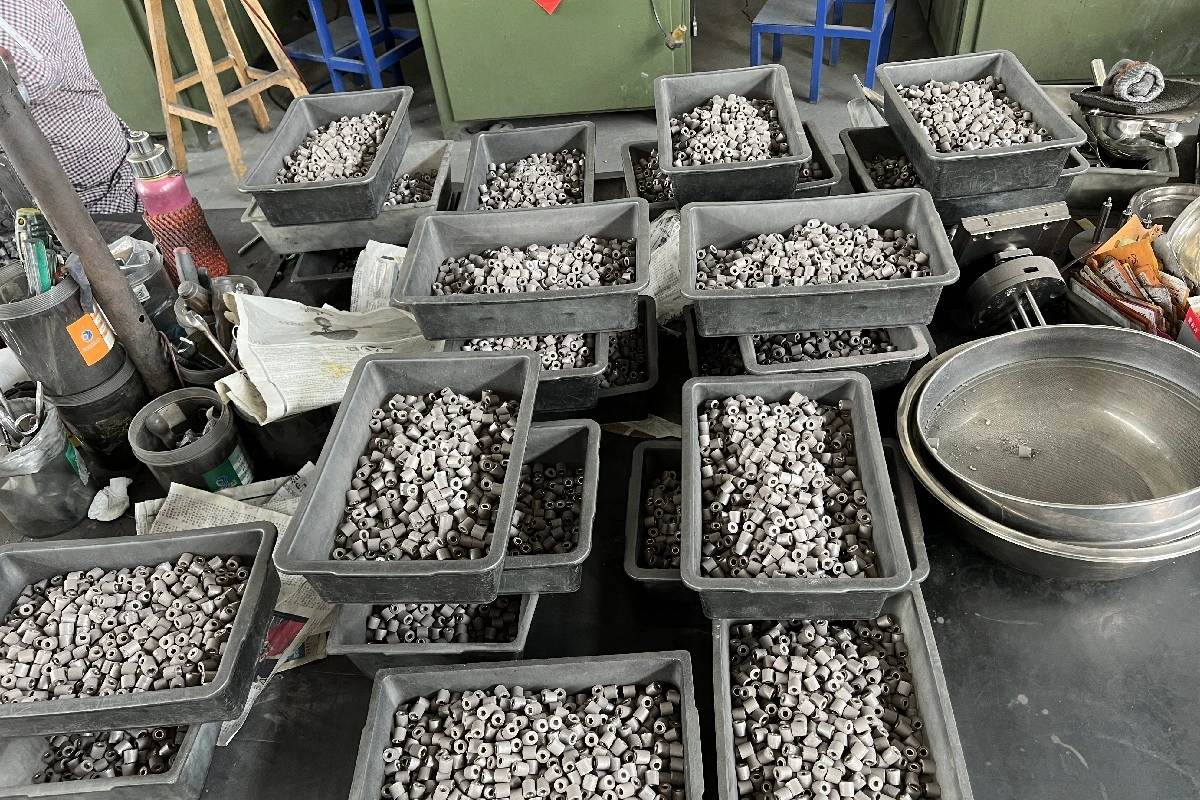

Granite Mining Diamond Rope Production Workshop

Quality Assurance Process

We implement rigorous inspection protocols at every production stage. Bead retention tests measure vulcanization bond strength to prevent bead displacement during cutting cycles.

Scanning electron microscopy verifies diamond concentration in each batch. This ensures you receive the abrasive grade specified for your quarrying requirements.

Our factory conducts simulated bending cycle tests. These identify potential failure points before the products reaches your job site.

Granite Mining Diamond Rope

Frequently Asked Questions

Q: What causes rubber coating to peel during operation?

A: Inadequate cooling water flow or excessive linear speed above 30 m/s leads to thermal degradation. Maintain recommended flow rates and operating speeds for optimal performance.

Q: How do I select the correct bead bond hardness?

A: Match bond hardness to your granite's abrasiveness level. Our technical team provides free project evaluation to recommend the ideal specification for your stone characteristics.

Q: What's the difference between rubber and plastic injection?

A: Rubber coating offers superior elasticity and protection against quarry abrasive slurry. We recommend it for granite mining applications requiring maximum durability.

Q: Why does premature bead wear occur?

A: Insufficient tension causes rope flapping during cuts. Ensure your machine maintains proper tension settings to prevent accelerated wear patterns.

Q: Can your rope handle high quartz content granite?

A: Yes. The 2500 MPa tensile strength and premium diamond concentration are specifically engineered for hard stone with elevated quartz levels.

Get Your Custom Quarry Solution

Ready to improve your granite extraction efficiency? Our technical team provides operational cost analysis and cutting solution design tailored to your quarry—all built around our Granite Mining Diamond Rope. Contact Us at sales@goldfenwiresaw.com for factory-direct pricing and product consultation today.
