Quarry Cutting Wire – Precision Stone Extraction Solution

Laizhou Jinfuen Machinery Co., Ltd. delivers factory-direct Quarry Cutting Wire engineered for high-efficiency natural stone extraction. With over 30 years of manufacturing expertise, our diamond wire saw systems feature bead densities of 28 to 40 beads per meter and core tensile strength exceeding 2000 MPa. This advanced technology reduces material waste by up to 15% compared to traditional blasting methods while maintaining cutting speeds of 20-40 m/s across granite, marble, and limestone applications. Our vulcanized rubber-coated wires ensure superior durability in abrasive quarry environments, delivering 20-60 m²/m operational lifespan with stable performance under continuous high-load conditions.

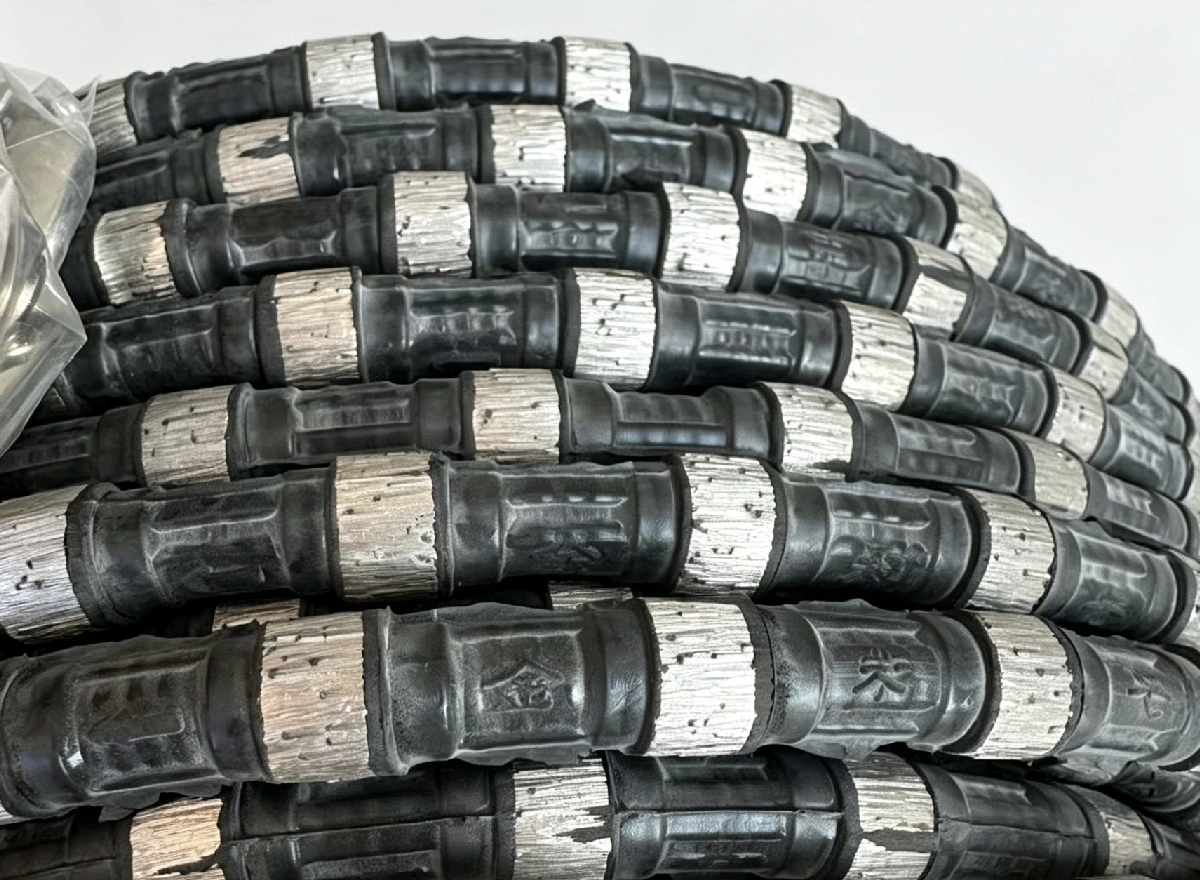

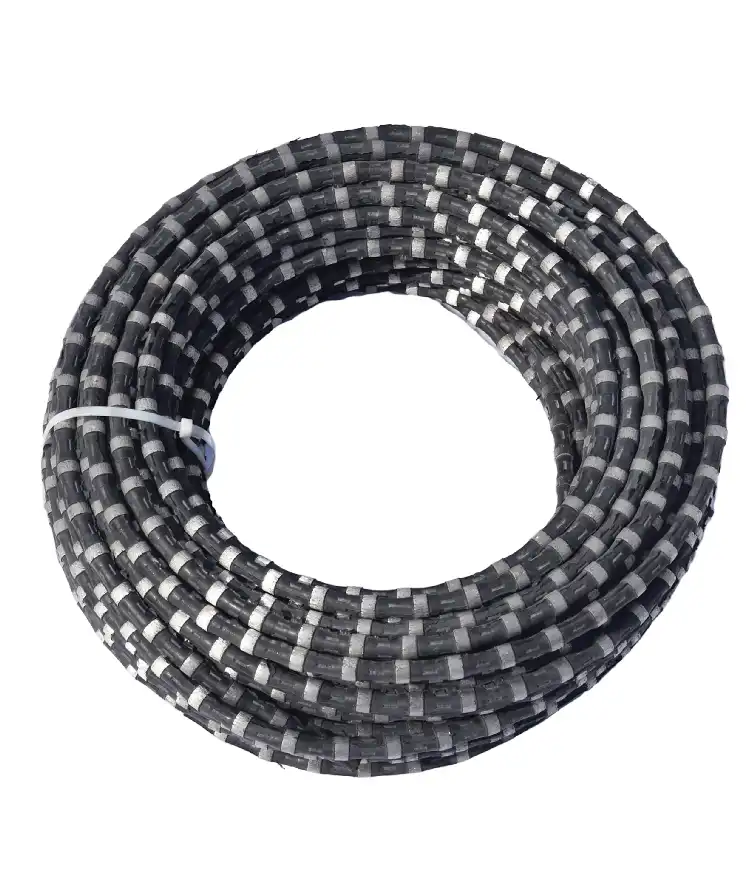

Quarry Cutting Wire

What Makes Our Quarry Cutting Wire Different

Reliable equipment that maximizes block integrity and minimizes downtime is essential to your quarry operations.

The dangers of handling explosives are eliminated by our diamond wire saw technology. You receive accurate, controlled cuts that greatly minimize kerf loss while maintaining the value of the stone.

For both vertical and horizontal cutting paths, the multi-strand steel cable architecture offers remarkable versatility. You can handle uneven geological formations without sacrificing cutting stability thanks to this versatility.

Internal corrosion and bead spinning are prevented by advanced bead fixing using vulcanized rubber covering. Even in harsh temperature fluctuations and dusty quarry conditions, your wire continues to function consistently.

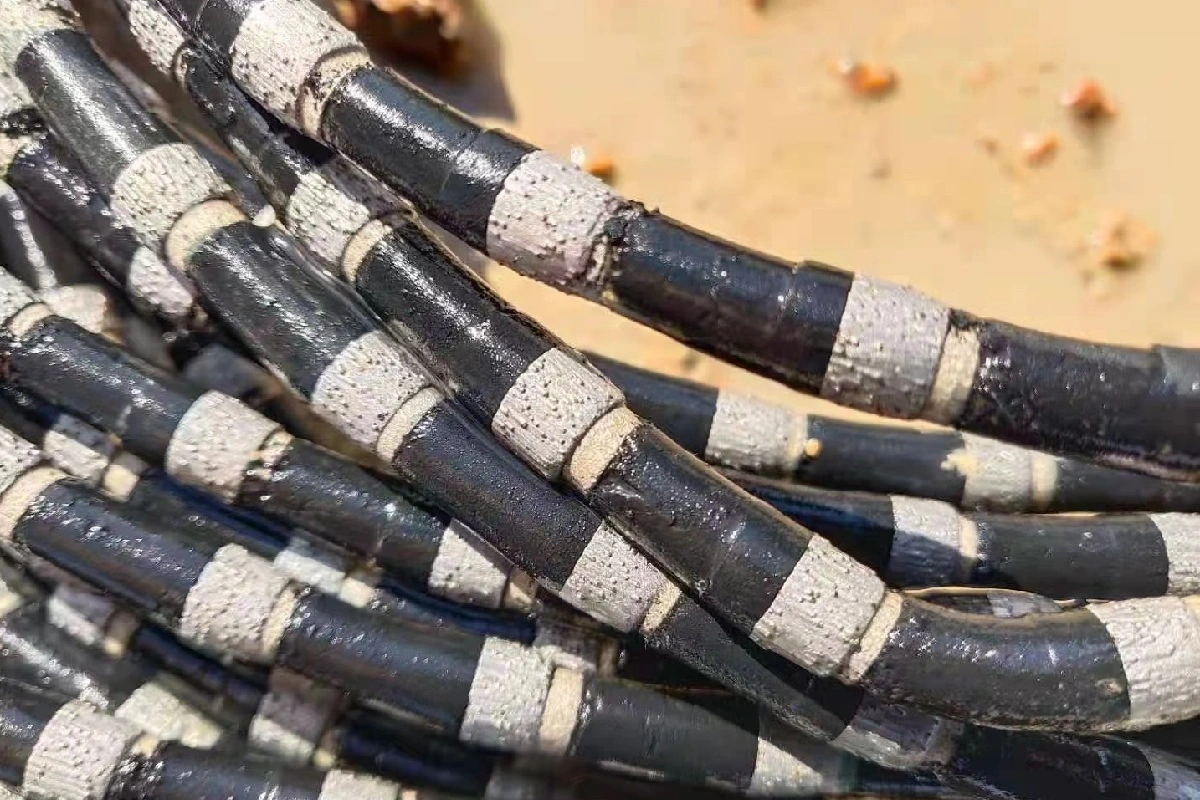

Quarry Cutting Wire

Technical Parameters

Cutting materials	Line speed (m/s)	Cutting speed (m/s)	Wire life (squaremeter/m)
Low rigidity granite	33-37	15-20	20-40
Mid-hard granite	30-37	8-15	12-25
Hard granite	28-33	4-8	8-15
Abrasive granite	33-37	8-15	15-30

Type	Size	Reinforcement	Beads/m	Stone Hardness	Line speed	Cutting Speed	Life
Granite ore	11.5mm	Rubber+Spring	40/m	Soft Granite	20-30m/s	12-25㎡/h	20-35m²/m
				Mid-hard Granite		10-14㎡/h	12-18m²/m
				Hard Granite		8-10㎡/h	7-10m²/m
Marble mine	11.5mm	Rubber+Spring	40/m	Soft Marble	30-45m/s	8-10㎡/h	35-50m²/m
				Mid-hard Marble		7-9㎡/h	30-45m²/m
				Hard Marble		4-6m²/s	15-20m²/m
Reinforced Concrete	11.5mm	Rubber+Spring	40/m	Common	20-30m/s	1-3㎡/h	1.5-2
				Sharp type		3-4㎡/h	2.5-4

Core Application Scenarios

Large-Scale Granite Extraction

Your hardest stone-cutting challenges require maximum abrasion resistance. Our vulcanized rubber wires withstand high friction and heat during deep vertical slicing operations.

Marble Block Squaring

Precision trimming demands smooth finishes without micro-fractures. Plastic-coated Quarry Cutting Wire delivers the dimensional accuracy you need for high-value decorative stone processing.

Limestone Quarrying

Consistent block separation across sedimentary formations becomes manageable. The wire's controlled cutting action reduces material stress and improves yield rates.

Complex Engineering Cuts

Bridge demolition and reinforced concrete cutting require flexible tools. Our wire wraps around irregular structures and cuts through steel reinforcement without vibration damage.

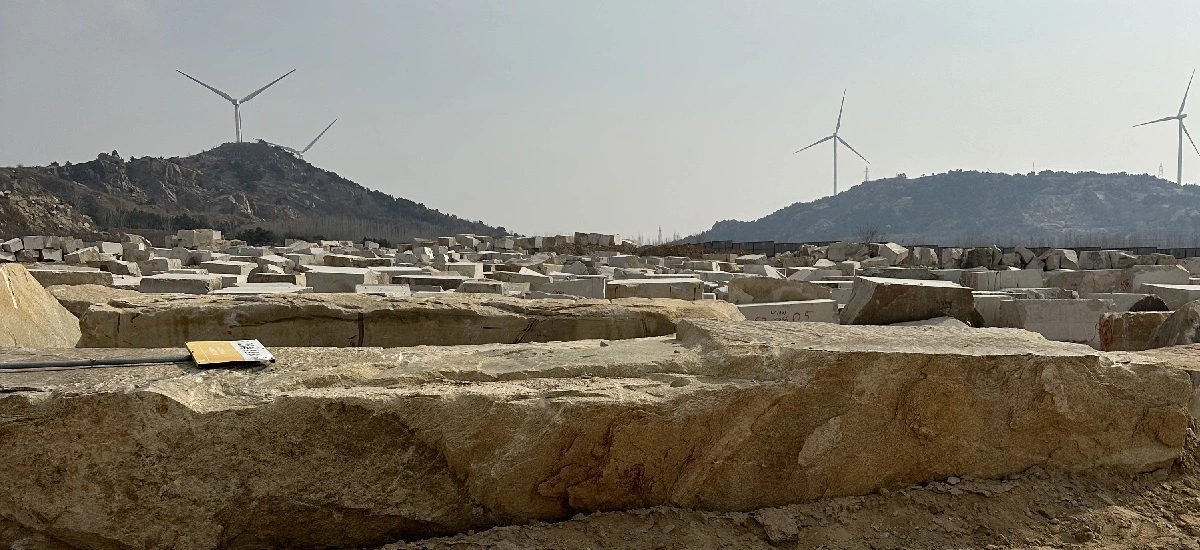

Quarry Cutting Wire

Why Choose Jinfu'en Quarry Cutting Wire

Factory-Direct Pricing

You eliminate middleman costs and access competitive rates directly from the manufacturer. Our transparent pricing structure supports better project budgeting.

Proven Durability

Three decades of engineering refinement ensure each wire meets rigorous quality standards. Your operations benefit from reduced consumable wear and lower total cost of ownership.

Complete Technical Support

Our team provides equipment selection guidance, installation assistance, and operation training. You receive ongoing support for maintenance and spare parts requirements.

Customized Solutions

Different stone types and quarry conditions need tailored approaches. We configure bead density, coating type, and wire specifications to match your specific extraction requirements.

Fast Delivery Guarantee

Standard orders ship within 10-30 days with secure export packaging. Our global logistics partnerships ensure safe delivery with complete customs documentation support.

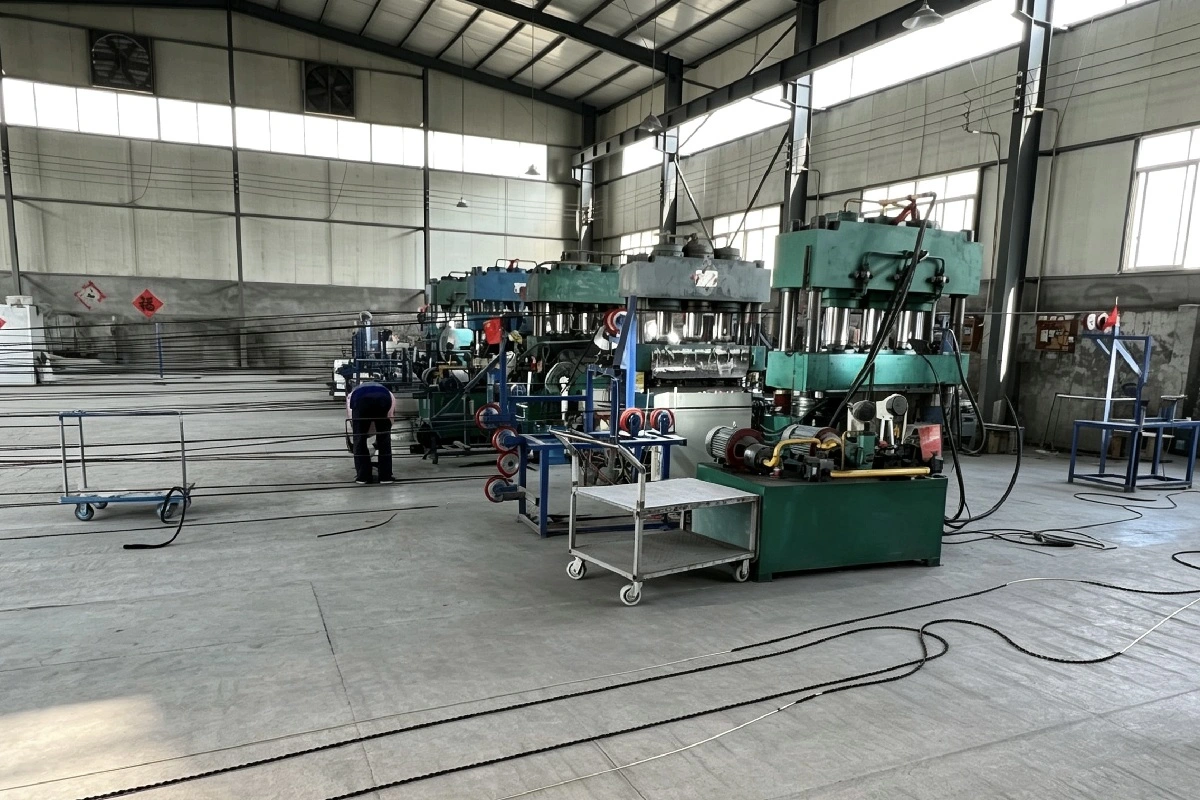

Quarry Cutting Wire Production Workshop

Frequently Asked Questions

Q: Why does the wire break prematurely?

A: Excessive tensioning, insufficient cooling water flow, or flywheel misalignment typically cause early failure. Maintaining appropriate linear speed for your stone type and checking bead condition prevents this issue.

Q: Should I use rubber or plastic coating?

A: Rubber coating is essential for granite and abrasive rocks due to superior bonding strength. Plastic coating works well for marble and softer stones where abrasive slurry is less aggressive.

Q: What is the optimal linear speed?

A: Granite cutting performs best at 22-30 m/s, while marble allows 33-40 m/s. Adjust speed based on the rock's quartz content for maximum efficiency.

Q: How do I prevent wire spinning during operation?

A: Install 1.5 to 2.0 twists per meter before closing the loop. Ensure even bead wear through proper tension and alignment maintenance.

Q: How does water quality affect cutting life?

A: Acidic or sediment-heavy water degrades bonding agents and steel cables. Use recycled, filtered water to maximize Quarry Cutting Wire lifespan and maintain consistent performance.

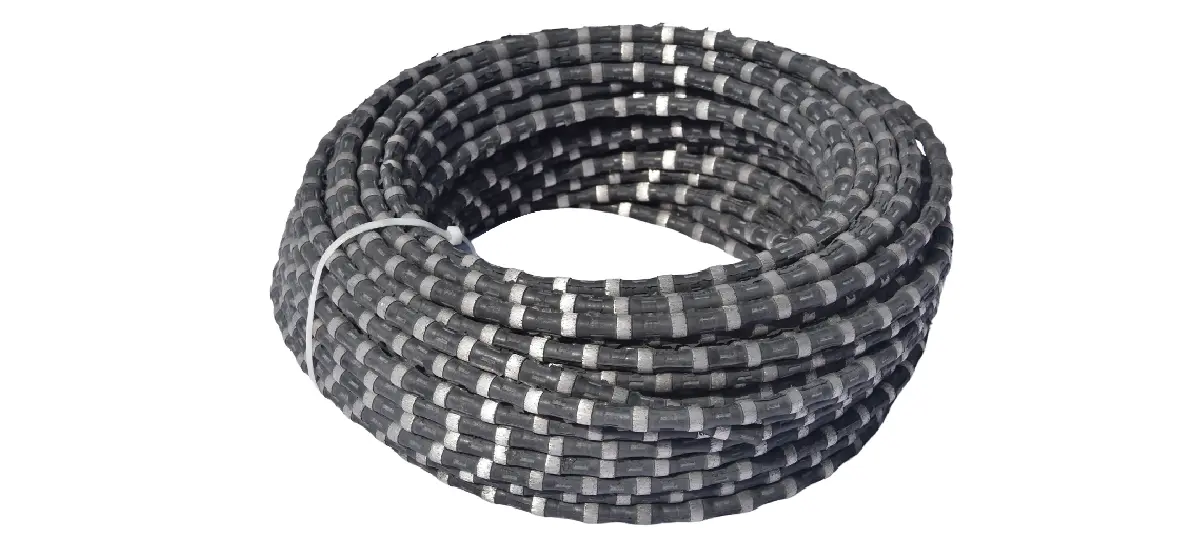

Quarry Cutting Wire

Get Your Custom Quarry Solution Today

Ready to improve your quarry productivity and stone quality? Contact our technical team at sales@goldfenwiresaw.com for personalized cutting solutions and competitive factory pricing.
