Marble Wire Saw – High-Performance Diamond Cutting Solution for Marble Quarrying

Laizhou Jinfuen Machinery Co., Ltd. brings over 30 years of manufacturing expertise to its premium Marble Wire Saw series. Our diamond wire saw for marble features advanced diamond-impregnated beads fixed on high-tensile multi-strand steel cable with vulcanized rubber injection technology. Delivers up to 15% higher cutting efficiency compared to standard industry models, with linear speeds reaching 20–40 m/s. The narrow kerf design achieves smooth surfaces while reducing material waste.. With bead diameters from 8.5mm to 11.5mm and tensile strength exceeding 2000 MPa, our wire saws ensure stable performance in demanding quarry environments. Factory-direct pricing and delivery within 10-30 days make it your ideal choice.

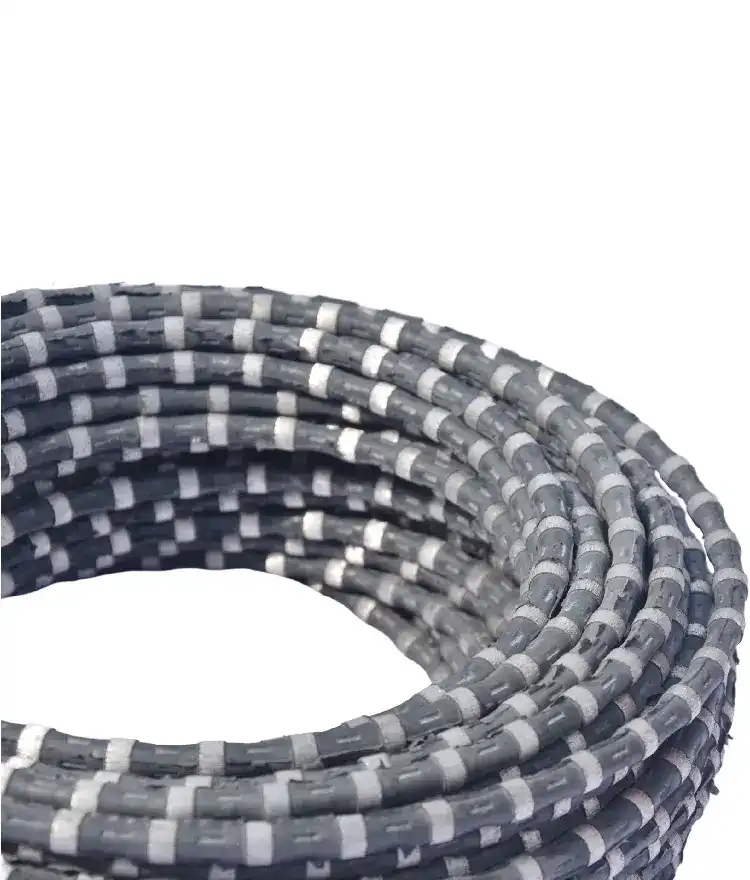

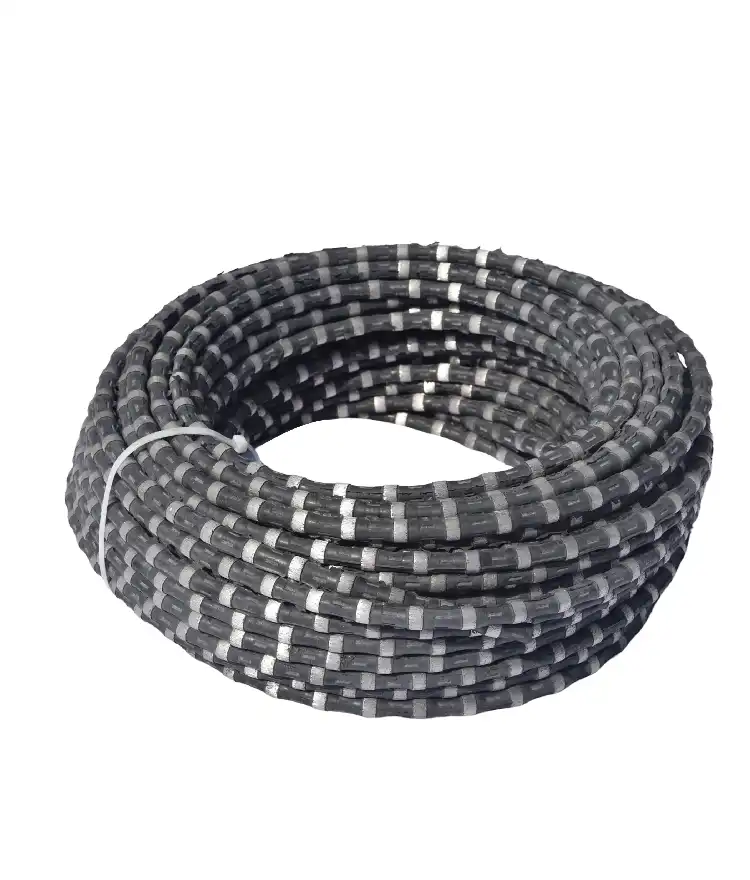

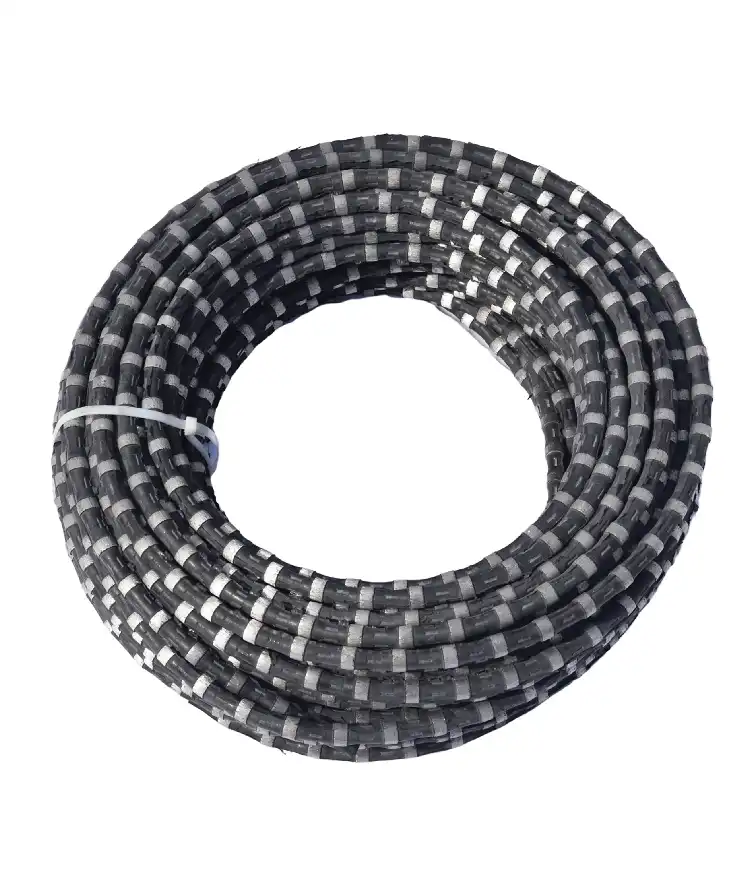

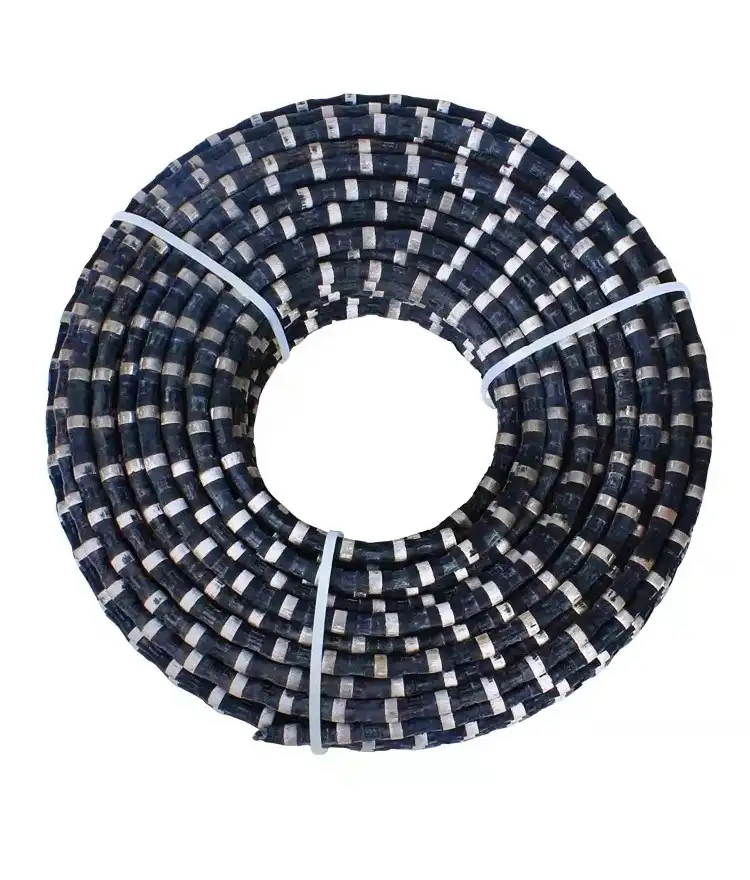

Marble Wire Saw

What Is a Marble Wire Saw?

A Marble Wire Saw represents sophisticated diamond cutting technology. It consists of a high-tensile steel cable onto which diamond beads are strategically mounted. Unlike traditional circular blades, this flexible cutting loop operates through a pulley system.

The technology solves critical industry challenges. You can execute curved or large-scale quarry cuts with precision. Material waste significantly decreases through narrow cut width design. Noise and dust levels drop dramatically compared to traditional blasting methods.

Your operations benefit from flexibility in confined or irregular spaces. The system maximizes yield of premium marble blocks. Structural integrity of remaining rock mass stays intact throughout the cutting process.

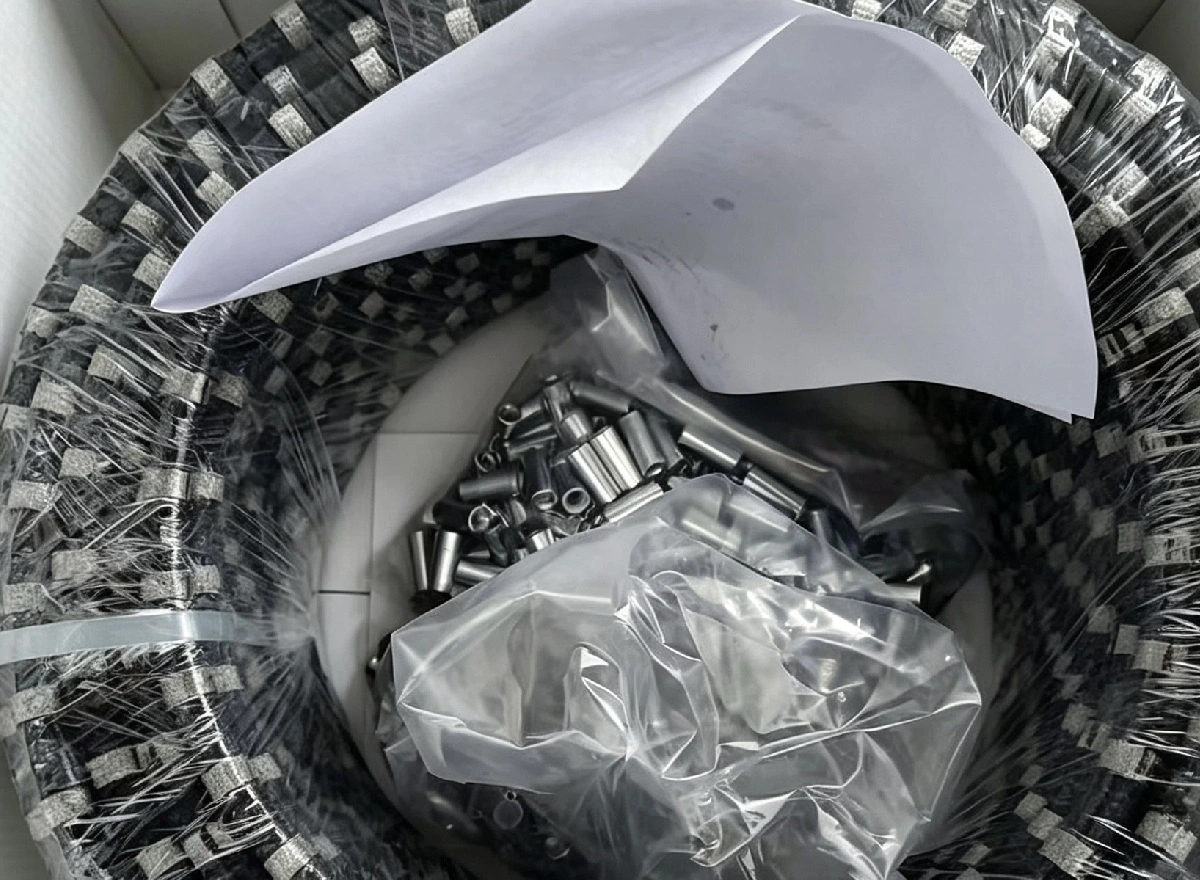

Marble Wire Saw

Technical Parameters

Cutting materials	Line speed (m/s)	Cutting speed (m/s)	Wire life (squaremeter/m)
Low rigidity granite	33-37	15-20	20-40
Mid-hard granite	30-37	8-15	12-25
Hard granite	28-33	4-8	8-15
Abrasive granite	33-37	8-15	15-30

Type	Size	Reinforcement	Beads/m	Stone Hardness	Line speed	Cutting Speed	Life
Granite ore	11.5mm	Rubber+Spring	40/m	Soft Granite	20-30m/s	12-25㎡/h	20-35m²/m
				Mid-hard Granite		10-14㎡/h	12-18m²/m
				Hard Granite		8-10㎡/h	7-10m²/m
Marble mine	11.5mm	Rubber+Spring	40/m	Soft Marble	30-45m/s	8-10㎡/h	35-50m²/m
				Mid-hard Marble		7-9㎡/h	30-45m²/m
				Hard Marble		4-6m²/s	15-20m²/m
Reinforced Concrete	11.5mm	Rubber+Spring	40/m	Common	20-30m/s	1-3㎡/h	1.5-2
				Sharp type		3-4㎡/h	2.5-4

Key Product Advantages

Fast Cutting with High Efficiency

Our proprietary diamond bead configuration accelerates cutting speed. You complete projects faster while maintaining superior surface quality.

Minimal Material Loss

The narrow kerf design preserves valuable marble. Your yield increases significantly compared to traditional cutting methods.

Stable Performance Under Pressure

Premium diamond beads and optimized rubber coating ensure consistent performance. Low vibration levels protect both equipment and material integrity.

Extended Service Life

High-grade materials and precise manufacturing reduce wear rates. You lower total cost of ownership through fewer consumable replacements.

Versatile Application Range

Our wire saws adapt to various marble hardness levels. They perform reliably across different quarry conditions and machine configurations.

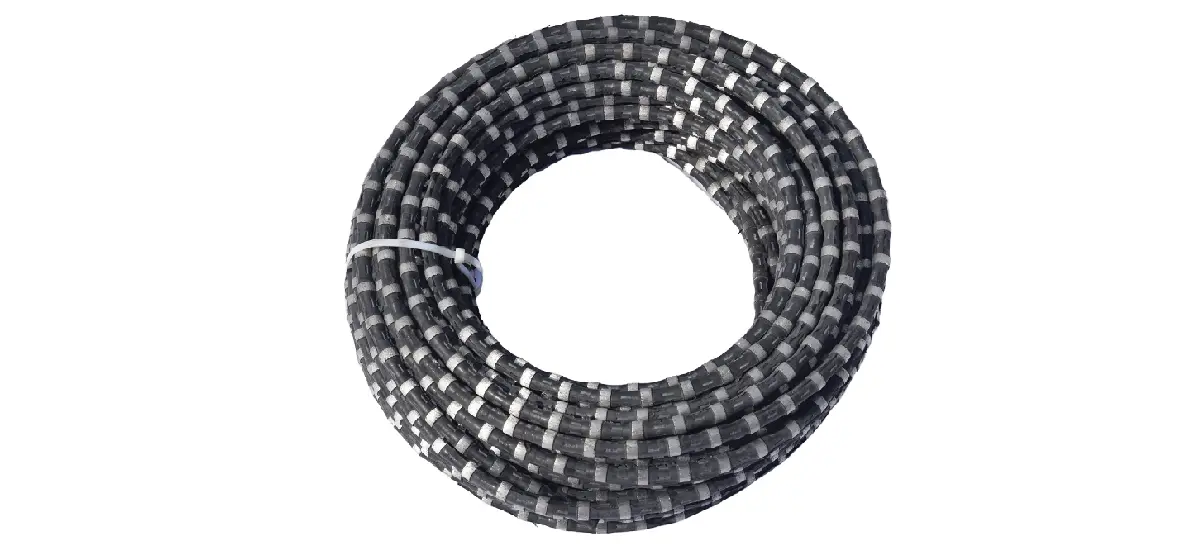

Marble Wire Saw

Primary Application Scenarios

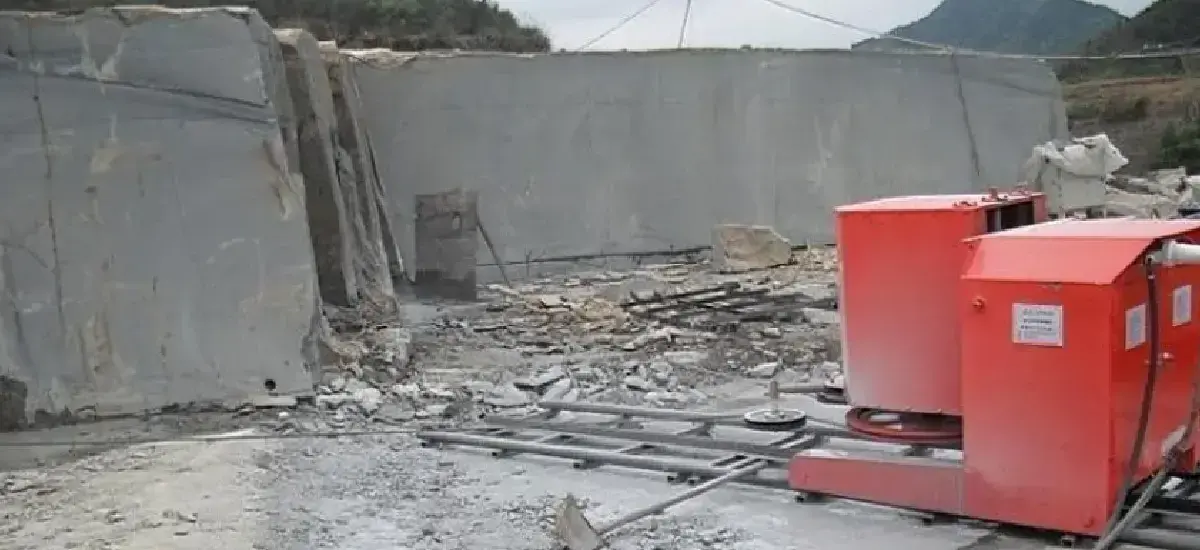

Bench Quarrying Operations

In large-scale marble quarries, you can execute vertical and horizontal bench slicing. The wire maintains straight cutting paths exceeding 50 meters despite geological variations.

Block Squaring and Profiling

Processing plants use stationary wire saws for refining raw blocks. You create symmetrical cubes or complex architectural shapes with high surface finish precision. Subsequent polishing time decreases significantly.

Controlled Demolition Projects

Urban civil engineering projects require vibration-free cutting. The wire saw removes large marble structures safely in noise-sensitive areas. Wet-cutting capability enables low-clearance scenario operations.

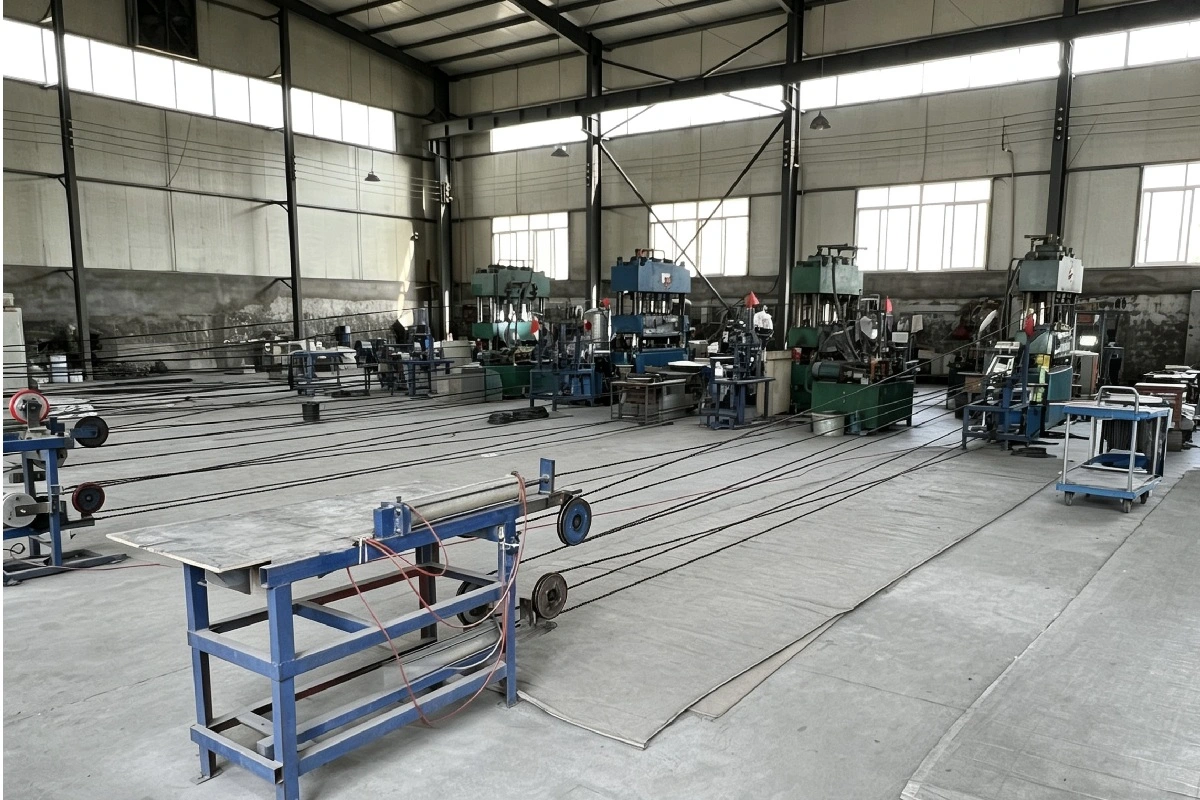

Marble Wire Saw Production Workshop

Quality Control Standards

We implement rigorous four-domain inspection protocols. Bead pull-off testing ensures secure bonding that prevents bead detachment during operation. Concentricity checks maintain diameter tolerance within ±0.05mm for uniform wear patterns.

Our rubber aging tests simulate UV exposure and cooling lubricant contact. This process verifies coating durability against embrittlement and peeling. Steel cable fatigue resistance undergoes cyclic loading verification.

Every wire receives 100% visual inspection of injection gaps. This prevents moisture penetration that could cause internal corrosion. You receive products engineered for high-tension operation safety.

Frequently Asked Questions

Q: Why does wire experience uneven bead wear?

A: This typically results from insufficient wire rotation on its longitudinal axis. Check drive pulley alignment and ensure proper pre-twisting before joining (1.5-3 twists per meter).

Q: What causes cutting speed drops with rising motor current?

A: Diamond crystals likely became worn or glazed. Run the wire briefly on abrasive material like sandstone to expose fresh diamonds.

Q: Should I choose rubber or plastic coating?

A: Rubber suits quarrying better due to superior flexibility and bead protection under high tension. Plastic offers cost advantages for stationary profiling of softer marble.

Q: What water flow rate do you recommend?

A: Maintain 25-40 liters per minute for standard marble. Insufficient water causes rubber melting and bead glazing due to inadequate heat dissipation.

Q: What causes cable snapping at joints?

A: Improper crimping of copper/steel sleeves or excessive tension beyond elastic limits causes this. Always use calibrated hydraulic crimpers for specific sleeve diameters.

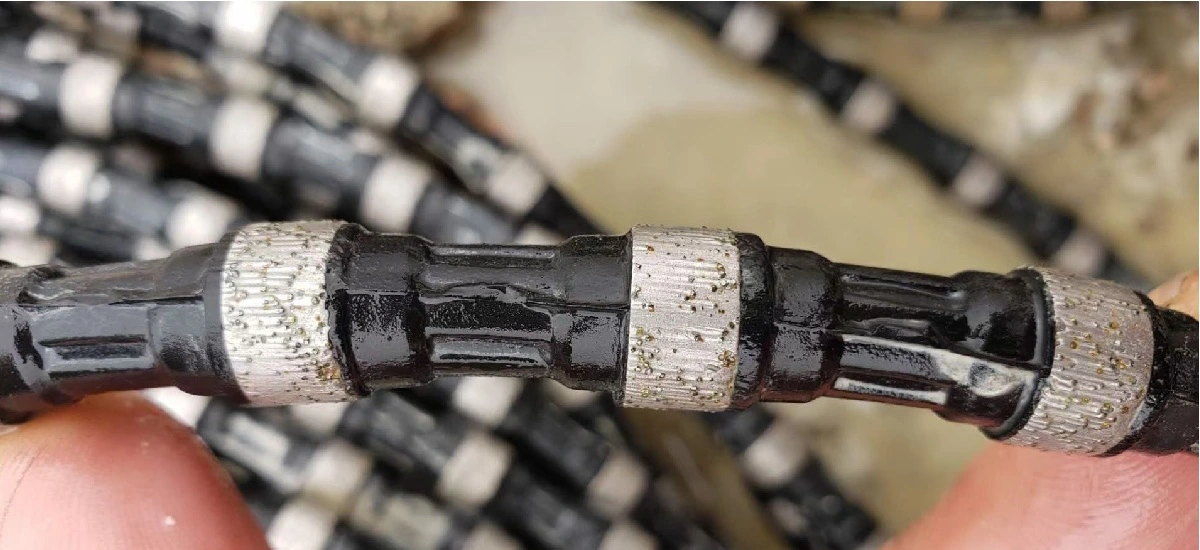

Marble Wire Saw

Why Choose Jinfuen Marble Wire Saw

You gain direct access to factory pricing without intermediary costs. Our three decades of manufacturing experience ensure stable quality and reliable performance. Complete product range coverage means one-stop supply for machines, wheels, and spare parts.

We provide customized solutions based on your specific cutting materials and site conditions. Professional technical support covers equipment selection, installation guidance, and operation training. Global export experience and comprehensive documentation assistance ensure smooth project execution.

Contact Us for Expert Solutions

Ready to cut marble better? Free evaluation, custom design—with our Marble Wire Saw in every solution.Contact Us today at sales@goldfenwiresaw.com for competitive quotations and professional ROI analysis tailored to your requirements.
