Guide Pulley

Guide Pulley for Wire Saw Machines – Precision Control for Professional Cutting

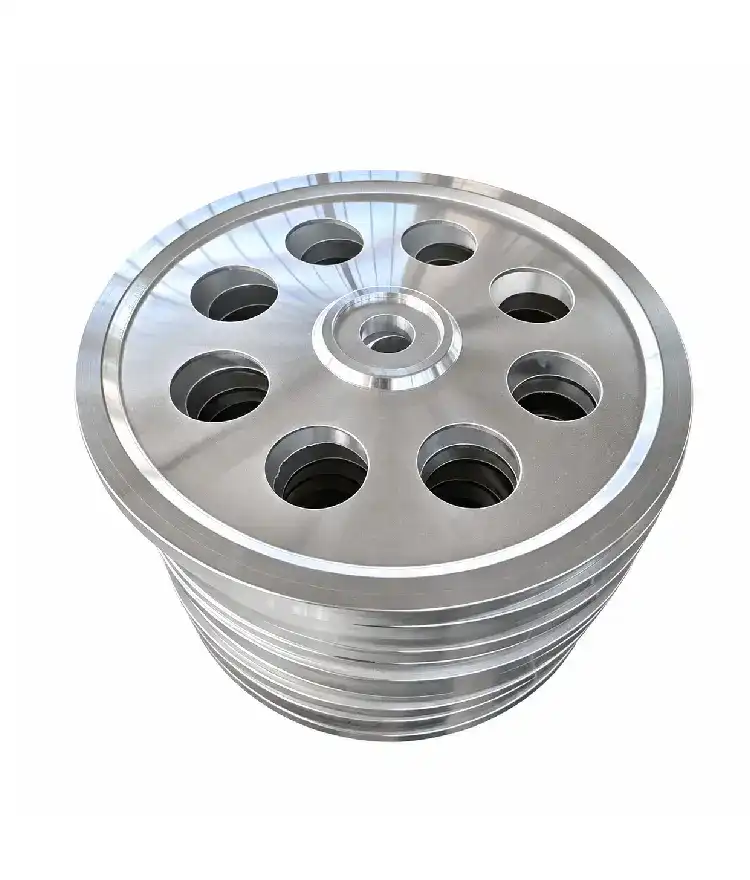

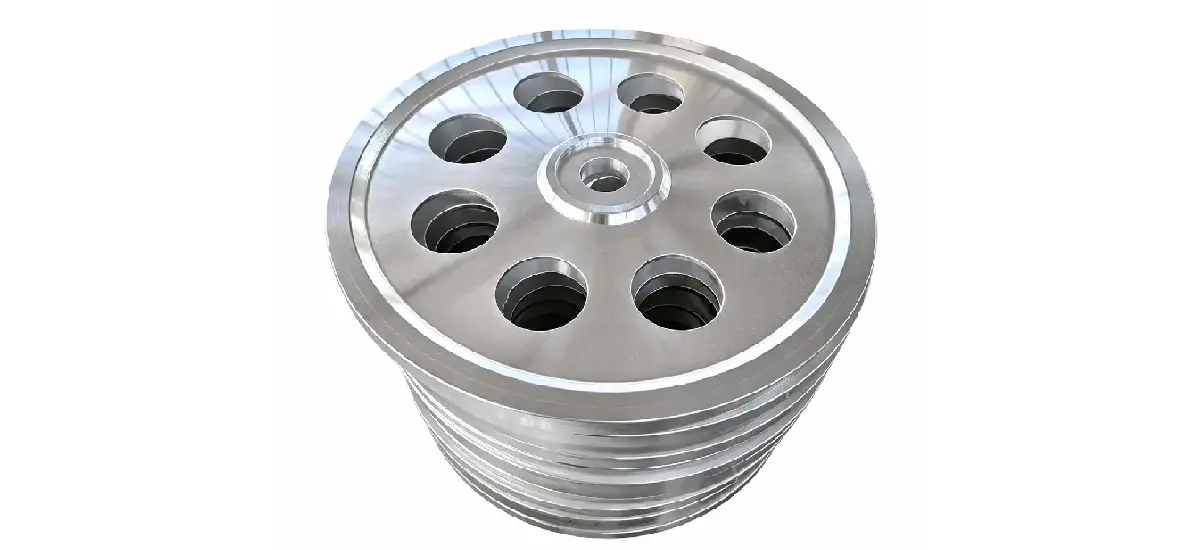

Laizhou Jinfuen Machinery Co., Ltd. offers factory-direct Guide Pulley solutions engineered for CNC wire saw machines and professional stone cutting equipment. Our products, which have been manufactured for more than 30 years, have quality rubber coatings and aluminum alloy construction that can minimize vibration by up to 15% when in use. Each device, which comes in 200mm and 250mm diameter specifications, is put through rigorous quality check to guarantee reliable wire routing performance. While preserving endurance under continual heavy-duty situations, the lightweight design makes installation simple. Our pulley systems' optimum D/d ratios, which range from 20:1 to 40:1, reduce bending stress and increase the lifespan of diamond wire in engineering and quarrying applications.

Technical Specifications

Why Choose Our Guide Pulley System

Your cutting precision depends on stable wire control. Our pulley design prevents common issues like wire jumping and trajectory deviation during high-tension operations.

The rubber coating surface maximizes contact area with the diamond wire. This reduces slipping and heat generation that typically damages expensive consumables. You'll notice smoother wire movement and lower replacement frequency.

The aluminum alloy body balances strength with weight reduction. Your operators can install or replace units quickly without heavy lifting equipment, reducing downtime during maintenance schedules.

Our manufacturing process controls surface finish to maintain Ra values between 0.8-1.6. This smoothness directly extends your diamond wire's service life by minimizing friction-induced wear during continuous cutting cycles.

Application Scenarios

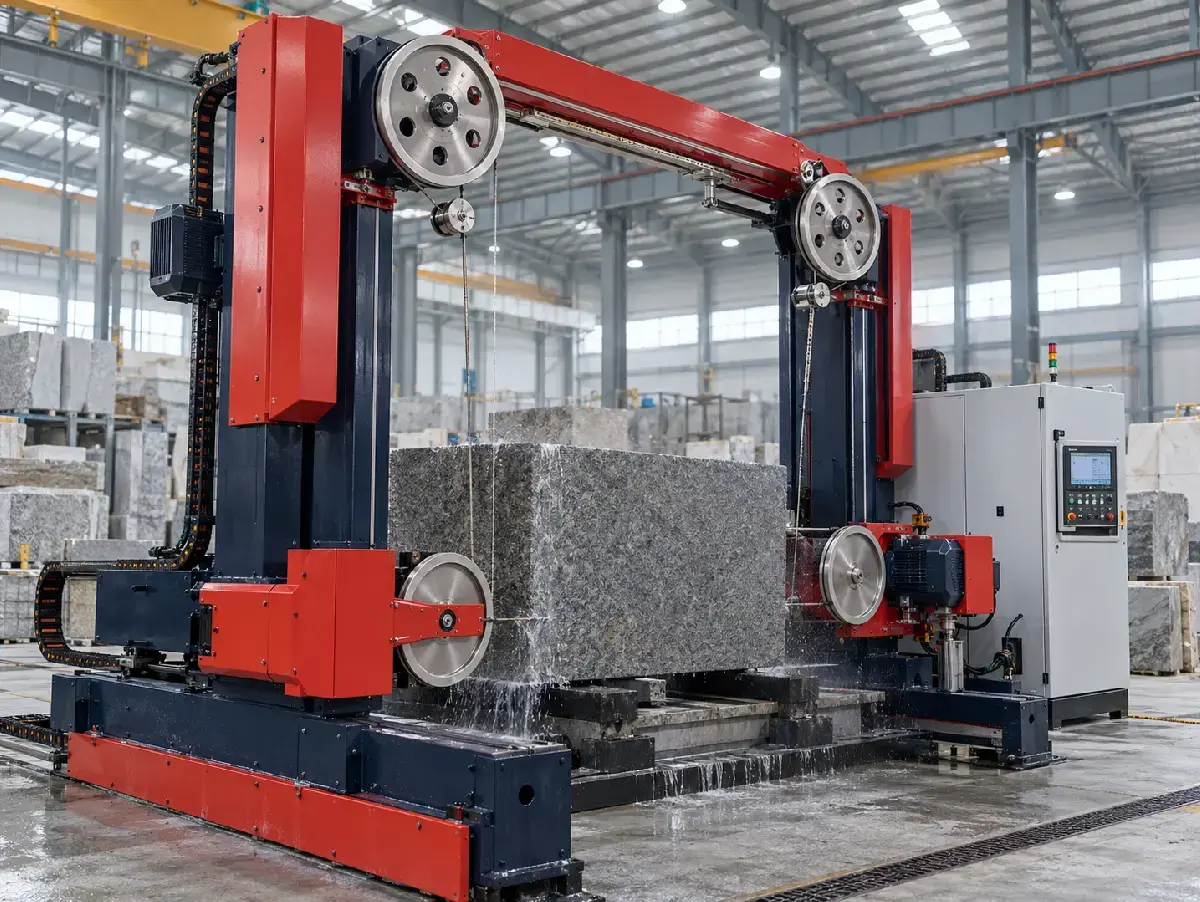

Stone Quarry Operations

Guide pulleys maintain wire stability during deep vertical cuts in granite and marble blocks. The anti-vibration design keeps cutting lines straight even when exposed to abrasive slurry environments.

Bridge and Building Demolition

In reinforced concrete cutting projects, our pulleys guide the wire through heavy-duty materials. The robust construction withstands impact loads from irregular cutting surfaces.

CNC Stone Processing

Precision stone shaping requires exact wire positioning. Our products systems provide the repeatability needed for complex curved cuts and dimensional accuracy in slab production.

Wire Drawing Equipment

Industrial wire manufacturing lines use our pulleys to direct fine metallic wires at high speeds. The ceramic coating option offers enhanced abrasion resistance for extended operational periods.

Performance Advantages You'll Experience

Reduced Total Cost of Ownership

Lower vibration means fewer wire breaks. You'll spend less on replacement consumables and reduce machine downtime caused by wire failures during critical cutting phases.

Improved Cutting Efficiency

Stable wire routing translates to consistent cutting speed. Your projects complete faster with cleaner kerf lines that require minimal secondary finishing work.

Extreme Environment Adaptability

Whether in outdoor quarries with temperature fluctuations or dusty demolition sites, the sealed bearing design prevents contamination. Your equipment maintains performance across varied working conditions.

Easy Maintenance Protocol

Simple bolt-on installation design allows your maintenance team to replace worn pulleys in under 10 minutes. No specialized tools or extensive training required for standard servicing.

Frequently Asked Questions

Q1: How often should I replace the products?

A: Inspect the rubber coating every 500 operating hours. Replace when groove depth exceeds 2mm or visible cracking appears on the surface.

Q2: Can these pulleys work with different wire diameters?

A: Our standard U-groove design accommodates 10.5mm to 11.5mm Diamond Wires. Custom groove specifications are available for specialized applications.

Q3: What causes excessive pulley heating during operation?

A: Check wire tension settings and alignment. Overheating typically results from misalignment or insufficient lubrication at bearing points.

Q4: Do you provide installation guidance?

A: Yes. Each shipment includes detailed mounting instructions. Our technical team offers remote support for setup and troubleshooting.

Q5: Are these pulleys compatible with competitor machines?

A: Most standard wire saw machines accept our mounting configuration. Send us your equipment model number for compatibility verification before ordering.

Order Direct From the Factory

Eliminate middleman costs and get competitive pricing on quality wire saw components—including custom-specification Guide Pulley solutions tailored to your cutting requirements and machine configurations.

Contact our sales team at sales@goldfenwiresaw.com for technical consultation, quotation, or sample requests. Let's optimize your cutting performance together.
