Diamond Wire Pulley – Precision Engineered for Industrial Wire Saw Systems

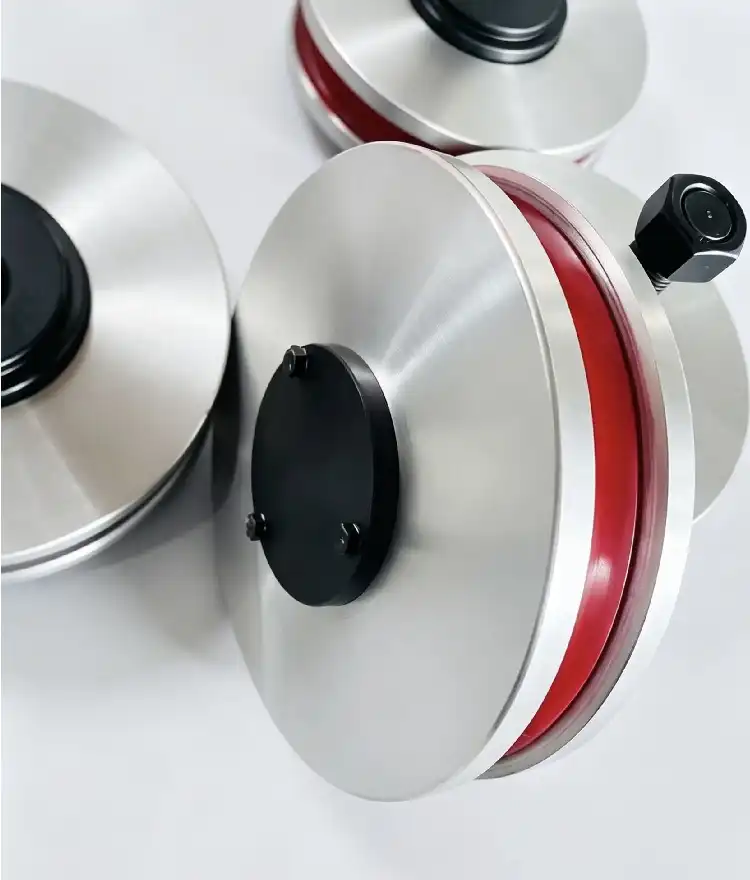

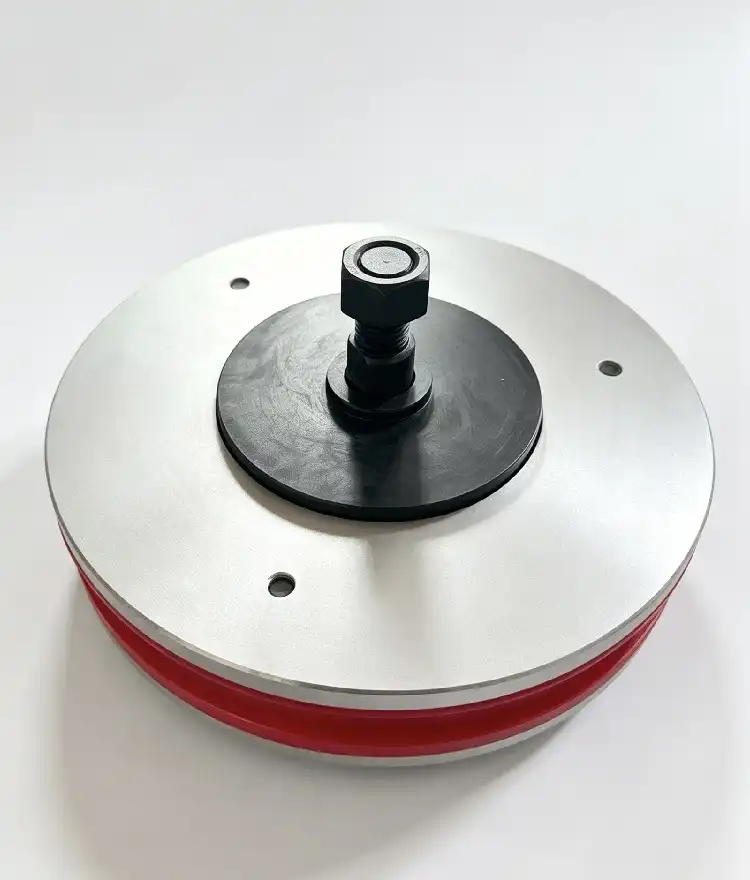

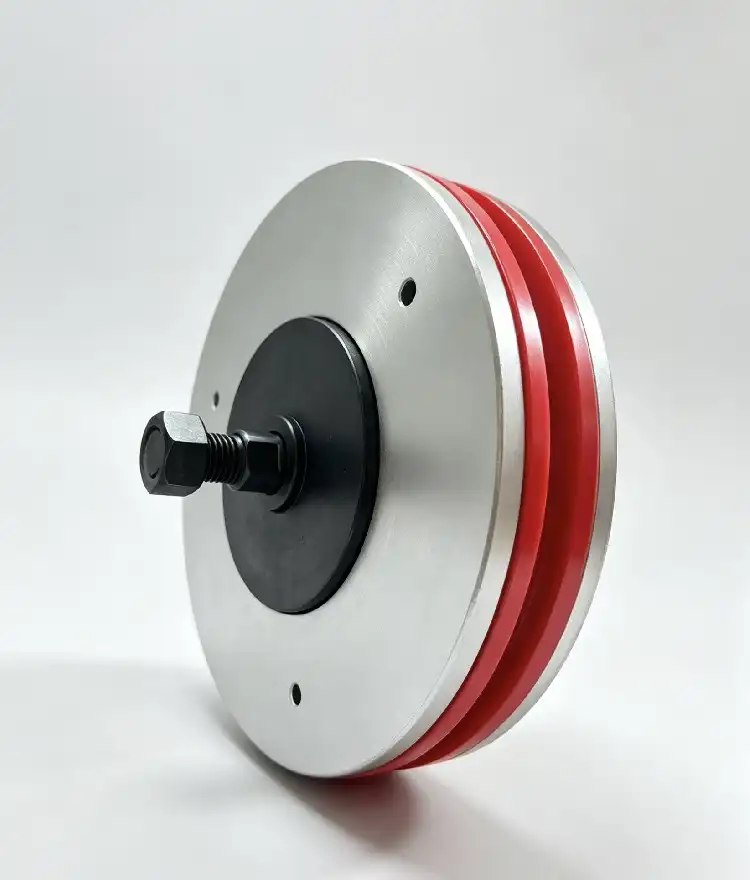

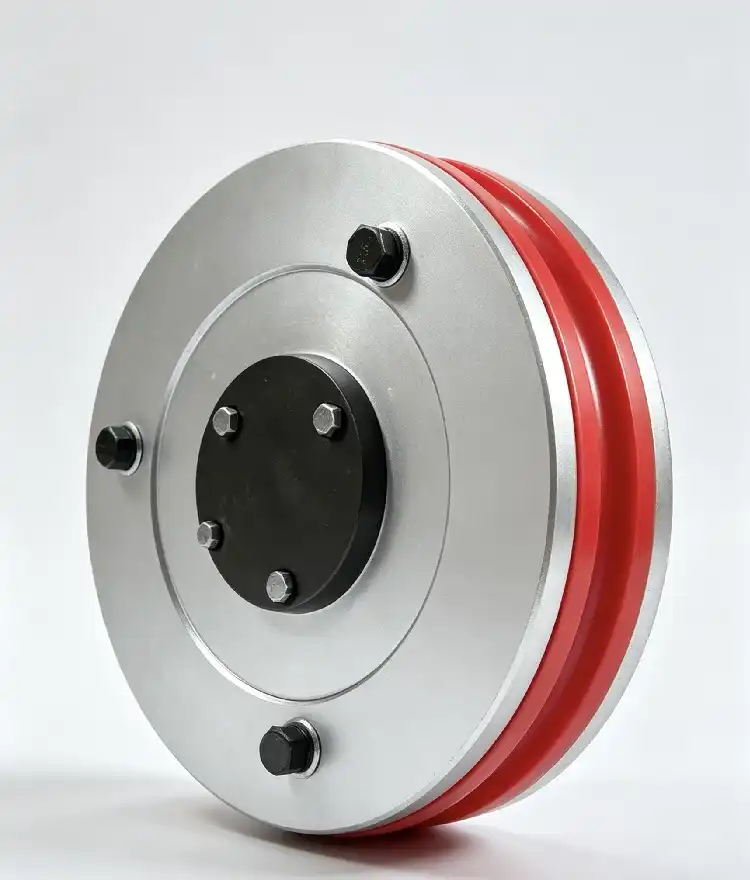

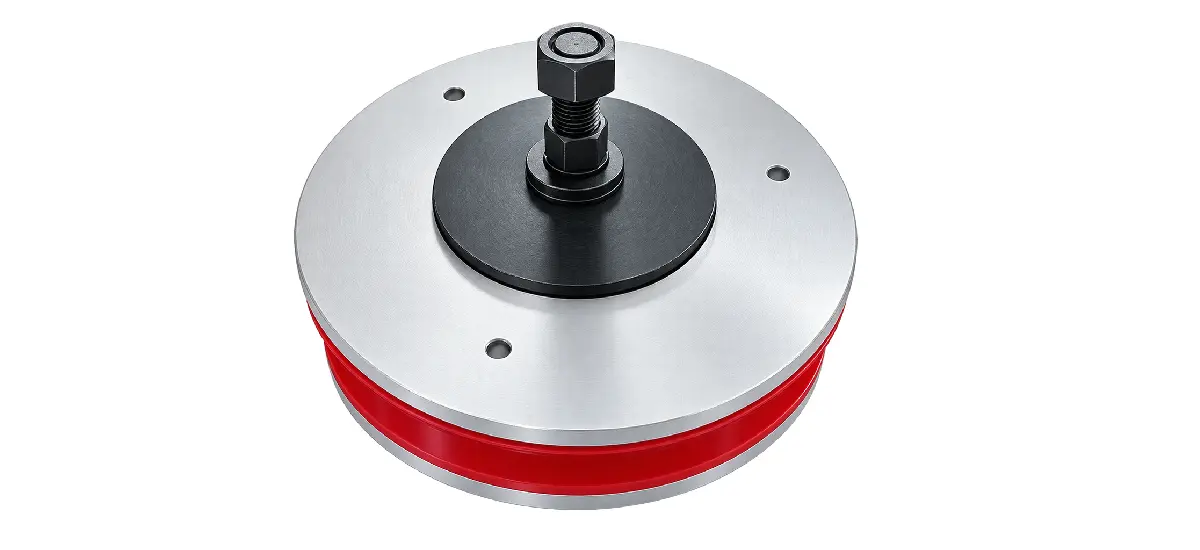

Laizhou Jinfuen Machinery Co., Ltd. brings over 30 years of manufacturing expertise to every Diamond Wire Pulley we produce. Our pulleys exceed ISO G2.5 criteria for dynamic balancing and Total Indicated Runout (TIR) < 0.05mm thanks to their precision-machined aluminum core and high-durability rubber coating. Each pulley, which is intended for continuous high-speed operation, reduces diamond wire wear by up to 15% when compared to normal models by maintaining groove geometry precision within a tolerance of 0.03mm. The 90–95 Shore A hardness of the wear-resistant rubber layer guarantees steady friction management and a longer service life of 800–1,500 operating hours. Our solutions offer continuous performance in severe quarrying and precision cutting applications since they are designed to endure temperatures ranging from -20°C to +80°C.

Why Choose Our Wire Saw Pulley System

Reliability under pressure is essential for your cutting process. Premature wire breakage and excessive vibration are two major industry problems that our aluminum-bodied pulleys address.

Excellent heat dissipation is provided by the lightweight aluminum structure. By doing this, thermal expansion that might otherwise jeopardize dimensional accuracy over prolonged cutting sessions is avoided.

Middleman expenses are eliminated with our factory-direct pricing. You get competitively priced industrial-grade parts without compromising on performance or quality requirements.

Using 2D optical profile projectors, each pulley is put through a thorough concentricity examination. By ensuring that your wire path stays precisely centered, this verification procedure helps to avoid expensive lateral oscillation and kerf loss.

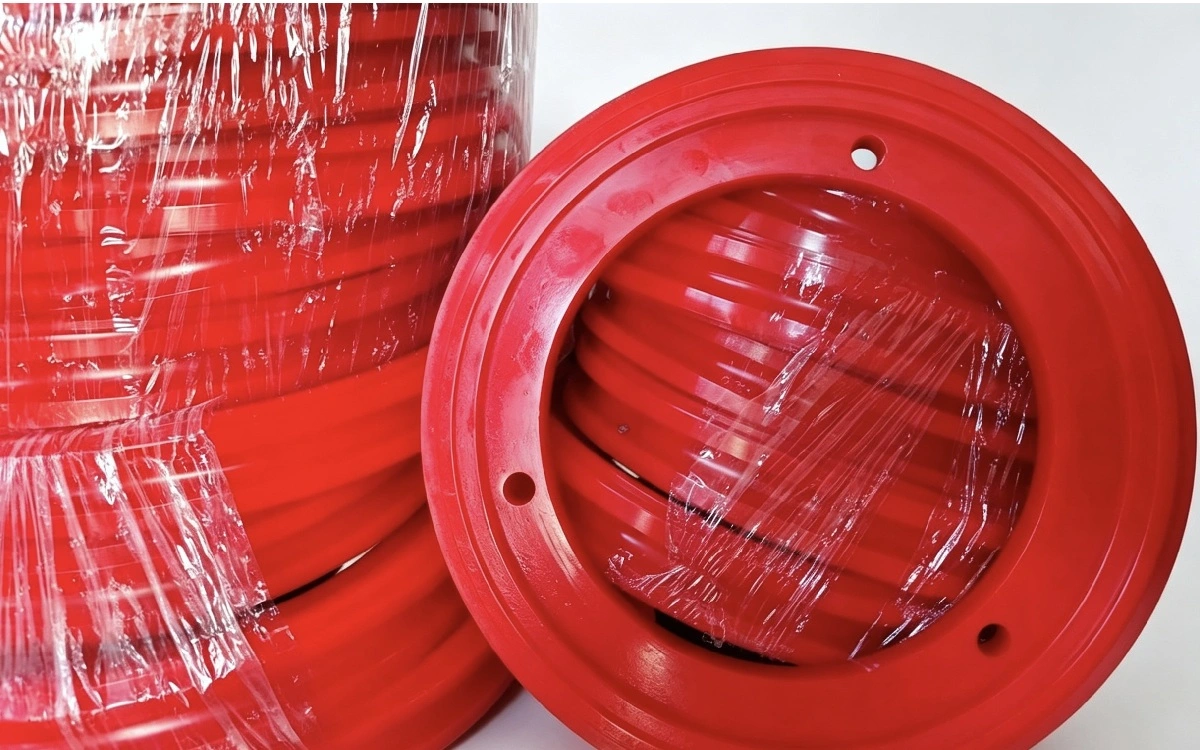

The ideal friction balance is produced by the high-rebound rubber coating. It firmly holds your diamond wire while reducing surface abrasion, which reduces the wire's lifespan.

Technical Specifications

Applications Across Industries

Diamond Wire Pulley systems serve diverse cutting environments. In stone quarrying operations, our pulleys guide diamond wire through granite and marble blocks with consistent tension control.

Photovoltaic manufacturers rely on our pulleys for silicon wafer slicing. The sub-micron stability maintains low Total Thickness Variation (TTV) essential for semiconductor applications.

Construction engineering projects utilize our pulleys for reinforced concrete cutting. The anti-jamming structure performs reliably even in abrasive slurry conditions.

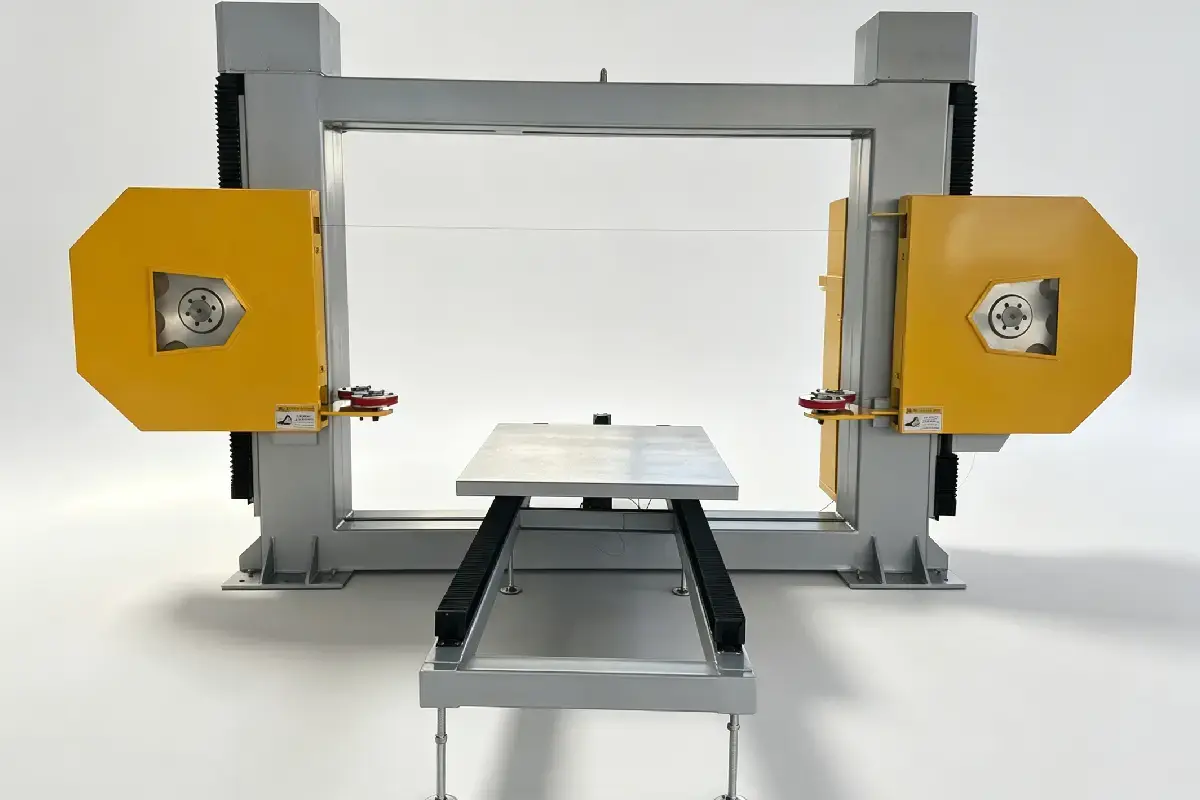

CNC wire saw machines benefit from the precise groove geometry. Your automated systems achieve repeatable cuts with minimal operator intervention.

Bridge demolition and building dismantling operations demand robust components. Our heavy-duty design withstands high-tension loads in extreme outdoor environments.

Quality Assurance Process

Every pulley undergoes comprehensive inspection before shipment. We verify groove geometry to match your specific wire diameter requirements perfectly.

Bonding integrity testing ensures the rubber coating won't delaminate under centrifugal forces. Both destructive and non-destructive methods validate adhesion strength.

Bearing lifecycle analysis uses high-frequency vibration sensors. This detects potential race fatigue before it causes unexpected downtime in your operations.

Surface finish measurement confirms the Ra value balances friction and grip. Your wire moves smoothly without slippage that would compromise cutting accuracy.

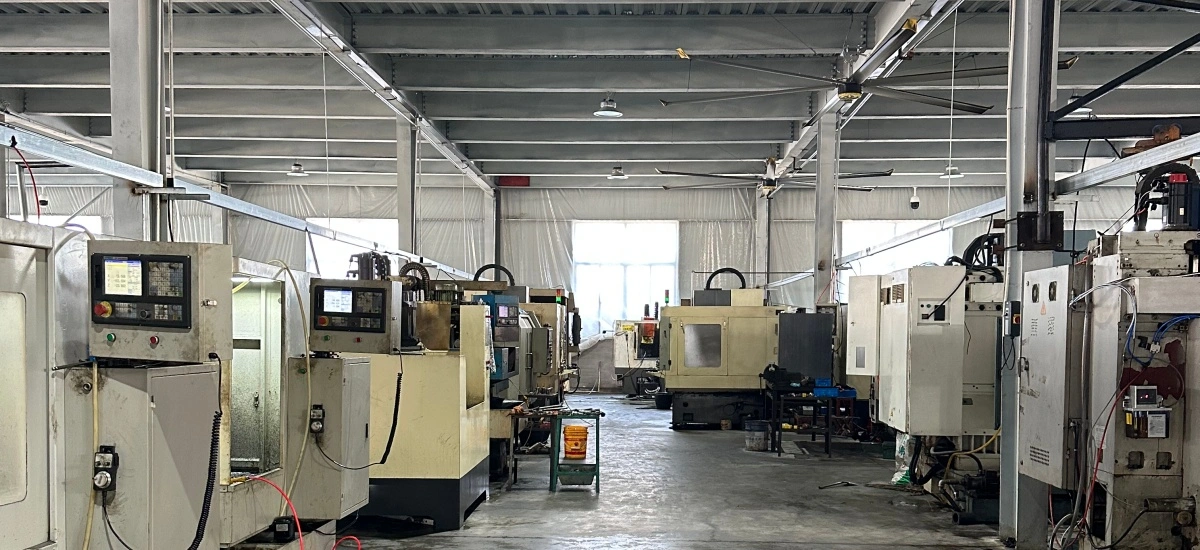

Our factory welcomes on-site inspection visits. You can verify production capabilities and witness live machine demonstrations before committing to purchase.

Frequently Asked Questions

Q: How should I maintain proper cooling during operation?

A: Constant water flow between 15–25 L/min is mandatory. Insufficient cooling causes rubber coating deterioration. Overheating also reduces diamond bead effectiveness.

Q: What causes uneven bead wear?

A: Uneven wear typically indicates tension imbalance or insufficient wire twisting. Measure bead diameter regularly with calipers. If cutting-side diameter is 0.5mm smaller, add 1.5–2 turns per meter during wire joining.

Q: Can this wire cut extremely hard granite varieties?

A: Yes. For Class 5 hardness granite with high quartz content, use 22–24 m/s linear speed. Softer varieties allow 26–30 m/s. Adjust parameters based on material testing.

Q: Is dry cutting possible in emergency situations?

A: Never attempt dry cutting. Immediate vulcanized rubber failure will occur. Diamond bond integrity also deteriorates rapidly. Water lubrication is non-negotiable for safe operation.

Q: How do I calculate wire lifespan for project planning? A:

A: Quality wire typically delivers 8–15 square meters per linear meter. Actual yield depends on granite hardness and operational parameters. Request our free cutting solution analysis for precise calculations.

Get Your Custom Wire Saw Solution Today

For project evaluation, cutting solution design, and factory-direct pricing—including tailored support for Diamond Wire Pulley systems—contact our team at sales@goldfenwiresaw.com. We're ready to support your production goals.
