Marble Quarry Diamond Rope - Professional Marble Extraction Solution

Laizhou Jinfuen Machinery Co., Ltd. manufactures Marble Quarry Diamond Rope engineered specifically for gentle and efficient marble extraction. With over 30 years of manufacturing expertise, our diamond rope features 28 to 40 beads per meter, maintaining a high linear cutting speed of 24–33 m/s and tensile strength exceeding 2500kg. The multi-strand steel cable structure, combined with premium diamond-impregnated beads and vulcanized rubber coating, ensures smooth movement through softer stone while minimizing cracking risks. Delivers controlled cutting that protects valuable marble blocks and supports precise quarry operations with stable, long-lasting results.

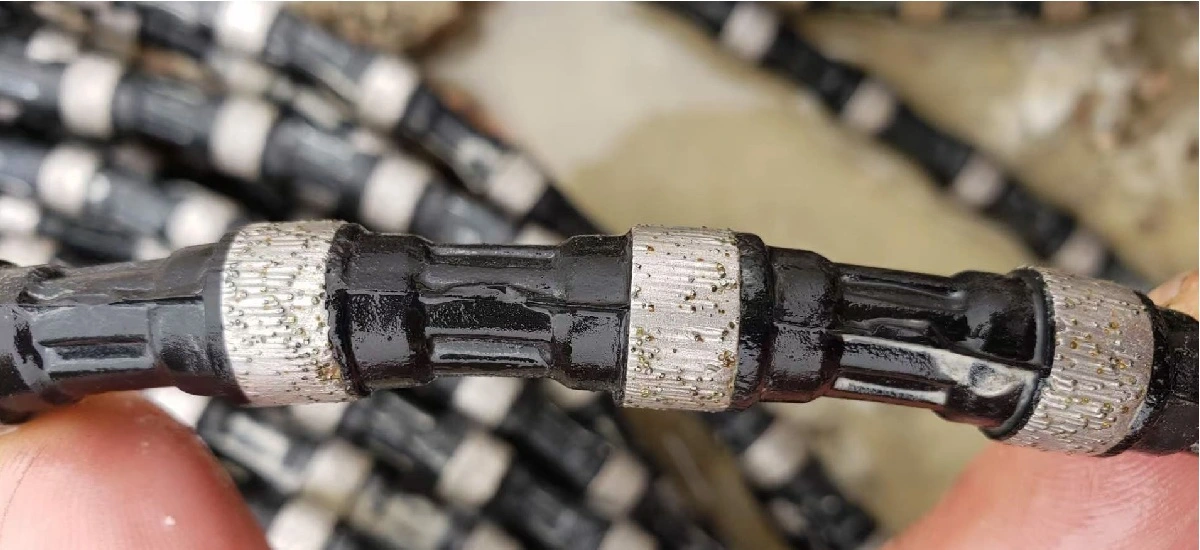

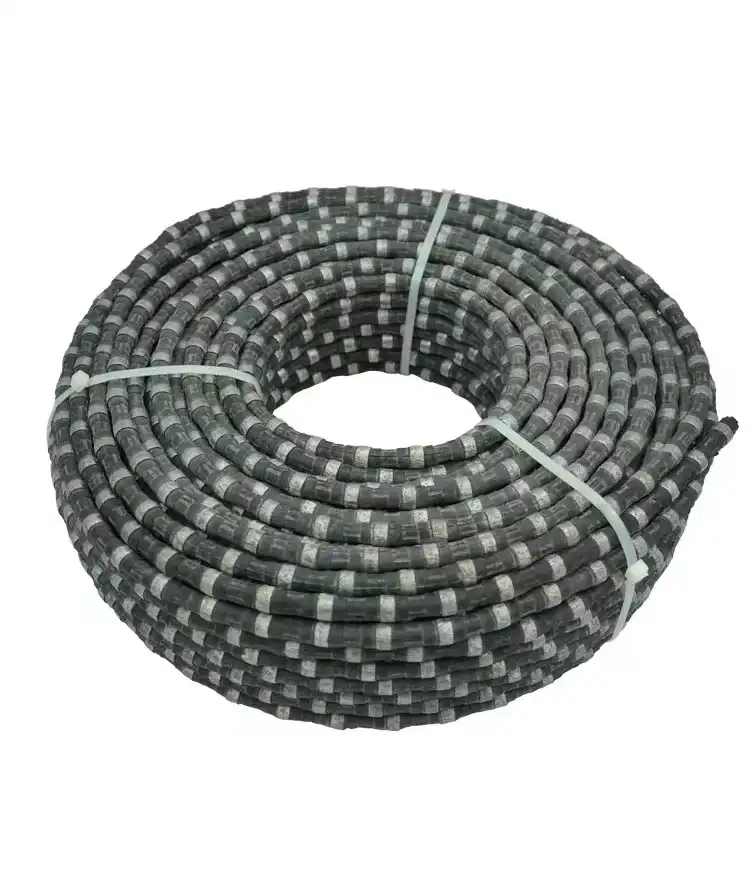

Marble Quarry Diamond Rope

Technical Specifications

Cutting materials	Line speed (m/s)	Cutting speed (m/s)	Wire life (squaremeter/m)
Low rigidity granite	33-37	15-20	20-40
Mid-hard granite	30-37	8-15	12-25
Hard granite	28-33	4-8	8-15
Abrasive granite	33-37	8-15	15-30

Type	Size	Reinforcement	Beads/m	Stone Hardness	Line speed	Cutting Speed	Life
Granite ore	11.5mm	Rubber+Spring	40/m	Soft Granite	20-30m/s	12-25㎡/h	20-35m²/m
				Mid-hard Granite		10-14㎡/h	12-18m²/m
				Hard Granite		8-10㎡/h	7-10m²/m
Marble mine	11.5mm	Rubber+Spring	40/m	Soft Marble	30-45m/s	8-10㎡/h	35-50m²/m
				Mid-hard Marble		7-9㎡/h	30-45m²/m
				Hard Marble		4-6m²/s	15-20m²/m
Reinforced Concrete	11.5mm	Rubber+Spring	40/m	Common	20-30m/s	1-3㎡/h	1.5-2
				Sharp type		3-4㎡/h	2.5-4

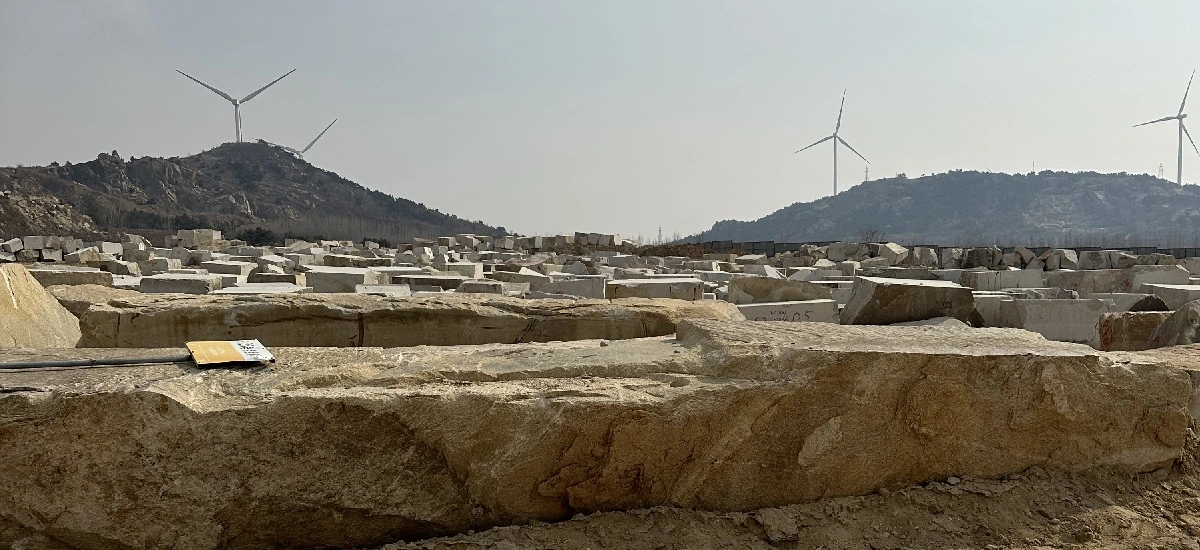

Marble Quarry Diamond Rope

Why Choose Our Marble Quarry Diamond Rope

Gentle on Valuable Marble

Your marble blocks deserve careful extraction. Our rope structure reduces cracking risks during cutting operations. The specialized diamond matrix protects block integrity while delivering smooth cuts.

This helps you maximize the value of finished blocks and reduce material waste.

Superior Cutting Performance

Premium synthetic diamond grits bond through advanced electroplating technology. This ensures uniform wear patterns and consistent cutting efficiency throughout the rope's service life.

You experience faster extraction cycles without sacrificing quality.

Built for Real Quarry Conditions

The vulcanized rubber coating provides superior adhesion and impact resistance. It prevents bead spinning even under challenging site conditions with varying water cooling.

Your operations remain stable across different marble types and environmental factors.

Flexible Application Range

Whether you're performing large-scale bench cutting over 50-meter spans or precision block squaring in processing yards, this Marble Quarry Diamond Rope adapts to your needs.

Underground tunnel extraction benefits from vibration-free operation that maintains ceiling stability during blind-cut procedures.

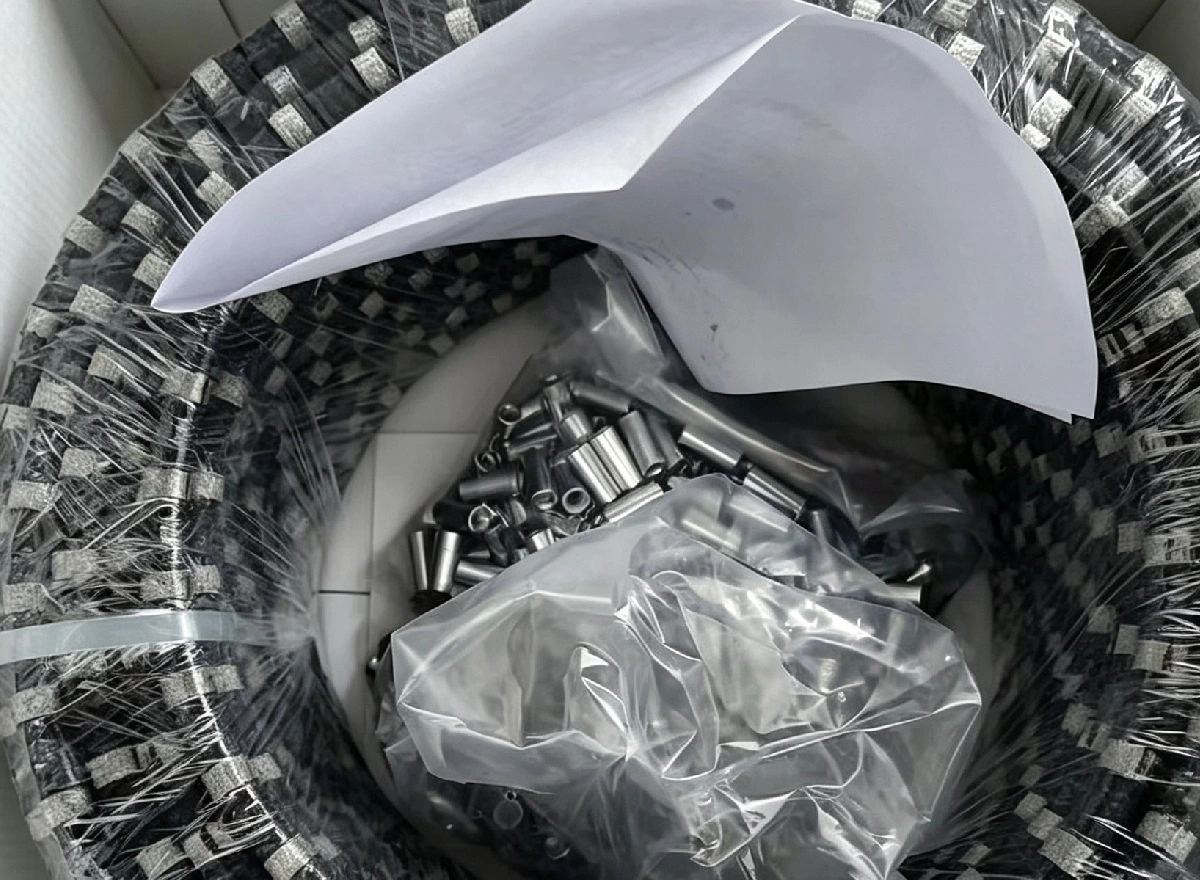

Marble Quarry Diamond Rope

Rigorous Quality Control Process

Multi-Phase Testing Protocol

Every batch undergoes comprehensive tensile strength testing to verify load capacity under hydraulic tension. We perform microscopic inspection of diamond grit distribution to ensure uniform bead hardness.

Adhesion peel tests confirm the bond between rubber coating and steel wire prevents sleeve slippage during high-speed operation.

Performance Verification

Initial sharpening efficiency testing ensures beads are properly dressed for immediate productivity upon installation. Linear meter yield analysis tracks total square meters cut per rope length.

This data-driven approach guarantees you receive cost-efficient cutting tools that deliver measurable ROI.

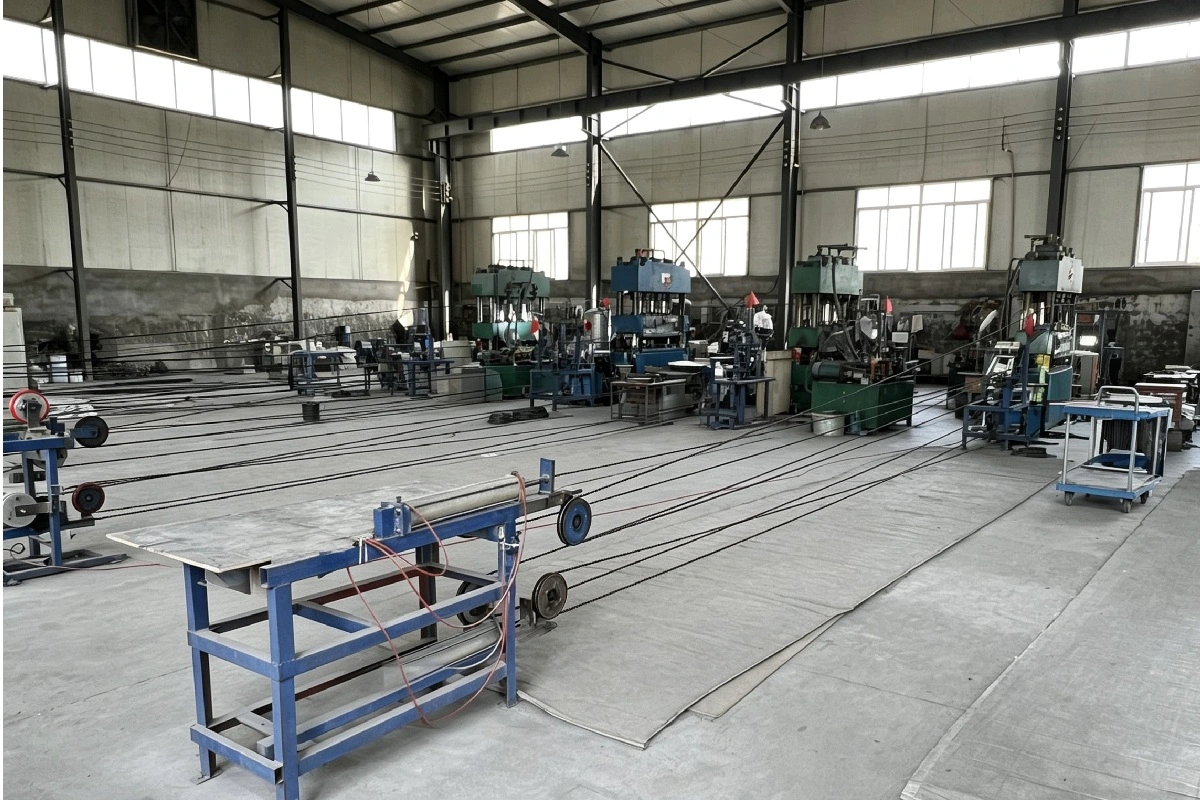

Marble Quarry Diamond Rope Production Workshop

Product Advantages in Real Operations

Protection Meets Precision

The diamond rope protects marble quality while delivering accurate quarry cutting. Block damage minimizes significantly compared to traditional methods.

Operational Flexibility

Supports multiple cutting directions and angles. Operators achieve efficient extraction with predictable, stable performance across different marble varieties.

Lower Total Cost

Optimized bead design reduces consumable wear. Your total cost of ownership decreases while cutting efficiency improves up to 15% versus standard industry models.

Quiet and Safe

Eliminates noise pollution and hazards associated with blasting methods. Minimal vibration preserves quarry face structural integrity.

Frequently Asked Questions

Q: What causes bead spinning on my rope?

A: Insufficient cooling water or adhesion failure typically causes this issue. Ensure water reaches the internal kerf. Verify the vulcanization quality of your rope's coating.

Q: Which coating should I choose for quarry extraction?

A: Rubber coating works best for quarry extraction due to superior flexibility and impact resistance. Plastic coating suits stationary block squaring operations where cost-effectiveness matters more.

Q: How do I know when to replace the rope?

A: Monitor bead diameter regularly. Once beads wear down to the steel support level or plastic sleeve, retire the rope immediately to avoid cable failure and safety risks.

Q: What's the optimal cutting speed for soft marble?

A: Soft marble cuts efficiently at 28-33 m/s. Harder, more abrasive varieties require reduced speeds of 24-26 m/s to prevent diamond glazing and extend rope life.

Q: Can this rope cut granite as well?

A: No. Marble Quarry Diamond Rope uses specific bond matrices designed for marble's non-siliceous nature. Using it on granite causes immediate bead destruction. Always match rope specifications to stone type.

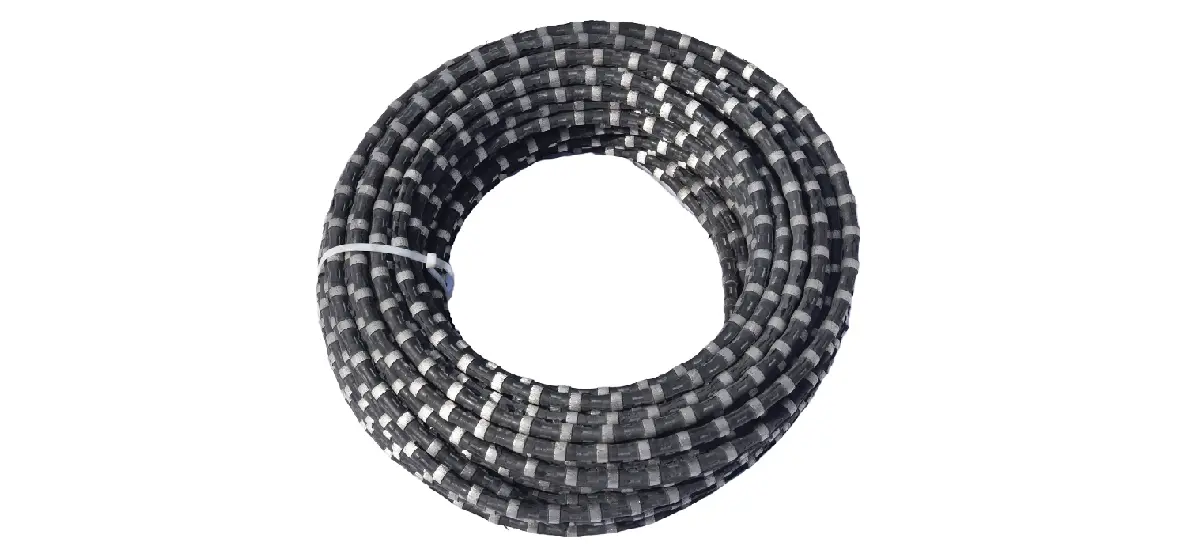

Marble Quarry Diamond Rope

Partner With a Trusted Manufacturer

Laizhou Jinfuen Machinery Co., Ltd. combines three decades of wire saw expertise with direct factory advantages. You receive competitive pricing without intermediary markups.

Our complete product range includes compatible wire saw wheels and spare parts for one-stop procurement. Technical support covers equipment selection, installation guidance, and operation training.

Global logistics integration ensures secure packaging and smooth customs clearance. We support factory visits and live demonstrations so you can verify production capability firsthand.

Contact Us Today

Improve marble extraction. Free project evaluation, cutting design—all built around our Marble Quarry Diamond Rope.
