Profiling Diamond Wire Saws – Precision Cutting for Complex Stone Profiles

Laizhou Jinfuen Machinery Co., Ltd. delivers industrial-grade Profiling Diamond Wire Saws engineered for CNC-controlled multi-axis stone fabrication. With over 30 years of manufacturing expertise, our wire saws feature an 8.8mm standard diameter with customizable configurations, imported high-carbon steel cores exceeding 2200 MPa tensile strength, and sintered diamond beads offering 33-40 beads per meter density. These specifications ensure cutting efficiency improvements of up to 15% compared to standard models. Our profiling wires reduce kerf loss by maintaining narrow cutting paths while delivering smooth surface finishes that minimize secondary polishing requirements. Each wire is factory-tested for bead pull-out resistance exceeding 500kg to guarantee operational safety in demanding architectural and monument production environments.

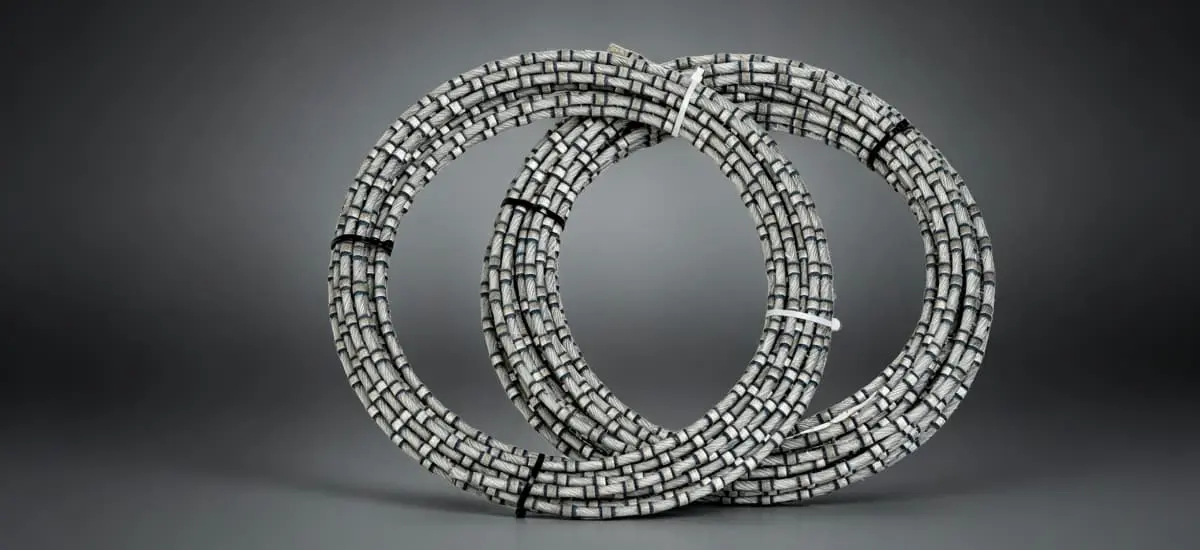

Profiling Diamond Wire Saws

Key Technical Specifications

Feature	Specification
Product Name	Diamond Profiling Wire Saw (Endless/Open-ended)
Diameter	Available from 5.3mm to 8.8mm
Bead Density	37 Beads per Meter (High density)
Bead Type	Sintered
Coating	Premium Rubber or Plastic Injection
Application	Granite, Marble, Concrete, Profiling, Slicing
Compatible Machines	CNC Wire Saw, PLC Wire Saw, Electric Sawing Machine
Business Type	Manufacturer (15+ Years Experience)

Beaddia(mm)	Fixed by	Beads/m	Technique	CuttingMaterial	LineSpeed(m/s)	Efficiency(㎡/h)	Life Time(㎡/m)
Φ6.3	HighStrengthPlastic	36/37	Sintered	Soft marble	28-35	1.2-1.5	10-15
Φ7.3	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6 - 1.2	8-10
Φ8.8	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6- 1.2	8-10
Φ5.3	HighStrengthPlastic	36/37	Sintered	Hardmarble	28-35	0.4-0.6	6-8

Applications in Stone Fabrication

Your production needs determine wire selection. Profiling Diamond Wire Saws excel in three critical scenarios.

Architectural Stone Processing

Create intricate columns, curved balustrades, and decorative cornices from massive granite or marble blocks. The flexible wire navigates complex geometries while maintaining dimensional accuracy within ±0.5mm tolerances.

Monument and Memorial Production

Execute bespoke three-dimensional designs including heart-shaped tombstones, religious iconography, and artistic sculptures. The wire's ability to follow tight-radius paths enables details impossible with traditional blade saws.

Civil Engineering Applications

Perform controlled cutting of reinforced concrete structures with curved profiles. The vibration-free operation preserves structural integrity in bridge modifications and foundation adjustments where precision matters most.

Performance Advantages

Enhanced Cutting Efficiency

Our proprietary bead design and diamond distribution deliver 15% faster cutting speeds. The sintered metal matrix wears at controlled rates, constantly exposing fresh diamond particles for consistent performance.

Reduced Material Waste

The narrow kerf minimizes raw material loss during profiling operations. You save on expensive granite and marble while maximizing yield from each block.

Extended Service Life

Premium diamond beads and reinforced steel cores withstand heavy-duty continuous operation. The optimized bond strength prevents premature bead detachment even under high lateral stress.

Superior Surface Quality

Low vibration levels and stable cutting action produce smooth finishes. You reduce polishing time and labor costs while achieving professional surface quality directly from the wire.

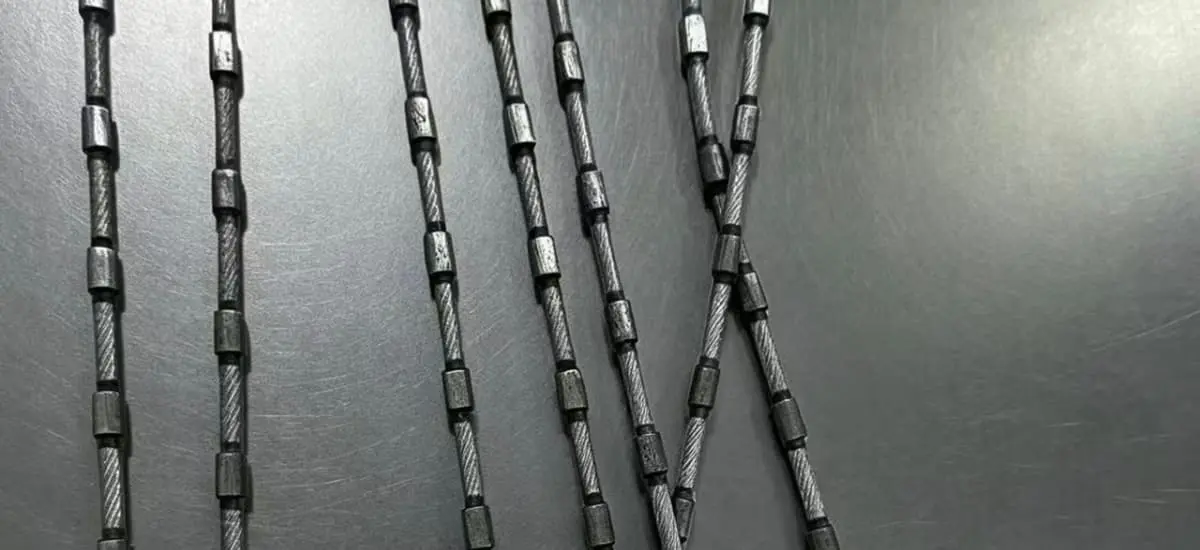

Profiling Diamond Wire Saws

Quality Assurance Process

Every meter undergoes rigorous factory inspection before shipment.

Bead Pull-Out Testing

We verify each wire withstands over 500kg force to prevent bead stripping during operation. This ensures your safety and eliminates costly downtime from wire failure.

Concentricity Verification

Laser micrometers confirm perfect bead alignment on the core wire. Proper centering prevents uneven wear patterns and vibration that compromise cut quality.

Diamond Retention Analysis

Microscopic inspection validates the bond-to-diamond interface. Strong wetting ensures diamonds remain securely embedded throughout the wire's operational life.

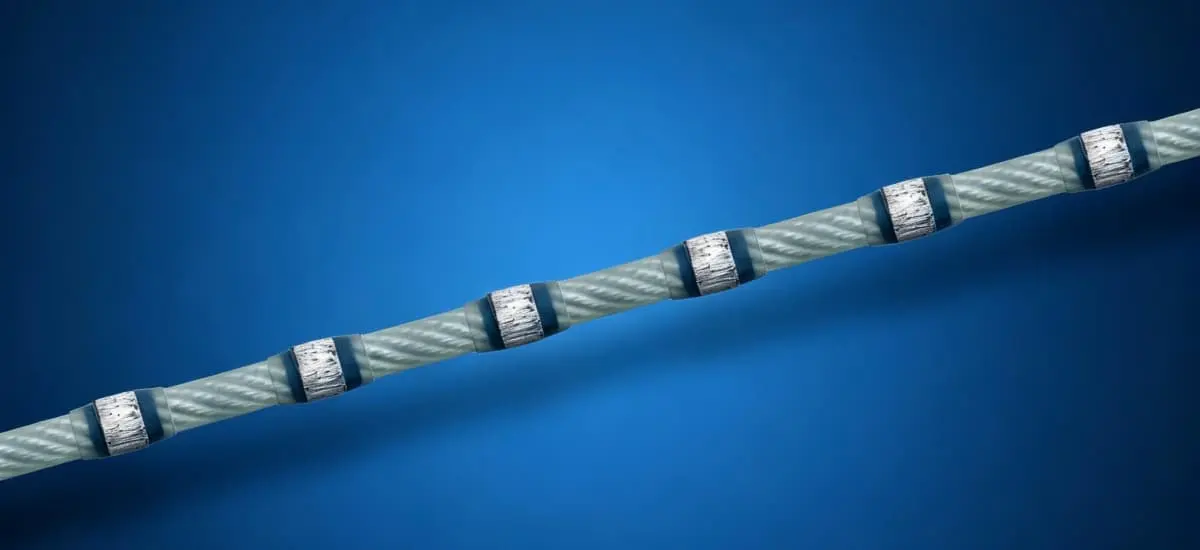

Profiling Diamond Wire Saws

Frequently Asked Questions

Q: Why does the wire snap at the joint?

A: Improper crimping or excessive tension causes joint failure. Ensure your crimping tool meets 25-ton pressure standards and calibrate wire tension to 250-300kg.

Q: Should I choose vacuum brazed or sintered beads for granite profiling?

A: Sintered beads work best for granite. The metal matrix wears compatibly with abrasive stone, continuously exposing new diamonds for consistent cutting.

Q: What linear speed works optimally for marble profiling?

A: Soft to medium marbles cut efficiently at 30-35 m/s. Reduce speed to 25-28 m/s for harder marble varieties to prevent bead glazing.

Q: How do I stop the wire from wandering during deep cuts?

A: Check guide pulley alignment and verify wire eccentricity. Direct cooling water into the kerf for optimal debris removal and temperature control.

Q: Can I use Diamond Wire Saws for dry cutting?

A: Never operate without water. Cooling fluid prevents bead overheating and bond failure while flushing cutting debris. Dry operation will rapidly destroy the wire.

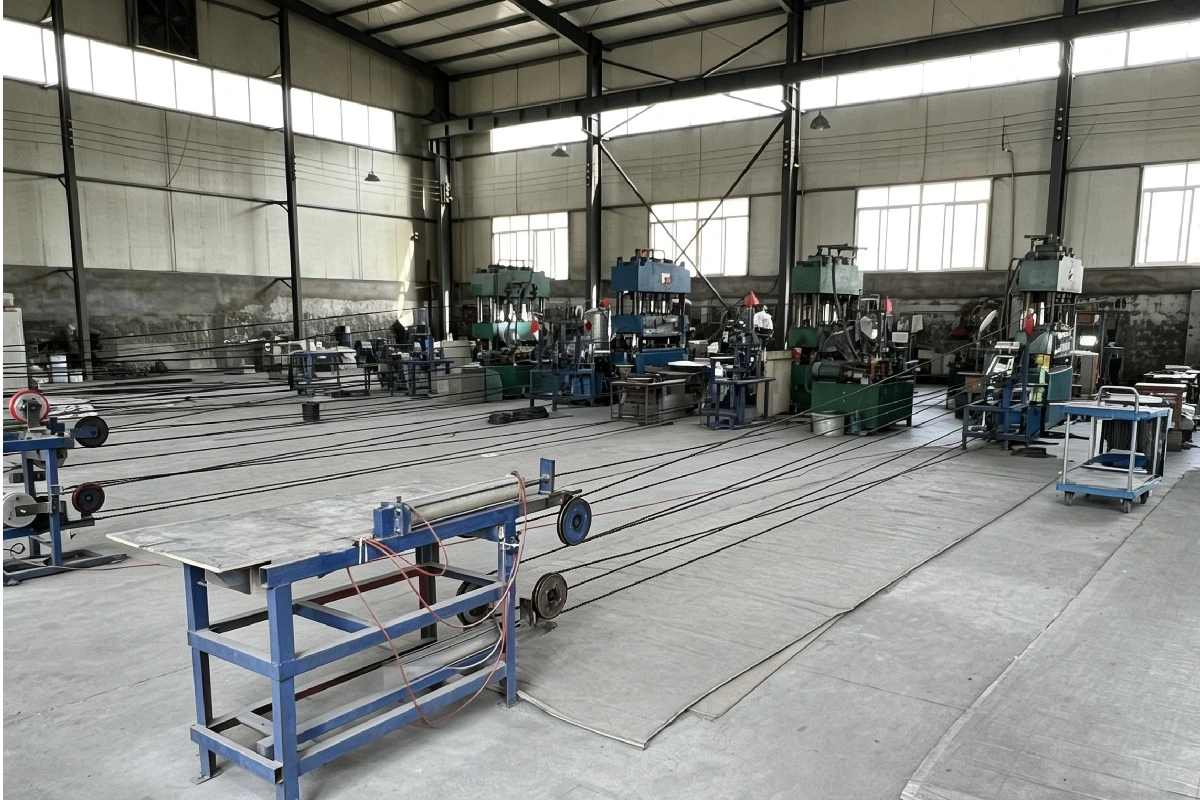

Profiling Diamond Wire Saws Production Workshop

Technical Support and Customization

We provide comprehensive support for your specific cutting requirements. Our engineering team assists with wire selection based on your stone hardness, machine specifications, and production volume.

Custom bead spacing and diameter configurations match your CNC equipment perfectly. You receive complete installation guidance, tension calibration procedures, and operational training to maximize wire performance.

Contact Us for Your Profiling Solution

Ready to improve your stone fabrication efficiency with Profiling Diamond Wire Saws? Contact our technical team at sales@goldfenwiresaw.com for customized wire specifications and competitive factory-direct pricing today.
