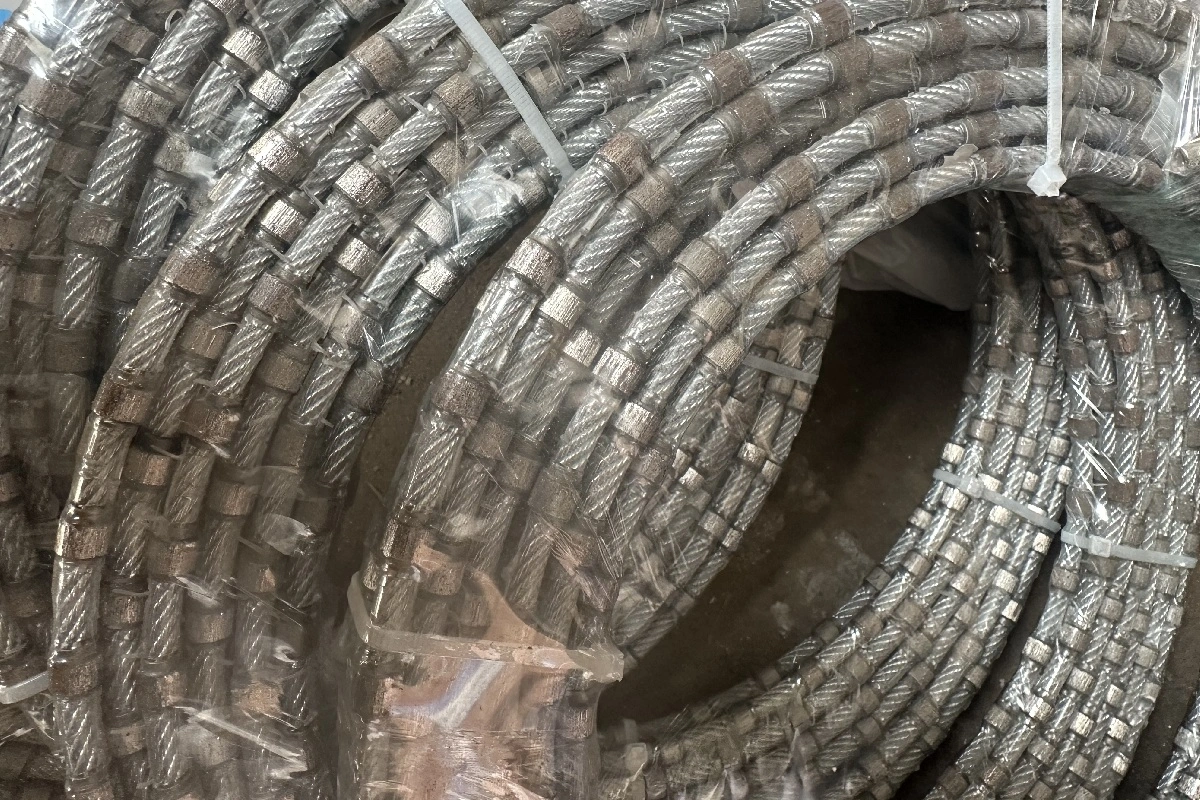

Diamond Wire for Quarry Cutting

Laizhou Jinfuen Machinery Co., Ltd. delivers industrial-grade Diamond Wire for Quarry Cutting engineered for demanding stone extraction operations. With over 30 years of manufacturing expertise, our 8.8mm specification wire features imported steel wire construction with breaking resistance exceeding 2500kg, ensuring reliable performance in high-tension quarry environments. The sintered diamond beads provide cutting efficiency improvements of up to 15% compared to standard industry models, while our proprietary design reduces consumable wear significantly. Each wire achieves linear cutting speeds of 1-15 m²/h with an operational lifespan of 20-60 m²/m. The vulcanized rubber coating delivers superior adhesion for hard granite applications, preventing bead spinning and internal corrosion during continuous operation.

Diamond Wire for Quarry Cutting

Technical Specifications

Feature	Specification
Product Name	Diamond Profiling Wire Saw (Endless/Open-ended)
Diameter	Available from 5.3mm to 8.8mm
Bead Density	37 Beads per Meter (High density)
Bead Type	Sintered
Coating	Premium Rubber or Plastic Injection
Application	Granite, Marble, Concrete, Profiling, Slicing
Compatible Machines	CNC Wire Saw, PLC Wire Saw, Electric Sawing Machine
Business Type	Manufacturer (15+ Years Experience)

Beaddia(mm)	Fixed by	Beads/m	Technique	CuttingMaterial	LineSpeed(m/s)	Efficiency(㎡/h)	Life Time(㎡/m)
Φ6.3	HighStrengthPlastic	36/37	Sintered	Soft marble	28-35	1.2-1.5	10-15
Φ7.3	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6 - 1.2	8-10
Φ8.8	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6- 1.2	8-10
Φ5.3	HighStrengthPlastic	36/37	Sintered	Hardmarble	28-35	0.4-0.6	6-8

Why Choose Our Diamond Wire Solution

Premium Material Construction

Your quarry operations demand reliability. Our Diamond Wire for Quarry Cutting uses imported steel cable with multi-strand construction that withstands extreme friction and water pressure.

The high-grade synthetic diamonds embedded in our beads maintain sharpness throughout extended cutting cycles. This translates to fewer wire changes and reduced downtime on your site.

Engineered for Hard Stone Applications

Granite extraction requires specialized solutions. Our sintered bead technology creates strong sharpness retention when cutting through highly abrasive materials.

The vulcanized rubber coating protects against slurry penetration. This prevents premature cable deterioration and maintains consistent bead positioning during operation.

Cost-Effective Performance

You'll notice lower total cost of ownership immediately. Our optimized design reduces kerf loss by 20-30%, maximizing block yield from each extraction.

The wire maintains stable cutting performance even in challenging quarry conditions. This consistency means predictable production rates and easier project planning.

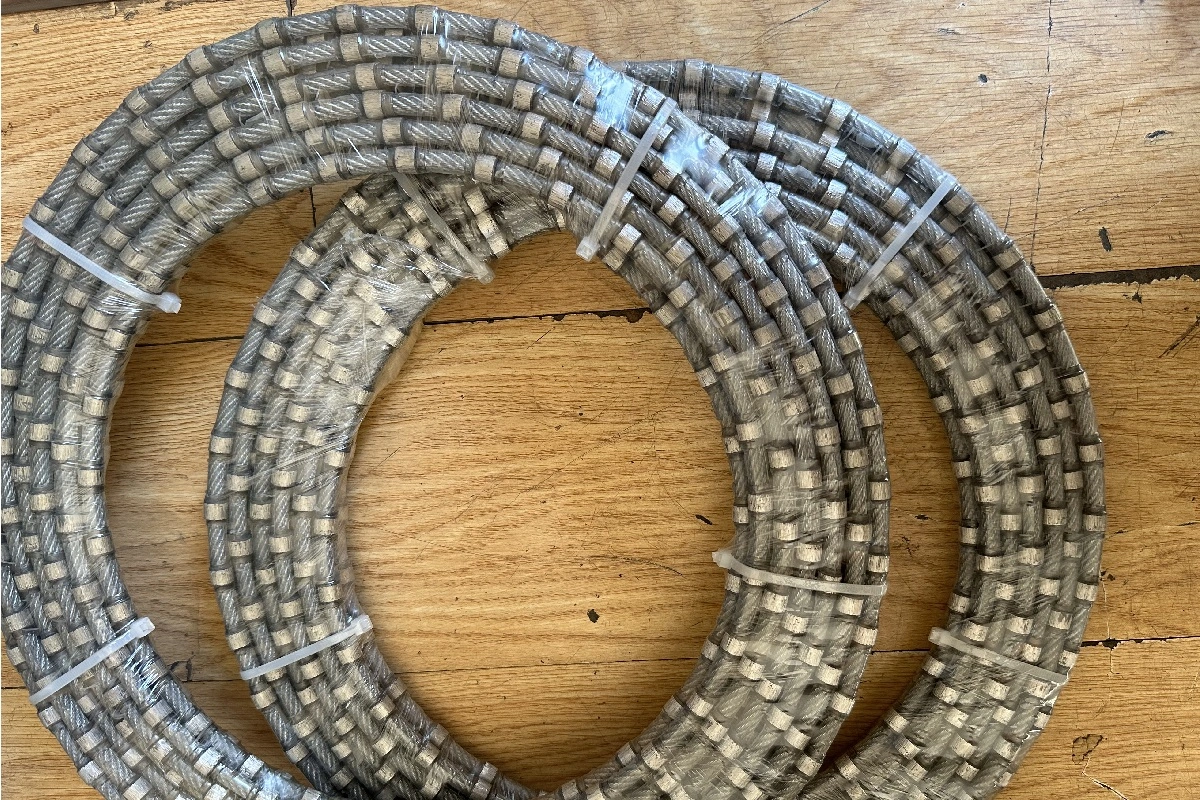

Diamond Wire for Quarry Cutting

Application Scenarios

Vertical and Horizontal Bench Cutting

Your large-scale granite operations benefit from our wire's ability to execute precise vertical cuts. The high breaking strength supports safe operation even in deep-pit environments.

Horizontal bench cutting becomes more efficient with our constant tension compatibility. The wire maintains straight cuts through variable stone densities without deflection.

Marble Block Squaring

Softer stone extraction requires different characteristics. Our wire provides the flexibility needed to navigate fractured marble formations while producing smooth surfaces.

This reduces your post-processing costs significantly. The precision cuts minimize material waste and deliver blocks ready for further fabrication.

Complex Topography Solutions

Restricted access quarries present unique challenges. Our Diamond Wire for Quarry Cutting threads through pre-drilled boreholes to execute bottom-cuts in irregular terrain.

The flexible design allows you to detach massive blocks with minimal vibration. This preserves surrounding stone integrity and maintains quarry face stability.

Performance Advantages

You receive direct factory pricing without intermediaries. Our 30+ years of manufacturing experience ensures every wire meets strict quality standards.

The anti-jamming structure performs reliably in extreme conditions. Whether facing high abrasion environments or variable stone hardness, your operations continue smoothly.

Our heavy-duty design supports continuous high-load operation. You'll experience stable performance throughout the wire's operational lifespan, reducing unexpected maintenance interruptions.

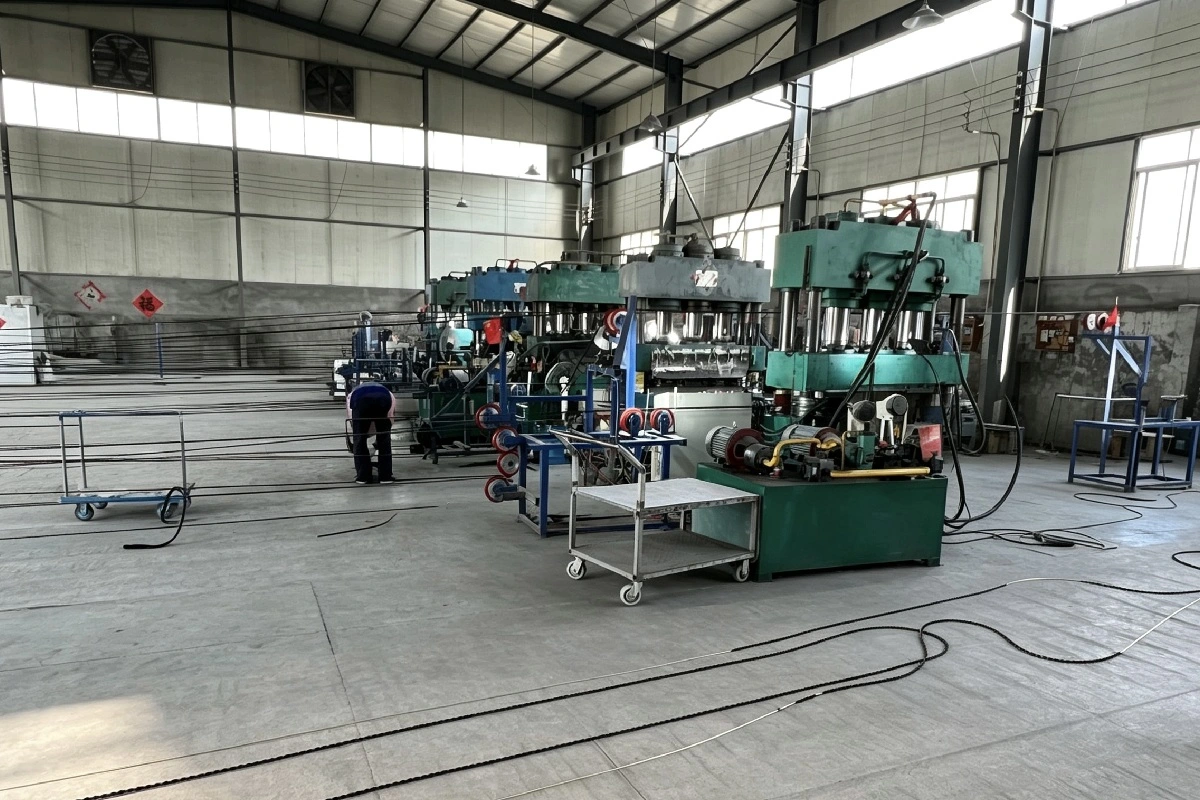

Diamond Wire for Quarry Cutting Production Workshop

Frequently Asked Questions

Q: What determines the optimal bead density for my application?

A: Harder granite typically requires 28-32 beads per meter for maximum efficiency. Softer stones like marble perform better with 36-40 beads per meter, providing smoother cuts and extended wire life.

Q: How can I prevent premature wire breakage?

A: Maintain proper tension settings according to stone hardness. Ensure continuous water cooling at recommended flow rates. Match bead type to material hardness to prevent cable fatigue from excessive resistance.

Q: When should I replace the wire?

A: Monitor cutting speed closely. If speed drops significantly while power consumption remains constant, the diamonds have glazed over. You can temporarily restore performance by cutting through abrasive sandstone before replacement becomes necessary.

Q: What's the importance of pre-twisting during installation?

A: Pre-twisting at 1.5-2 turns per meter ensures even bead wear around the circumference. This prevents one-sided wear patterns that reduce cutting efficiency and shorten wire lifespan dramatically.

Q: How do I select between rubber and plastic coating?

A: Choose rubber coating for hard granite quarrying. It provides superior adhesion and abrasion resistance in demanding conditions. Plastic coating offers cost advantages for softer marble applications where flexibility matters more.

Contact Us for Custom Solutions

Ready to improve your quarry cutting efficiency with Diamond Wire for Quarry Cutting? Our technical team provides free project evaluation and cutting solution design tailored to your specific requirements.
