Stone Cutting Wire – High-Performance Diamond Wire Saw for Professional Stone Quarrying

Laizhou Jinfuen Machinery Co., Ltd. manufactures Stone Cutting Wire with over 30 years of specialized experience in wire saw technology. Our diamond wire features an 8.8mm diameter core designed for cutting marble, granite, and quartzite with exceptional precision. With a bead density of 28–40 beads per meter and tensile strength exceeding 2000 MPa, this cutting solution delivers up to 15% higher efficiency than standard industry models. Advanced injection molding technology ensures zero bead migration during high-speed operation. The wire operates smoothly at linear speeds of 22–35 m/s, reducing kerf loss and improving yield per block significantly. Factory-direct pricing and customizable configurations make it ideal for professional quarrying operations worldwide.

Stone Cutting Wire

Technical Specifications

Feature	Specification
Product Name	Diamond Profiling Wire Saw (Endless/Open-ended)
Diameter	Available from 5.3mm to 8.8mm
Bead Density	37 Beads per Meter (High density)
Bead Type	Sintered
Coating	Premium Rubber or Plastic Injection
Application	Granite, Marble, Concrete, Profiling, Slicing
Compatible Machines	CNC Wire Saw, PLC Wire Saw, Electric Sawing Machine
Business Type	Manufacturer (15+ Years Experience)

Beaddia(mm)	Fixed by	Beads/m	Technique	CuttingMaterial	LineSpeed(m/s)	Efficiency(㎡/h)	Life Time(㎡/m)
Φ6.3	HighStrengthPlastic	36/37	Sintered	Soft marble	28-35	1.2-1.5	10-15
Φ7.3	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6 - 1.2	8-10
Φ8.8	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6- 1.2	8-10
Φ5.3	HighStrengthPlastic	36/37	Sintered	Hardmarble	28-35	0.4-0.6	6-8

Why Choose Our Diamond Wire Saw?

Superior Cutting Efficiency

Your cutting operations demand consistent performance. Our Stone Cutting Wire combines premium diamond beads with optimized spacing to achieve faster penetration rates. The proprietary bead matrix provides superior heat dissipation through specialized water-cooling channels.

Extended Service Life

Durability matters in demanding quarrying environments. The high-grade sintered diamond beads resist premature wear. The vulcanization process ensures perfect bead adhesion, preventing rotation or detachment during continuous operation.

Versatile Application Range

Whether you're cutting soft marble or hard granite, this wire adapts to your needs. Customizable bead configurations match specific stone hardness levels. The flexible design allows complex geometric cuts and large-block squaring with minimal material waste.

Heavy-Duty Reliability

Built for extreme conditions, the wire withstands high-load continuous operation. Anti-jamming structures maintain stable performance in harsh quarrying environments. The reinforced steel core provides excellent fatigue resistance across thousands of cutting cycles.

Cost-Effective Solution

Direct factory pricing eliminates intermediary markups. Reduced consumable wear lowers your total cost of ownership (TCO). Higher yield per block translates to improved profitability for your quarrying projects.

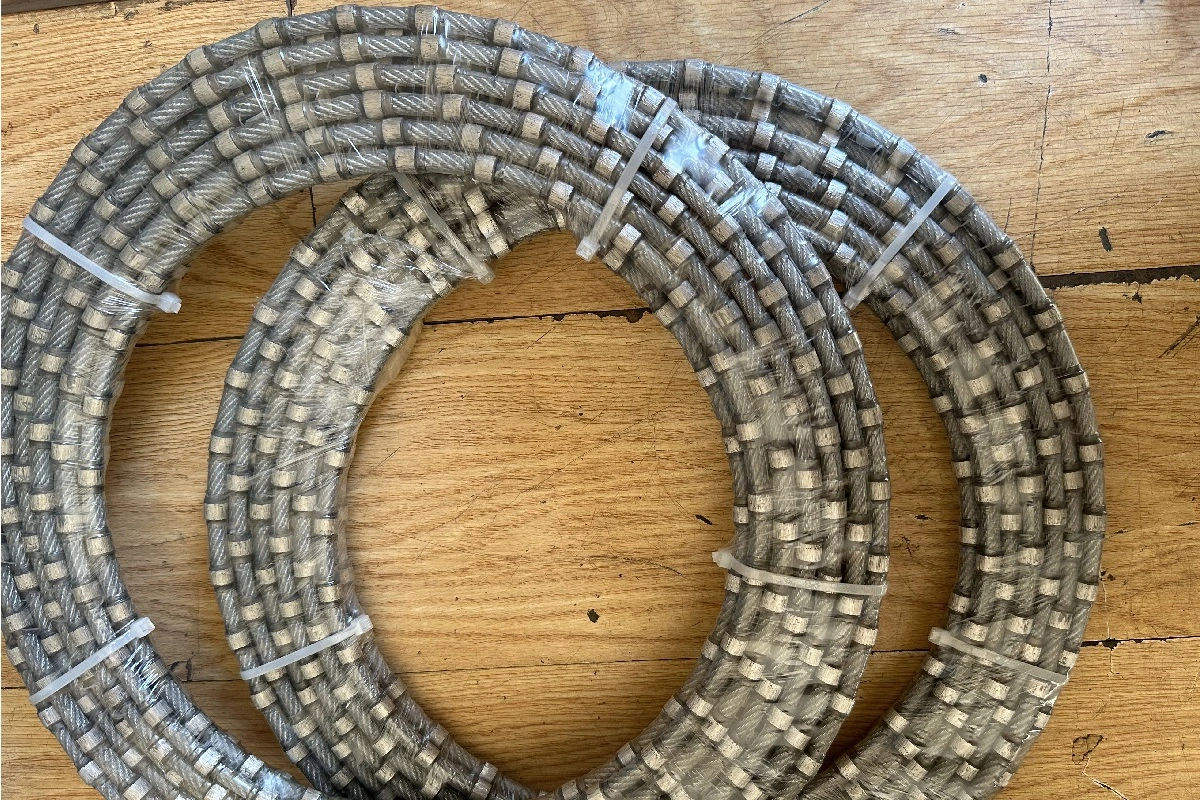

Stone Cutting Wire

Quality Control Process

Every Stone Cutting Wire undergoes rigorous inspection before shipment.

Pull-Out Testing measures adhesion strength between diamond beads and coating material. This ensures beads remain firmly attached during high-speed rotation.

Torsion Testing evaluates core wire resistance to twisting under operational loads. Your wire maintains structural integrity even in challenging cutting angles.

Bead Concentricity Inspection guarantees even wear distribution across the diamond surface. This prevents uneven cutting and extends overall service life.

Static Tension Testing confirms each wire handles 1.5 times its rated working load. You get reliable performance without unexpected elongation or breakage.

Vulcanization Quality Checks include peel tests on rubberized wires. This prevents bead migration that could compromise cutting accuracy.

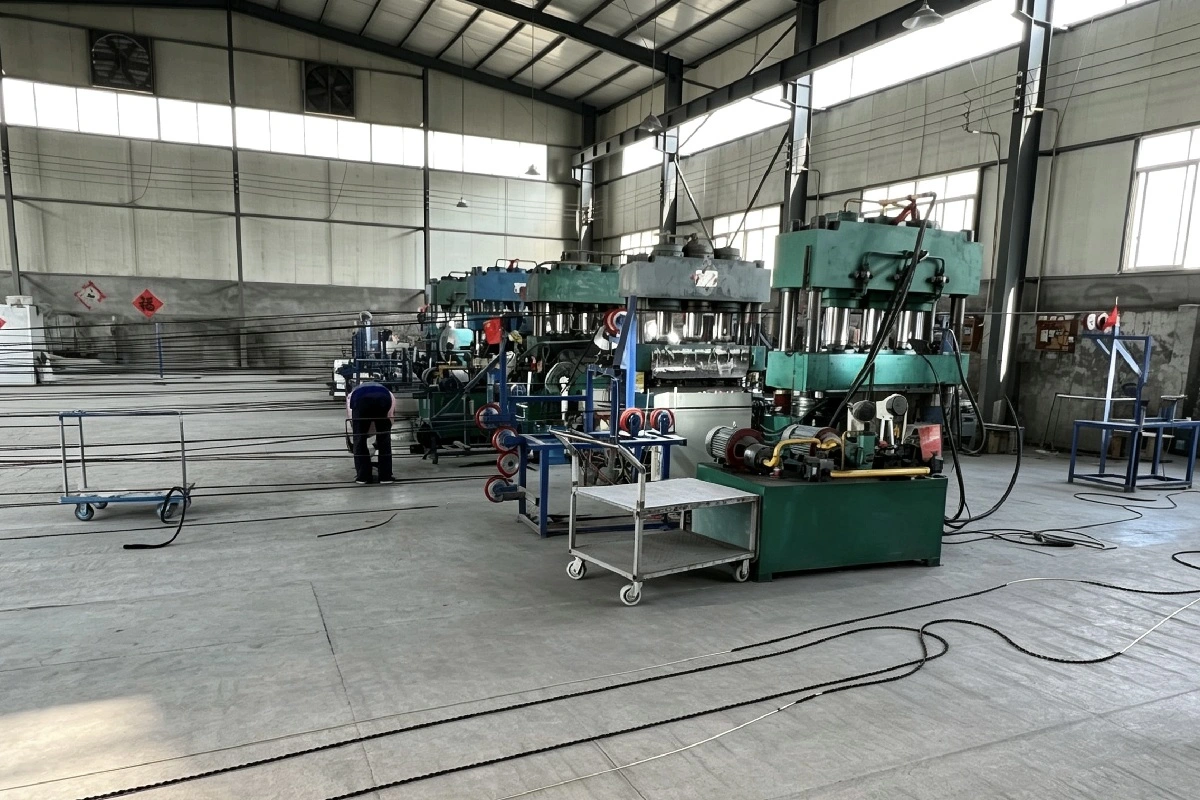

Stone Cutting Wire Production Workshop

Frequently Asked Questions

Q1: Why does the wire break unexpectedly during operation?

A: Breakage typically results from excessive tension settings, misaligned pulleys, or using wheels with diameters too small for the wire gauge. Always follow manufacturer guidelines for tension and pulley alignment.

Q2: What's the difference between plastic and rubber coating?

A: Plastic coating works best for stationary profiling machines with controlled conditions. Rubber coating offers superior heat resistance and durability for intensive quarrying applications where internal friction between beads is higher.

Q3: How can I prevent bead rotation on the wire?

A: High-quality injection molding or vulcanization prevents this issue. If rotation occurs, verify proper wire installation—typically requiring 1–2 turns per meter during setup.

Q4: What linear speed works best for granite cutting?

A: Hard granite performs optimally at 22–26 m/s. Softer marble varieties can handle faster speeds of 30–35 m/s for improved productivity.

Q5: How do I sharpen a wire with glazed beads?

A: When beads become smooth, reduce linear speed and water flow temporarily. Cut through abrasive material like sandstone to re-expose fresh diamond crystals on the bead surface.

Q6: Can I use this wire for reinforced concrete?

A: Yes. The Stone Cutting Wire handles reinforced concrete, steel, and various stone types. Select appropriate bead specifications based on your specific material hardness.

Contact Us for Custom Solutions

Ready to improve your cutting efficiency? Our technical team provides free project evaluation and cutting solution design.

Contact Us today at sales@goldfenwiresaw.com for pricing, customization options, and professional consultation tailored to your specific requirements.
