Slab Cutting Wire Saw Rope – Professional Stone & Concrete Slabbing Solutions

Laizhou Jinfuen Machinery Co., Ltd. brings over 30 years of manufacturing excellence to the production of Slab cutting wire saw rope. Our 8.8mm diameter wire features injection molding technology that extends service life by up to 25% compared to conventional designs. With a high-carbon steel core delivering tensile strength exceeding 2000 MPa and premium diamond beads spaced at 36-40 beads per meter, this rope achieves cutting speeds of 22-30 m/s while maintaining sub-millimeter precision. The proprietary bead retention strength surpasses 6000N, ensuring safe, continuous operation in multi-wire machines processing granite, marble, and reinforced concrete into standardized slabs with minimal kerf loss.

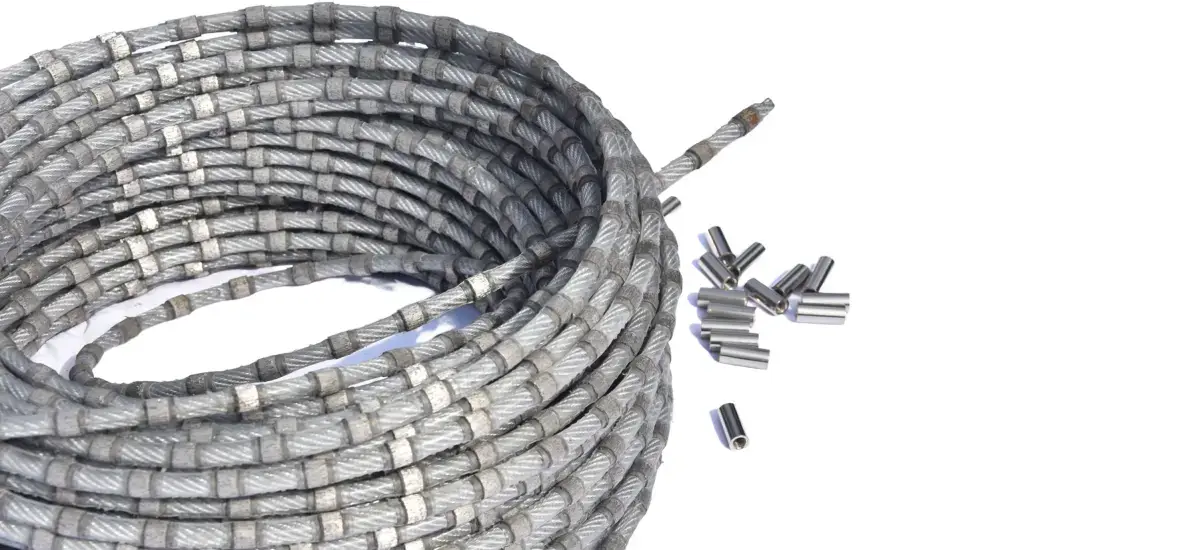

Slab cutting wire saw rope

What Is Slab Cutting Wire Saw Rope?

Slab cutting wire saw rope is a precision-engineered diamond tool designed for transforming large stone blocks and reinforced concrete into thin, uniform slabs.

The system uses a high-tensile multi-strand steel cable. Diamond-impregnated beads are secured along the cable using injection-molded spacers. These spacers can be rubber or plastic, depending on your material requirements.

This technology solves the traditional gang saw problem. It dramatically reduces material waste and energy consumption. You get consistent slab thickness without wavy surfaces that complicate polishing.

Whether you're processing granite, marble, sandstone, or structural concrete, this wire rope delivers the speed and accuracy modern fabrication demands.

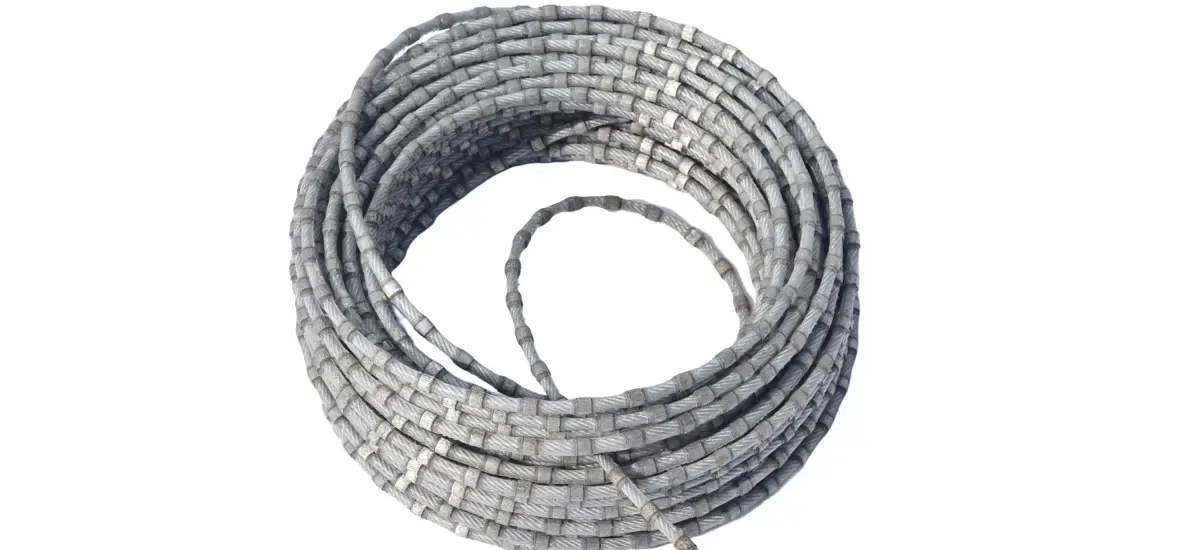

Slab cutting wire saw rope

Technical Properties & Core Features

Our products combines metallurgical precision with abrasive engineering expertise.

Key Physical Parameters:

Steel core tensile strength: >2000 MPa to prevent elongation
Thermal stability: Up to 600°C with vulcanized rubber coatings

Performance Benefits:

The tapered bead design maintains consistent sharpness throughout the tool's lifecycle. High flexibility allows tight-radius cutting without compromising structural integrity. The bonding matrix—sintered, electroplated, or vacuum brazed—is matched to your material's Mohs hardness.

You'll experience superior thermal management. The vulcanized coating protects the steel core from slurry corrosion. This extends operational life while reducing downtime.

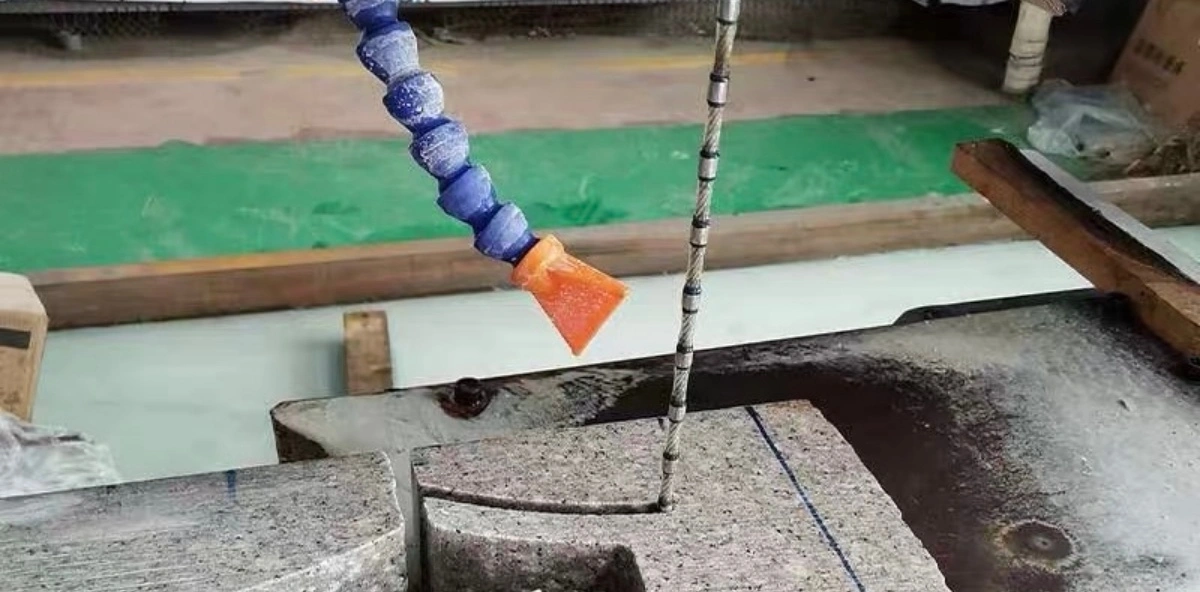

Slab cutting wire saw rope

Technical Specifications

Feature	Specification
Product Name	Diamond Profiling Wire Saw (Endless/Open-ended)
Diameter	8.8mm
Bead Density	37 Beads per Meter (High density)
Bead Type	Sintered
Coating	Premium Rubber or Plastic Injection
Application	Granite, Marble, Concrete, Profiling, Slicing
Compatible Machines	CNC Wire Saw, PLC Wire Saw, Electric Sawing Machine
Business Type	Manufacturer (15+ Years Experience)

Beaddia(mm)	Fixed by	Beads/m	Technique	CuttingMaterial	LineSpeed(m/s)	Efficiency(㎡/h)	Life Time(㎡/m)
Φ6.3	HighStrengthPlastic	36/37	Sintered	Soft marble	28-35	1.2-1.5	10-15
Φ7.3	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6 - 1.2	8-10
Φ8.8	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6- 1.2	8-10
Φ5.3	HighStrengthPlastic	36/37	Sintered	Hardmarble	28-35	0.4-0.6	6-8

Quality Control Standards

We implement rigorous four-pillar inspection protocols to guarantee your investment performs reliably.

Bead Retention Strength Test: Every batch undergoes pull-off force measurement. We verify >6000N resistance to ensure beads stay securely attached during high-load operations.

Concentricity Analysis: Diamond beads must be perfectly centered on the cable. This prevents uneven wear and 'snaking' during deep cuts that compromise slab quality.

Vulcanization Integrity Check: Ultrasonic testing verifies the bond between rubber coating and steel cable. This prevents bead spinning and water ingress that causes core corrosion.

Diamond Grit Distribution: Microscopic inspection ensures uniform diamond concentration. Proper protrusion directly impacts cutting efficiency and surface roughness standards.

These controls deliver the consistent performance you need for high-volume production environments.

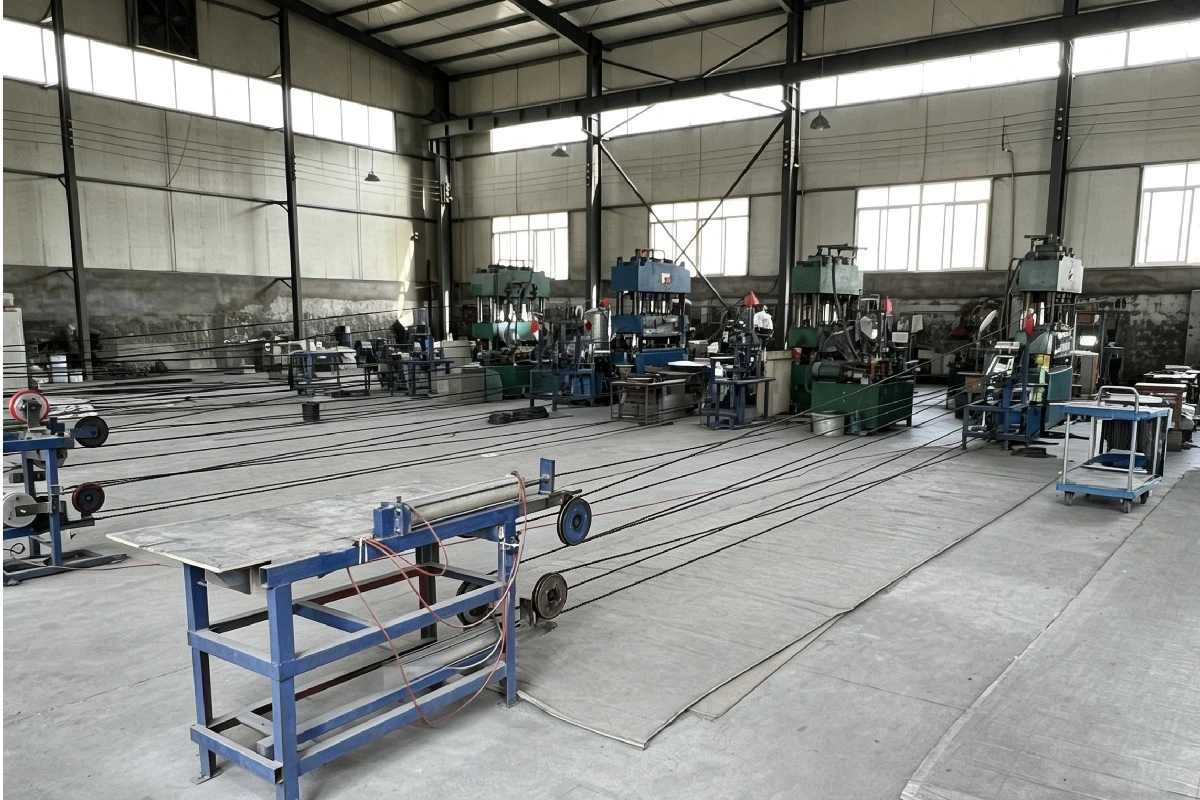

Slab Cutting Wire Saw Rope Production Workshop

Application Scenarios

Multi-Wire Machine Processing:

Large-scale granite facilities run up to 80 wires simultaneously. Our rope slices massive blocks into 2cm or 3cm slabs with exceptional precision. You achieve sub-millimeter tolerances while maximizing production throughput.

Exotic Stone Slabbing:

High-value materials like quartzite and onyx require vibration-free cutting. The balanced bead design prevents fracturing. You preserve material integrity while maintaining cutting speed.

Civil Engineering Demolition:

Reinforced concrete bridge decks and structural slabs demand controlled removal. Traditional impact methods create unacceptable noise and vibration. Our wire rope delivers clean cuts in restricted environments where safety is paramount.

In each scenario, the wire maintains constant linear velocity while resisting abrasive slurry. You get reliable performance across diverse cutting challenges.

Why Choose Jinfuen Wire Saw Rope?

Factory Direct Pricing: We eliminate intermediary costs. You receive competitive pricing without sacrificing quality.

Proven Durability: High-quality diamond beads and optimized bead spacing extend service life. You reduce consumable costs and improve total cost of ownership.

Customization Options: We tailor bead diameter, spacing, and coating materials to your specific cutting requirements. Whether you process soft marble or ultra-hard granite, we configure the optimal solution.

Technical Expertise: Our engineering team provides free project evaluation. We help you optimize cutting parameters, reduce operational costs, and improve ROI.

Global Export Experience: We've supplied clients across multiple international markets. Our secure packaging and complete documentation support ensure smooth delivery worldwide.

Frequently Asked Questions

Q1: What causes the wire rope to break prematurely?

A: Breakage typically results from excessive tension beyond yield point, insufficient water cooling, or mismatched wire speed and downfeed rate. Always follow recommended tension specifications.

Q2: How do I choose between rubber and plastic coating?

A: Rubber coating suits granite and hard stone due to superior heat resistance. Plastic (TPU) works well for marble where flexibility and cost-efficiency matter most.

Q3: Why do my slabs show thickness variation?

A: Wavy surfaces indicate loss of wire tension or worn beads below effective diameter. Recalibrate your machine's tensioning system and inspect bead condition.

Q4: What is the average lifespan?

A: Depending on material hardness, expect 8–15 square meters of cutting per linear meter of wire. Proper cooling and tension management maximize longevity.

Q5: How do I optimize cutting for very hard granite?

A: Increase diamond concentration in the beads. Reduce linear speed to 22–24 m/s. This allows diamond crystals to effectively micro-chip the stone surface.

Contact Us for Custom Solutions

Ready to improve your slab cutting efficiency with high-performance Slab cutting wire saw rope? Our technical team is available to discuss your specific requirements.

Email us at sales@goldfenwiresaw.com for product specifications, customization options, and competitive factory pricing.
