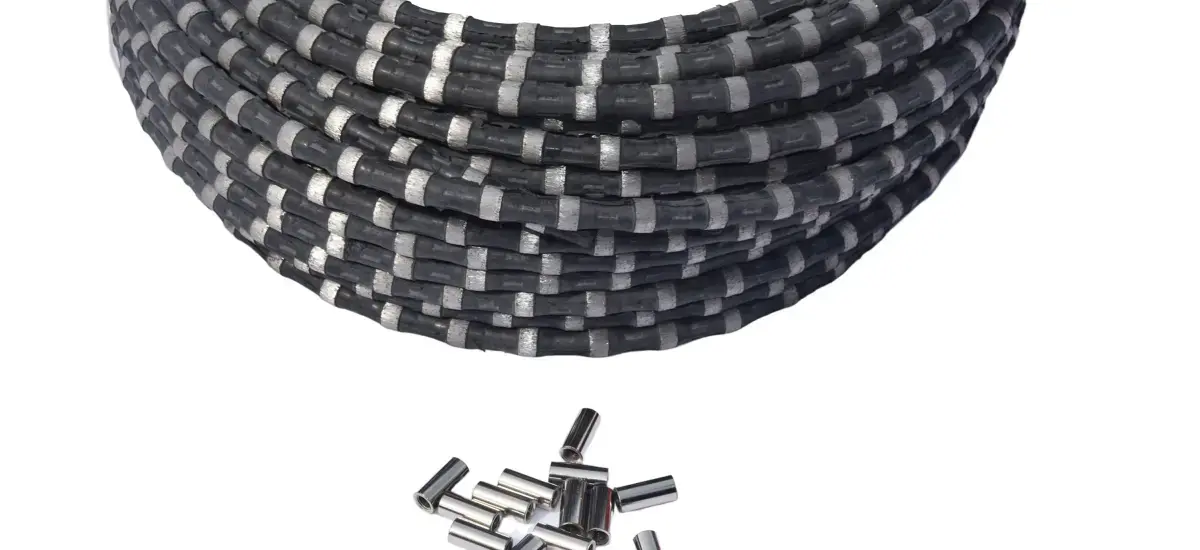

Stone Quarry Wire Saw – Professional Diamond Cutting Solution for Natural Stone Extraction

Laizhou Jinfuen Machinery Co., Ltd. delivers enterprise-grade Stone Quarry Wire Saw solutions backed by over 30 years of manufacturing expertise. With a typical diameter of 8.8mm, our flagship wire saw can be customized to meet your unique quarrying needs. Each cable is designed for continuous heavy-duty operation and is constructed from imported high-tensile steel wire with a strength of more than 1500 MPa. When compared to industry-standard models, sintered diamond beads with optimum spacing can increase cutting efficiency by up to 15%. Our wire saws, which are made for the extraction of granite, marble, sandstone, and limestone, minimize material waste and operating expenses while preserving precise block dimensions even under challenging geological circumstances.

Stone Quarry Wire Saw

Why Choose Our Stone Quarry Wire Saw for Your Quarrying Operations

Superior Cutting Performance

Our wire saw technology replaces traditional blasting methods that cause micro-cracks and excessive material loss. You gain dimensionally accurate blocks with smooth surfaces. The advanced diamond bead formulation ensures consistent cutting speed throughout the product lifespan.

Built for Extreme Quarry Environments

High-carbon steel core construction resists abrasive slurry erosion. Vulcanized rubber injection provides maximum protection in granite applications. The anti-jamming structural design maintains stable performance during vertical cuts up to 30 meters high.

Cost-Effective Total Ownership

Optimized bead-to-cable adhesion significantly reduces consumable wear. You'll experience lower maintenance frequency and extended replacement intervals. Direct factory pricing eliminates middleman markup, improving your project ROI from day one.

Versatile Application Range

Horizontal bottom-cutting for marble extraction with minimal kerf loss. Massive vertical bench cutting in high-quartz granite formations. Suitable for reinforced concrete bridge demolition where vibration-free cutting protects adjacent structures.

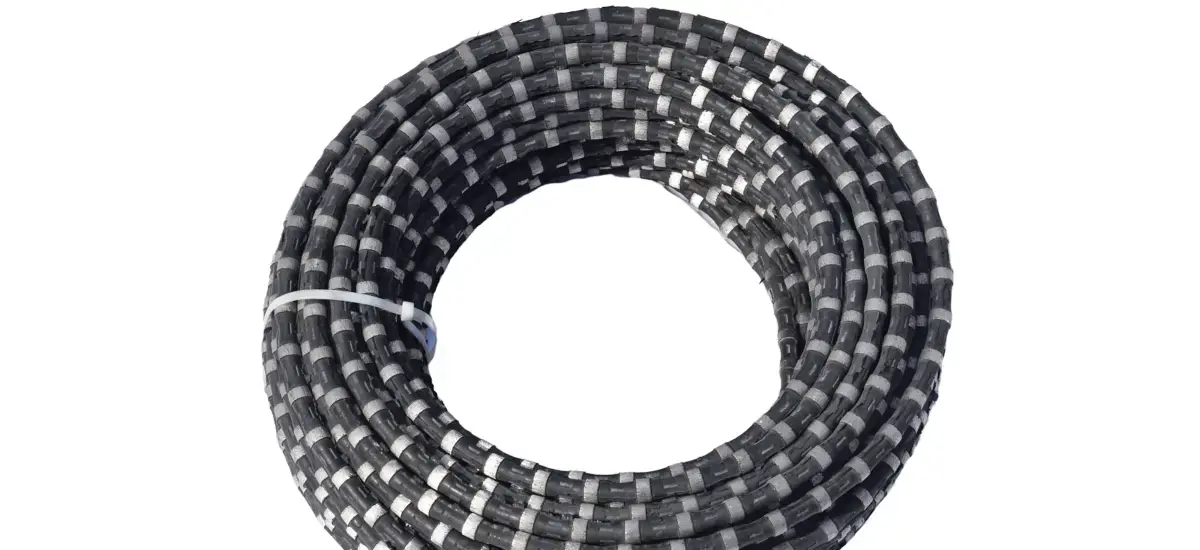

Stone Quarry Wire Saw

Technical Specifications

Cutting materials	Line speed (m/s)	Cutting speed (m/s)	Wire life (squaremeter/m)
Low rigidity granite	33-37	15-20	20-40
Mid-hard granite	30-37	8-15	12-25
Hard granite	28-33	4-8	8-15
Abrasive granite	33-37	8-15	15-30

Application Scenarios You Can Rely On

Large-Scale Granite Quarrying

Our rubberized Stone Quarry Wire Saw manages large vertical cuts with exceptional heat resistance for removing blocks from abrasive, high-quartz deposits. During high-torque activities, premature breaking is prevented by the strengthened cable structure.

Precision Marble Block Extraction

For high-value aesthetic marble veins, our plastic-coated configuration performs controlled horizontal cuts. You preserve material integrity while minimizing extraction waste. The flexible design adapts to bedrock irregularities without compromising cut accuracy.

Civil Engineering Demolition

Decommission large stone structures or reinforced concrete bridges without generating excessive vibration. Your adjacent site safety remains protected throughout the cutting process.

Quality Control You Can Verify

We implement rigorous inspection protocols at every production stage:

Diamond Bead Testing: SEM examination and Rockwell hardness testing attest to uniform wear rates for every bead.

Pull-off Force Validation: We assess the strength of adhesion between steel cable, coating, and beads. This keeps beads from being stripped while you are working in the field.

Tensile Strength Certification: Pre-stretching and load testing identify weak points before the wire reaches your quarry site.

Concentricity Inspection: Perfect bead centering eliminates irregular vibration and uneven wear patterns that reduce service life.

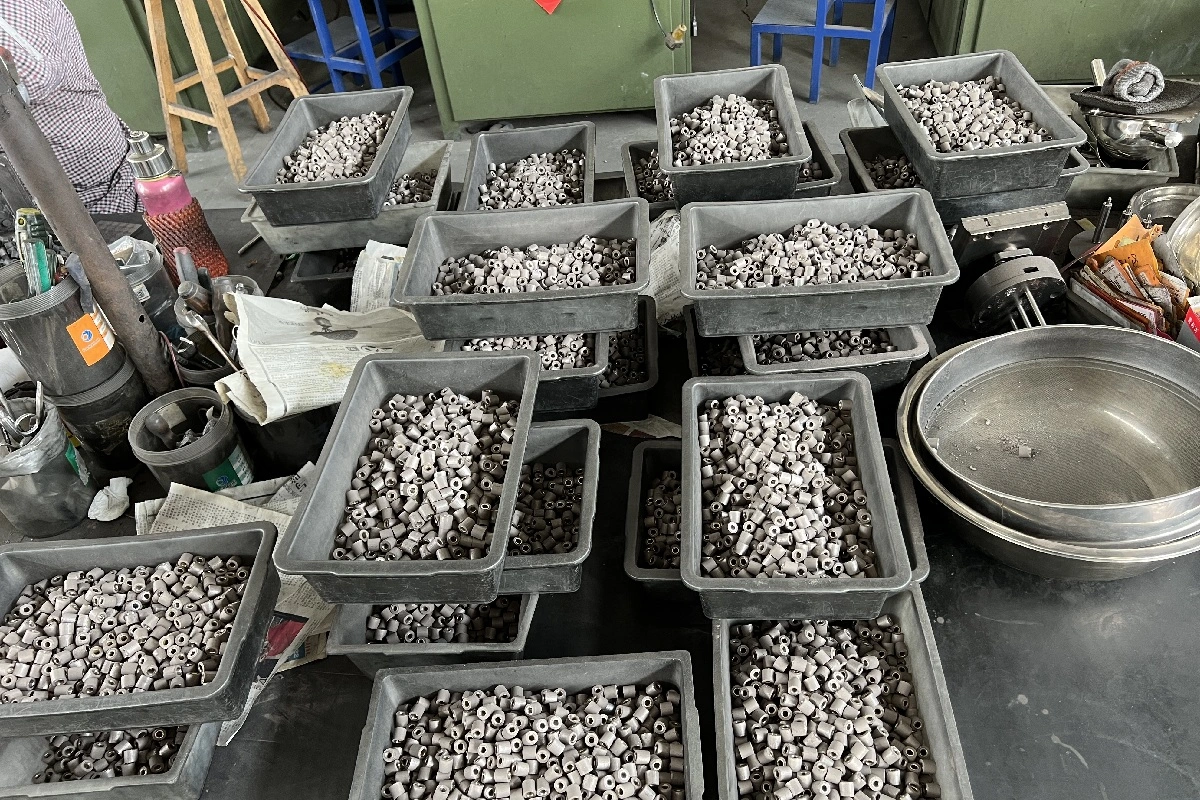

Stone Quarry Wire Saw Accessories

Frequently Asked Questions

Q: Why does the wire saw break before expected lifespan?

A: Breakage typically occurs from excessive tension or misaligned pulleys. Ensure you're using vulcanized rubber coating for granite to prevent cable abrasion from slurry contact.

Q: How do I identify glazed diamond beads?

A: When cutting speed drops noticeably and beads feel smooth to touch, they're glazed. Reduce water flow temporarily and cut into more abrasive material to re-expose diamond grit.

Q: What's the difference between rubber and plastic coating?

A: Rubber provides superior protection in abrasive granite slurry environments. Plastic coating is more economical for softer, non-abrasive marble applications where extreme durability isn't required.

Q: How much water cooling is necessary?

A: Maintain constant flow of 15-25 L/min. Insufficient cooling causes thermal degradation of the diamond matrix and increases cable snap risk during operation.

Q: Can you customize bead spacing for specific stone types?

A: Yes, we adjust bead density between 36-40 beads per meter based on your material hardness and desired cutting speed.

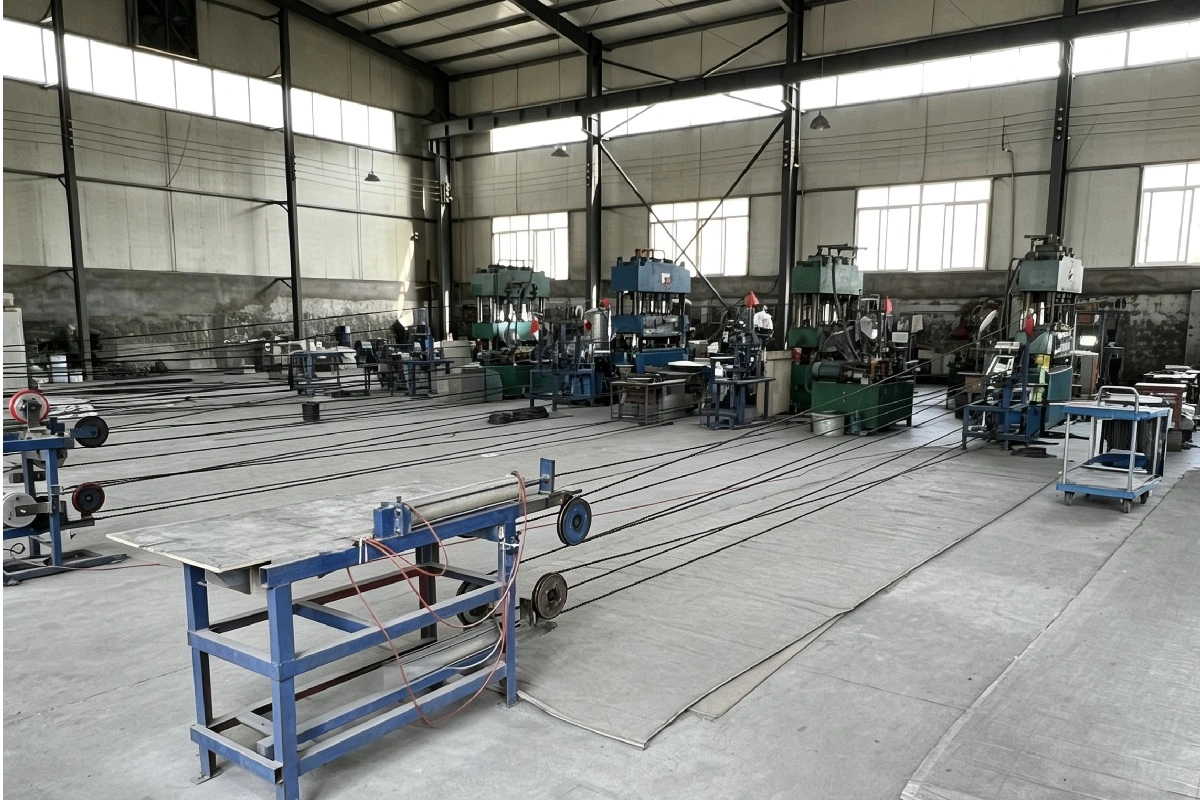

Stone Quarry Wire Saw Production Workshop

Factory Direct Advantages

You benefit from transparent pricing without intermediary markup. Our facility supports on-site inspections and live cutting demonstrations. We provide complete documentation including CO and Form E certificates for smooth customs clearance.

Global logistics partners ensure secure anti-corrosion packaging and efficient delivery worldwide. Technical support covers equipment selection, installation guidance, and operational training to maximize your investment returns.

Get Your Customized Cutting Solution

Ready to improve your quarry efficiency with proven Stone Quarry Wire Saw technology? Contact our technical team at sales@goldfenwiresaw.com for project evaluation, cutting solution design, and competitive factory quotations tailored to your specific requirements.
