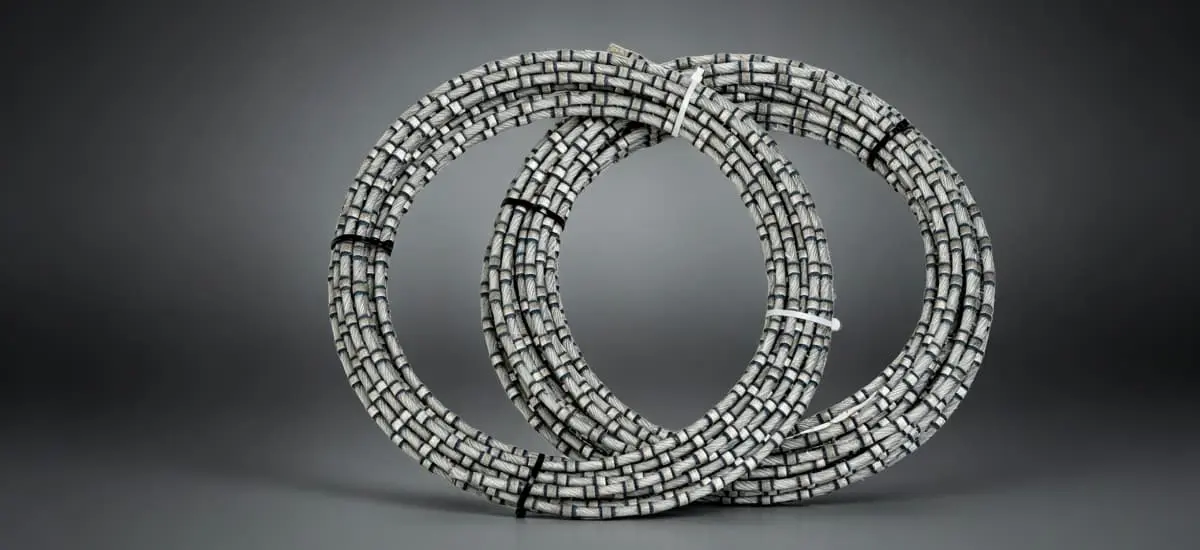

Diamond Wire for Stone Cutting

With its Diamond Wire for Stone Cutting, Laizhou Jinfuen Machinery Co., Ltd. offers the stone sector more than 30 years of production quality. Our diamond wire, which is designed for expert quarrying and stone processing, has a standard diameter of 8.8 mm that is precisely calibrated and compatible with common CNC and factory cutting equipment across the globe. Advanced injection molding and sintering techniques are used to secure the diamond-impregnated beads, and the high-tensile steel core has a tensile strength of more than 2000 MPa. When compared to conventional industrial models, this structure offers up to 15% more cutting efficiency. Our wire adjusts to the cutting needs of granite, marble, limestone, and sandstone with adjustable diameters and bead densities ranging from 28 to 40 beads per meter. Your operations will have a competitive total cost of ownership thanks to factory-direct pricing.

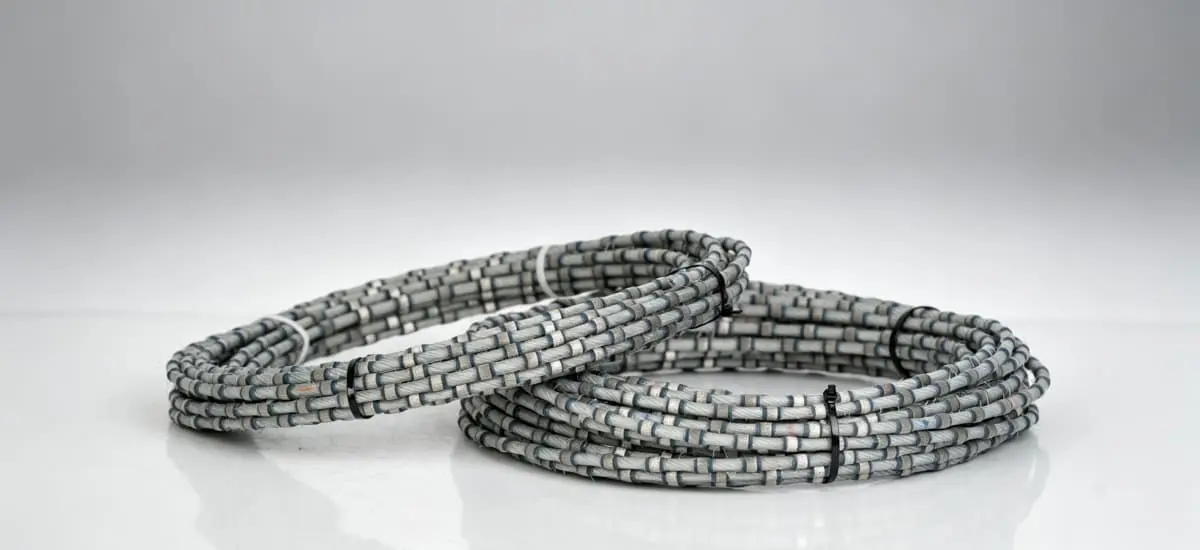

Diamond Wire for Stone Cutting

Technical Specifications

Feature	Specification
Product Name	Diamond Profiling Wire Saw (Endless/Open-ended)
Diameter	Available from 5.3mm to 8.8mm
Bead Density	37 Beads per Meter (High density)
Bead Type	Sintered
Coating	Premium Rubber or Plastic Injection
Application	Granite, Marble, Concrete, Profiling, Slicing
Compatible Machines	CNC Wire Saw, PLC Wire Saw, Electric Sawing Machine
Business Type	Manufacturer (15+ Years Experience)

Beaddia(mm)	Fixed by	Beads/m	Technique	CuttingMaterial	LineSpeed(m/s)	Efficiency(㎡/h)	Life Time(㎡/m)
Φ6.3	HighStrengthPlastic	36/37	Sintered	Soft marble	28-35	1.2-1.5	10-15
Φ7.3	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6 - 1.2	8-10
Φ8.8	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6- 1.2	8-10
Φ5.3	HighStrengthPlastic	36/37	Sintered	Hardmarble	28-35	0.4-0.6	6-8

Why Choose Our Diamond Wire

Premium diamond beads ensure longer service life for your cutting operations.

The vulcanization process creates a chemical bond between rubber coating and steel core. This prevents internal corrosion from cooling water and stops bead slippage during high-speed operations.

Smooth cutting surfaces reduce vibration and noise levels significantly. Your operators will experience safer working conditions while maintaining consistent cutting performance across different stone types.

Our factory controls every production stage—from raw material selection to final inspection. This strict quality management ensures stable performance in extreme quarrying environments and heavy-duty industrial applications.

Diamond Wire for Stone Cutting

Industrial Applications

Quarrying Operations: Extract large-dimension blocks through vertical and horizontal bench cutting. The wire excels in massive rock formations, maintaining stability even in extreme temperature conditions.

Slab Processing: Multi-wire machines equipped with thin-diameter variants (down to 5.3mm) slice blocks into slabs with minimal kerf loss. You achieve superior surface flatness and material yield.

Controlled Demolition: Cut through massive stone structures and reinforced concrete where space restricts traditional methods. The wire minimizes vibration to protect surrounding structural integrity.

Quality Assurance Process

Bead Retention Testing verifies that our coating withstands shear forces during high-speed cutting. Diamond Distribution Analysis uses microscopic inspection to confirm uniform grit density within the sintered matrix.

Tensile Fatigue Testing subjects the steel core to repeated stress cycles. This simulates real-world quarrying conditions before the Diamond Wire for Stone Cutting reaches your facility.

Abrasiveness Testing measures wear rates against standardized stone samples. We guarantee the square meters cut per linear meter matches your investment expectations.

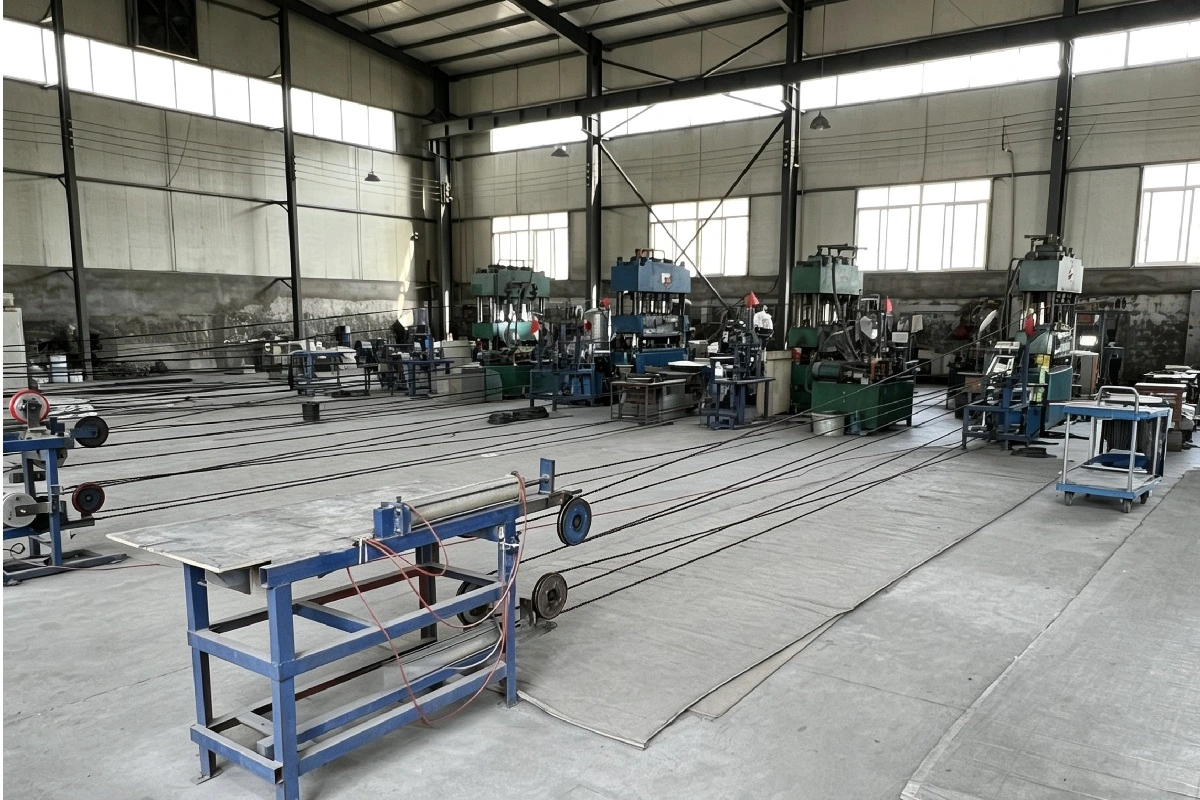

Diamond Wire for Stone Cutting Production Workshop

Frequently Asked Questions

Q: What causes wire breakage during cutting?

A: Excessive tension, improper pulley alignment, or worn steel cores typically cause breakage. Check that cooling water hasn't breached the rubber coating, leading to internal corrosion.

Q: How should I choose between rubber and plastic coating?

A: Select rubber coating for hard stones like granite due to superior cable protection. Plastic or spring-based wires work well for softer stones such as marble or indoor stationary machines.

Q: How do I prepare new diamond beads?

A: Run new beads at reduced speed (15-18 m/s) through abrasive material like soft sandstone. This "opening" process exposes diamond tips for optimal cutting performance.

Q: What water flow rate is optimal?

A: Maintain 15-25 liters per minute to flush stone slurry effectively. Insufficient water causes slurry to act as abrasive, wearing down the coating prematurely.

Q: How can I identify bead slippage?

A: Look for uneven spacing between beads or exposed steel cable sections. Stop operations immediately and arrange re-pressing or replacement to prevent catastrophic failure.

Factory Direct Advantages

You eliminate intermediary costs when ordering directly from our manufacturing facility. Our transparent pricing structure and global export experience ensure smooth logistics and documentation support.

We provide free project evaluation and cutting solution design. Our technical team analyzes your operational costs to improve investment returns and reduce total cost of ownership.

On-site factory visits and live machine demonstrations verify our production capability. You gain confidence in our quality systems before making purchase decisions.

Contact Us for Custom Solutions

Ready to enhance your stone cutting efficiency? Our engineering team designs customized Diamond Wire for Stone Cutting configurations based on your specific materials and equipment requirements.

Reach us at sales@goldfenwiresaw.com for technical consultation and competitive quotations.
