Quarry Stone Diamond Rope – Professional Stone Cutting Solution for Modern Quarries

Laizhou Jinfuen Machinery Co., Ltd. brings over 30 years of manufacturing expertise to deliver high-performance Quarry Stone Diamond Rope. With a tensile strength of more than 2500 MPa and cutting speeds of 22–30 m/s, our 8.8mm diamond wire blends imported steel cable with vacuum-brazed diamond beads. This rope offers up to 15% more cutting efficiency than typical industrial models thanks to its vulcanized rubber coating for exceptional abrasion resistance and bead density of 28 to 40 beads per meter. Designed to extract granite and marble, it minimizes kerf loss, lowers material waste, and allows for continuous operation in harsh quarry conditions.

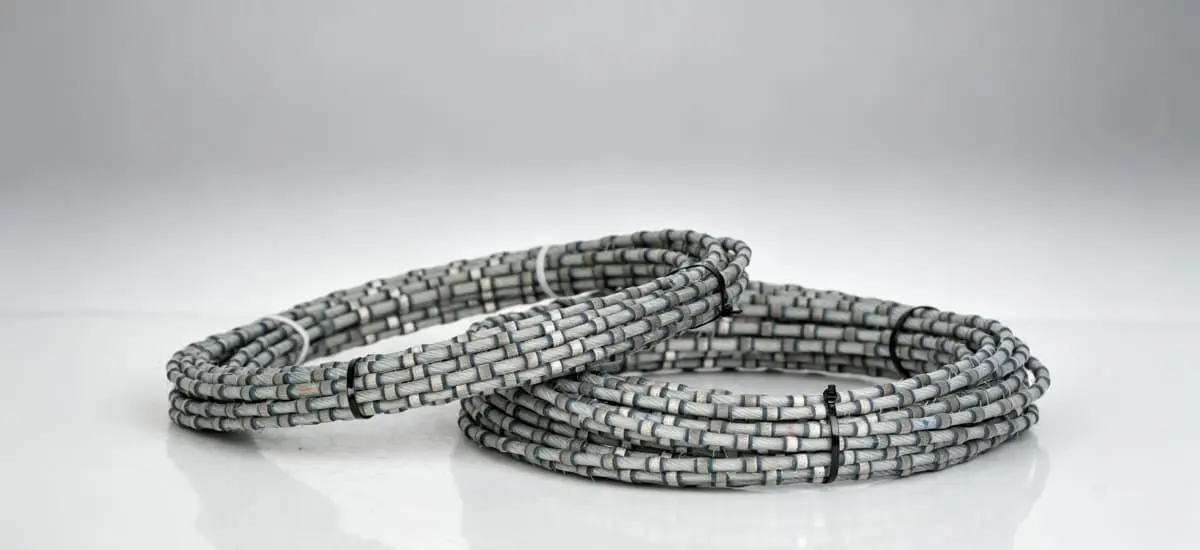

Quarry Stone Diamond Rope

What Makes Our Quarry Stone Diamond Rope Different?

Traditional blasting methods create excessive noise, structural damage, and safety risks. Our diamond rope eliminates these challenges.

For blocks longer than fifty meters, you receive versatile cutting capabilities. While diamond-embedded beads guarantee consistent performance across various Mohs hardness levels, the multi-strand steel core offers stability under high tension.

The wire is shielded from high-pressure water cooling and abrasive slurry by our vulcanized rubber coating. This lowers downtime during your extraction operations and increases service life.

The rope is compatible with both electric and hydraulic wire saws. You keep smooth cutting surfaces with little vibration whether you are doing block squaring operations or primary extraction in open-pit quarries.

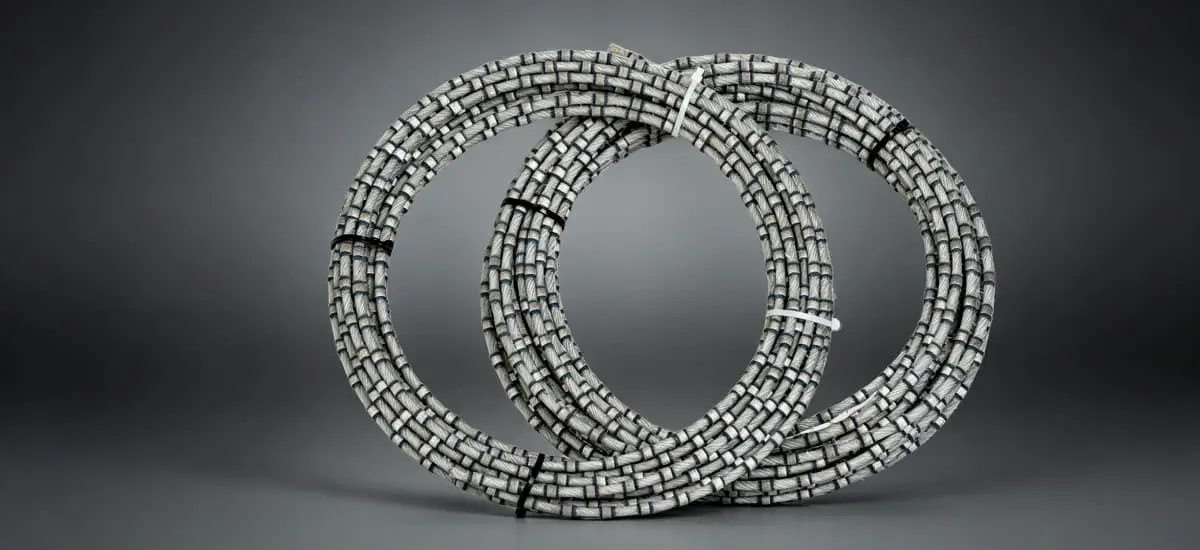

Quarry Stone Diamond Rope

Technical Specifications

Feature	Specification
Product Name	Diamond Profiling Wire Saw (Endless/Open-ended)
Diameter	Available from 5.3mm to 8.8mm
Bead Density	37 Beads per Meter (High density)
Bead Type	Sintered
Coating	Premium Rubber or Plastic Injection
Application	Granite, Marble, Concrete, Profiling, Slicing
Compatible Machines	CNC Wire Saw, PLC Wire Saw, Electric Sawing Machine
Business Type	Manufacturer (15+ Years Experience)

Beaddia(mm)	Fixed by	Beads/m	Technique	CuttingMaterial	LineSpeed(m/s)	Efficiency(㎡/h)	Life Time(㎡/m)
Φ6.3	HighStrengthPlastic	36/37	Sintered	Soft marble	28-35	1.2-1.5	10-15
Φ7.3	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6 - 1.2	8-10
Φ8.8	HighStrengthPlastic	36/37	Sintered	Mid-hardmarble	28-35	0.6- 1.2	8-10
Φ5.3	HighStrengthPlastic	36/37	Sintered	Hardmarble	28-35	0.4-0.6	6-8

Where You Can Use This Diamond Rope

Primary Extraction in Open-Pit Quarries

Perform massive vertical and horizontal cuts in granite and marble mountains. The rope's flexibility handles cuts over 50 meters, delivering export-grade blocks with minimal waste.

Block Squaring and Shaping

Trim irregular stone masses into commercial blocks using stationary machines. Achieve smooth surfaces that reduce your subsequent polishing costs significantly.

Civil Engineering and Demolition

Cut through reinforced concrete, bridge structures, and confined spaces where traditional circular saws cannot reach. The rope maintains performance under extreme tension in high-abrasion environments.

Continuous Production Support

Maintain steady quarry operations with a rope designed for heavy-duty, non-stop cutting. Lower total cost of ownership through reduced consumable wear and extended service intervals.

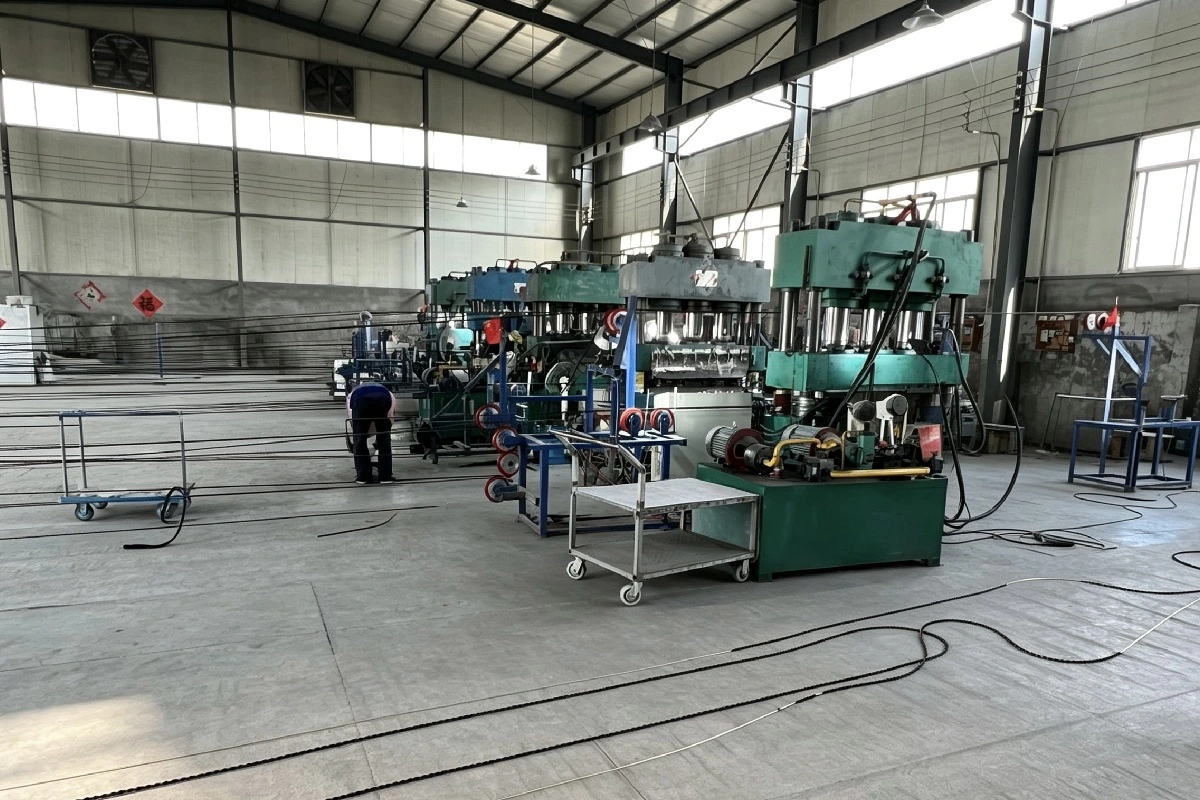

Quarry Stone Diamond Rope Production Workshop

Quality Control You Can Trust

We implement rigorous testing protocols throughout production.

Bead Retention Force Test and Vulcanization Adhesion Testing are essential quality checks for Quarry Stone Diamond Rope—ensuring bead security during high-speed rotation and rubber coating integrity under hydraulic pressure, without risk of detachment or peeling.

Static Tension Testing confirms the wire meets breaking point standards. Concentricity Measurement prevents uneven bead wear that causes tapering.

Diamond Concentration Analysis guarantees consistent cutting speed and tool life across varying stone hardness levels. Every rope undergoes final inspection before packaging, ensuring you receive factory-certified quality.

Why Choose Jinfuen's Quarry Stone Diamond Rope?

Factory Direct Pricing

Eliminate intermediary costs. You get competitive pricing with transparent factory inspection options and live machine demonstrations.

Customized Solutions

We tailor bead spacing, wire diameter, and specifications to match your equipment and stone type. Minimum order quantity starts at just 1 piece.

Heavy-Duty Performance

Optimized design reduces wear significantly. Lower your total cost of ownership while maintaining high-load, continuous operation capability.

Global Logistics Support

Secure export packaging with anti-corrosion treatment ensures safe delivery. We provide complete customs documentation including CO and Form E certificates.

Professional Technical Support

Receive free project evaluation, cutting solution design, and operational cost analysis. Our team assists with installation guidance and operation training.

Frequently Asked Questions

Q1: Why does the rope experience premature breakage?

A: Excessive tensioning or improper rotation (1.5–2 twists per meter recommended) causes fatigue. Always follow manufacturer guidelines for tension settings.

Q2: Should I use rubber or plastic coating?

A: Rubber offers superior impact resistance for quarrying applications. Plastic works better for stationary squaring machines with controlled environments.

Q3: How do I prevent bead tapering?

A: Rotate the wire correctly before joining. This ensures even wear distribution across the bead circumference during operation.

Q4: What is typical life expectancy in granite?

A: Depending on Class 1–5 granite hardness, expect 8 to 15 m² per meter of rope. Harder materials reduce total square meterage.

Q5: How much water flow do I need for cooling?

A: Maintain 25–40 L/min minimum flow. Adequate cooling dissipates heat and flushes stone powder, preventing the rope from glazing and losing cutting efficiency.

Contact Us for Custom Solutions

Ready to improve your quarry efficiency? Reach out for technical consultation, Quarry Stone Diamond Rope customization, or pricing information. Email us at sales@goldfenwiresaw.com to discuss your specific cutting requirements today.
