Quarry Cutting Stand

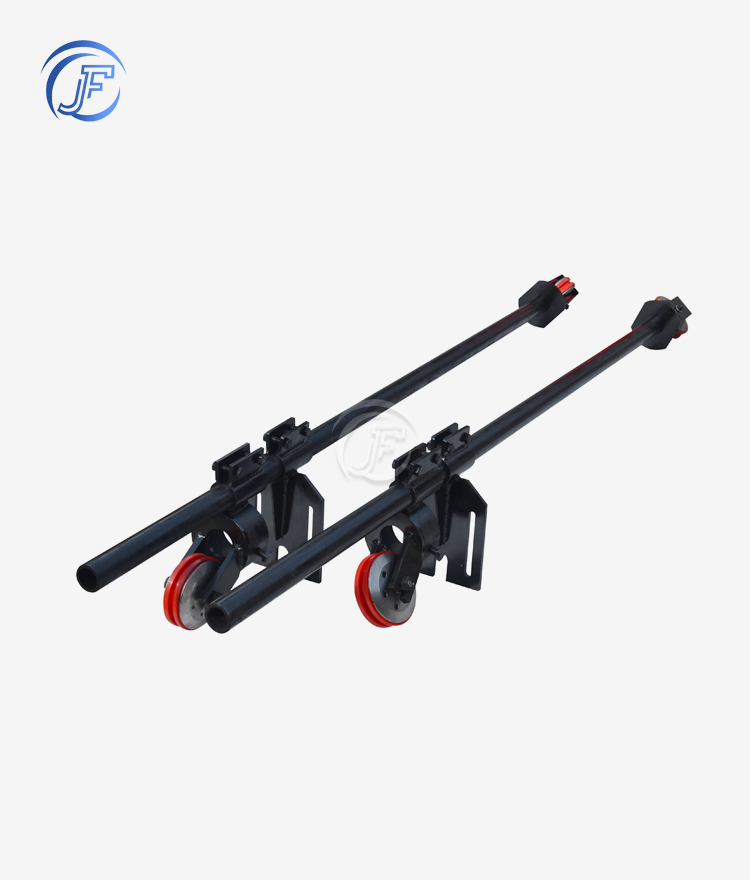

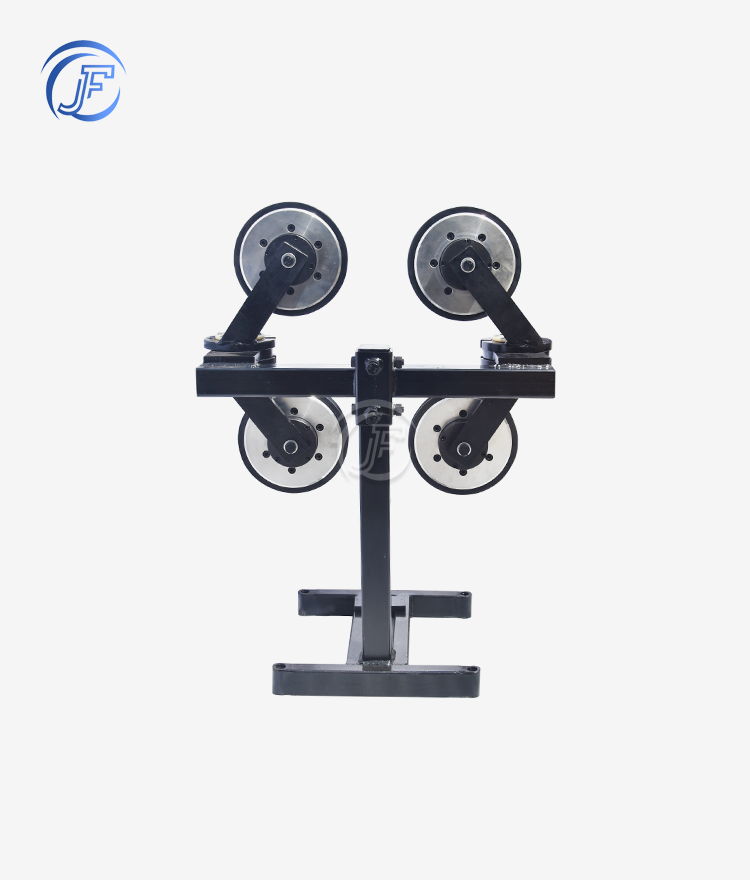

Compact and Lightweight Multifunctional Down-Cutting Auxiliary Pulley Frame for Diamond Wire Saw machines
Product Features:

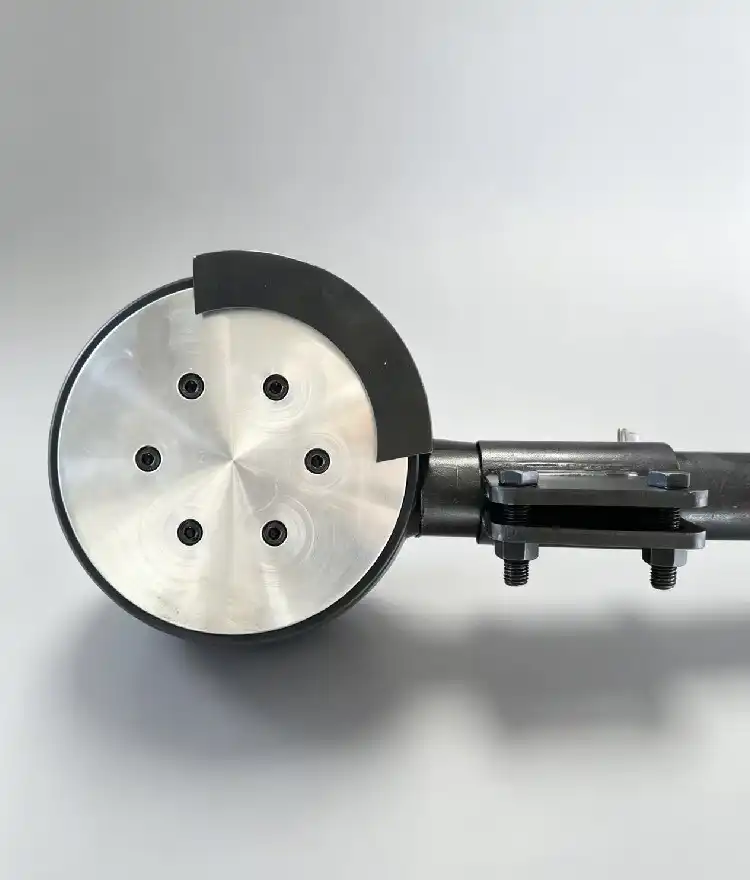

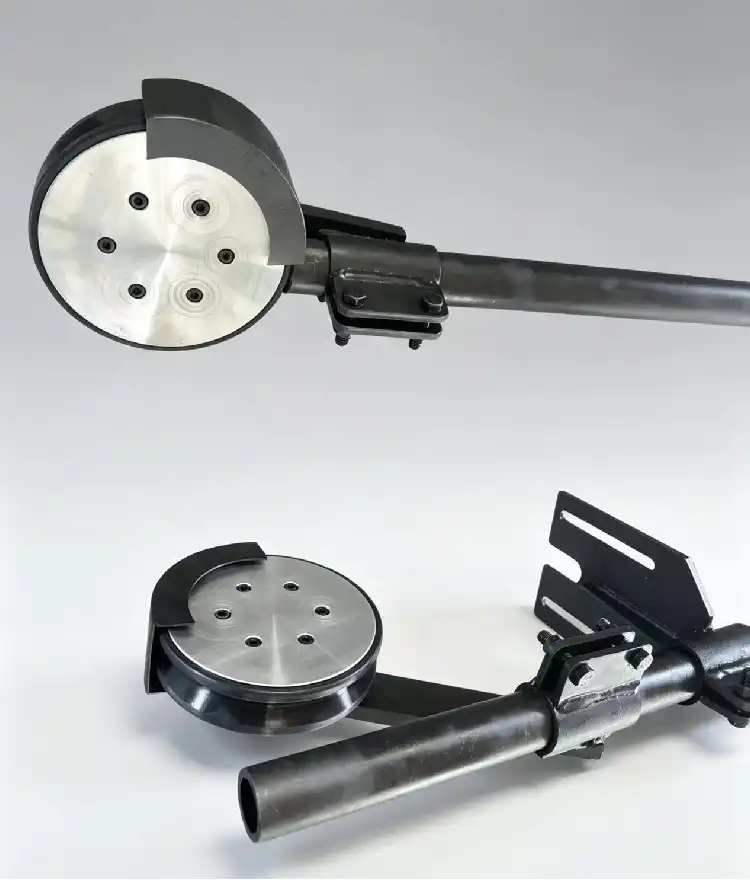

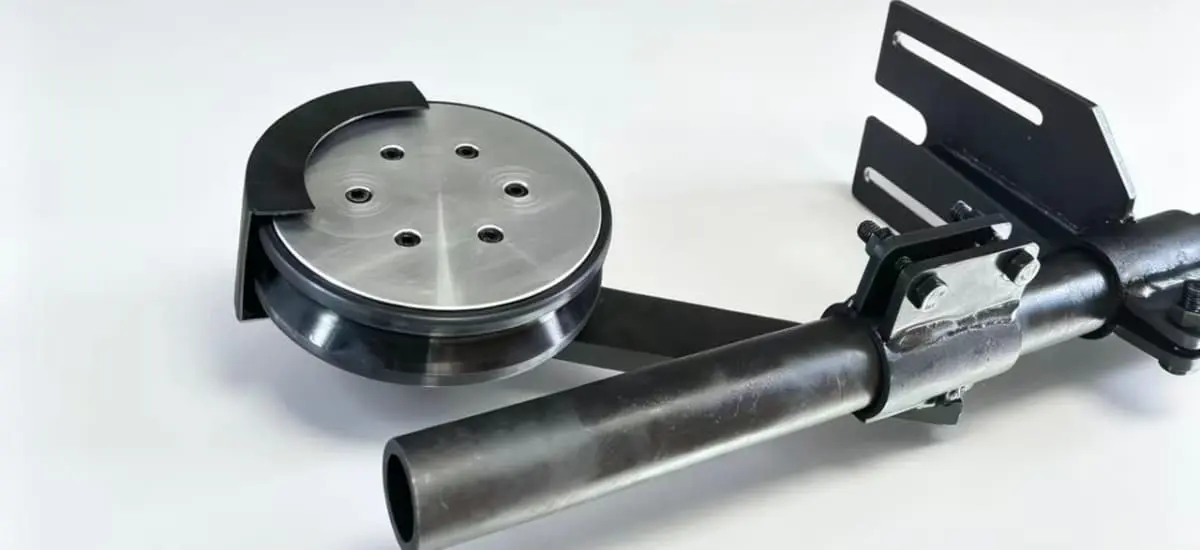

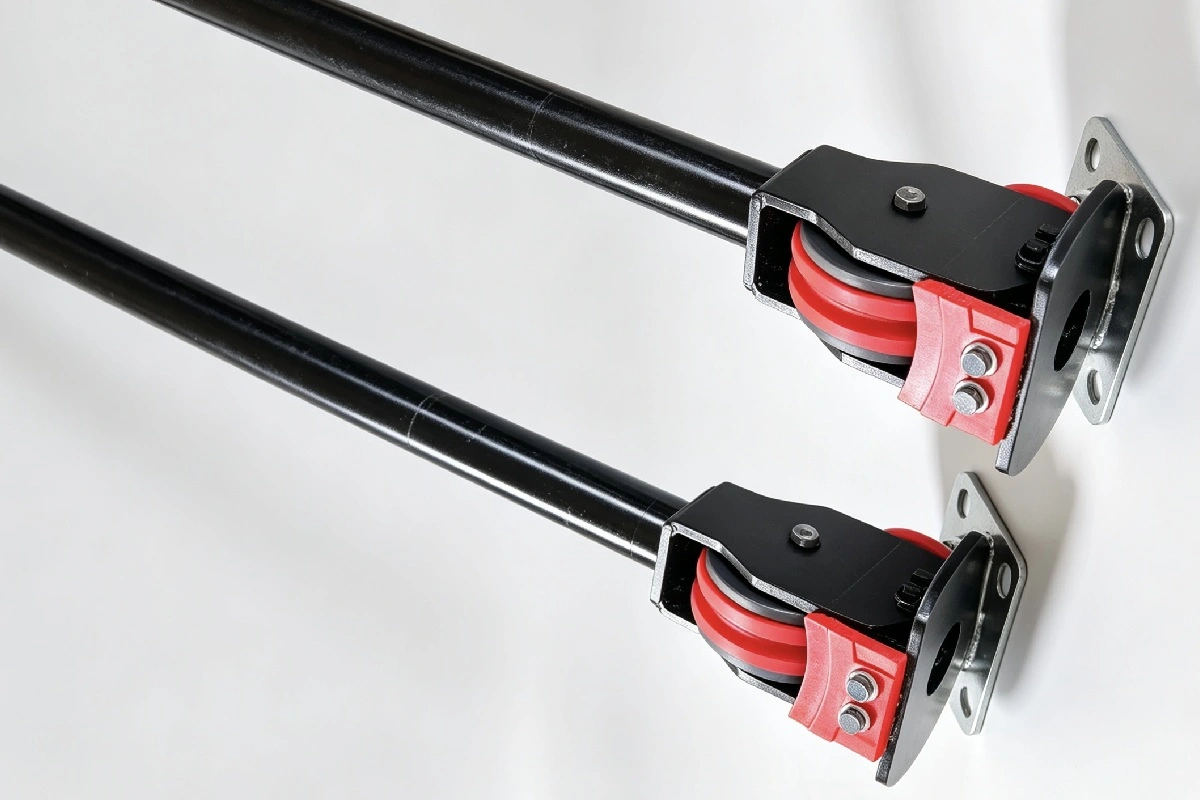

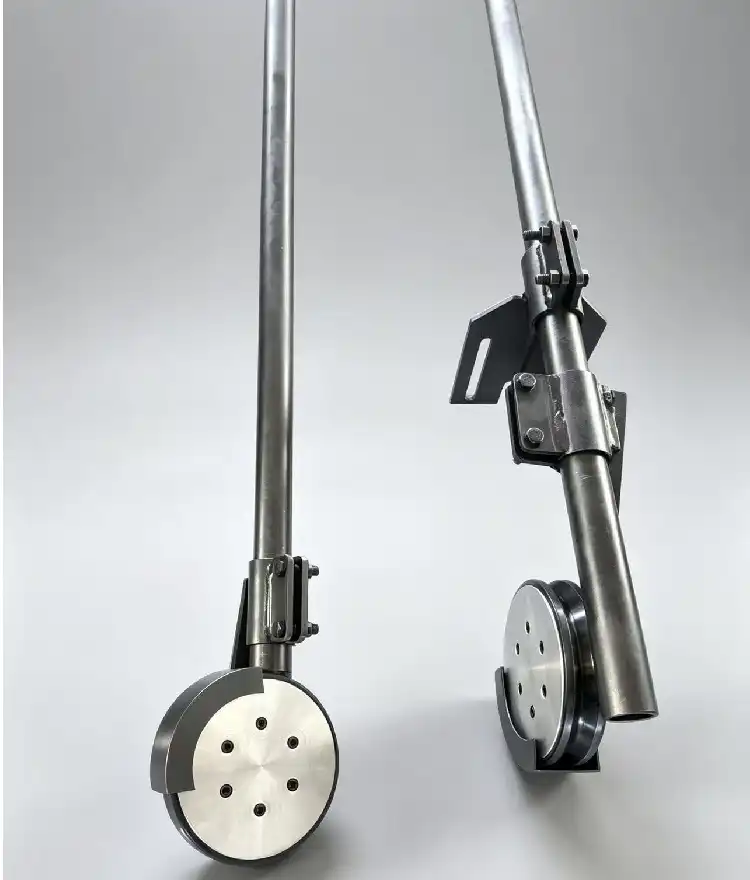

This auxiliary pulley frame is manufactured from high-strength seamless steel tubing. Its compact structure combines low weight with high load-bearing capacity, making it easy to transport, install, and operate on site. When used with a Jinfuen diamond wire saw machine, it provides stable guidance for the diamond wire and enables controlled cutting from top to bottom at a designated position.
Before installation, two mounting holes must be drilled according to the cutting plan. Standard hole diameters are Ø150 mm or Ø160 mm. The pulley size can be selected or customized according to the actual hole diameter, diamond wire diameter, and available installation space. The required drilling depth depends on the thickness of the workpiece, the planned cutting path, and the conditions at the job site.

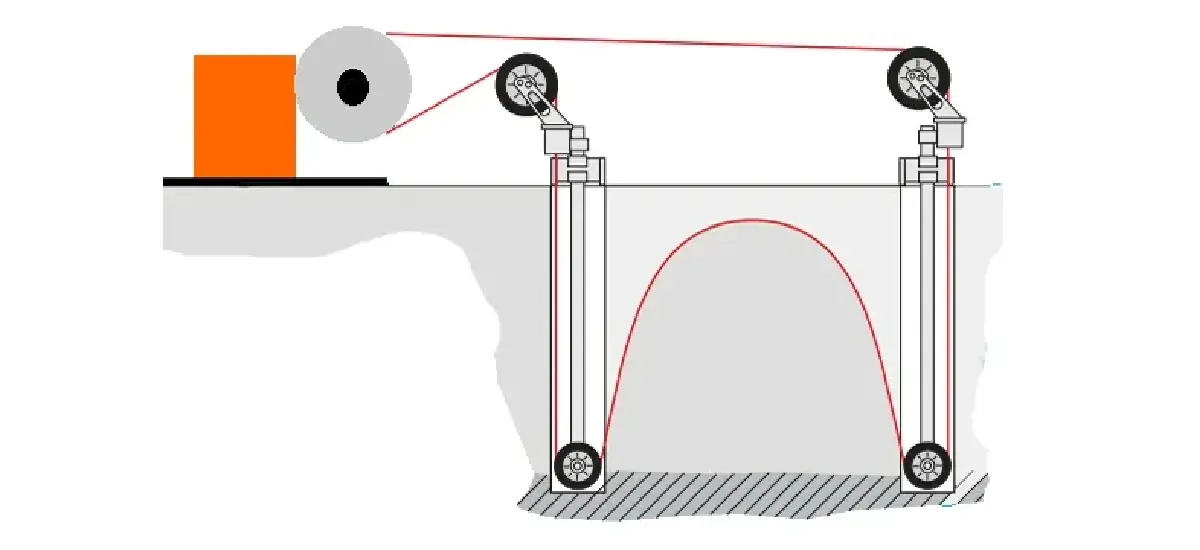

The overall dimensions, connection method, and extension length of the pulley frame can be customized for different operating requirements. With suitable connecting components, it can be adapted to various models of diamond wire saw machines. The frame effectively redirects and stabilizes the diamond wire, allowing vertical downward cutting from a specified starting point. It is particularly suitable for confined work areas or applications where conventional guiding systems are difficult to install.

Where You Can Apply This Solution

Large-Scale Granite Extraction

In deep-pit operations, the stand serves as your primary stabilizer for vertical bench cutting. It withstands extreme pressure and abrasive dust without losing alignment. Your team maintains cutting precision throughout extended production shifts.

Precision Marble Slab Squaring

Premium marble quarries require exact 90-degree block squaring. Our equipment facilitates this precision, reducing secondary processing needs. You preserve aesthetic vein continuity that maximizes block value.

Remote Rugged Terrain Operations

Mountainous quarry locations present unique challenges. Specialized portable models with hydraulic self-leveling legs allow immediate setup on slopes. You maintain safety standards where traditional fixed infrastructure cannot reach.

Quality Assurance You Can Verify

Our manufacturing process follows strict quality protocols that protect your investment.

Non-Destructive Testing (NDT)

Ultrasonic and radiographic examination verifies all critical weld joints. We guarantee zero internal defects under high-stress loads. You receive equipment certified for demanding applications.

Static Load Testing

Every unit undergoes 1.5x rated capacity testing according to EN 1090-2 standards. Deflection limits are verified before shipment. Your safety margins exceed industry requirements.

Surface Integrity Analysis

Salt spray testing confirms corrosion resistance in wet-cutting environments. The coating withstands prolonged exposure to mineral-laden water. You avoid premature structural degradation.

Alignment Verification

Laser-guided inspection ensures rail parallelism and flatness. This prevents the "cigar-shaped" cuts that waste valuable stone. Your dimensional accuracy remains consistent across all blocks.

Why Choose Jinfuen as Your Manufacturing Partner

Factory Direct Pricing

We eliminate middlemen costs to provide competitive market advantages. Your procurement budget achieves better value without compromising quality.

Three Decades of Industry Knowledge

Our engineering team understands real quarry conditions. Equipment design reflects practical solutions to operational challenges. You benefit from proven performance in multiple international markets.

Customized Configurations

We adapt stand specifications to your cutting materials and site conditions. Modular extensions accommodate oversized blocks. Your unique requirements receive tailored engineering support.

Comprehensive Technical Support

From equipment selection through installation and training, our team assists your operations. Spare parts availability ensures minimal downtime. You gain a long-term partnership focused on productivity.

Frequently Asked Questions

Q: How does the stand prevent diamond wire snapping?

A: The rigid frame reduces harmonic vibration and maintains constant tension. This eliminates micro-jolts that cause wire fatigue. Your consumable costs decrease through extended wire life.

Q: What maintenance do leveling screws require?

A: Weekly lubrication with high-pressure molybdenum disulfide grease is recommended. Daily cleaning removes quarry grit from threads. Proper maintenance ensures smooth adjustment over years of service.

Q: Can you customize stands for oversized blocks?

A: Yes, modular extensions increase the base footprint for blocks exceeding 40 tons. We engineer solutions matching your largest extraction requirements. Custom configurations maintain full structural integrity.

Q: How do you verify the safety factor?

A: Every unit undergoes certified load-stress analysis. We provide a manufacturer's declaration of conformity linked to international mining equipment protocols. Your safety documentation meets regulatory standards.

Q: What's the delivery timeframe for custom orders?

A: Standard configurations ship within 10–30 days. Custom solutions require engineering review, typically adding 2–3 weeks. We coordinate with global logistics partners for efficient transportation.

Contact Us for Tailored Cutting Solutions

Enhancing quarry productivity starts with the right equipment and the right plan. We offer free on-site evaluations and cutting solution designs, with our Quarry Cutting Stand as the foundation of every customized proposal. Contact Us to get started.​​​​​​​

Contact sales@goldfenwiresaw.com for technical consultation and competitive pricing.
