Quarry Wire Saw Support Stand

Compact and Lightweight Multifunctional Down-Cutting Auxiliary Pulley Frame for Diamond Wire Saw machines
Product Features:

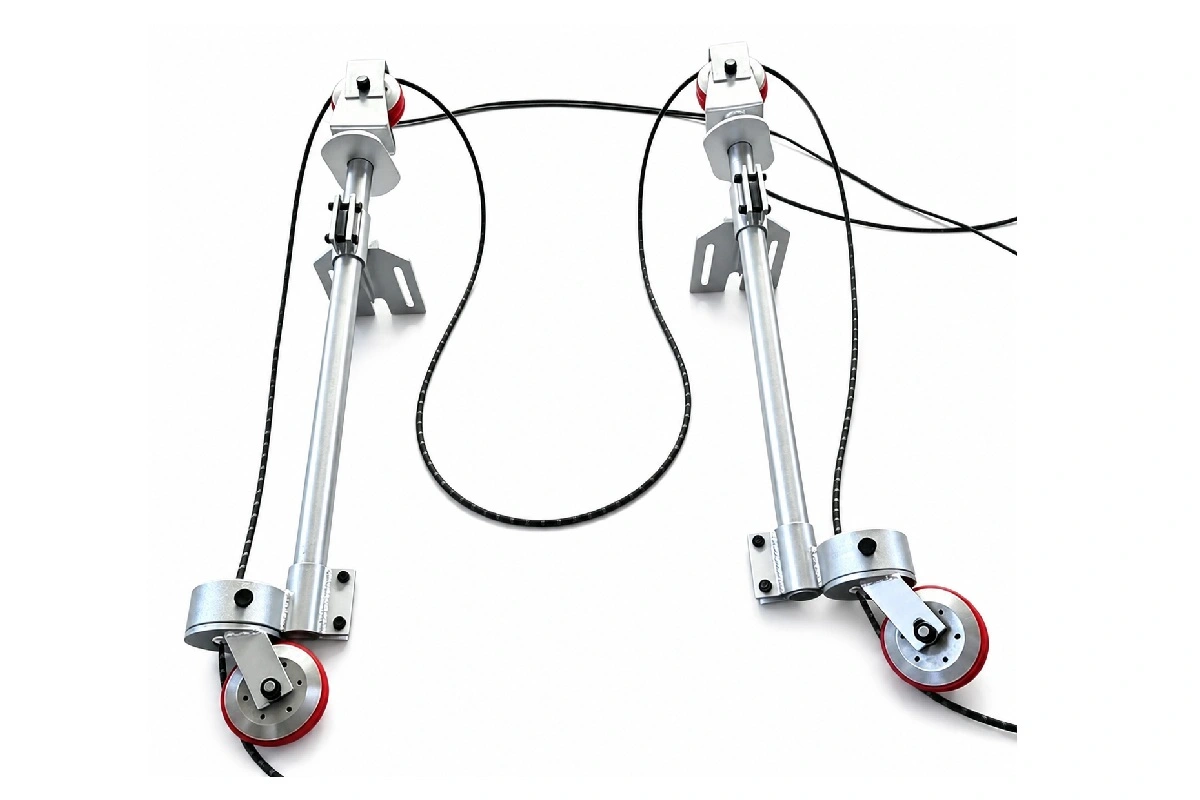

This auxiliary pulley frame is manufactured from high-strength seamless steel tubing. Its compact structure combines low weight with high load-bearing capacity, making it easy to transport, install, and operate on site. When used with a Jinfuen diamond wire saw machine, it provides stable guidance for the diamond wire and enables controlled cutting from top to bottom at a designated position.

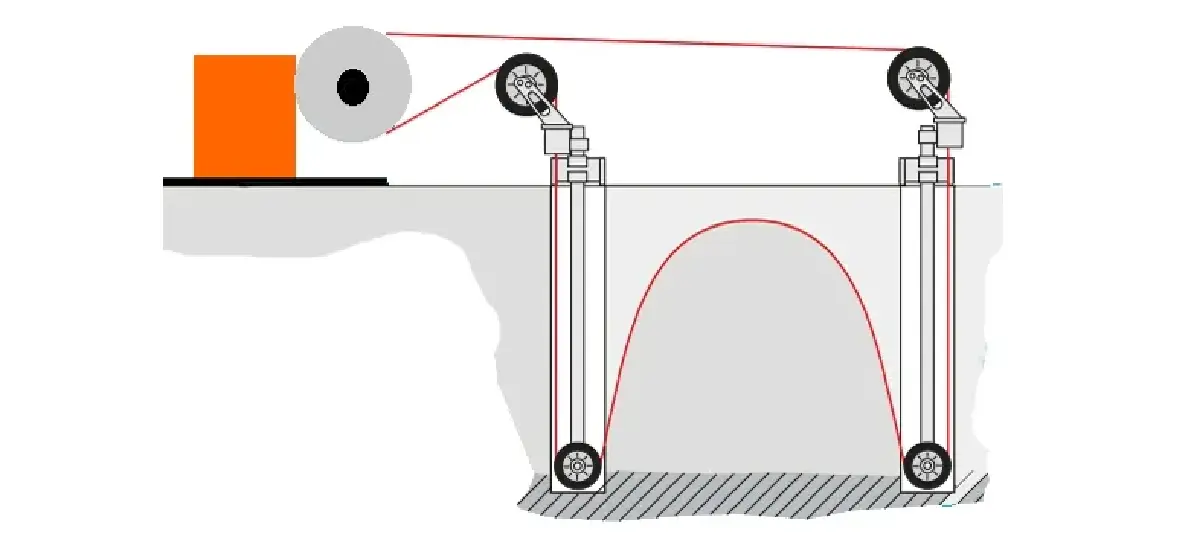

Before installation, two mounting holes must be drilled according to the cutting plan. Standard hole diameters are Ø150 mm or Ø160 mm. The pulley size can be selected or customized according to the actual hole diameter, diamond wire diameter, and available installation space. The required drilling depth depends on the thickness of the workpiece, the planned cutting path, and the conditions at the job site.
The overall dimensions, connection method, and extension length of the pulley frame can be customized for different operating requirements. With suitable connecting components, it can be adapted to various models of diamond wire saw machines. The frame effectively redirects and stabilizes the diamond wire, allowing vertical downward cutting from a specified starting point. It is particularly suitable for confined work areas or applications where conventional guiding systems are difficult to install.

Why Your Quarry Needs Our Support Stand

Your diamond wire investment deserves maximum protection. Our Quarry Wire Saw Support Stand eliminates three costly problems you face daily.

Wire deviation during long cuts destroys profitability. When cutting 20-50 meter horizontal benches, gravitational sag causes binding and premature bead wear. Our rigid pivot system maintains precise axial alignment, extending your diamond wire life by reducing lateral friction.

Vibration damages both equipment and blocks. Excessive movement creates safety hazards and material waste. The heavy-duty construction absorbs operational stress while keeping your cutting geometry accurate.

Harsh environments accelerate equipment failure. Quarry conditions demand resilience. Your stand operates in high-dust, high-moisture environments with temperature fluctuations. The protective coating system ensures years of reliable service without rust degradation.

Superior Engineering for Maximum Uptime

The multi-angle locking mechanism adapts to both horizontal bench extraction and vertical block squaring. You can position the stand at any degree to match your specific cutting orientation.

Installation takes minutes with standard rock bolt anchoring. The base design distributes weight evenly across uneven quarry floors, preventing destabilization during operation.

Maintenance requirements remain minimal. Grease the pulley system every 8-12 hours of operation. Inspect rubber liners weekly for wear. This simple routine keeps your stand performing at peak efficiency.

Proven Applications Across Stone Operations

Large-scale granite extraction projects rely on our stands to maintain wire tension over extended distances. The stabilization prevents wire whipping that endangers operators.

Underground marble mining operations use our equipment as corner pulleys in confined spaces. This positioning flexibility allows your wire saw machine to stay in safe zones away from falling blocks.

Processing yard block squaring requires perfect parallelism for gang saw preparation. Our stand delivers the stabilization needed for precision vertical cuts that meet dimensional tolerances.

Quality Control You Can Trust

Every Quarry Wire Saw Support Stand undergoes rigorous factory testing before shipment. Ultrasonic weld testing confirms zero internal structural defects. Load-bearing certification verifies 1.5x rated capacity performance without permanent deformation.

Laser alignment tools ensure pulley groove perfection, preventing uneven wire wear patterns. Bearing run-out testing guarantees smooth rotation under maximum tension conditions. These quality measures protect your investment and your team.

Frequently Asked Questions

Q: How does this stand extend my diamond wire lifespan?

A: Precise alignment reduces friction and vibration, preventing uneven bead wear that causes premature wire failure.

Q: What's involved in pulley maintenance?

A: Apply grease every 8-12 operating hours and check rubber liners weekly for grooves or thinning.

Q: Can I use one stand for different cutting angles?

A: Yes. The swivel head locks at any degree for horizontal, vertical, or angled cutting requirements.

Q: Why does my current stand vibrate excessively?

A: Check that rock bolts are properly anchored and inspect bearings for wear or insufficient lubrication.

Q: How do I determine the correct height setting?

A: Adjust so the wire enters at a slight downward angle, optimizing cooling water flow and debris removal efficiency.

Partner With a Trusted Manufacturer

Jinfuen Machinery eliminates middleman costs with direct factory pricing. Our 30-year track record proves our commitment to quality and customer success.

We support your decision with transparent factory inspections and live machine demonstrations. Our technical team provides free project evaluation and Quarry Wire Saw Support Stand solution design to maximize your ROI.

Ready to reduce wire wear and improve cutting precision? Contact our team at sales@goldfenwiresaw.com for technical specifications and competitive quotations tailored to your quarry requirements.
