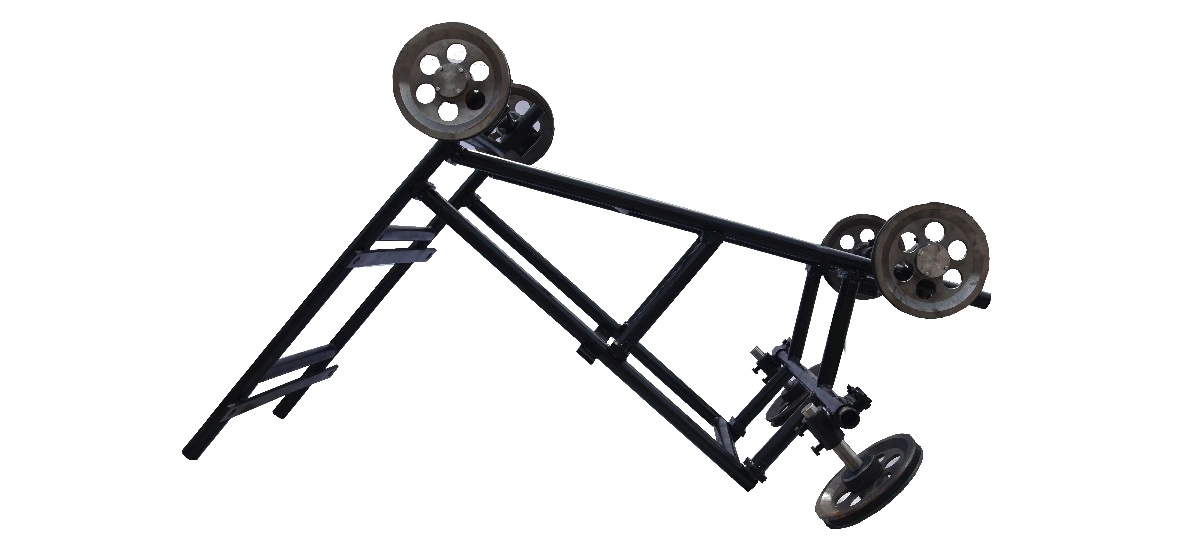

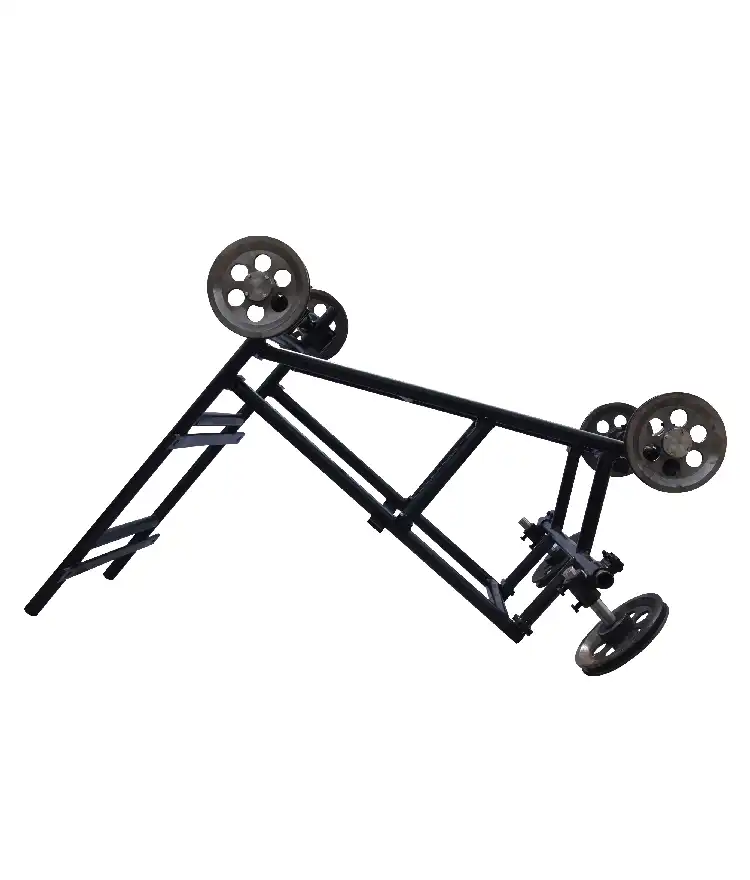

Quarry Wire Saw Frame – Heavy-Duty Stone Cutting Solution

Laizhou Jinfuen Machinery Co., Ltd. delivers a professional-grade Quarry Wire Saw Frame engineered with reinforced Q345B structural steel, supporting flywheel diameters from 550mm to 1000mm. Our frame features a motorized 360-degree rotation mechanism and maintains linear guide rail tolerance below 0.05mm, ensuring precise wire alignment under extreme tension loads exceeding 25kN. With hot-dip galvanizing treatment meeting ISO 12944 standards and advanced vibration damping properties, this industrial frame extends diamond wire service life by up to 15% while reducing operational downtime. Backed by over 30 years of manufacturing expertise, our factory-direct solution delivers consistent cutting geometry across granite benches and marble squaring applications.

Why Your Quarry Needs a Robust Wire Saw Frame

The structural backbone of your wire saw system determines cutting precision and equipment longevity. Our frame addresses critical challenges you face daily in stone extraction operations.

Harmonic vibration destroys diamond beads prematurely. Our low center of gravity design and specialized damping structures eliminate micro-oscillations that cause uneven wear patterns.

Uneven terrain creates alignment nightmares. The reinforced steel construction maintains perfect wire tracking even when positioned on rugged quarry floors, preventing costly wire breakage.

Corrosive environments shorten equipment life. Our hot-dip galvanized coating and high-grade epoxy protection resist pH-variable water and abrasive stone sludge for 10-15 years of active service.

Application Scenarios That Demand Precision

Large-Scale Granite Bench Cutting

Your vertical cuts exceed 10 meters in height. Our Quarry Wire Saw Frame prevents wire wandering through rigid construction, delivering perfectly flat extraction faces for massive granite blocks.

Horizontal Marble Squaring

Confined underground galleries limit positioning options. The frame's 90-degree locking increments enable precise horizontal slicing at deposit bases where space is restricted.

Reinforced Concrete Demolition

Bridge pier removal and dam decommissioning require adaptability. Our modular frame handles complex, high-load civil engineering scenarios that standard equipment cannot manage.

Quality Assurance You Can Verify

Weldment Integrity Testing

All load-bearing joints undergo Ultrasonic Testing (UT) and Magnetic Particle Inspection (MPI). We detect internal flaws before the frame reaches your quarry site.

Dynamic Balance Verification

Main drive flywheels meet ISO 1940 G6.3 standards. This prevents resonance-induced fatigue that shortens frame lifespan during continuous operation.

Stress Analysis Validation

Finite Element Analysis (FEA) combined with physical load testing confirms deflection limits. Your frame maintains structural integrity under maximum wire tension conditions.

Corrosion Resistance Proof

Salt spray testing validates our surface treatment. The coating survives the wet, abrasive quarry environment where lesser frames corrode within months.

Factory-Direct Advantages for Your Business

Transparent Production Verification

Visit our facility to witness frame fabrication. We demonstrate welding quality, balance testing, and coating application, so you purchase with complete confidence.

Customized Configuration Options

Different stone types and job site conditions require specific solutions. We tailor flywheel sizes, motor mounting configurations, and rotation mechanisms to your operational needs.

Competitive Pricing Structure

Factory-direct purchasing eliminates intermediary markups. You receive industrial-grade equipment at prices that improve your project ROI and reduce total cost of ownership.

Complete Spare Parts Availability

We supply guide wheels, tension wheels, and all frame components. One supplier meets your maintenance requirements, minimizing downtime when parts need replacement.

FAQ

Q: Why does my frame vibrate excessively during high-speed cuts?

A: Flywheel imbalance or worn main shaft bearings cause most vibration issues. Re-balance your flywheels and inspect bearing housing for play immediately.

Q: How does frame rigidity impact diamond wire longevity?

A: A rigid Quarry Wire Saw eliminates micro-oscillations. Even slight frame flex creates uneven diamond bead wear, leading to premature wire breakage and increased consumable costs.

Q: Can the frame perform both vertical and horizontal cuts?

A: Yes. Our motorized rotation head positions the drive wheel at any angle between 0 and 360 degrees, adapting to diverse cutting requirements without repositioning the entire machine.

Q: What maintenance protects guide rail accuracy?

A: Clean and lubricate guide rails daily. Stone dust causes abrasive wear that leads to misalignment, destroying the precision cutting geometry that justifies your equipment investment.

Q: What extends the lifespan of galvanized frames?

A: Rinse the frame after each use in acidic environments. Proper maintenance preserves the protective coating, enabling 10-15 years of reliable quarry service.

Contact Us for Cutting Solutions

Ready to eliminate wire breakage and extend equipment life? Learn more about our Quarry Wire Saw Frame. Our engineering team provides free project evaluation and operational cost analysis.

Email us at sales@goldfenwiresaw.com to discuss your quarry requirements today.
