Diamond Wire Saw Stand

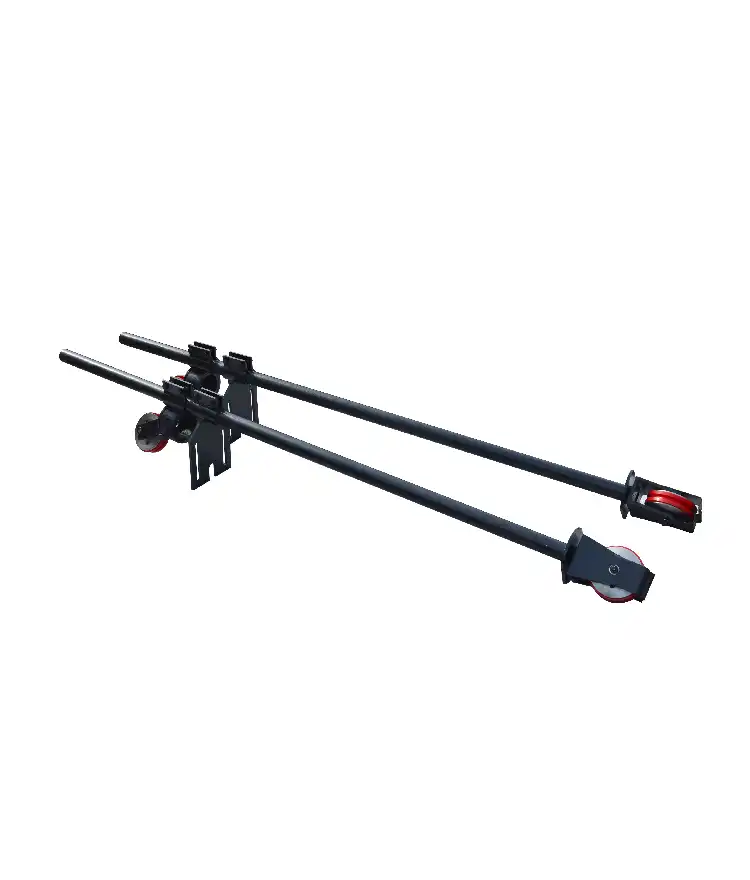

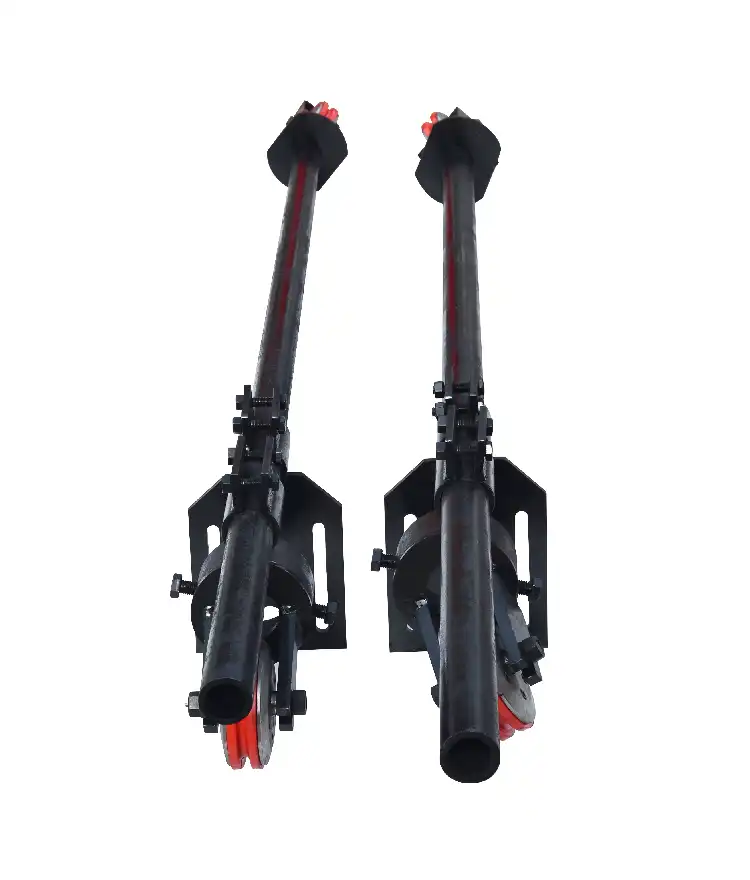

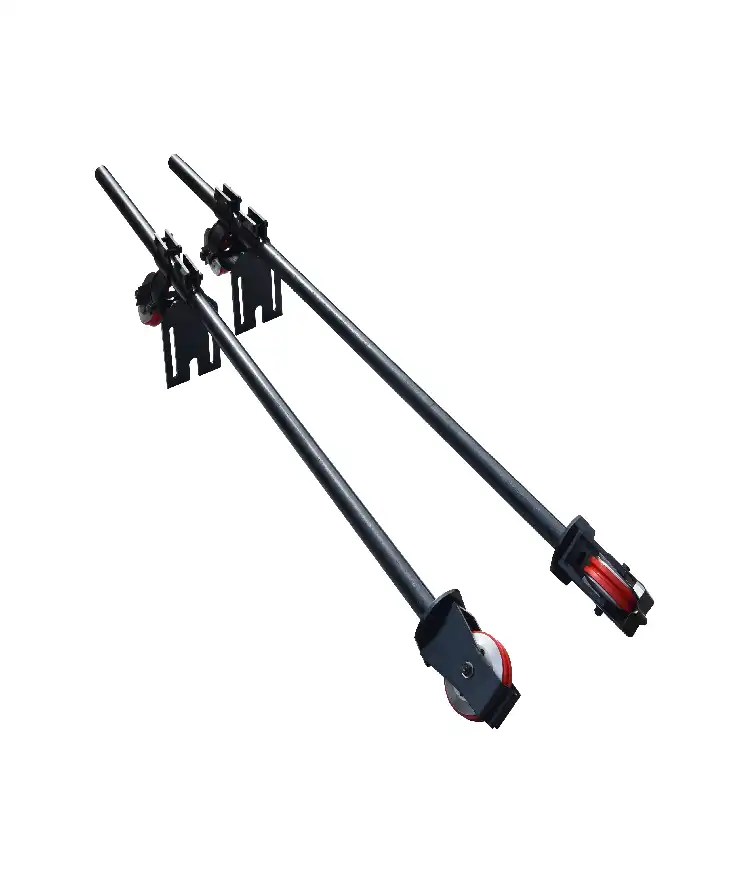

Compact and Lightweight Multifunctional Down-Cutting Auxiliary Pulley Frame for Diamond Wire Saw machines
Product Features:

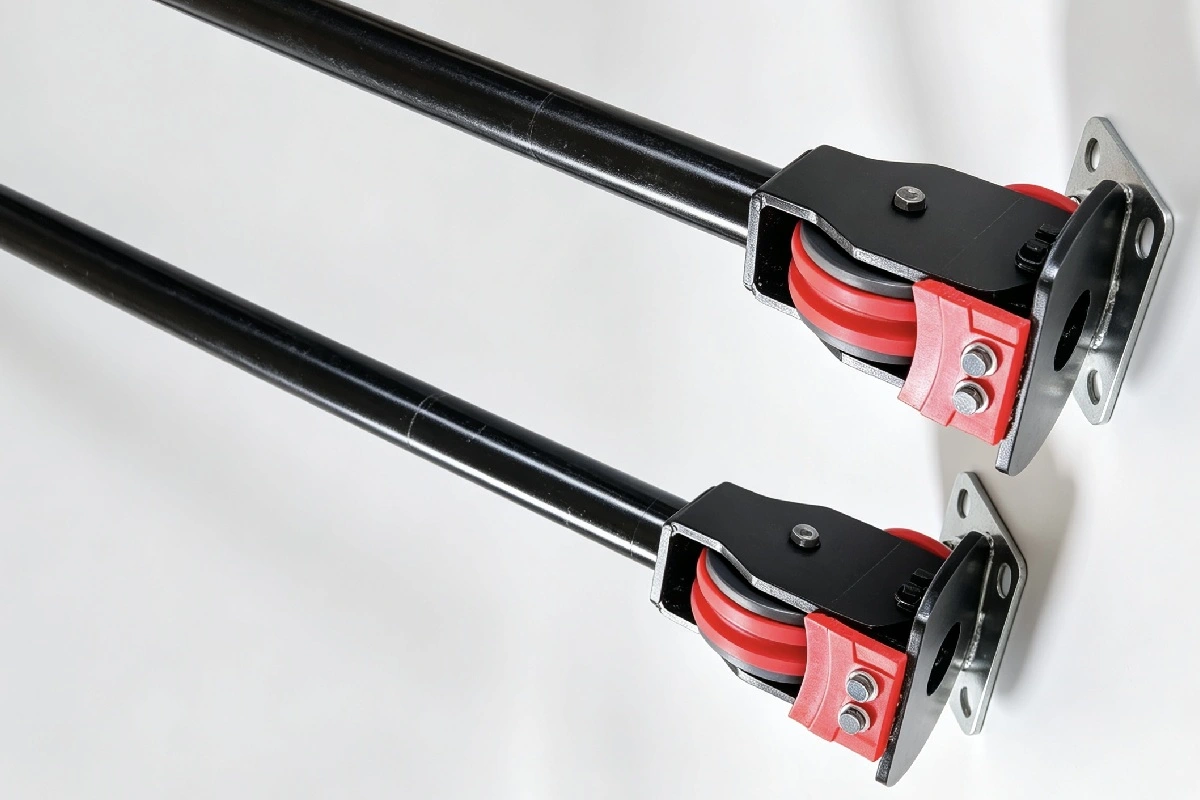

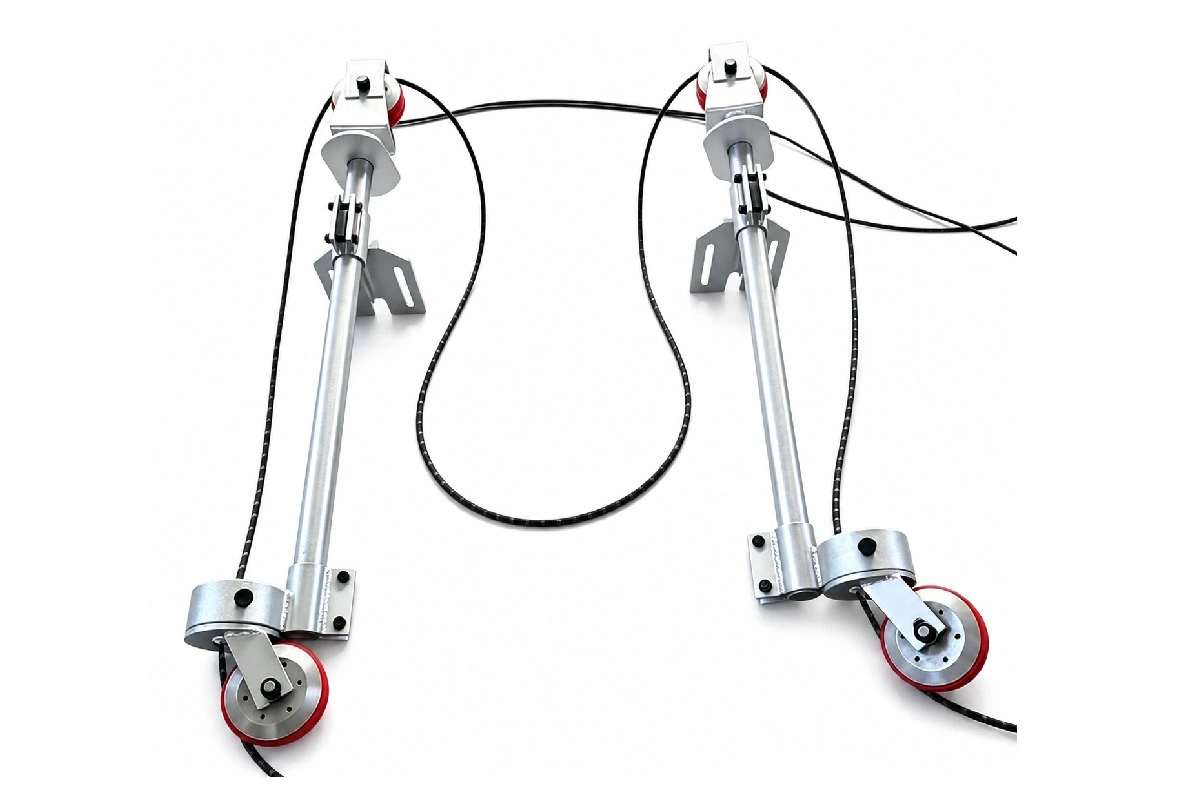

This auxiliary pulley frame is manufactured from high-strength seamless steel tubing. Its compact structure combines low weight with high load-bearing capacity, making it easy to transport, install, and operate on site. When used with a Jinfuen diamond wire saw machine, it provides stable guidance for the diamond wire and enables controlled cutting from top to bottom at a designated position.
Before installation, two mounting holes must be drilled according to the cutting plan. Standard hole diameters are Ø150 mm or Ø160 mm. The pulley size can be selected or customized according to the actual hole diameter, diamond wire diameter, and available installation space. The required drilling depth depends on the thickness of the workpiece, the planned cutting path, and the conditions at the job site.

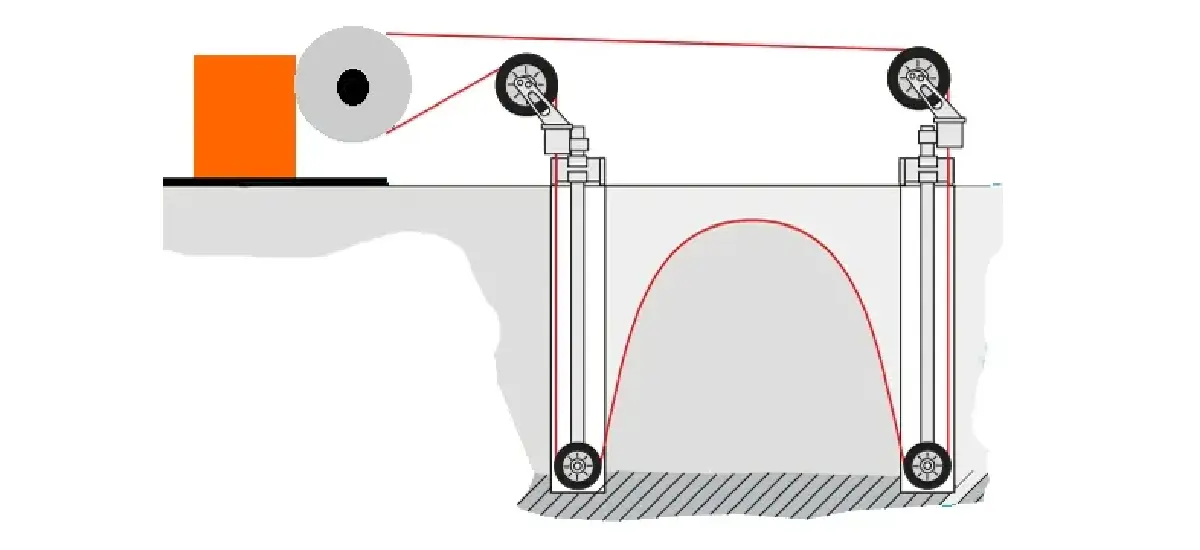

The overall dimensions, connection method, and extension length of the pulley frame can be customized for different operating requirements. With suitable connecting components, it can be adapted to various models of diamond wire saw machines. The frame effectively redirects and stabilizes the diamond wire, allowing vertical downward cutting from a specified starting point. It is particularly suitable for confined work areas or applications where conventional guiding systems are difficult to install.

What Makes Our Diamond Wire Saw Stand Exceptional

The structural integrity of your cutting operation depends on support equipment precision. Our stands solve critical industry challenges like wire deviation during granite extraction and stability loss in reinforced concrete demolition projects.

The apparatus, which is made of industrial steel frames and aerospace-grade aluminum alloys, can endure torsional forces produced by linear wire speeds of 20–30 m/s. Rapid deployment in difficult quarry terrain is made possible by the modular architecture.

Before being sent, every Diamond Wire Saw Stand is subjected to static load verification and ultrasonic weld testing. By ensuring that pulley mounts are perfectly squared, laser alignment calibration helps to avoid wire twisting that could harm diamond beads.

Both vertical deep-cut operations and horizontal block squaring are supported by the 360-degree rotating head. Wire widths ranging from 6.3 mm to 11.5 mm are supported by universal pulley grooves without the need for tooling modifications.

Uneven quarry floors are compensated for using chemical anchor bolt systems and heavy-duty leveling jacks. This produces a foundation devoid of vibration, which is necessary for precise cutting tasks.

Key Application Scenarios

Your cutting projects demand equipment that performs in extreme conditions. Our stands excel in three critical environments.

Large-Scale Quarry Extraction

In granite and marble quarries, the stand maintains perfect verticality over 20-meter cuts despite temperature fluctuations. This ensures dimensional accuracy for export-grade stone blocks.

Reinforced Concrete Demolition

Portable configurations anchor to existing structures for bridge dismantling and building decommissioning. The products performs precision cuts in confined spaces where traditional saws cannot operate.

Industrial Manufacturing

Ultra-stable versions guide wires through silicon ingots and sapphire substrates in controlled environments. Micron-level vibration control prevents kerf loss in semiconductor applications.

Quality Assurance Process

Your investment receives comprehensive factory inspection protection. We implement five-stage quality control protocols.

Ultrasonic weld testing verifies structural joints handle maximum wire tension. Static and dynamic load testing confirms deflection limits under operational stress.

Laser verticality calibration ensures pulley alignment meets DIN mechanical component standards. Salt spray testing validates corrosion protection for coastal quarry installations.

High-speed pulley bearing rotation tests guarantee heat dissipation performance. Each Diamond Wire Saw Stand ships with detailed inspection reports documenting compliance.

Why Choose Jinfuen Wire Saw Equipment

You gain direct factory pricing without intermediary markups. Our 30+ years of manufacturing experience ensures stable quality in harsh working environments.

Complete product range includes wire saw machines, pulley wheels, and spare parts from a single supplier. This simplifies procurement and ensures component compatibility.

Customized configurations match your specific cutting materials and job site conditions. Technical support covers equipment selection, installation guidance, and operator training.

Global logistics integration provides secure export packaging with CO and Form E documentation assistance. We support on-site factory inspections and live machine demonstrations.

Frequently Asked Questions

Q: How does the stand minimize wire wear?

A: High-precision guide pulleys ensure the wire enters cuts at perfect 90-degree angles, reducing lateral friction on diamond beads.

Q: Can it handle both horizontal and vertical cutting?

A: Yes, the 360-degree swiveling head accommodates any cutting orientation without equipment reconfiguration.

Q: What maintenance do moving parts require?

A: Daily pulley bearing inspection and weekly high-pressure grease lubrication prevent seizing from stone slurry ingress.

Q: Is it compatible with all wire diameters?

A: Universal pulley grooves support standard wire diameters from 6.3mm to 11.5mm without adapter changes.

Q: How do you stabilize it on uneven floors?

A: Heavy-duty leveling jacks and chemical anchor bolts create perfectly level, vibration-free foundations on any terrain.
