Pulley Lining for Wire Saw – High-Performance Protection for Diamond Wire Sawing Systems

With more than 30 years of manufacturing experience, Laizhou Jinfuen Machinery Co., Ltd. creates industrial-grade pulley lining for wire saw systems that are designed for exceptional endurance. Our polyurethane linings provide tensile strength greater than 40 MPa, abrasion resistance with volume loss less than 50 mm³ (DIN 53516 standard), and Shore A hardness between 85 and 95. In quarrying, demolition, and precision cutting operations, these sacrificial protective layers guarantee stable friction transfer while preventing the deterioration of diamond wire.

By doing away with middlemen, factory-direct supply can lower total cost of ownership by as much as 15%. To guarantee smooth integration with guide wheels and drive pulleys in high-load situations, each unit is put through stringent bonding strength testing and concentricity verification.

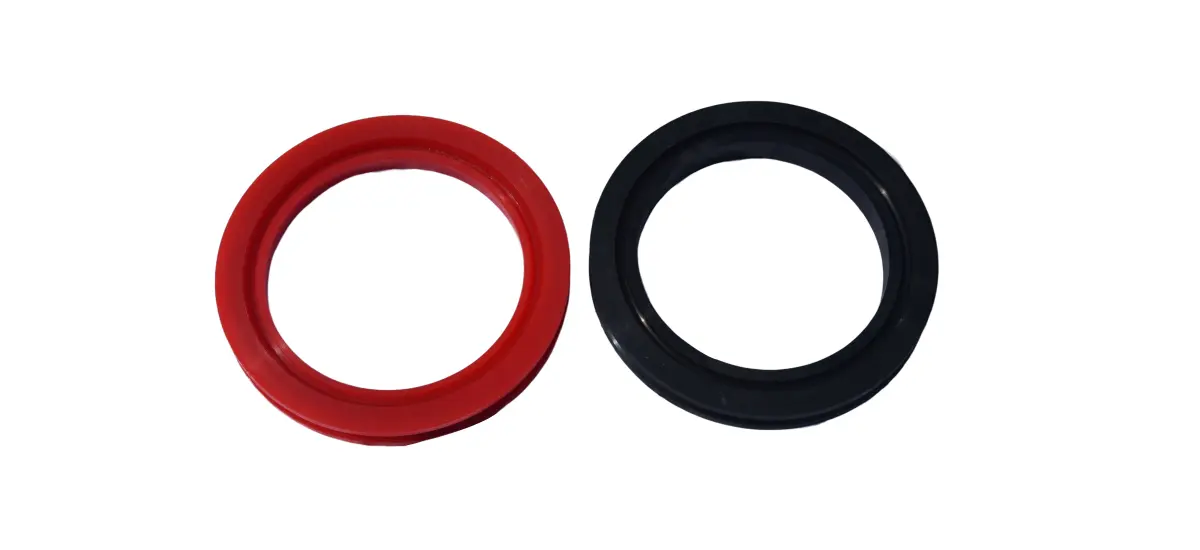

Pulley Lining for Wire Saw

What Is Pulley Lining for Wire Saw?

Pulley Lining for Wire Saw functions as a critical interface component in diamond wire cutting systems. Manufactured from high-performance polyurethane or synthetic rubber, it bonds to pulley grooves to create a protective barrier between the tensioned diamond wire and metal wheel surfaces.

This elastomeric layer solves three operational challenges. First, it eliminates abrasive wear caused by direct wire-to-metal contact. Second, it provides optimal friction coefficients for torque transmission without slippage. Third, it dampens vibrations that cause wire fatigue during continuous cutting cycles.

Your cutting efficiency depends on this component's ability to maintain dimensional stability under thermal stress. Operating temperatures can reach 80°C (176°F) due to friction heat in granite quarrying or reinforced concrete demolition projects.

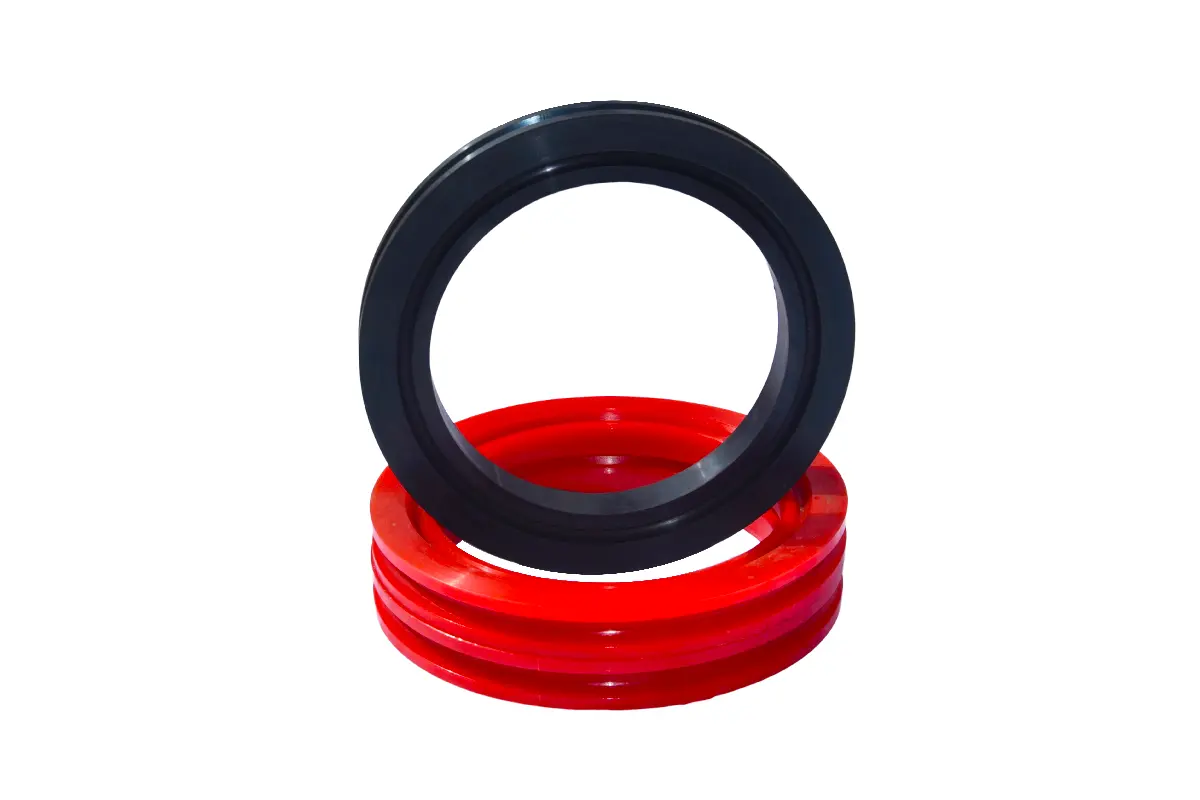

Pulley Lining for Wire Saw

Key Applications in Industrial Cutting

Quarrying Operations

In granite and marble extraction, the lining withstands massive wire tension and abrasive slurry exposure. It prevents the diamond wire from embedding into aluminum or steel pulley bodies during prolonged cutting sessions.

Construction and Demolition

Controlled dismantling projects require linings with superior impact resilience. Your equipment faces intermittent shock loads when cutting through steel-reinforced concrete structures. The elastomer absorbs these forces to protect both wire and pulley integrity.

Precision Cutting ApplicationsMulti-wire silicon wafer slicing demands micro-vibration control. Precision-engineered groove geometries maintain wafer thickness uniformity by minimizing harmonic oscillations during high-speed rotation.

Technical Specifications

Category	Model	OuterDiameter(OD)	InnerDiameter (ID)	Thickness Material/Type
StandardRubber Ring	500 RubberRing	513 mm	435 mm	30 mm Rubber
StandardRubber Ring	200 RubberRing	200 mm	131 mm	30 mm Rubber
ThickenedRubber Ring	200 Thickened Rubber Ring	200 mm	110 mm	45 mm Rubber
StandardRubber Ring	300 RubberRing	300 mm	208mm	32 mm Rubber
StandardRubber Ring	400 RubberRing	400 mm	310 mm	32 mm Rubber
StandardRubber Ring	135 RubberRing	135 mm	80 mm	33 mm Rubber
U-TypeRingPolyurethane	U-Type PURing125 RubberRing	200 mm	120 mm	33 mm Polyurethane
StandardRubber Ring	125 RubberRing	125 mm	80 mm	33 mm Rubber
StandardRubber Ring	150 RubberRing	150 mm	90 mm	34 mm Rubber
StandardRubber Ring	100 RubberRing	100 mm	50 mm	24 mm Rubber

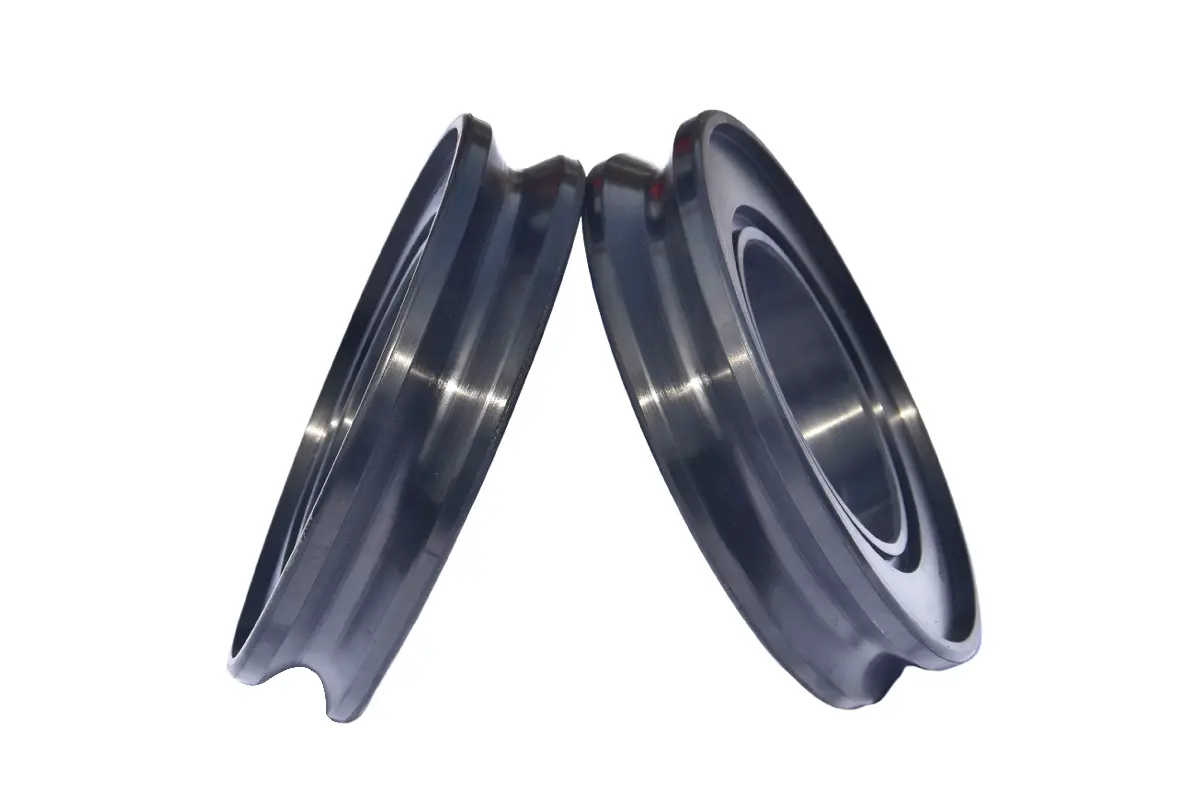

Pulley Lining for Wire Saw

Why Choose Jinfuen Pulley Linings

Superior Abrasion Resistance

Our polyurethane formulations deliver 3-5x longer service life compared to standard rubber alternatives. Fast rebound properties maintain groove shape integrity under repetitive compression cycles.

Stable Fitting and Reduced Maintenance

Precision machining ensures concentricity tolerance within 0.05 mm. This accuracy prevents wire misalignment and extends diamond bead lifespan by 12-18% in field tests.

Factory Quality Control

Every batch undergoes multi-point hardness mapping and accelerated aging tests. Dynamic balance verification post-installation eliminates spindle bearing wear risks.

Cost-Effective Direct Pricing

Factory-direct purchasing eliminates distributor markups. You receive industrial-grade components at competitive prices with transparent technical documentation.

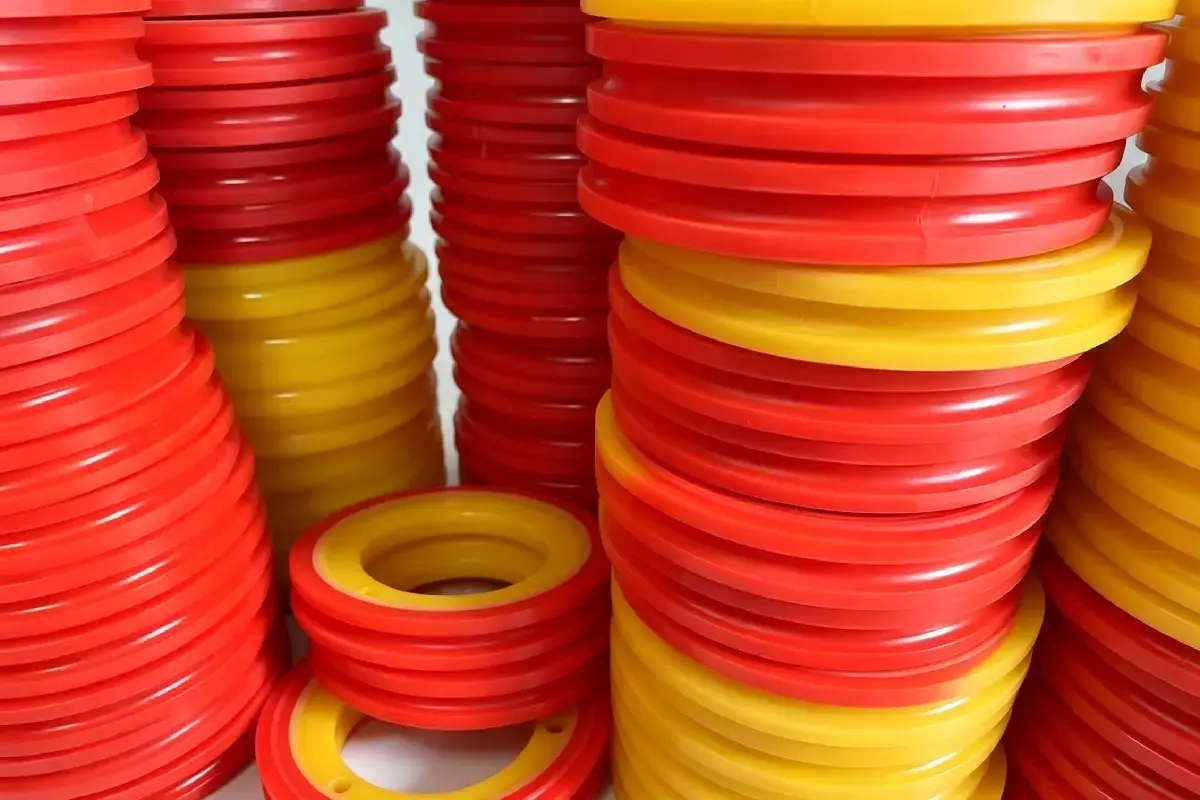

Pulley Lining for Wire Saw

Quality Assurance Process

Bonding Strength Verification

Peel tests confirm elastomer-to-metal adhesion exceeds internal tear resistance. This prevents de-shelling failures during high-speed rotation in demanding environments.

Groove Geometry Inspection

Laser measurement systems verify V-groove or U-groove profiles. Even wire seating reduces lateral pressure that causes premature wear on one side.

Material Compliance Testing

All batches meet ISO 4649 wear resistance and ASTM D2240 hardness standards. Chemical swelling tests (ASTM D471) confirm compatibility with your cooling fluids.

Frequently Asked Questions

Q: Why does my lining wear unevenly?

A: Asymmetric wear indicates pulley misalignment. The diamond wire exerts lateral pressure instead of centered vertical force. Check tracking adjustment and realign the pulley assembly.

Q: Polyurethane or rubber – which performs better?

A: Polyurethane excels in abrasion resistance and load-bearing capacity for most applications. Rubber suits specific low-tension, high-heat dry cutting scenarios.

Q: When should I replace the lining?

A: Replace immediately when groove depth reaches 50% of original thickness. Visible delamination or chunking also signals urgent replacement needs.

Q: Can linings handle all coolant types?

A: While most resist oils, aggressive chemical additives may cause swelling. Request ASTM D471 swelling test results to verify compatibility with your cutting fluid.

Q: Does color indicate performance differences?

A: Color typically identifies hardness grades or manufacturer branding. The chemical formulation determines actual performance characteristics, not the pigment.

Contact Us for Technical Support

Need help selecting the right Pulley Lining for Wire Saw for your cutting system? Our engineering team provides free project evaluation and operational cost analysis. Contact Us at sales@goldfenwiresaw.com for customized solutions.
