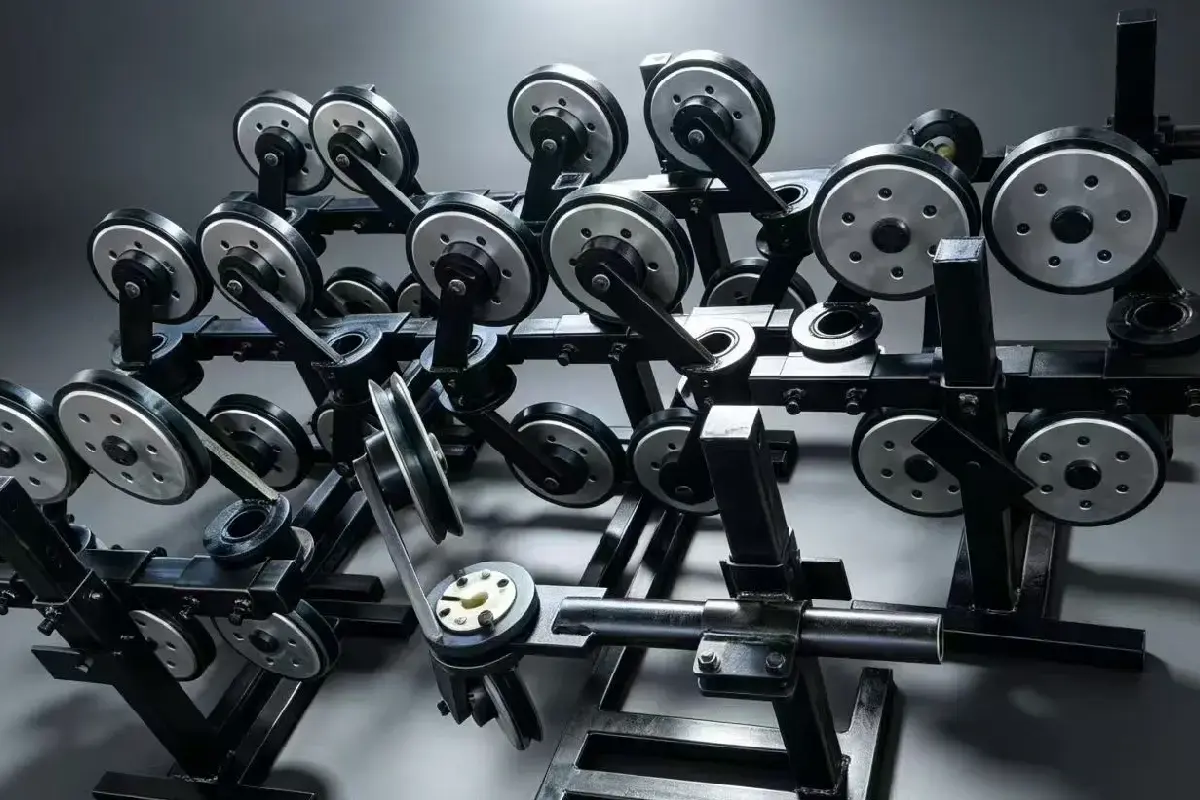

Wire Saw Support Frame

Wire Saw Support Frame – Professional Heavy-Duty Cutting Support Solution

Laizhou Jinfuen Machinery Co., Ltd. brings over 30 years of manufacturing excellence to the Wire Saw Support Frame, a high-precision structural assembly engineered for diamond wire saw systems. Our four-wheel universal pulley frame features heavy-duty steel construction with HRC 50-55 surface hardness on guide wheel grooves, ensuring minimal vibration and extended wire life. Designed for multi-angle cutting applications, this frame reduces wire friction while maintaining linear precision under high-load conditions. With a proven 5:1 safety factor for lifting points and strict Non-Destructive Testing protocols, our products delivers superior alignment control and operational stability for demanding industrial environments.

Why Choose Our Wire Saw Support Frame?

Your cutting operations demand reliability and precision. Our support frame eliminates the common pain points you face daily.

Excessive vibration causes premature wire breakage. Our rigid mounting system absorbs operational stress effectively. The adjustable guide pulleys maintain perfect alignment throughout your project.

Built from industrial-grade steel, the frame withstands continuous high-load operations. You get reduced downtime and lower maintenance costs. The anti-jamming design performs reliably even in harsh quarrying conditions.

Installation takes minimal time with our universal mounting plates. You can adapt the frame to various hydraulic saw brands using standard adapter kits. Daily maintenance requires only basic bearing inspections and high-pressure grease application.

Key Applications

Infrastructure Controlled Demolition

Your bridge pier and dam foundation removal projects require precision. The frame protects adjacent structures while cutting through massive reinforced concrete. It maintains stability even when working with high-density materials.

Natural Stone Quarrying

Extract granite and marble blocks with minimal waste. The frame facilitates both vertical and horizontal cutting. You achieve perfectly planar surfaces through heterogeneous rock formations.

Building Demolition & Engineering Cutting

Complex demolition projects benefit from the frame's multi-angle adjustment capability. It supports efficient concrete cutting in tight spaces. Your team gains operational flexibility without compromising safety.

Quality Assurance You Can Trust

We implement rigorous quality control at every Wire Saw Support Frame stage.

Weld Integrity Testing

Ultrasonic and Magnetic Particle Inspection eliminate structural flaws. Your frame arrives with zero defects under tension load conditions.

Precision Alignment Verification

Laser-guided measurement ensures all guide wheels are perfectly coplanar. This prevents wire twisting and uneven bead wear during operation.

Dynamic Load Simulation

Our testing confirms the frame withstands centripetal forces from high-speed wire rotation. You receive equipment validated through Finite Element Analysis.

Corrosion Resistance Testing

Salt spray testing prepares frames for maritime and chemical environments. The protective coating extends service life significantly.

Competitive Advantages

Direct Factory Pricing

Eliminate middlemen costs and access competitive market rates. Our 30-year manufacturing experience ensures cost-effective solutions without quality compromise.

Customized Configurations

We tailor frame specifications to your cutting materials and job site conditions. Modular design accommodates non-standard diameters through adjustable extension arms.

Complete Technical Support

Receive free project evaluation and cutting solution design. Our team provides installation guidance, operation training, and ROI analysis to maximize your investment returns.

Global Logistics Expertise

Industrial-grade export packaging ensures safe delivery worldwide. We handle customs documentation including CO and Form E certificates for smooth clearance.

Frequently Asked Questions

Q: How does the frame extend diamond wire life?

A: The rigid structure minimizes vibration and maintains consistent cutting angles. This reduces lateral friction and prevents uneven bead wear, extending wire service life by up to 15%.

Q: Can you customize frames for special project requirements?

A: Absolutely. Our modular frames feature adjustable components to accommodate varied workpiece geometries and site-specific challenges.

Q: What maintenance schedule should we follow?

A: Inspect guide pulley bearings daily for play. Apply high-pressure grease regularly to prevent seizing from slurry ingress. This simple routine maximizes operational uptime.

Q: Is your frame compatible with our existing equipment?

A: Most professional hydraulic saws work with our universal mounting system. We provide adapter kits when specific drive motor bolt patterns require synchronization.

Q: How do you verify structural safety?

A: Each frame undergoes dynamic stress testing and geometric tolerance verification. Our 5:1 lifting safety factor and 3:1 operational factor meet international industrial standards.

Get Your Custom Solution Today

Ready to improve your cutting efficiency and reduce operational costs? Our engineering team is prepared to design the optimal Wire Saw Support Frame configuration for your specific application. Contact Us at sales@goldfenwiresaw.com for technical consultation and competitive factory-direct pricing.
