Concrete Cutting Wire - Professional Diamond Wire Saw Solution

Laizhou Jinfuen Machinery Co., Ltd. brings over 30 years of manufacturing excellence to the field of concrete cutting solutions. Our Concrete Cutting Wire features high-tensile multi-strand steel cable construction with diamond-impregnated beads engineered for precision demolition and civil engineering applications. The wire delivers exceptional performance with bead diameters ranging from 10.5mm to 11.5mm and an optimal configuration of 40 beads per meter. With tensile strength exceeding 2500kg and vulcanized rubber or high-grade plastic coating protection, our cutting wire achieves linear speeds of 20-30 m/s while maintaining structural integrity. Factory-direct supply ensures competitive pricing without compromising on quality or technical support.

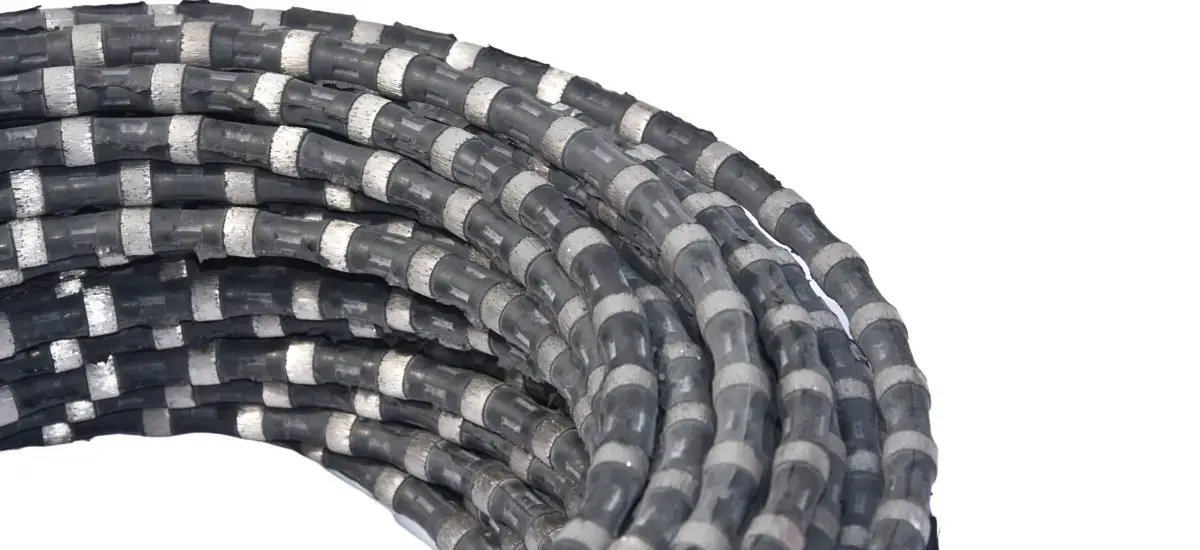

Concrete Cutting Wire

Technical Specifications

Cutting materials	Line speed (m/s)	Cutting speed (m/s)	Wire life (squaremeter/m)
Low rigidity granite	33-37	15-20	20-40
Mid-hard granite	30-37	8-15	12-25
Hard granite	28-33	4-8	8-15
Abrasive granite	33-37	8-15	15-30

Type	Size	Reinforcement	Beads/m	Stone Hardness	Line speed	Cutting Speed	Life
Granite ore	11.5mm	Rubber+Spring	40/m	Soft Granite	20-30m/s	12-25㎡/h	20-35m²/m
				Mid-hard Granite		10-14㎡/h	12-18m²/m
				Hard Granite		8-10㎡/h	7-10m²/m
Marble mine	11.5mm	Rubber+Spring	40/m	Soft Marble	30-45m/s	8-10㎡/h	35-50m²/m
				Mid-hard Marble		7-9㎡/h	30-45m²/m
				Hard Marble		4-6m²/s	15-20m²/m
Reinforced Concrete	11.5mm	Rubber+Spring	40/m	Common	20-30m/s	1-3㎡/h	1.5-2
				Sharp type		3-4㎡/h	2.5-4

Concrete Cutting Wire

Why Choose Our Concrete Cutting Wire

Precision-Engineered for Demanding Applications

Your demolition and construction projects require tools that deliver consistent results under extreme conditions. Our cutting wire utilizes vacuum-brazed diamond technology with premium synthetic diamonds bonded in a cobalt-based matrix. This ensures sustained cutting performance even through heavily reinforced concrete structures.

The injection-molded vulcanized rubber coating provides superior protection for the internal steel cable. It prevents abrasive slurry penetration while maintaining bead positioning under high centrifugal forces. This design translates directly to extended wire life and reduced operational costs for your projects.

Superior Cutting Efficiency

Traditional cutting methods often struggle with depth limitations and vibration concerns. Our Concrete Cutting Wire solves these critical pain points through tension-based linear cutting mechanics. This approach minimizes structural shock and noise pollution—essential for sensitive environments like hospitals or data centers.

The wire cuts through reinforced concrete regardless of thickness. High-density rebar presents no obstacle to the diamond bead configuration. You'll experience faster project completion with cleaner, more precise cuts compared to conventional track saws or jackhammers.

Built for Extreme Environments

Construction sites present harsh conditions that demand robust equipment. Our wire saw features anti-jamming and wear-resistant structures engineered specifically for challenging quarrying and engineering environments. The high-strength construction maintains stable performance throughout continuous operation cycles.

Whether you're working on bridge demolition, urban retrofitting, or industrial plant decommissioning, the wire adapts to your specific requirements. Specialized vulcanized rubber variants even support underwater cutting applications, preventing water ingress and internal cable corrosion.

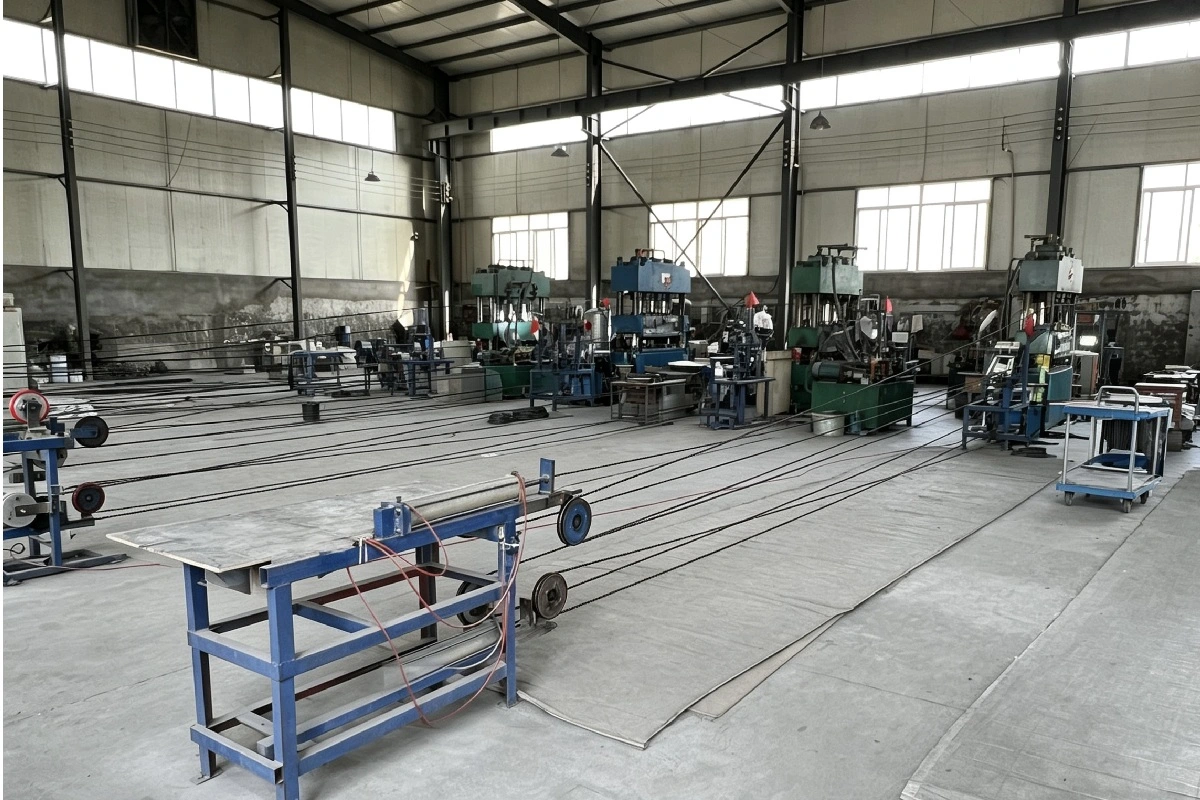

Concrete Cutting Wire Production Workshop

Primary Applications

Bridge and Dam Demolition

Deep-section cutting operations benefit from the wire's unlimited depth capacity. Underwater applications become feasible where traditional blades cannot function. Remove massive pier structures with surgical precision while maintaining project timelines.

Urban Retrofitting Projects

Occupied building environments demand zero-vibration cutting solutions. Our wire excels at removing stairwells, elevator shafts, and reinforced walls without risking collateral structural damage. Low noise operation ensures minimal disruption to building occupants.

Heavy Industrial and Hazardous Sites

Nuclear decommissioning and industrial plant projects require remote-operated cutting capabilities. The Concrete Cutting Wire enables safe distance operation when cutting radioactive or hazardous reinforced concrete structures. Maintain high efficiency while protecting operator safety in complex, high-rebar environments.

Quality Assurance and Technical Support

Every wire undergoes rigorous factory inspection before shipment. Our quality control process includes tensile strength validation, bead spacing verification, and coating integrity assessment. This ensures consistent performance across all production batches.

We provide comprehensive technical consulting throughout your project lifecycle. From equipment selection to operation training, our engineering team supports your success. Detailed cutting solution designs and operational cost analysis help maximize your return on investment.

Industrial-grade export packaging protects your wire during international shipment. We handle all customs documentation including CO and inspection certificates to ensure smooth delivery to your job site.

Frequently Asked Questions

Q: What causes premature wire breakage?

A: Breakage typically results from excessive tensioning, inadequate cooling water flow causing overheating, or operating with too tight a radius for the wire's flexibility rating. Proper tension calibration and adequate water supply prevent most breakage issues.

Q: How do I choose between rubber and plastic coating?

A: Vulcanized rubber coating offers superior performance for reinforced concrete applications. It provides better adhesion and protection against rebar snags. Plastic coating works well for softer materials and offers cost advantages for less demanding applications.

Q: Why do diamond beads lose cutting speed?

A: Bead "glazing" occurs when the diamond bond hardness doesn't match the material being cut. Temporarily reducing water flow or cutting through abrasive material like sandstone can "sharpen" the wire and restore cutting efficiency.

Q: Can I use the wire for underwater projects?

A: Yes, our specialized vulcanized rubber wires are specifically engineered for underwater applications. The coating prevents water ingress that would otherwise corrode the internal steel cable structure.

Q: What is the expected wire lifespan?

A: Wire longevity depends on rebar density and aggregate type in your concrete. Typical performance ranges from 1 to 4 square meters of cutting surface per linear meter of wire under normal operating conditions.

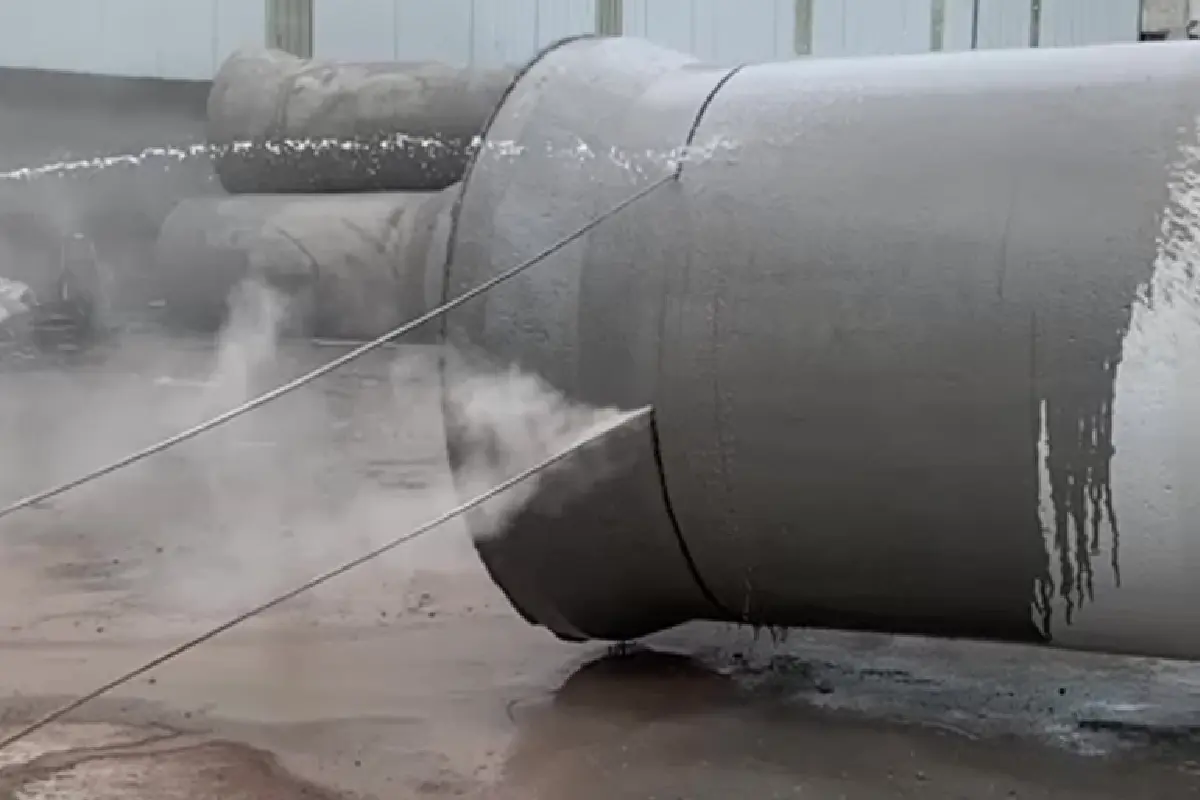

Concrete Cutting Wire

Partner With Jinfu'en for Your Cutting Solutions

Ready to improve your concrete cutting efficiency with professional-grade Concrete Cutting Wire? Our factory-direct pricing and 30+ years of manufacturing expertise ensure you receive reliable, cost-effective solutions for your demolition and construction projects.

Contact our technical team at sales@goldfenwiresaw.com for product specifications, custom configurations, and project consultation.
