Wire Saw Consumables – Professional Solutions from Laizhou Jinfuen Machinery

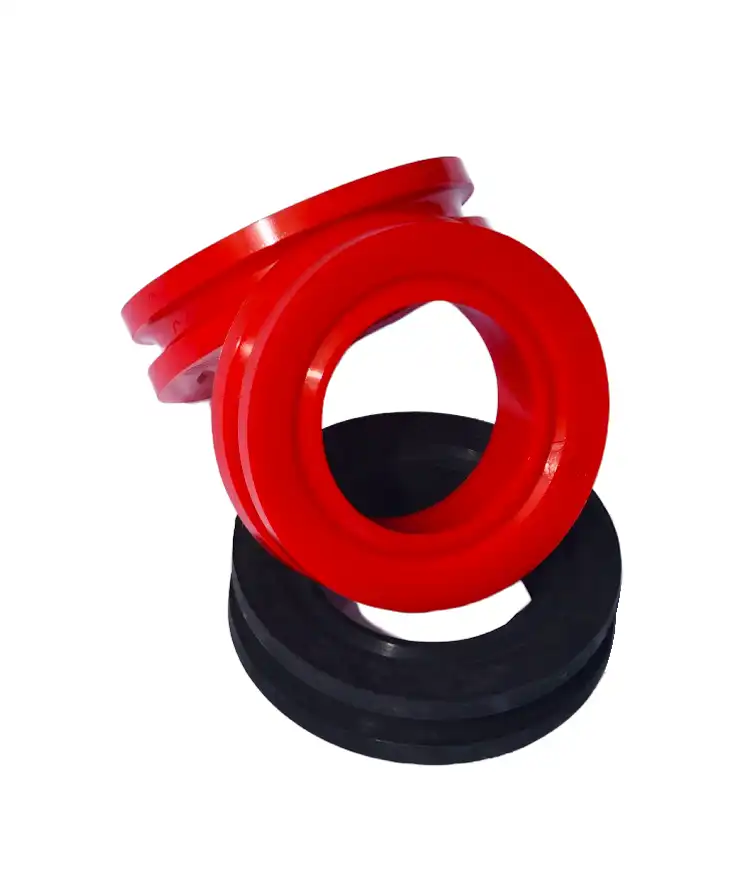

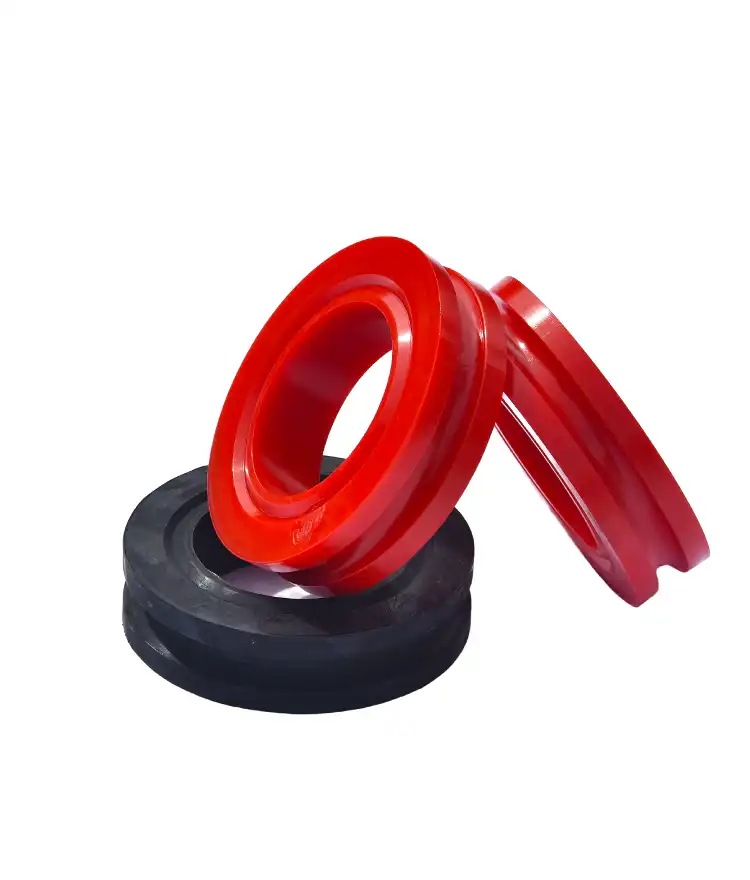

Wire Saw Consumables manufactured by Laizhou Jinfuen Machinery Co., Ltd. represent over 30 years of industrial engineering expertise in diamond wire sawing systems. Precision-engineered diamond beads, high-tensile multi-strand steel cables rated above 2400 MPa, and wear-resistant polyurethane rings with remarkable elasticity and abrasion resistance are all part of our consumable line. Every part is made to reduce kerf loss, avoid wire breakage, and increase cutting efficiency by up to 15% when compared to industry standard models. While improved bond matrices provide synchronized wear and thermal stability up to 800°C for dependable performance across granite quarrying, concrete demolition, and precision slicing applications, strict quality control guarantees concentricity within ±0.02mm.

What Makes Quality Wire Saw Consumables Essential

Your cutting operations depend on consumables that won't fail mid-job.

Our Wire Saw Consumables solve three critical challenges. First, they eliminate premature wire breakage through superior bead shear strength exceeding 5000N. Second, they reduce total cost of ownership by extending service life through anti-jamming structures. Third, they maintain consistent cutting performance even in harsh quarrying environments with heavy dust and high loads.

The diamond beads feature grit sizes from 30/40 to 60/80 mesh. The bond matrix combines cobalt, iron, and copper powders for continuous diamond exposure. This engineering ensures you get maximum productivity from every meter of wire.

Technical Specifications

Where You Can Apply These Consumables

Natural Stone Quarrying

Your granite and marble extraction operations need consumables that withstand extreme tension and abrasive dust. Our products deliver square blocks with minimal waste in open-pit environments where reliability matters most.

Civil Demolition & Engineering

When you're dismantling reinforced concrete bridges, dams, or industrial structures, our consumables cut through dense rebar under high-load conditions. They perform reliably even in specialty scenarios with limited water cooling.

Precision Slicing Applications

For semiconductor and photovoltaic wafer production, our ultra-fine diameter wires (down to 0.08mm) minimize Total Thickness Variation in cleanroom environments. You get the precision your process demands.

Quality Control You Can Trust

We implement four-dimensional quality protocols for every batch.

Bead Shear Strength Testing confirms each segment withstands lateral forces above 5000N. Cable Fatigue Testing simulates high-frequency bending cycles to predict failure points before they occur. Laser Micrometer Inspection verifies outer diameter consistency to prevent snagging during deep cuts.

Diamond Distribution Analysis uses advanced microscopy to ensure uniform grit density. This prevents uneven wear and guarantees a smooth finish on your workpiece. Every production step—from raw material selection to final inspection—meets strict standards.

Frequently Asked Questions

Q: What causes my wire to break early?

A: Premature breakage usually results from excessive tension, inadequate cooling water flow, or mismatched bead bond hardness for your material. Check your tension settings and cooling system first.

Q: When should I replace the wire?

A: Replace your wire when bead diameter drops to 1–1.5mm above the cable diameter. If you spot exposed internal wire strands through the coating, replace immediately for safety.

Q: Can I use these consumables underwater?

A: Yes. Our rubber-injected consumables are specifically designed for underwater demolition work. They stop water ingress and internal steel cable corrosion under submerged conditions.

Q: Why isn't my wire cutting anymore?

A: Wire glazing occurs when the bead bond is too hard for your workpiece. Diamond grit becomes smooth and loses cutting ability. Run the wire against sandstone or other abrasive material to re-expose sharp diamond surfaces.

Q: What's the right speed for granite?

A: Standard granite quarrying works best at linear speeds of 22–28 m/s. This balances cutting efficiency and wire service life to achieve the best overall cost performance.

Why Choose Jinfuen Wire Saw Consumables

Factory-direct pricing eliminates middlemen costs. You get competitive rates without sacrificing quality.

We offer complete product integration—machines, wheels, and spare parts from one reliable source. This simplifies your procurement and ensures component compatibility.

Our heavy-duty design supports continuous high-load operation. You spend less time on maintenance and more time cutting. Professional technical support includes equipment selection guidance, installation assistance, and operation training.

We provide customized solutions based on your specific materials and job site conditions. Plus, our global logistics network ensures secure delivery with full customs documentation support including CO and Form E certificates.

Contact Us for Your Wire Saw Solution

Ready to improve your cutting efficiency and reduce operational costs? Our technical team is available to evaluate your project requirements and recommend the optimal Wire Saw Consumables configuration.
