Diamond Wire Cable – Professional Wire Saw Cutting Solution

Laizhou Jinfuen Machinery Co., Ltd., with over 30 years of manufacturing expertise, delivers factory-direct Diamond Wire Cable engineered for high-efficiency cutting across quarrying, concrete engineering, and precision stone processing. Our products include precision-bonded diamond beads at 28–40 beads per meter, a high-tensile steel core with a tensile strength of over 2400 MPa, and an injection-molded or vulcanized rubber coating for exceptional wear resistance and shock absorption. Compared to ordinary models, it provides cutting efficiency increases of up to 15% and is designed for prolonged heavy-duty operation. While EN 13236 safety compliance assures dependable performance in harsh quarrying and demolition situations, strict ISO 9001 quality control guarantees bead adhesion surpassing 300 kgf pull-out force.

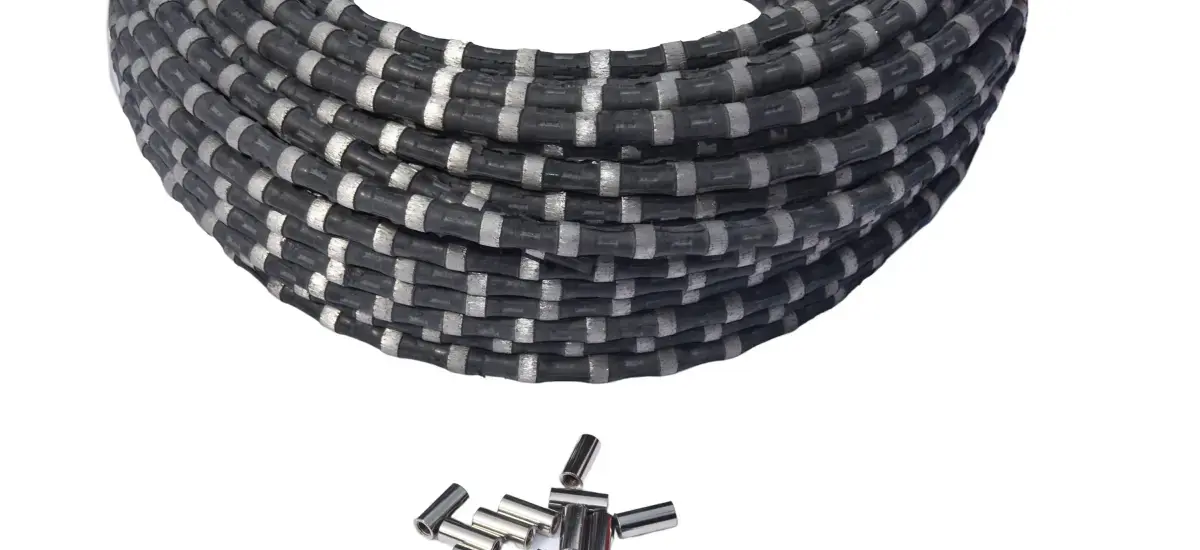

Diamond Wire Cable

Why Choose Our Diamond Wire Cable

Cutting instruments that produce reliable results under duress are essential. Our wire cable is perfect for both mobile quarrying operations and stationary factory machinery because to its remarkable resilience and flexibility.

The cutting edges of the diamond-impregnated beads stay sharp for longer. Both your downtime and consumable costs are greatly decreased as a result. The cable maintains steady linear speeds between 22 and 30 m/s whether you are cutting through reinforced concrete or slicing granite slabs.

Our anti-jamming structure performs reliably in dusty quarries and high-vibration environments. The optimized bead spacing prevents material clogging. You get cleaner cuts with less operator intervention.

Diamond Wire Cable

Technical Specifications

Cutting materials	Line speed (m/s)	Cutting speed (m/s)	Wire life (squaremeter/m)
Low rigidity granite	33-37	15-20	20-40
Mid-hard granite	30-37	8-15	12-25
Hard granite	28-33	4-8	8-15
Abrasive granite	33-37	8-15	15-30

Type	Size	Reinforcement	Beads/m	Stone Hardness	Line speed	Cutting Speed	Life
Granite ore	11.5mm	Rubber+Spring	40/m	Soft Granite	20-30m/s	12-25㎡/h	20-35m²/m
				Mid-hard Granite		10-14㎡/h	12-18m²/m
				Hard Granite		8-10㎡/h	7-10m²/m
Marble mine	11.5mm	Rubber+Spring	40/m	Soft Marble	30-45m/s	8-10㎡/h	35-50m²/m
				Mid-hard Marble		7-9㎡/h	30-45m²/m
				Hard Marble		4-6m²/s	15-20m²/m
Reinforced Concrete	11.5mm	Rubber+Spring	40/m	Common	20-30m/s	1-3㎡/h	1.5-2
				Sharp type		3-4㎡/h	2.5-4

Key Applications You Can Count On

Quarrying Operations: Extract large marble and granite blocks efficiently. The cable handles extreme temperature shifts while maintaining cutting precision. Your Diamond Wire Cable rate stays consistent throughout the day.

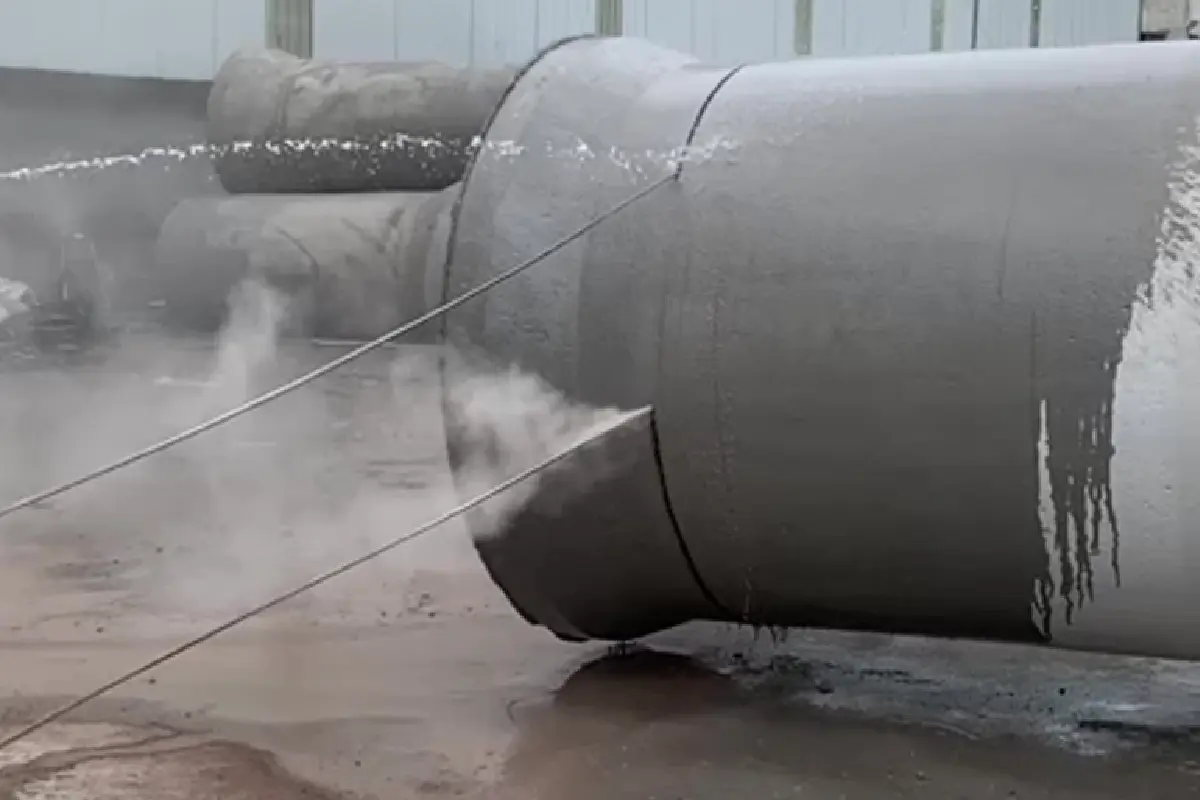

Reinforced Concrete Cutting: Demolish bridge piers, building structures, and industrial facilities. Low noise levels and minimal vibration make it suitable for urban projects with strict environmental regulations.

Precision Stone Processing: Shape complex profiles in decorative stone installations. The cable's excellent concentricity ensures uniform wear and prevents uneven cutting patterns.

Remote and Underwater Work: Tackle challenging deconstruction projects where traditional methods fall short. The cable operates effectively in submerged conditions with proper cooling systems.

Quality Assurance You Can Trust

Every meter undergoes rigorous factory testing before shipment. Our bead adhesion tests verify pull-out resistance exceeds 300kgf. Concentricity measurements prevent premature wear issues.

We inspect vulcanization integrity to ensure zero peeling under high-pressure cooling. Tensile break strength tests confirm the core wire meets safety factors for your demanding applications.

Microscopic grit distribution analysis guarantees uniform diamond concentration. This prevents glazing and maintains your cutting rate throughout the cable's lifecycle.

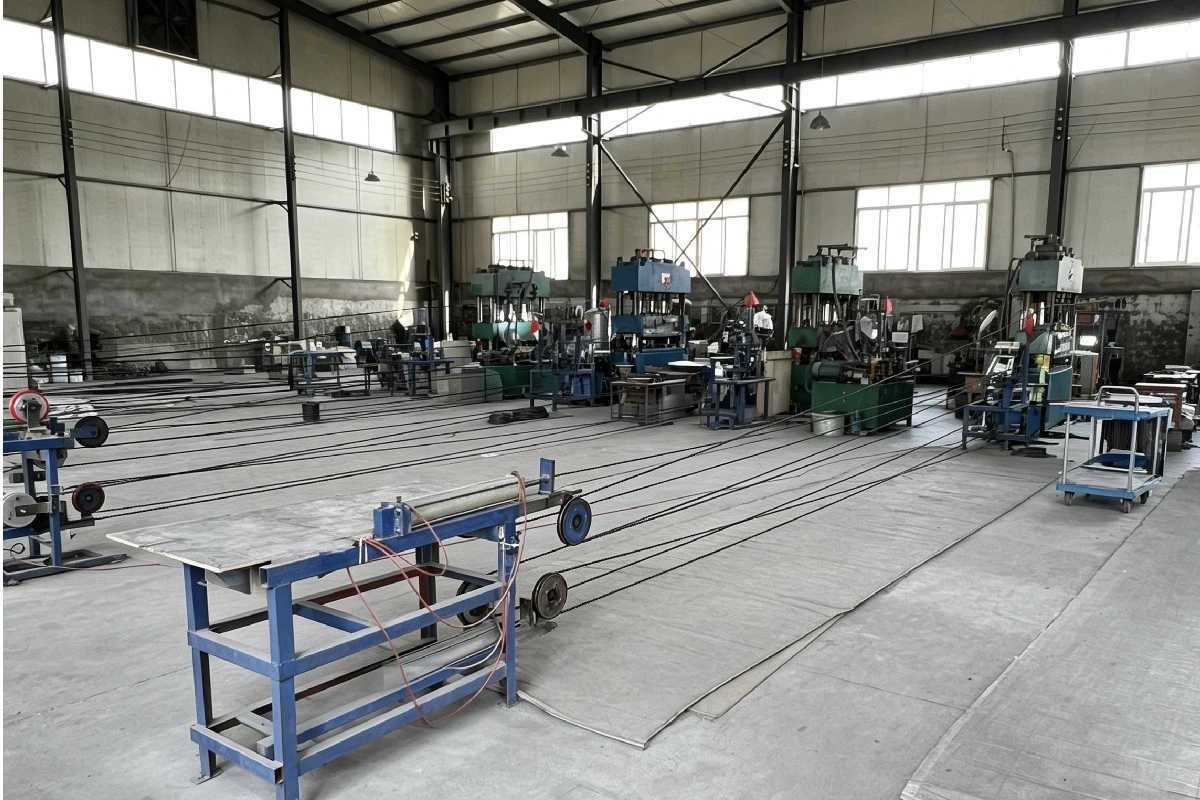

Diamond Wire Cable Production Workshop

Frequently Asked Questions

Q: What causes premature breakage?

A: Improper tensioning or exceeding recommended linear speeds are common causes. Always maintain the correct catenary curve during operation.

Q: Should I use rubber or plastic coating?

A: Rubber suits mobile quarrying due to superior shock absorption. Plastic injection works better for stationary factory machines needing cleaner operation.

Q: Can it handle dry cutting?

A: Yes, with specialized high-temperature resistant beads and air-cooling systems. Standard cables require water cooling for optimal performance.

Q: How do I identify end-of-life?

A: When bead diameter reduces to 0.5mm–1.0mm above the wire diameter, or when cutting rate drops below economical levels, replacement is necessary.

Q: How can I prevent bead spinning?

A: Use high-quality injection-molded cables and avoid twisting during installation. Follow directional arrows marked on each cable segment.

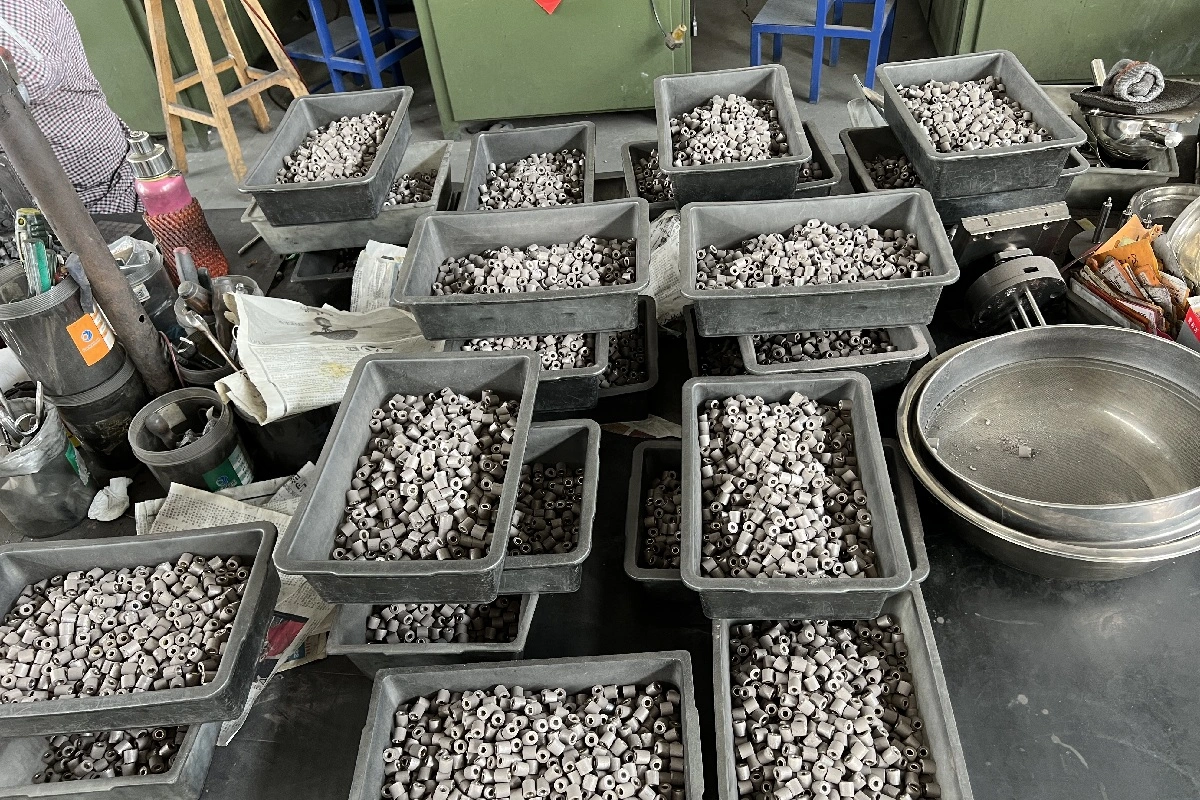

Diamond Wire Cable Production Workshop

Get Your Cutting Solution Today

Ready to improve your cutting efficiency and reduce operational costs with Diamond Wire Cable? Our technical team provides free project evaluation and cutting solution design tailored to your specific materials and job site conditions.

Contact Us at sales@goldfenwiresaw.com for factory-direct pricing, product specifications, and professional technical support. Let's build a long-term partnership based on quality and reliability.
