Pulley Stands

Pulley Stands - Professional Four-Wheel Corner Support Systems for Wire Saw Operations

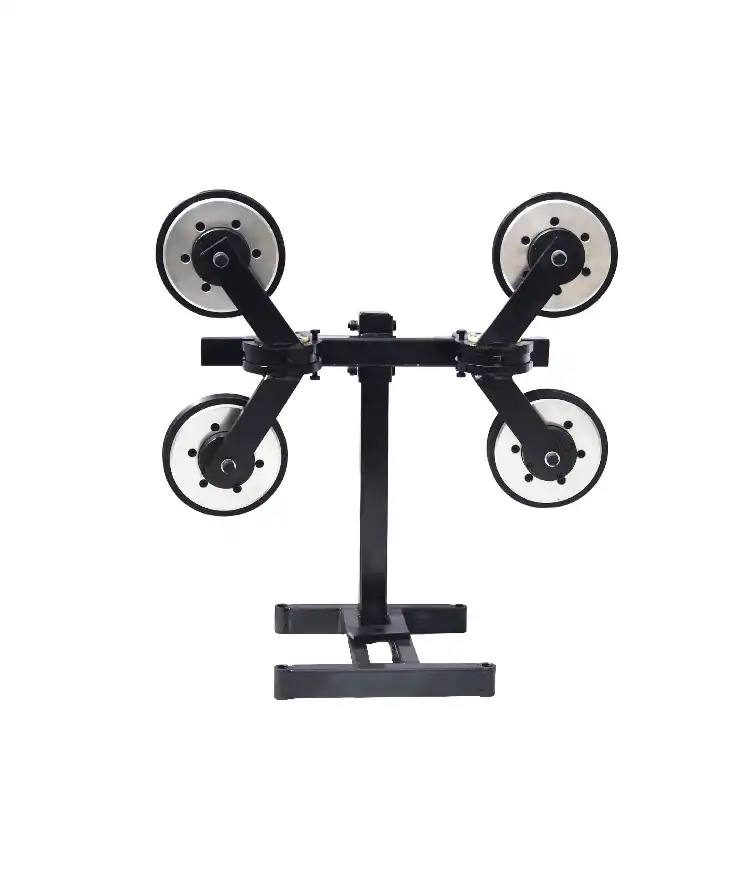

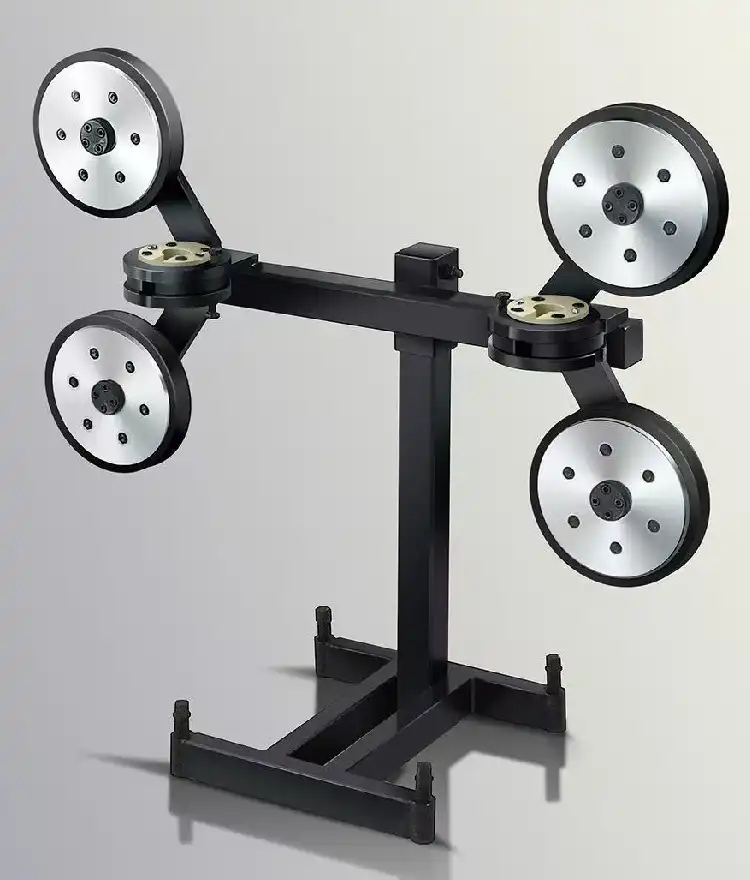

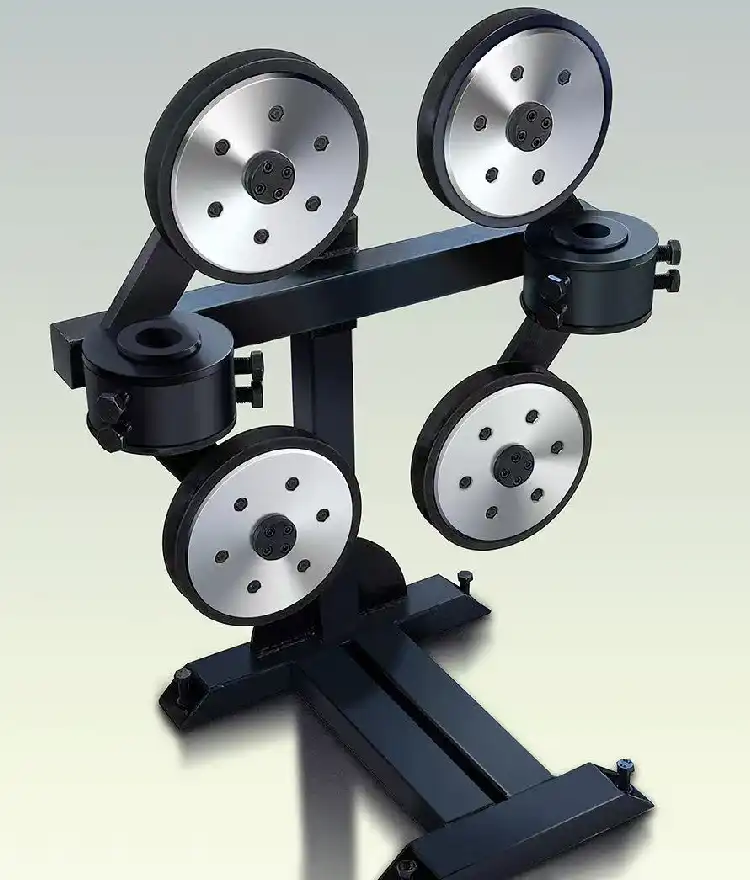

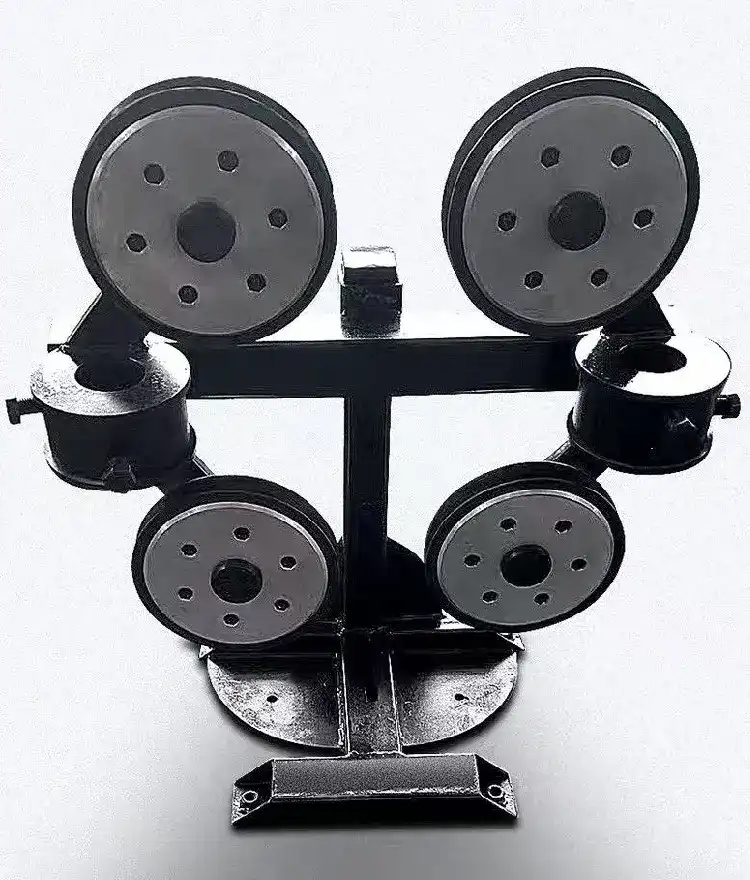

Laizhou Jinfuen Machinery Co., Ltd. manufactures industrial-grade Pulley Stands engineered for demanding wire saw cutting applications in quarrying and bridge demolition projects. Our four-wheel corner pulley frame systems feature heavy-duty construction designed to guide diamond wire through fixed angles while maintaining smooth corner transitions. With over 30 years of manufacturing expertise, our products achieve up to 15% higher operational efficiency compared to standard models. Each unit incorporates high wear-resistance PU coating and precision-machined components that lower operating resistance under continuous high-tension loads exceeding 200 kN, ensuring reliable performance in extreme engineering environments.

Engineering Advantages for Wire Saw Systems

Precision-Engineered Alignment

Our pulley frames utilize precision machining standards to maintain wire path accuracy within ±0.5mm tolerance. This dimensional control prevents premature diamond wire wear and reduces cutting deviation during multi-pass operations.

Heavy-Duty Structural Design

The reinforced frame construction handles continuous rotational forces in demanding applications. You'll experience stable performance even when cutting reinforced concrete or granite blocks exceeding 3 meters in depth.

Vibration Reduction Technology

Smooth operation mechanisms minimize wire oscillation during high-speed cutting cycles. This feature directly improves cutting surface quality and extends consumable service life by up to 20%.

Optimized Load Distribution

The four-wheel configuration evenly distributes tension forces across bearing housings. Your equipment experiences reduced stress concentration points, which translates to lower maintenance frequency.

Application Scenarios

Bridge Demolition Projects

Pulley Stands provide critical directional support when cutting through thick concrete piers and steel-reinforced beams. The fixed-angle guidance system maintains wire tension consistency during vertical and horizontal cutting transitions.

Granite Quarrying Operations

In natural stone extraction, our pulley frames guide wire saws through precise cutting planes. You can achieve straight cuts in blocks measuring up to 5×3×2 meters with minimal material waste.

Concrete Cutting Engineering

For building demolition and renovation projects, these support systems enable controlled sectional cutting. The anti-jamming structure performs reliably even when encountering embedded rebar or aggregate obstructions.

Quality Control Process

Every unit undergoes multi-stage inspection before shipment:

Structural Integrity Testing: Proof load verification at 200% rated capacity ensures frame strength meets engineering safety standards.

Surface Treatment Validation: Salt spray testing confirms corrosion resistance for outdoor and maritime environments per ASTM B117 protocol.

Dimensional Accuracy Check: CMM equipment verifies pulley groove alignment and mounting hole positions to guarantee proper wire tracking.

Dynamic Performance Testing: Rotational balance verification minimizes harmonic vibration during operational speeds.

Frequently Asked Questions

Q: What wire diameter range is compatible with your pulley stands?

A: Our standard frames accommodate Diamond Wires from 8.5mm to 11.5mm diameter. Custom configurations support specialized wire sizes for unique applications.

Q: How do these stands reduce operational costs?

A: Precision alignment extends wire service life by 15-20%. Reduced vibration decreases bearing wear, lowering your total maintenance expenses significantly.

Q: Are the pulley wheels replaceable?

A: Yes, the modular design allows quick wheel replacement without removing the entire frame. You can perform on-site maintenance using standard tools.

Q: What is the recommended inspection interval?

A: Visual checks should occur every 200 operating hours. Professional structural inspection is advised annually or after 1,500 cutting hours.

Q: Can these stands operate in high-dust environments?

A: Absolutely. The sealed bearing design prevents abrasive particle ingress. Regular greasing according to NLGI Grade 2 specifications maintains smooth operation in quarry conditions.

Partner With Factory-Direct Reliability

Jinfuen Machinery combines three decades of wire saw expertise with direct manufacturing advantages. You receive competitive pricing, transparent quality verification, and comprehensive technical support—from Pulley Stands selection to full system integration—throughout your equipment lifecycle.

Contact our engineering team at sales@goldfenwiresaw.com to discuss your specific cutting requirements and receive customized pulley stand solutions.
