Reinforced Concrete Wire Saw – Heavy-Duty Diamond Cutting Solution

Laizhou Jinfuen Machinery Co., Ltd. delivers enterprise-grade Reinforced Concrete Wire Saw systems backed by over 30 years of manufacturing expertise. Our solutions feature high-tensile steel cable construction with 40-48 beads per meter, utilizing premium synthetic diamond grits in vulcanized rubber injection for superior bead adhesion. Engineered for heavy reinforced structures, our wire saws achieve cutting rates of 2-4 m²/h in demanding applications. With optimized linear speeds of 22-26 m/s and enhanced wear resistance, our systems reduce total cost of ownership by up to 15% compared to standard models. Factory-direct supply ensures competitive pricing without intermediaries, while strict ISO 9001 quality control guarantees consistent performance in bridge demolition, nuclear decommissioning, and urban retrofitting projects.

Reinforced Concrete Wire Saw

What Makes Our Wire Saw Different?

Traditional demolition methods create excessive vibration and noise. Your projects demand precision without compromising structural integrity.

Our diamond wire saw technology solves these critical challenges. The flexible cable design cuts through depths that circular blades cannot reach. You gain surgical precision in removing concrete sections while protecting surrounding load-bearing elements.

The vulcanized rubber coating withstands high-impact encounters with steel rebar. This durability translates directly to lower consumable costs for your operation.

Reinforced Concrete Wire Saw

Technical Specifications

Cutting materials	Line speed (m/s)	Cutting speed (m/s)	Wire life (squaremeter/m)
Low rigidity granite	33-37	15-20	20-40
Mid-hard granite	30-37	8-15	12-25
Hard granite	28-33	4-8	8-15
Abrasive granite	33-37	8-15	15-30

Type	Size	Reinforcement	Beads/m	Stone Hardness	Line speed	Cutting Speed	Life
Granite ore	11.5mm	Rubber+Spring	40/m	Soft Granite	20-30m/s	12-25㎡/h	20-35m²/m
				Mid-hard Granite		10-14㎡/h	12-18m²/m
				Hard Granite		8-10㎡/h	7-10m²/m
Marble mine	11.5mm	Rubber+Spring	40/m	Soft Marble	30-45m/s	8-10㎡/h	35-50m²/m
				Mid-hard Marble		7-9㎡/h	30-45m²/m
				Hard Marble		4-6m²/s	15-20m²/m
Reinforced Concrete	11.5mm	Rubber+Spring	40/m	Common	20-30m/s	1-3㎡/h	1.5-2
				Sharp type		3-4㎡/h	2.5-4

Where You'll Use This Equipment

Submerged Infrastructure Projects

Bridge pylon removal and dam gate dismantling require underwater cutting capability. Our Reinforced Concrete Wire Saw operates effectively in fully submerged conditions, delivering deep-section cuts impossible for dry-cutting tools.

Nuclear Facility Decommissioning

Biological shield and reactor foundation dismantling demand zero-vibration precision. The wire saw enables controlled remote operation, minimizing radiation exposure while maintaining structural stability.

High-Rise Building Modifications

Creating elevator shafts or stairwell openings in occupied buildings requires surgical accuracy. Your wire saw performs these cuts without vibrating surrounding floors or damaging sensitive electronic equipment in adjacent spaces.

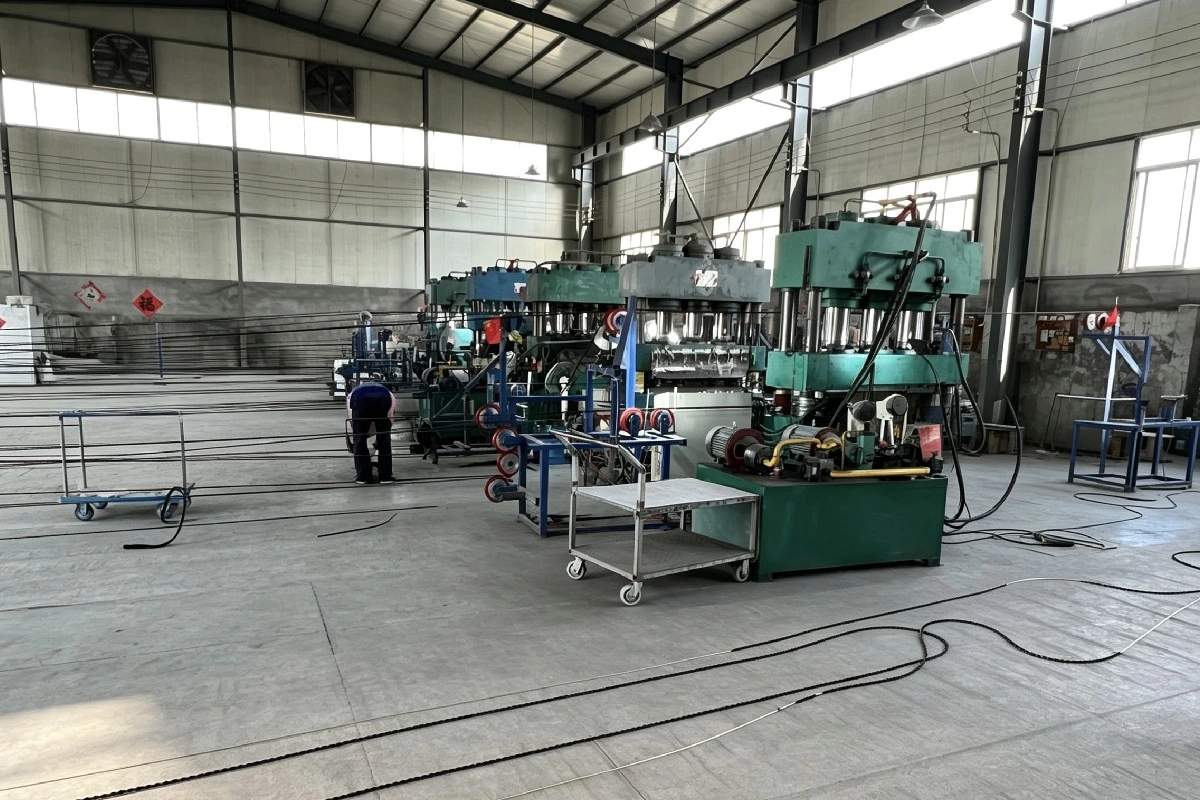

Reinforced Concrete Wire Saw Production Workshop

Quality Assurance Process

Every Reinforced Concrete Wire Saw undergoes four rigorous inspection stages before shipment.

Bead adhesion testing verifies the vulcanized rubber withstands shear forces from high-diameter rebar encounters. Diamond concentration analysis using X-ray fluorescence confirms uniform grit distribution throughout the bond matrix.

Cable tensile strength verification through destructive testing ensures the steel core handles high-torque tensioning during deep cuts. Eccentricity measurement guarantees perfect bead centering, eliminating wobble that reduces tool life and precision.

These protocols align with MPA Hannover safety certifications, giving you documented reliability for critical applications.

Performance Advantages You'll Experience

Our proprietary bead design improves cutting efficiency by 15% over standard industry models. The optimized bond matrix reduces consumable wear significantly, lowering your operational costs.

The anti-jamming structure maintains stable performance in harsh environments. You experience consistent cutting speeds even when encountering heavy rebar concentrations.

Low noise operation enables work in sensitive urban areas without disturbing occupied spaces. Clean, precise cuts eliminate the need for secondary finishing work.

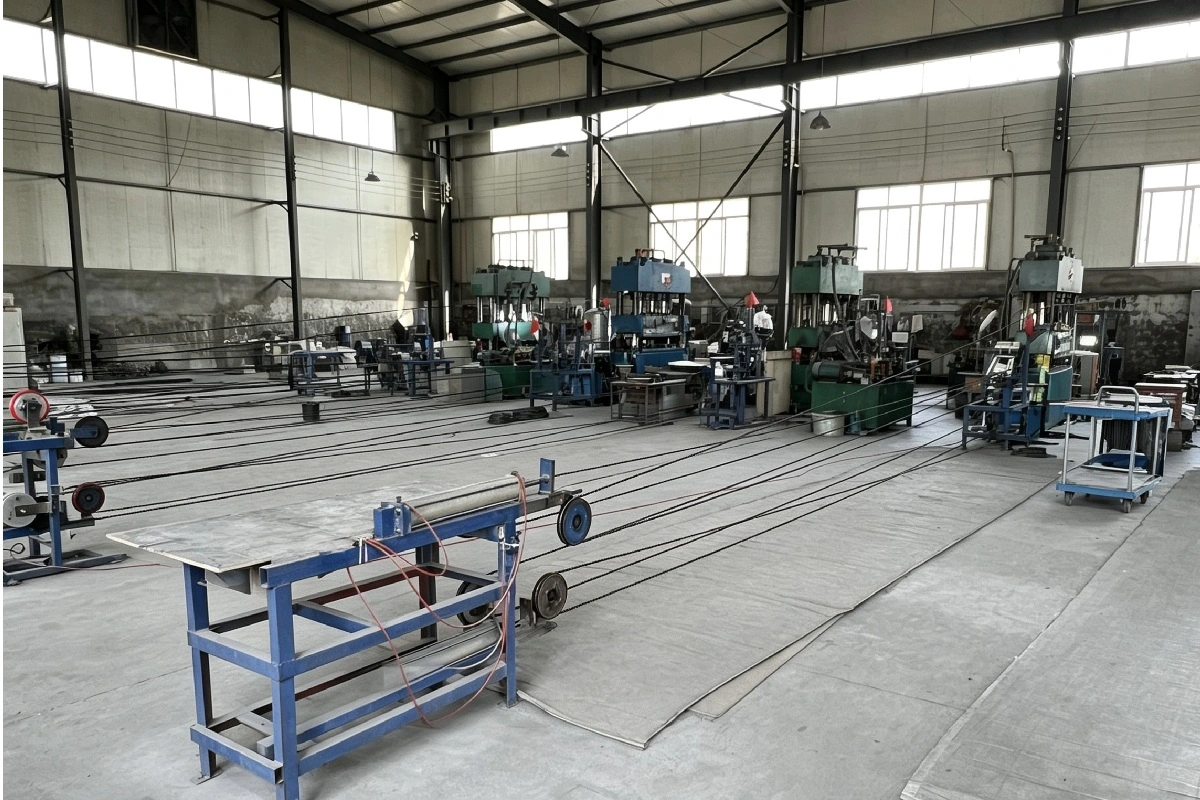

Reinforced Concrete Wire Saw Production Workshop

Frequently Asked Questions

Q: What speed should I use for heavily reinforced sections?

A: Reduce from the optimal 22–26 m/s range when cutting high-percentage steel. This prevents bead glazing and extends wire life.

Q: Why does cable breakage occur?

A: Excessive tension, tight radius bends in your pulley system, or cooling water failure cause premature breakage. Maintain proper tension settings and ensure continuous coolant flow.

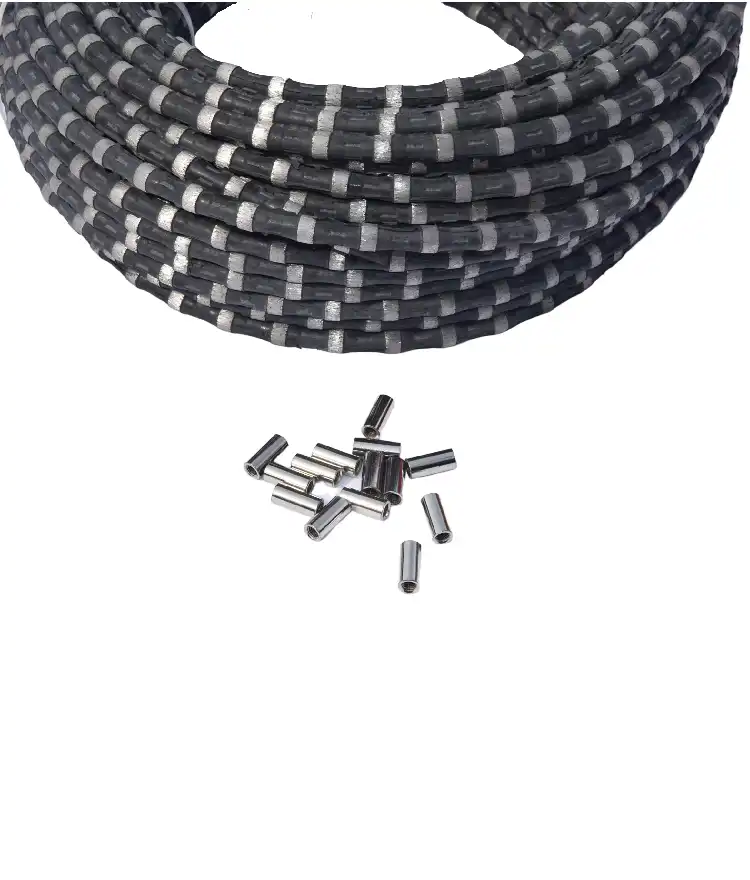

Q: Can I repair a snapped wire?

A: Yes, using specialized hydraulic crimping tools and repair sleeves. Monitor the repaired section closely for consistent wear patterns.

Q: How do I prevent diamond glazing on steel?

A: Choose wire with softer bond matrix for high-steel applications. Periodically cut into abrasive material like sandstone to re-expose diamond crystals.

Q: Which coating performs better for rebar cutting?

A: Vulcanized rubber provides superior bead adhesion compared to plastic injection. The high-impact environment of steel cutting requires rubber's enhanced bonding strength.

Get Your Custom Cutting Solution

Ready to improve concrete demolition efficiency? Our technical team provides free evaluation and tailored cutting solutions—including Reinforced Concrete Wire Saw configurations for your project.
