Stone Mining Diamond Wire for Efficient Quarry Extraction

Laizhou Jinfuen Machinery Co., Ltd., with over 30 years of manufacturing expertise, delivers professional-grade Stone Mining Diamond Wire solutions engineered for high-performance natural stone extraction. Our diamond wire systems feature optimized bead configurations of 28 to 40 beads per meter, designed specifically for granite, marble, limestone, and sandstone quarrying. The high-tensile multi-strand steel cable achieves breaking strength exceeding 1200kg (4.9mm diameter), while our proprietary vulcanized rubber coating provides superior protection in abrasive cutting conditions. With cutting efficiency improved by up to 15% compared to standard industry models and reduced material waste through narrow kerf design, our wire saw solutions deliver measurable ROI for large-scale quarry operations. Factory-direct pricing and delivery within 10–30 days ensure cost-effective procurement for your mining projects.

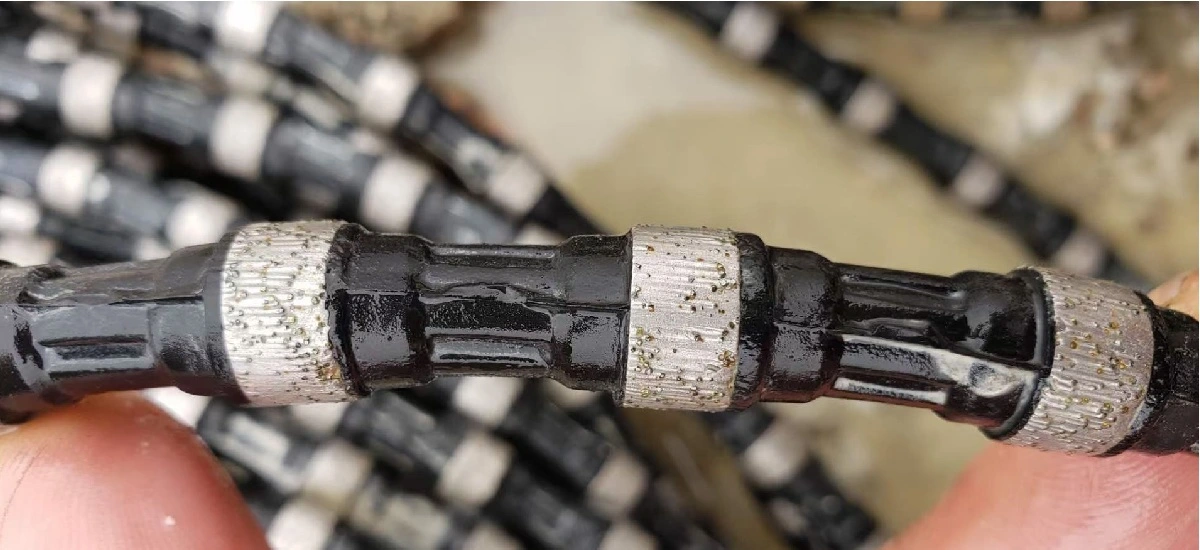

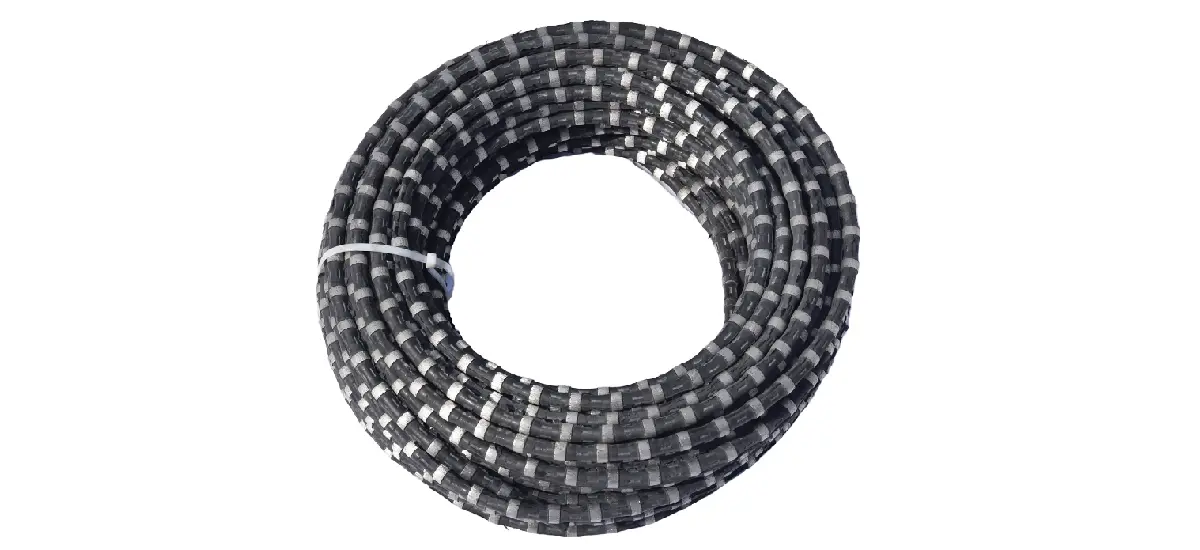

Stone Mining Diamond Wire

Why Choose Our Stone Mining Diamond Wire

Our diamond wire cutting systems are built for demanding quarry environments. You'll experience stable performance even in high-load continuous operations.

The precision-engineered diamond beads maintain consistent cutting speed throughout their service life. This translates to predictable operational costs for your business.

Our vulcanized rubber coating technology protects the steel core from abrasive slurry damage. This design significantly extends wire longevity in hard granite applications.

You can customize specifications based on your specific stone materials and cutting requirements. We offer flexible bead density configurations and coating options to match your quarry conditions.

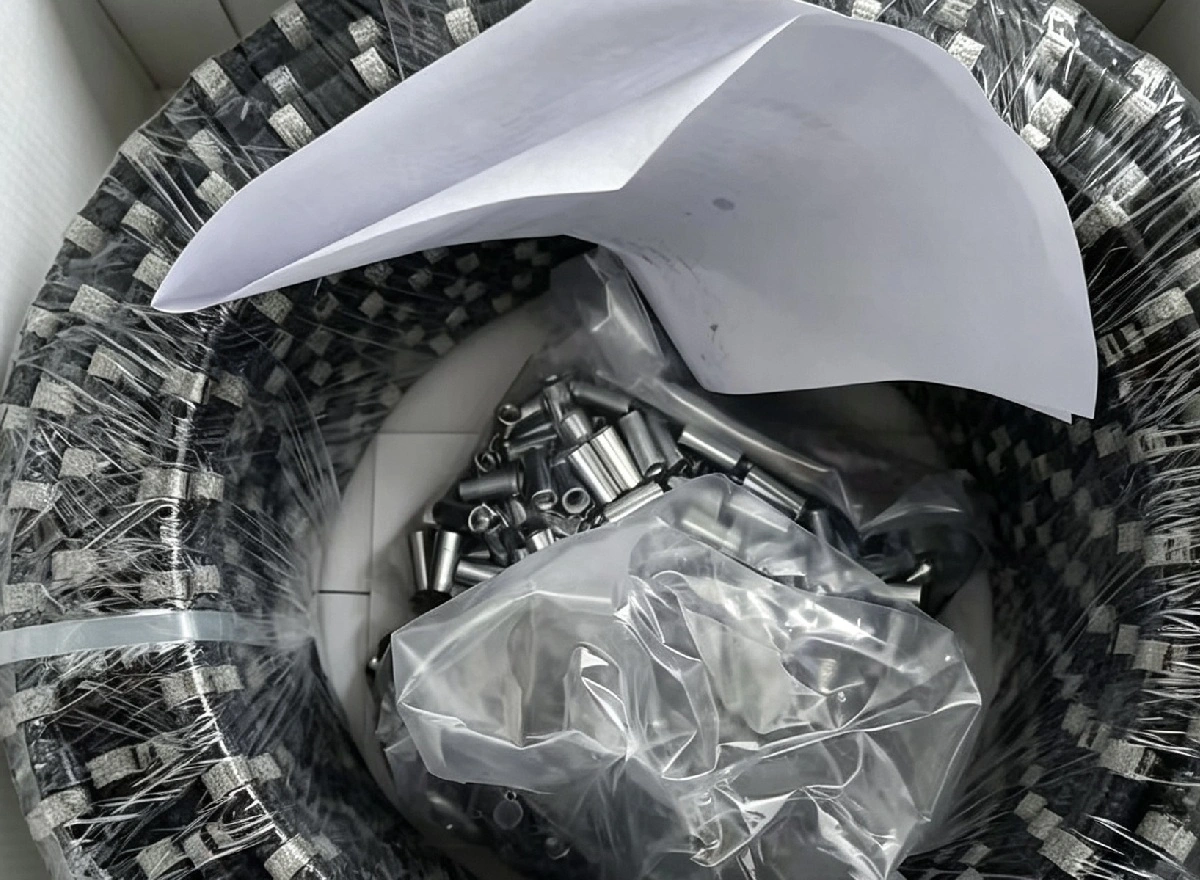

Stone Mining Diamond Wire

Technical Specifications

Cutting materials	Line speed (m/s)	Cutting speed (m/s)	Wire life (squaremeter/m)
Low rigidity granite	33-37	15-20	20-40
Mid-hard granite	30-37	8-15	12-25
Hard granite	28-33	4-8	8-15
Abrasive granite	33-37	8-15	15-30

Type	Size	Reinforcement	Beads/m	Stone Hardness	Line speed	Cutting Speed	Life
Granite ore	11.5mm	Rubber+Spring	40/m	Soft Granite	20-30m/s	12-25㎡/h	20-35m²/m
				Mid-hard Granite		10-14㎡/h	12-18m²/m
				Hard Granite		8-10㎡/h	7-10m²/m
Marble mine	11.5mm	Rubber+Spring	40/m	Soft Marble	30-45m/s	8-10㎡/h	35-50m²/m
				Mid-hard Marble		7-9㎡/h	30-45m²/m
				Hard Marble		4-6m²/s	15-20m²/m
Reinforced Concrete	11.5mm	Rubber+Spring	40/m	Common	20-30m/s	1-3㎡/h	1.5-2
				Sharp type		3-4㎡/h	2.5-4

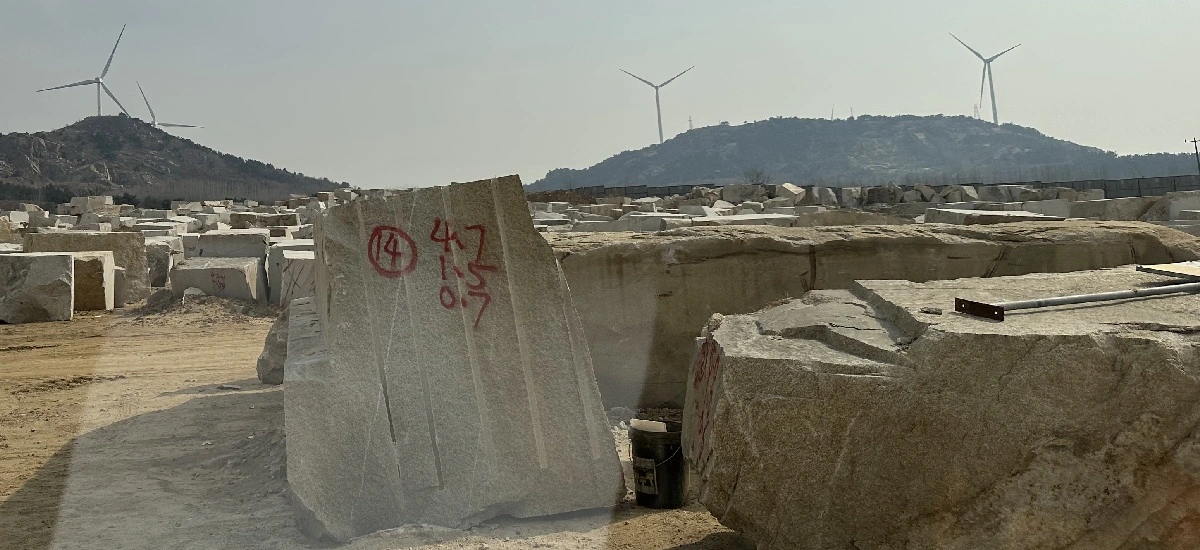

Stone Mining Diamond Wire

Key Applications for Stone Quarrying

You can deploy our diamond wire in primary bench cutting operations. The wire loops through pre-drilled boreholes to isolate massive stone blocks up to 1000 cubic meters.

Block squaring and dressing become more efficient with our wire systems. You'll achieve smooth, commercial-grade surfaces ready for direct shipping.

For complex civil engineering projects, our wire provides controlled demolition capability. It cuts through stone foundations and reinforced structures without excessive noise or vibration.

Underwater and high-altitude quarry applications benefit from our wire's adaptable design. Traditional sawing methods cannot match this operational flexibility.

Performance Advantages

Your cutting operations gain precision with narrow kerf design. This minimizes stone waste and maximizes recovery of premium material.

You'll notice reduced vibration and noise during operation. This creates a safer, more comfortable working environment for your team.

The anti-jamming structure ensures stable performance in harsh conditions. Dust, slurry, and temperature variations won't interrupt your cutting schedule.

Our optimized diamond distribution delivers consistent cutting power. You'll maintain productivity throughout the wire's operational lifespan.

Quality Assurance Standards

Every wire undergoes rigorous bead retention testing. We verify minimum 250kg pull-off force to prevent bead displacement during cutting.

Concentricity checks with digital micrometers ensure uniform bead diameter. This eliminates wire vibration and extends equipment life.

For rubberized variants, our vulcanization adhesion testing prevents bead spinning and internal corrosion. You receive a Stone Mining Diamond Wire engineered for extreme friction environments.

Bending fatigue tests simulate millions of flex cycles over pulleys. This guarantees your wire maintains structural integrity throughout demanding operations.

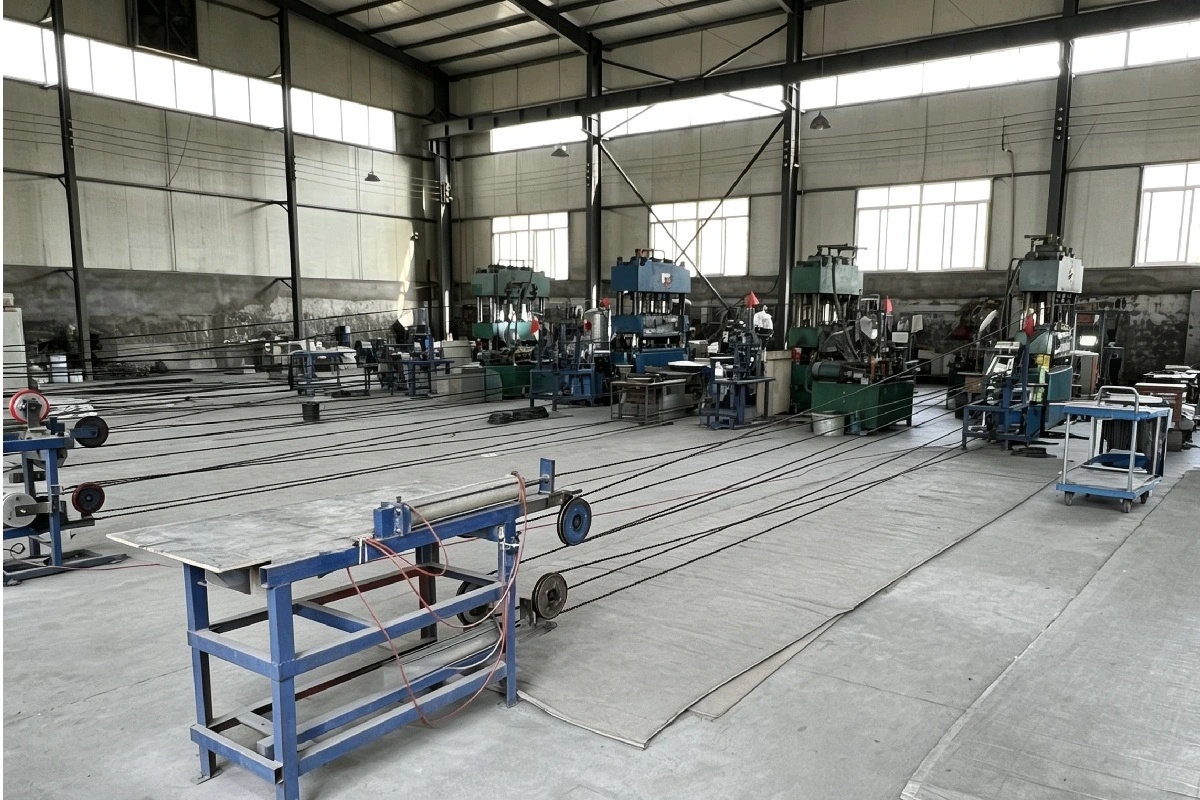

Stone Mining Diamond Wire Production Workshop

Frequently Asked Questions

Q: How do I prevent premature wire breakage?

A: Monitor tension levels carefully and ensure pulley diameters meet minimum specifications. Regular steel core inspection identifies fatigue before failure occurs.

Q: Which coating works best for granite quarrying?

A: Vulcanized rubber coating is essential for granite applications. It provides superior cable protection against the highly abrasive slurry generated during cutting.

Q: What causes uneven bead wear patterns?

A: Apply calculated twist of 1.5 to 2 turns per meter before joining wire ends. This induces rotation during cutting for uniform wear distribution.

Q: When should I replace the diamond wire?

A: Replace when bead diameter matches coating diameter or when cutting speed drops more than 50% at standard power levels. This prevents costly cable damage.

Stone Mining Diamond Wire

Contact Us for Your Quarry Solution

Ready to improve your stone extraction efficiency? Our technical team provides free project evaluation and cutting solution design tailored to your quarry—all built around our Stone Mining Diamond Wire.
