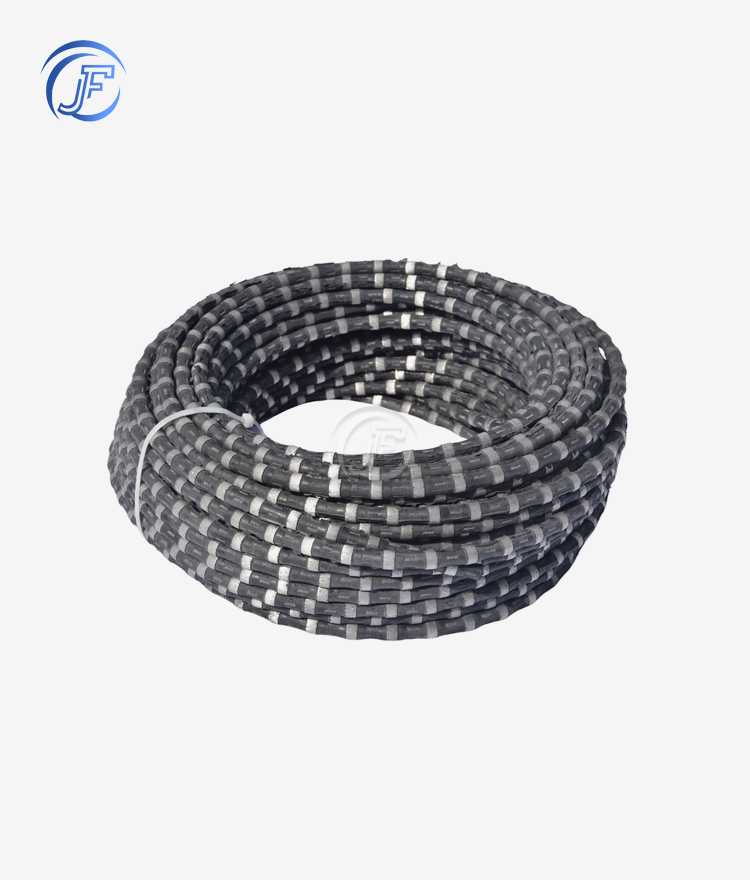

Diamond Wire for Stone — Professional Cutting Solution for Precision Stone Processing

With more than 30 years of manufacturing experience, Laizhou Jinfuen Machinery Co., Ltd. provides Diamond Wire for Stone designed for exceptional quarrying and processing performance. With cutting speeds of 22–30 m/s and bead densities ranging from 28 to 40 beads per meter, our diamond wire has a high-tensile steel cable construction threaded with superior diamond-impregnated beads. Compared to conventional techniques, our design can reduce kerf loss by up to 30%, and our unique wire saw systems increase cutting efficiency by 15%. Competitive prices and specially designed configurations based on your unique stone hardness and operating needs are guaranteed by factory-direct supply.

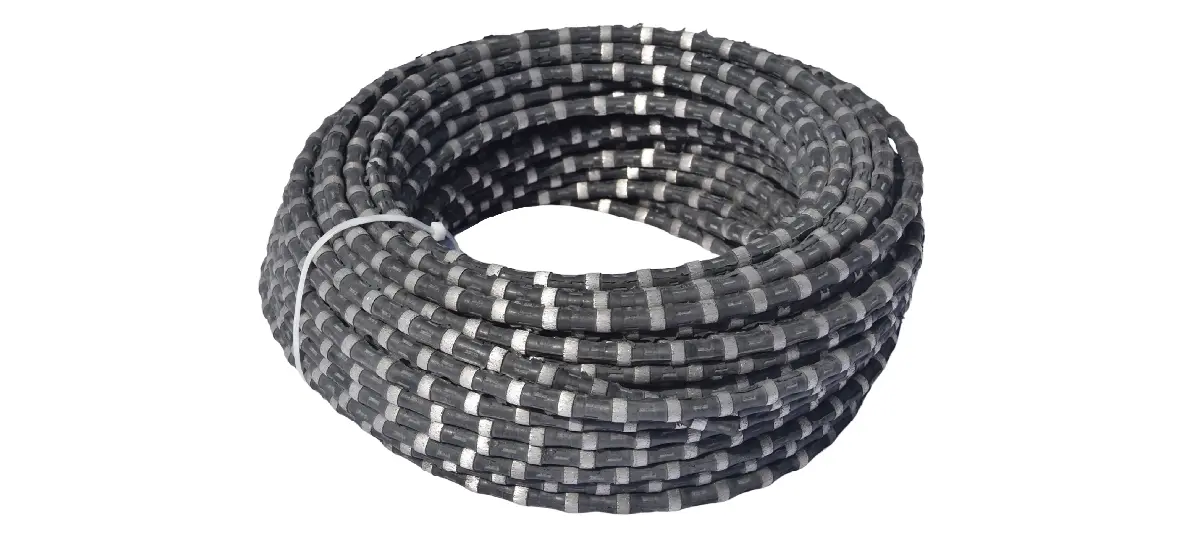

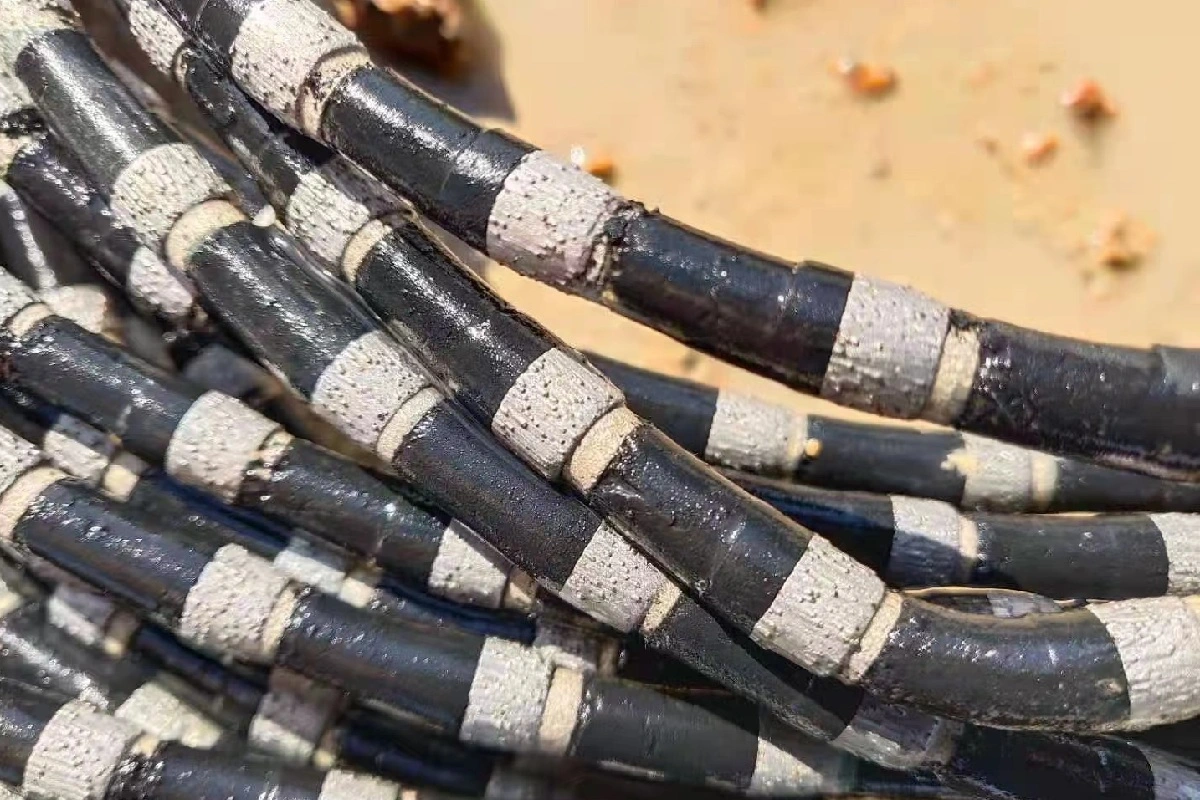

Diamond Wire for Stone

Why Choose Our Diamond Wire for Stone

On granite, marble, and sandstone, you receive precise, clean cuts with little material loss. Our flexible wire structure minimizes downtime and supports high-volume production schedules by maintaining steady tension throughout continuous operation.

Across a range of mineral densities, the diamond-impregnated beads perform consistently. Because the rubber covering protects the steel core from premature wear and the bead spacing is adjusted, your processing costs decrease as the tool life increases.

Strong structure can endure the challenging circumstances found in quarries. You gain from lower noise pollution and vibration levels, satisfying contemporary environmental regulations while keeping your stone processing facility's production goals.

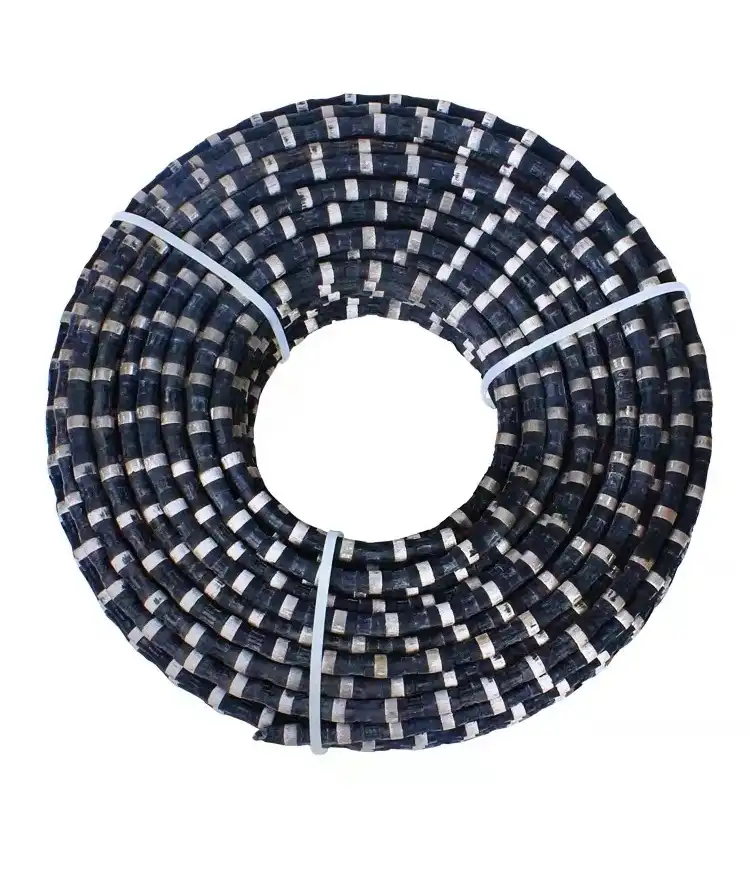

Diamond Wire for Stone

Technical Specifications

Cutting materials	Line speed (m/s)	Cutting speed (m/s)	Wire life (squaremeter/m)
Low rigidity granite	33-37	15-20	20-40
Mid-hard granite	30-37	8-15	12-25
Hard granite	28-33	4-8	8-15
Abrasive granite	33-37	8-15	15-30

Type	Size	Reinforcement	Beads/m	Stone Hardness	Line speed	Cutting Speed	Life
Granite ore	11.5mm	Rubber+Spring	40/m	Soft Granite	20-30m/s	12-25㎡/h	20-35m²/m
				Mid-hard Granite		10-14㎡/h	12-18m²/m
				Hard Granite		8-10㎡/h	7-10m²/m
Marble mine	11.5mm	Rubber+Spring	40/m	Soft Marble	30-45m/s	8-10㎡/h	35-50m²/m
				Mid-hard Marble		7-9㎡/h	30-45m²/m
				Hard Marble		4-6m²/s	15-20m²/m
Reinforced Concrete	11.5mm	Rubber+Spring	40/m	Common	20-30m/s	1-3㎡/h	1.5-2
				Sharp type		3-4㎡/h	2.5-4

Diamond Wire for Stone

Application Scenarios

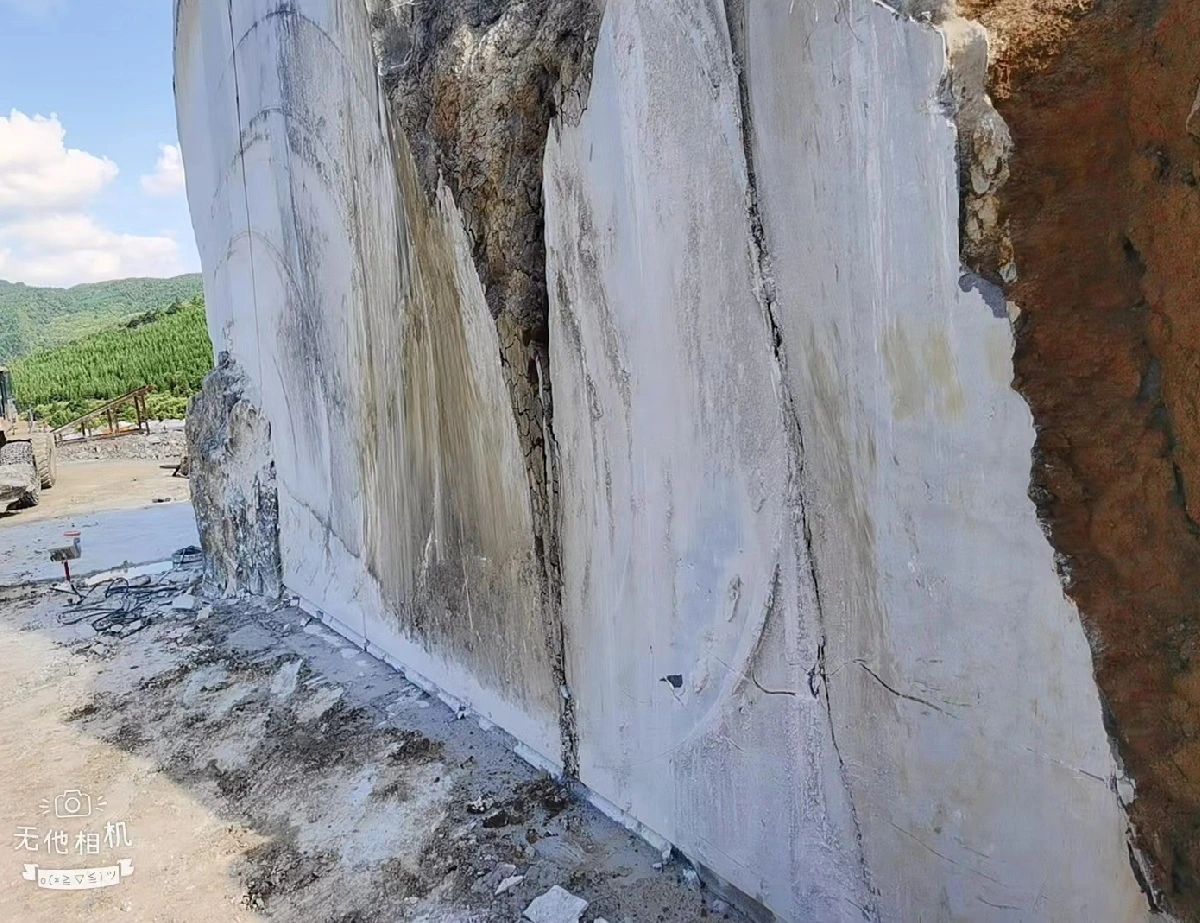

Open-Pit Quarrying Operations

You can execute large-scale horizontal and vertical bench cuts directly from the mountain face. The wire handles complex topography and performs primary extraction of oversized granite and marble blocks that standard blades cannot accommodate.

Stationary Slab Profiling

Your processing plant benefits from precise slicing of stone blocks into thin slabs. The Diamond Wire for Stone supports multi-wire machines for high-volume production and mono-wire systems for intricate 3D shapes like columns and monuments, reducing subsequent polishing time.

Controlled Demolition Projects

When traditional blasting poses vibration risks in urban environments, this wire cuts through reinforced stone foundations and underwater structures efficiently. You achieve clean separations without shock waves or excessive noise.

Performance Advantages You Get

Superior Cutting Efficiency

High linear speeds combined with optimized diamond concentration let you complete cuts faster. Your operational costs decrease as production throughput increases.

Extended Tool Life

Protective vulcanized rubber coating prevents steel core corrosion. The wire maintains structural integrity under high-tension loads, delivering longer service intervals between replacements.

Minimal Material Waste

Thin kerf width preserves more usable stone from each block. You maximize yield and reduce raw material expenses across your processing operations.

Stable Performance Under Stress

Anti-jamming design handles internal rock stresses and varying hardness levels. Your cutting process remains consistent even in challenging geological conditions with minimal cooling water availability.

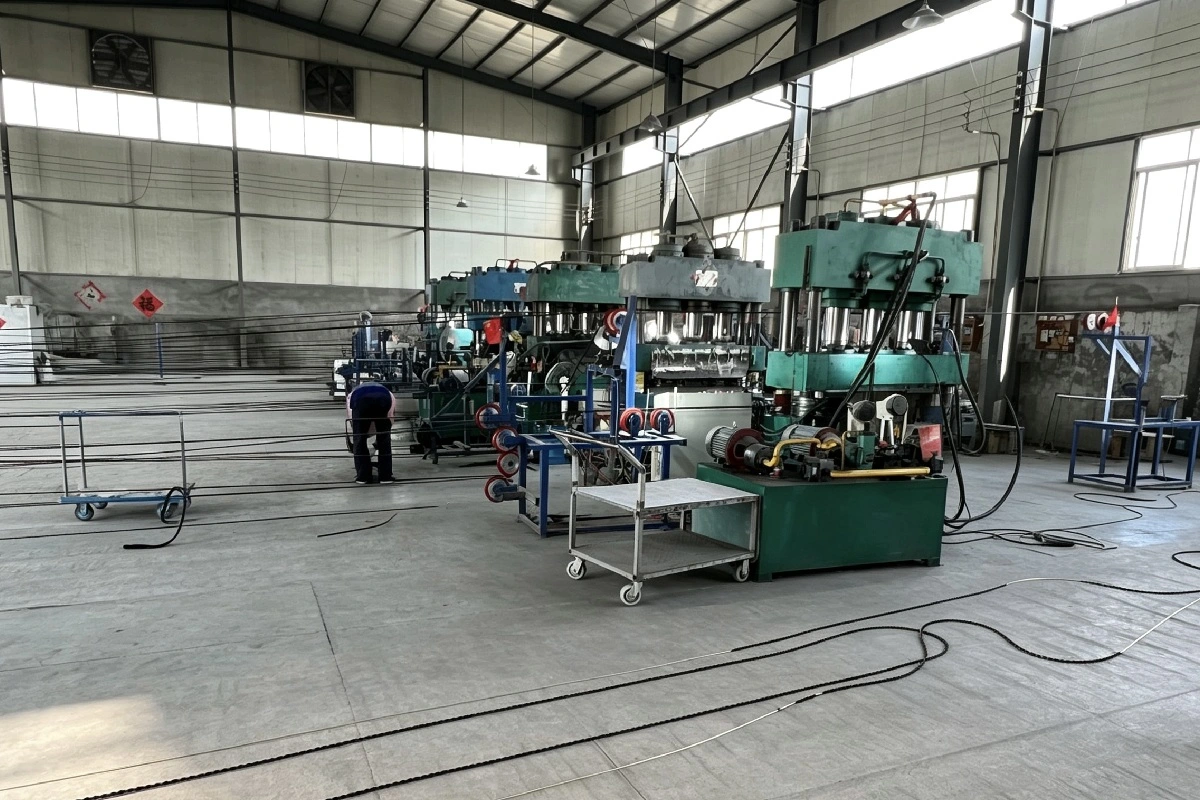

Diamond Wire for Stone Production Workshop

Frequently Asked Questions

Q: What causes wire breakage during operation?

A: Excessive tension, misaligned pulleys, or worn steel core due to coating damage typically cause breaks. Regular inspection and proper tension adjustment prevent most failures.

Q: Should I use rubber or plastic coating?

A: Choose rubber coating for hard granite due to superior cable protection and flexibility. Plastic or spring-based wires suit softer marble or indoor stationary machines with controlled conditions.

Q: How do I prepare new beads for optimal cutting?

A: Run the wire at reduced speed (15–18 m/s) through soft sandstone or refractory brick. This "opening" process exposes diamond tips for peak cutting performance.

Q: What water flow rate do I need?

A: Maintain 15–25 liters per minute to flush stone slurry effectively. Insufficient water causes slurry buildup that accelerates coating wear and reduces tool life.

Q: How can I identify bead slippage?

A: Look for uneven bead spacing or exposed steel cable sections. Stop operations immediately and replace the wire to prevent catastrophic failure during cutting.

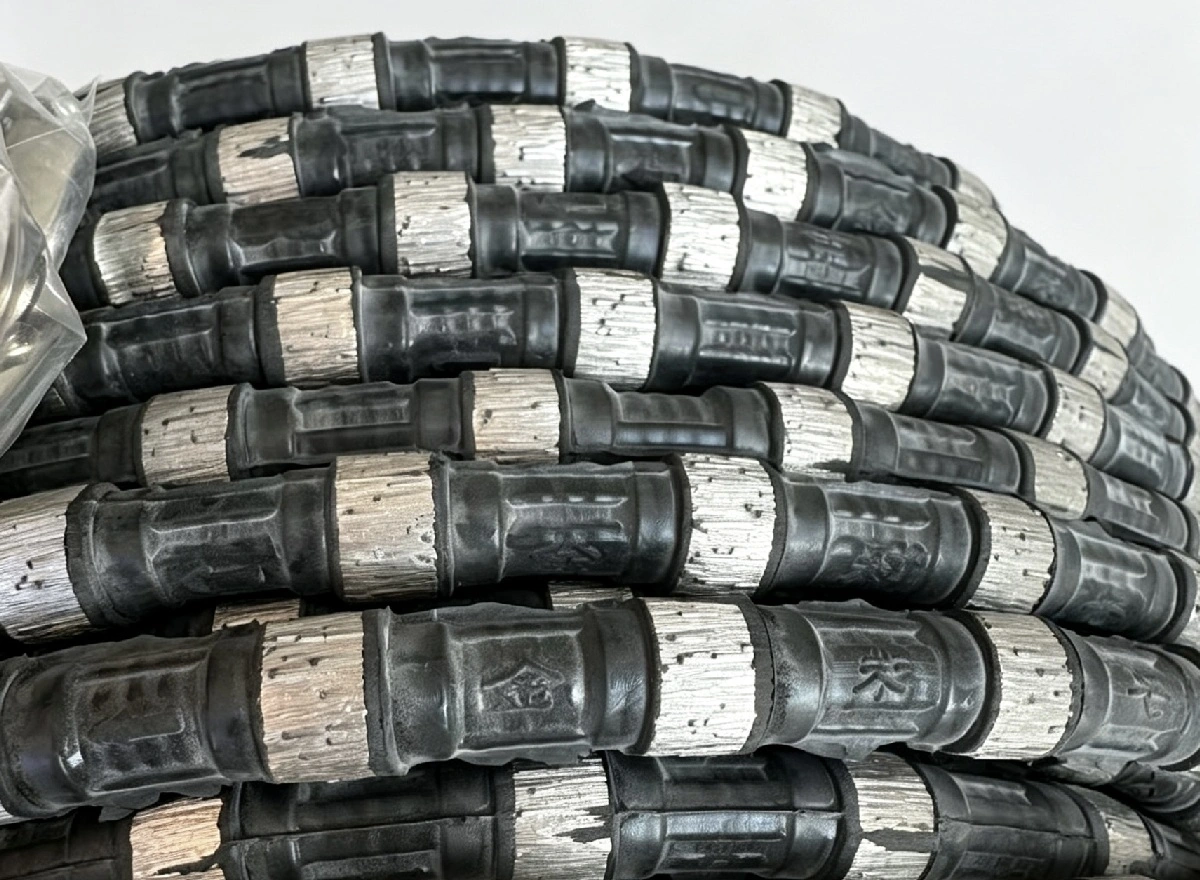

Diamond Wire for Stone Shipment from Factory

Get Your Custom Solution Today

Improve stone cutting efficiency with our Diamond Wire for Stone. Contact Us to learn more. Contact our technical team at sales@goldfenwiresaw.com for project evaluation, customized wire configurations, and factory-direct pricing. We deliver within 10–30 days with full logistics support.
