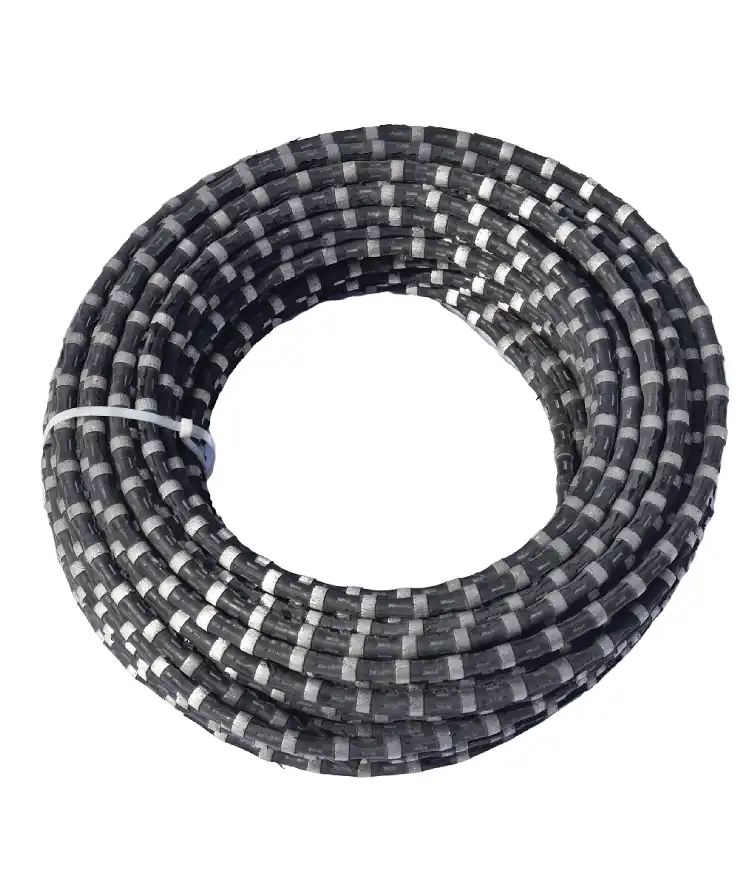

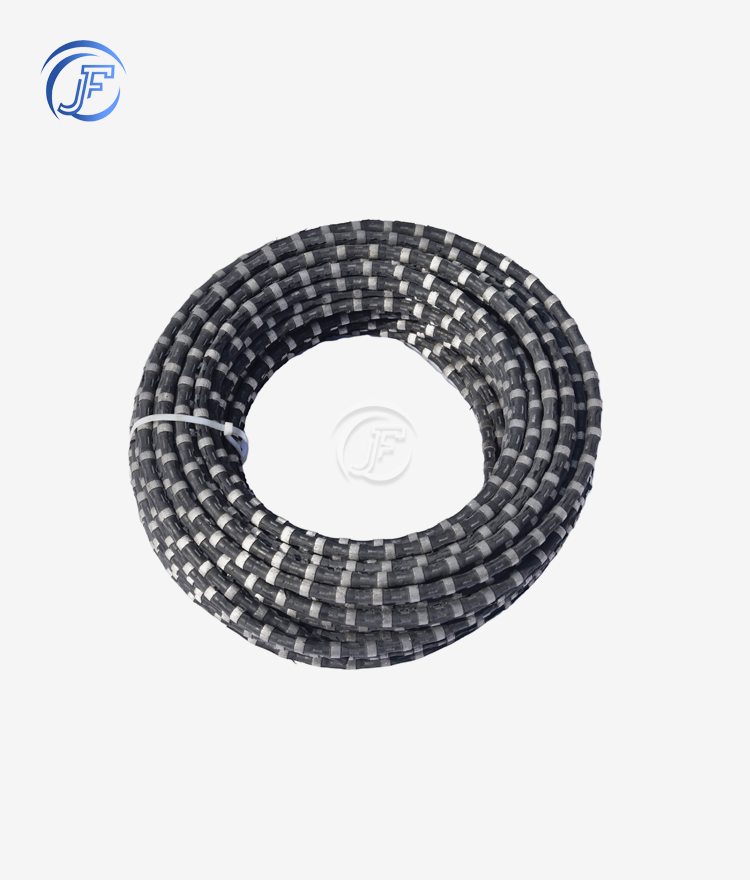

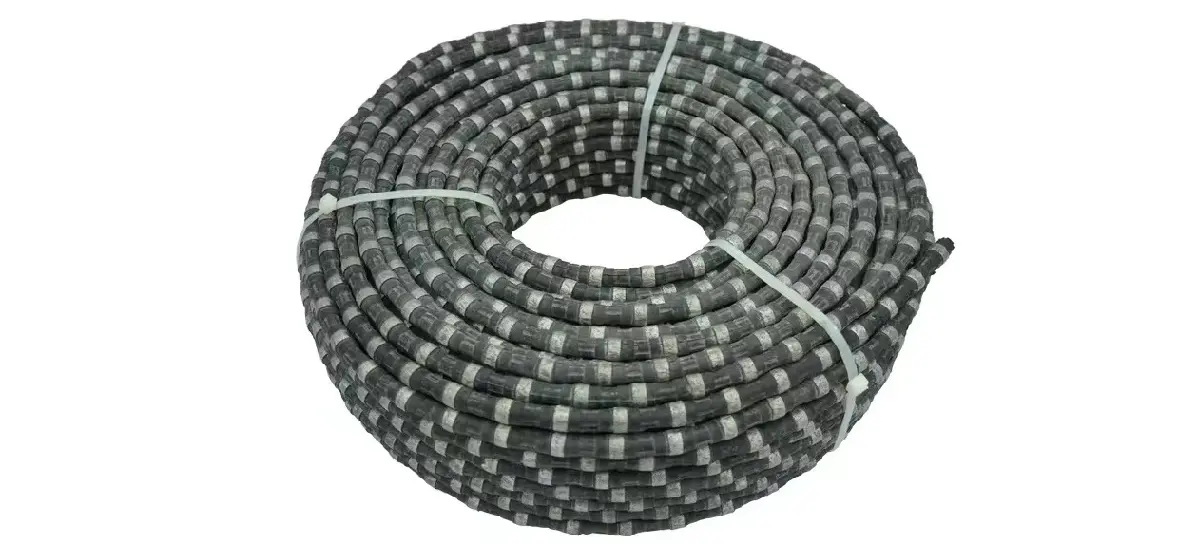

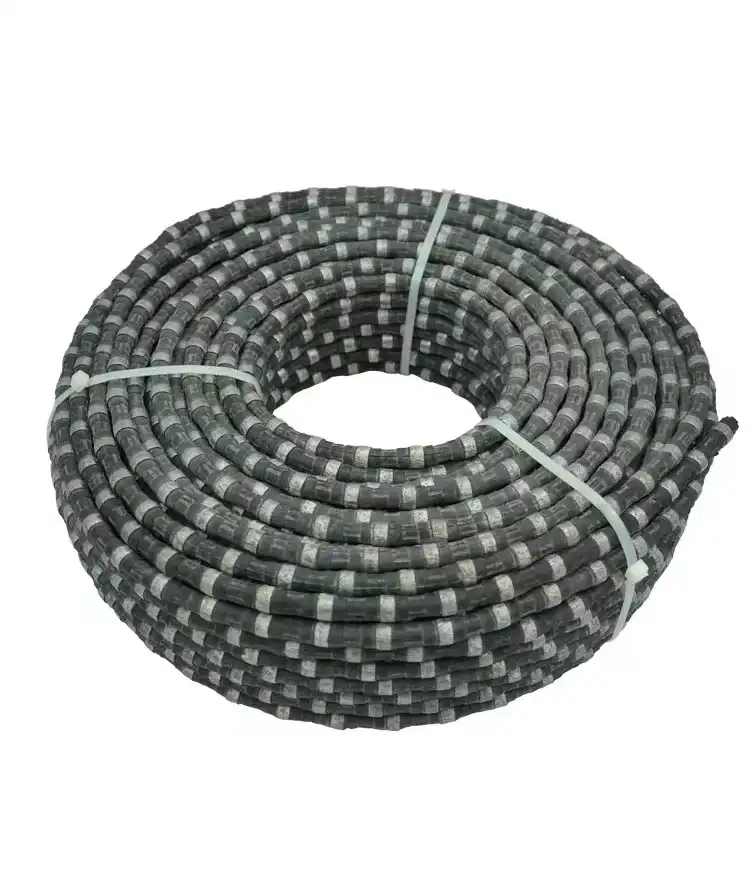

Granite Wire Saw – Professional Diamond Wire Cutting Solution

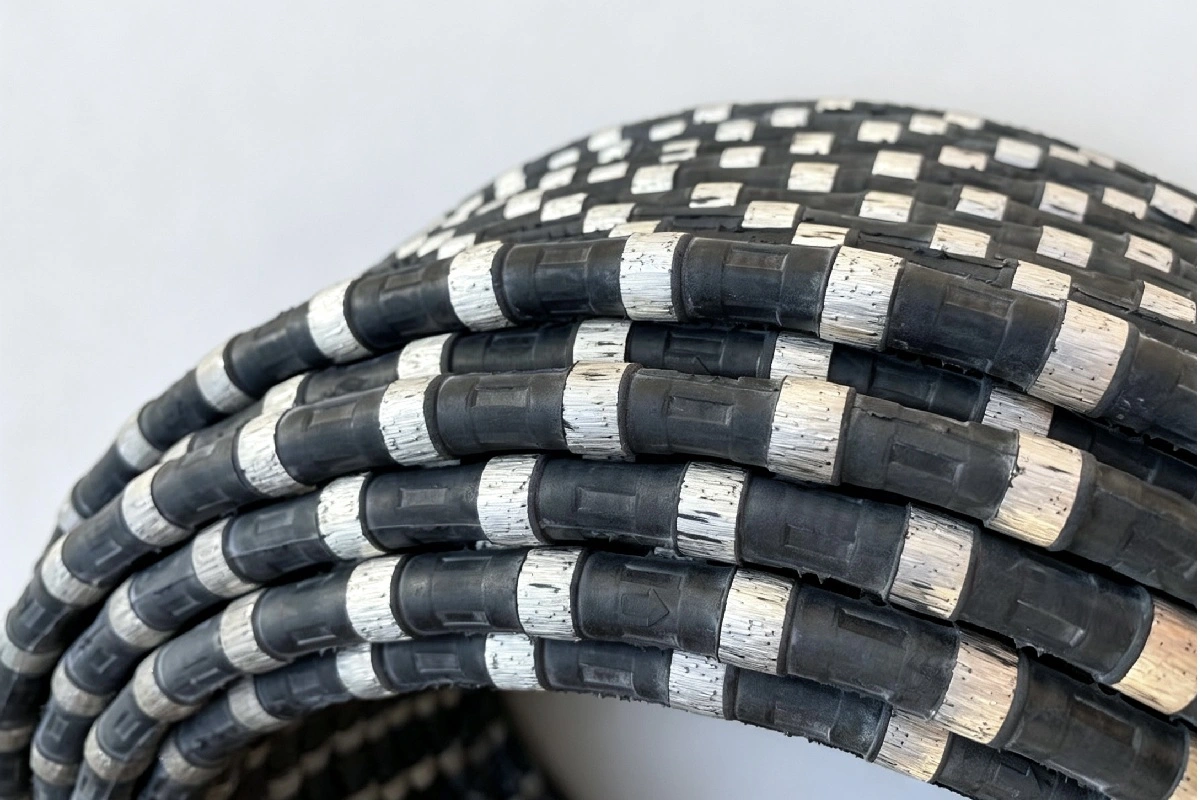

Laizhou Jinfuen Machinery Co., Ltd. brings over 30 years of manufacturing excellence to deliver advanced Granite Wire Saw solutions for efficient stone extraction and processing. Our wire saw features high-tensile multi-strand steel cable with diamond-impregnated beads, offering cutting speeds of 22–30 m/s and bead density of 36–40 beads per meter. The vulcanized rubber injection achieves Shore A hardness of 70–80 HRC, ensuring superior adhesion and wear resistance.

With a tensile strength exceeding 2500 MPa, our products handles Class 4 and Class 5 hardness granite efficiently. Each wire yields 8–15 square meters of cutting per linear meter, significantly reducing operational costs while maintaining precision in demanding quarry environments.

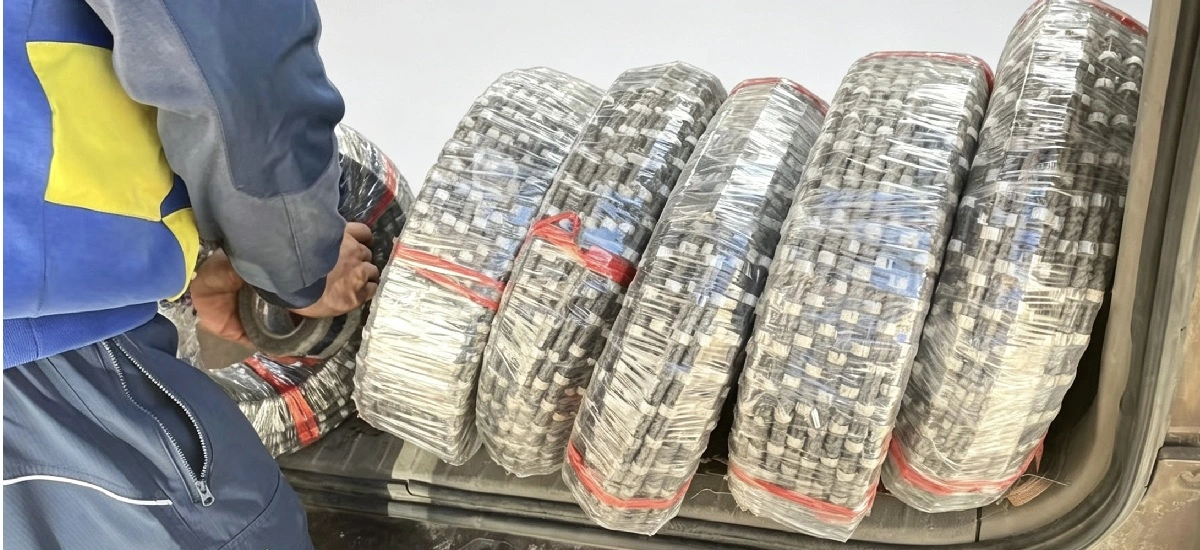

Granite Wire Saw

Technical Specifications

Cutting materials	Line speed (m/s)	Cutting speed (m/s)	Wire life (squaremeter/m)
Low rigidity granite	33-37	15-20	20-40
Mid-hard granite	30-37	8-15	12-25
Hard granite	28-33	4-8	8-15
Abrasive granite	33-37	8-15	15-30

Type	Size	Reinforcement	Beads/m	Stone Hardness	Line speed	Cutting Speed	Life
Granite ore	11.5mm	Rubber+Spring	40/m	Soft Granite	20-30m/s	12-25㎡/h	20-35m²/m
				Mid-hard Granite		10-14㎡/h	12-18m²/m
				Hard Granite		8-10㎡/h	7-10m²/m
Marble mine	11.5mm	Rubber+Spring	40/m	Soft Marble	30-45m/s	8-10㎡/h	35-50m²/m
				Mid-hard Marble		7-9㎡/h	30-45m²/m
				Hard Marble		4-6m²/s	15-20m²/m
Reinforced Concrete	11.5mm	Rubber+Spring	40/m	Common	20-30m/s	1-3㎡/h	1.5-2
				Sharp type		3-4㎡/h	2.5-4

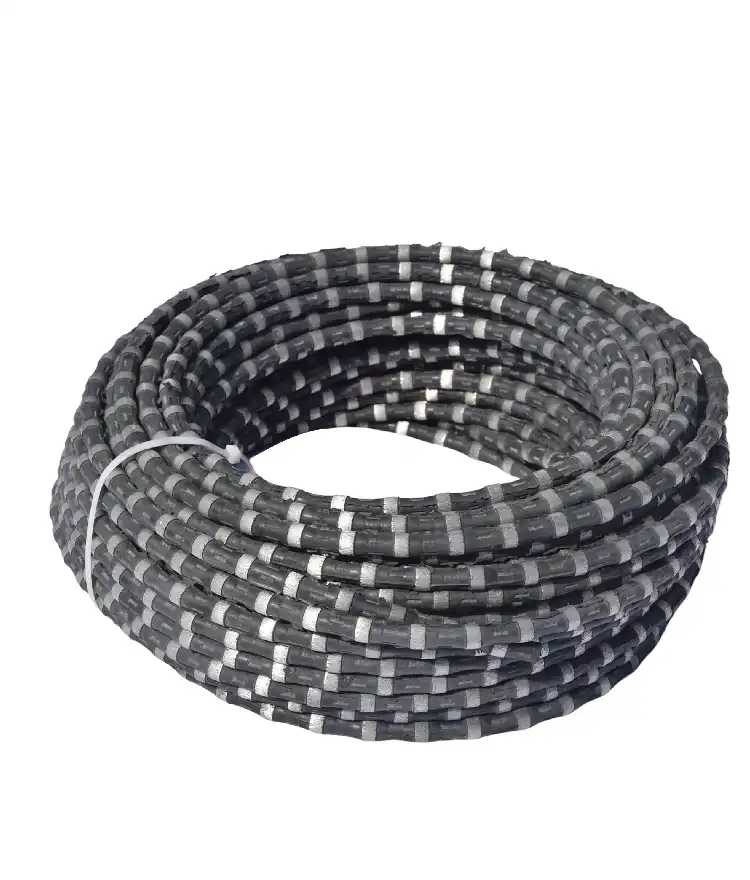

Granite Wire Saw

Why Choose Our Granite Wire Saw

Superior Material Engineering

Our Granite Wire Saw incorporates high-strength steel core construction. The vulcanized rubber injection protects against abrasive granite dust. This combination extends service life significantly.

Diamond concentration is precisely calibrated. You get consistent cutting performance across varying granite hardness levels. The beads maintain stable geometry throughout operation.

Proven Cutting Efficiency

Hard granite blocks require robust tools. Our wire saw maintains steady cutting force under high pressure. This reduces extraction time in quarry operations.

The optimized bead spacing minimizes kerf loss. You'll achieve higher block yield from each cut. Lower material waste directly improves your profitability.

Cost-Effective Operation

Factory-direct pricing eliminates intermediary markups. You access competitive rates without compromising quality. Our transparent pricing structure supports better budget planning.

Extended wire lifespan reduces replacement frequency. Lower consumable costs decrease your total cost of ownership. This makes large-scale projects more economically viable.

Granite Wire Saw

Application Scenarios

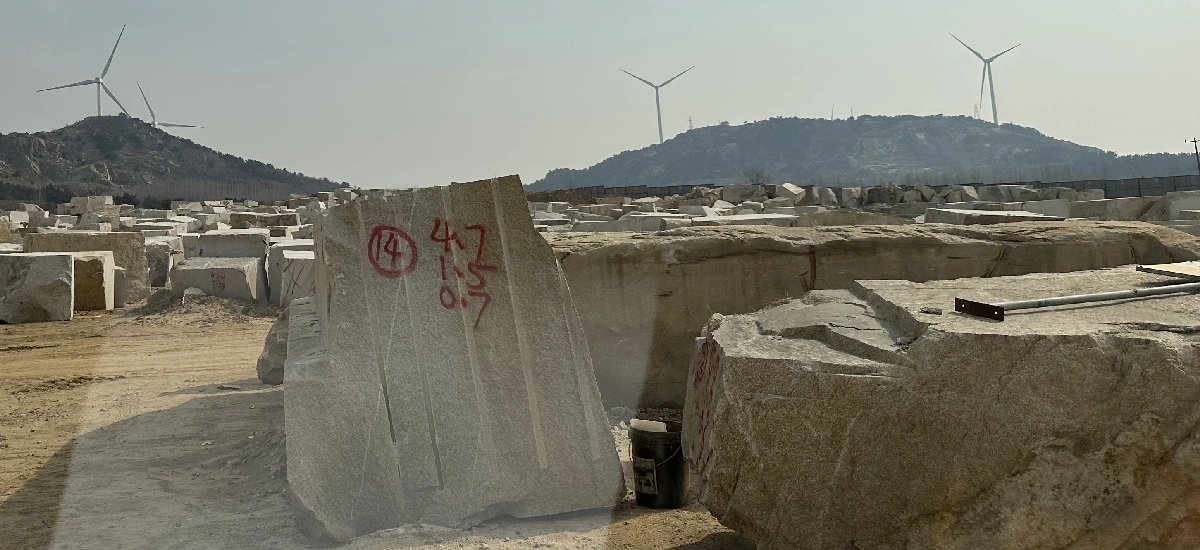

Quarry Extraction

Deep-bench quarries demand reliable cutting tools. Our products performs vertical and horizontal cuts efficiently. Even high-quartz-content granite poses no challenge.

The continuous loop mechanism enables precision extraction. You can detach massive blocks from bedrock safely. This method surpasses traditional drilling and blasting.

Block Squaring Operations

Irregular blocks require precise trimming. Stationary machines equipped with our wire saw deliver accurate cubic shapes. This optimizes container loading efficiency.

Reduced transport costs result from better dimensional control. Your logistics expenses decrease while maintaining product quality. Clean cuts also minimize secondary processing needs.

Multi-Wire Slab Processing

Advanced processing plants benefit from simultaneous wire operation. Multiple Granite Wire Saw loops slice blocks into 2cm or 3cm slabs. Precision exceeds traditional frame saw capabilities.

Surface roughness remains minimal across varied mineral hardness. You achieve consistent slab quality throughout production runs. This enhances your product's market competitiveness.

Granite Wire Saw

Frequently Asked Questions

Q: How should I maintain proper cooling during operation?

A: Constant water flow between 15–25 L/min is mandatory. Insufficient cooling causes rubber coating deterioration. Overheating also reduces diamond bead effectiveness.

Q: What causes uneven bead wear?

A: Uneven wear typically indicates tension imbalance or insufficient wire twisting. Measure bead diameter regularly with calipers. If cutting-side diameter is 0.5mm smaller, add 1.5–2 turns per meter during wire joining.

Q: Can this wire cut extremely hard granite varieties?

A: Yes. For Class 5 hardness granite with high quartz content, use 22–24 m/s linear speed. Softer varieties allow 26–30 m/s. Adjust parameters based on material testing.

Q: Is dry cutting possible in emergency situations?

A: Never attempt dry cutting. Immediate vulcanized rubber failure will occur. Diamond bond integrity also deteriorates rapidly. Water lubrication is non-negotiable for safe operation.

Q: How do I calculate wire lifespan for project planning?

A: Quality wire typically delivers 8–15 square meters per linear meter. Actual yield depends on granite hardness and operational parameters. Request our free cutting solution analysis for precise calculations.

Granite Wire Saw

Contact Us for Customized Solutions

Improve granite cutting. Free project review, ROI analysis—all built around our Diamond Wire for Stone and Granite Wire Saw. Contact Us at sales@goldfenwiresaw.com for tailored wire saw solutions that match your specific requirements.
