Diamond Fine Wireand Electroplated Diamond Wire Saw — Precision Cutting Solutions by Jinfuen

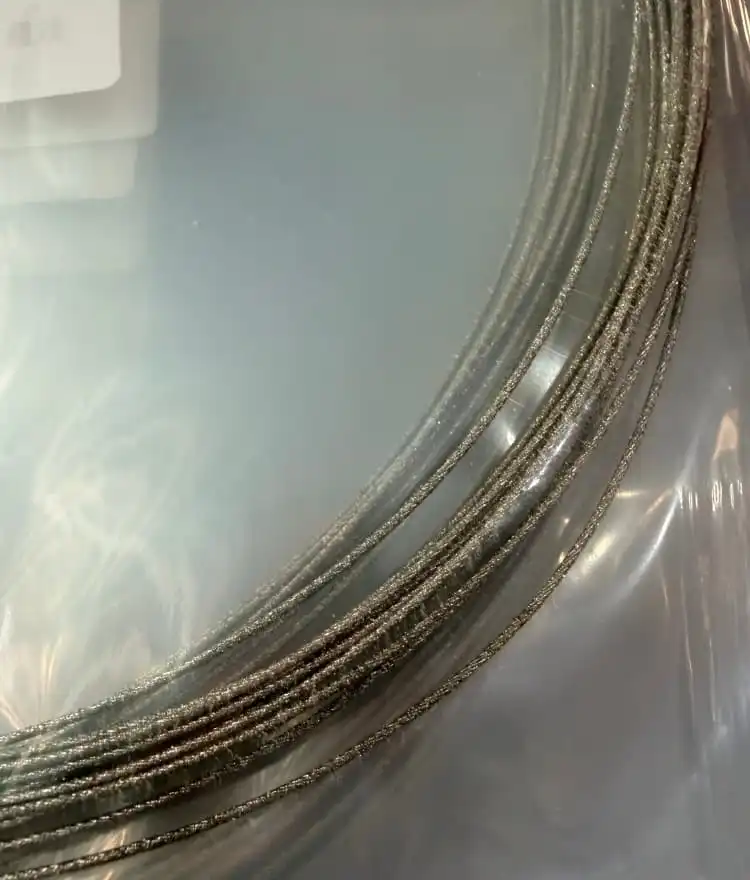

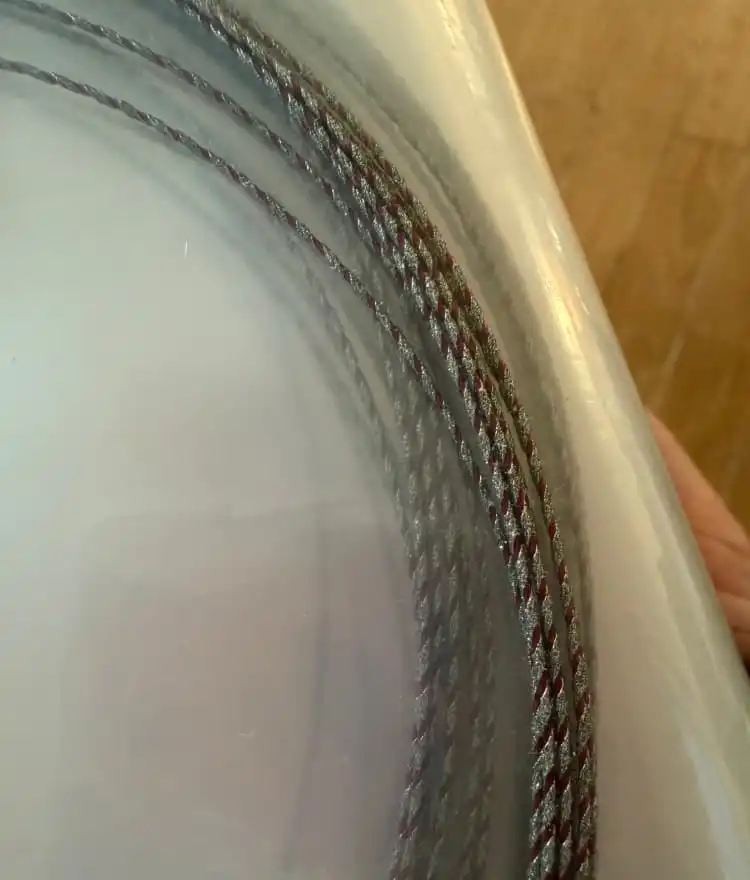

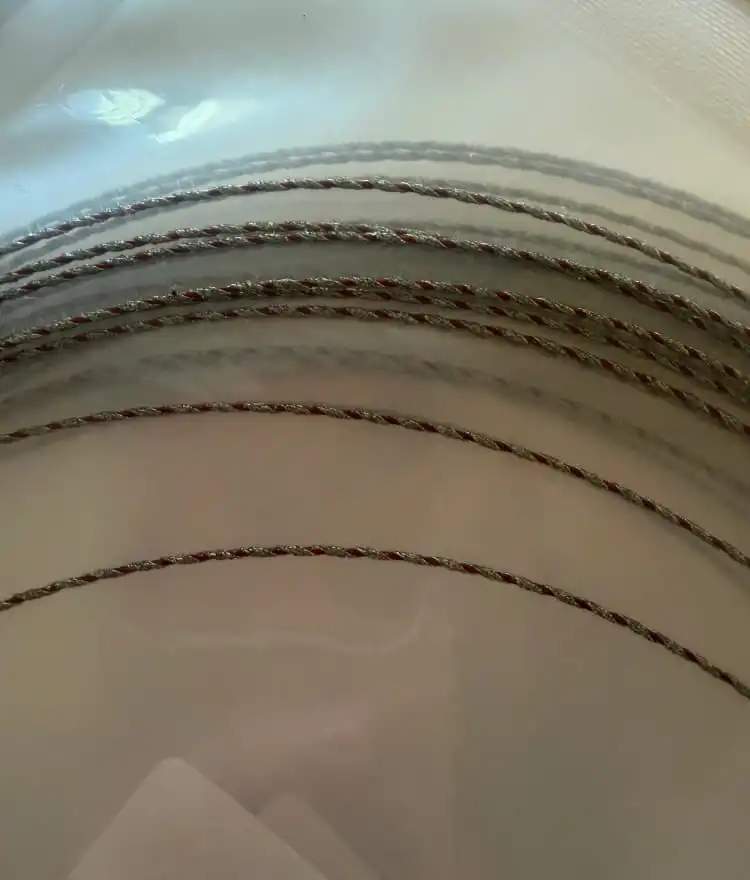

At Laizhou Jinfuen Machinery Co., Ltd., our Diamond Fine Wireand Electroplated Diamond Wire Saw represents three decades of manufacturing excellence. High-strength special alloy steel cores with ultra-thin diameters as small as 0.35mm are smoothly linked to a continuous diamond covering in this professional-grade cutting tool.

With cutting speeds of up to 50 m/s, our exclusive surface-coating process guaranties that diamond grains are securely and evenly fastened. This wire provides remarkable material yield and maintains great sharpness throughout a long service life thanks to its minimum kerf loss design and adjustable grit sizes.

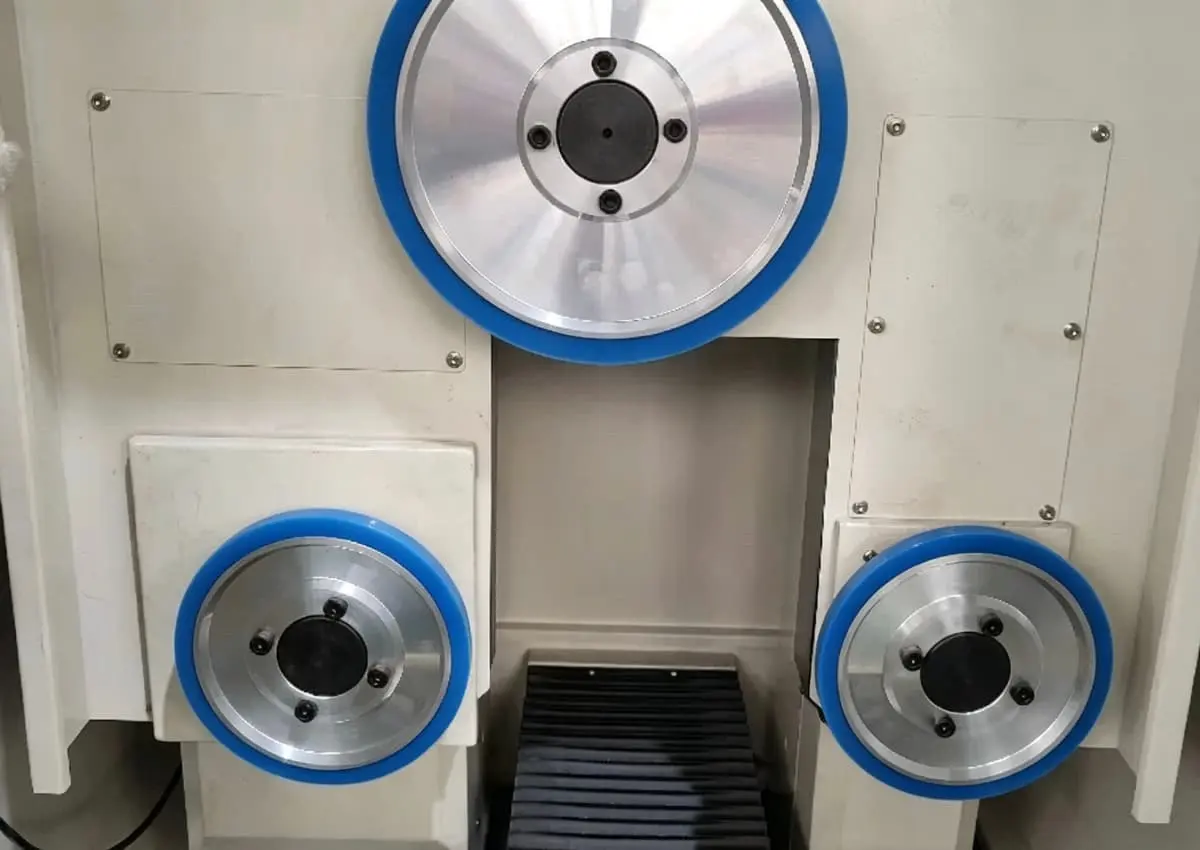

Our wire saw systems are designed to cut silicon wafers, sapphire substrates, and graphite blocks precisely while maintaining exceptional cutting efficiency. For your production line, this cutting-edge closed-loop flexible cutting tool dramatically lowers material waste and operating expenses.

What Makes Our Diamond Wire Saw Technology Different

Fixed Abrasive Precision Cutting

Unlike traditional slurry-based systems, our Diamond Fine Wireand Electroplated Diamond Wire Saw transitions cutting mechanisms from loose abrasive rolling to fixed abrasive micro-grinding. This fundamental shift addresses critical industry pain points.

You'll experience dramatically reduced kerf loss, which directly translates to higher material yield and lower cost per piece. The synthetic diamond micro-powders are electroplated onto high-tensile steel cores through an advanced nickel-based process.

Engineered for Extreme Durability

Our special alloy steel cores deliver tensile strength ranging from 3200 to 4500 MPa. This exceptional mechanical integrity withstands high-speed reciprocating tension in the most demanding production environments.

The optimized diamond distribution density prevents premature particle shedding. Your production lines benefit from extended tool life and consistent cutting performance throughout the wire's operational cycle.

Maximum Material Utilization

Ultra-thin wire diameters starting from 0.1mm minimize kerf width. This design philosophy maximizes the number of wafers or substrates you can extract from each ingot or block.

For photovoltaic manufacturers and semiconductor producers, this directly impacts your bottom line. Every millimeter of saved material multiplies across thousands of cutting operations.

Primary Industrial Applications

Photovoltaic Silicon Wafering

Our diamond wire saw serves as the industry standard for slicing monocrystalline and polycrystalline silicon ingots. The precision coating ensures minimal subsurface damage while maintaining high throughput rates.

You'll achieve consistent wafer thickness with low Total Thickness Variation (TTV). This uniformity is essential for solar cell efficiency and production yield optimization.

Semiconductor Substrate Processing

For Wide Bandgap materials like Silicon Carbide (SiC) and Gallium Nitride (GaN), our wire delivers the high diamond protrusion and bonding strength required. These materials' extreme hardness demands superior cutting tools.

The electroplated layer withstands the intense pressure grinding necessary for these advanced substrates. Your production maintains dimensional accuracy even with the hardest materials.

Precision Optical and Sapphire Manufacturing

LED substrate production and luxury optical applications require exceptional surface finish. Our wire maintains high dimensional accuracy with excellent surface roughness (Ra) values.

Whether you're cutting sapphire watch crystals or optical components, the wire delivers clean cuts with minimal post-processing requirements. This reduces your overall manufacturing time and costs.

Graphite Block Slicing

For graphite electrode and specialty carbon material manufacturers, our wire provides clean, precise cuts through blocks and slabs. The high-precision cutting capability preserves material integrity while maximizing yield.

Technical Specifications

Core Technical Advantages

Proprietary Coating Technology

Jinfuen's surface-coating process ensures uniform diamond distribution across the entire wire length. Each diamond particle is firmly embedded in the nickel matrix, preventing premature detachment during operation.

This translates to predictable tool life and consistent cutting quality. You can accurately forecast consumable costs and plan maintenance schedules with confidence.

Optimized Thermal Management

Superior thermal conductivity during high-speed cutting prevents localized heat buildup. This characteristic protects both the wire integrity and your workpiece from thermal damage.

Your production maintains stable cutting parameters even during extended continuous operations. Temperature-sensitive materials remain within safe processing ranges throughout the cut.

Enhanced Straightness Control

Our manufacturing process includes continuous laser diameter monitoring and tension control. This ensures exceptional wire straightness, critical for multi-wire sawing applications.

Straight wire reduces vibration and improves cut parallelism. Your multi-wire saws achieve uniform wafer thickness across all cutting lanes simultaneously.

Quality Control Standards

Multi-Stage Inspection Process

Every spool of our Diamond Fine Wireand Electroplated Diamond Wire Saw undergoes rigorous quality verification. Diameter consistency is monitored via continuous laser micrometers to maintain ±1μm tolerance.

Mechanical integrity testing uses Universal Testing Machines to verify breaking load and elongation percentage. These tests ensure the wire meets specified tensile strength requirements under operational stress.

Stress Resistance Verification

Torsion and bending tests confirm the electroplated layer maintains integrity under operational stress. The coating must not crack or delaminate during the wire's service life.

These comprehensive quality measures give you confidence in consistent performance. Every meter of wire delivers the precision and reliability your production demands.

Application Optimization Guidelines

Grit Size Selection Strategy

Finer grit (5-15μm) improves surface roughness and reduces subsurface damage. Choose this range when surface quality and minimal TTV are your primary concerns.

Coarser grit (20-30μm) increases material removal rate for higher throughput. Select this range when cutting speed takes priority and post-processing capabilities exist.

Your application requirements determine the optimal balance. Our technical team provides consultation to match grit specifications with your production goals.

Tensioning and Speed Parameters

To avoid localized stress concentrations, maintain uniform tensioning throughout all wire guides. The main reason for early wire breaking during operation is uneven stress.

Make that the cooling system has the capacity for speeds higher than 1500 m/min. Thermal deterioration of the wire and workpiece is avoided by appropriate coolant flow.

Monitor for micro-cracks in the steel core through regular inspection intervals. Early detection prevents catastrophic failure during production runs.

Coolant System Optimization

Use synthetic coolants with high lubricating properties specifically formulated for diamond wire cutting. The coolant must prevent nickel-matrix corrosion while providing effective chip evacuation.

Maintain pH levels within manufacturer specifications to protect the electroplated layer. Improper coolant chemistry accelerates coating degradation and reduces wire life.

Regular coolant filtration removes abrasive particles that could damage the wire surface. Clean coolant extends wire life and maintains consistent cutting quality.

Why Choose Jinfuen as Your Manufacturing Partner

Three Decades of Specialized Experience

With over 30 years focused on wire saw technology, we understand the nuanced requirements of precision cutting applications. Our engineering team has solved countless application challenges across diverse industries.

This experience translates directly into product reliability. Your production benefits from our accumulated knowledge in wire design, coating optimization, and quality control.

Factory-Direct Cost Advantages

As the manufacturer, we eliminate intermediary markups. You receive competitive pricing without compromising on quality or technical support.

Direct communication with our engineering team ensures your specific requirements are accurately understood and met. No information is lost through distribution channels.

Customization Capabilities

We configure wire specifications based on your cutting materials, machine parameters, and quality requirements. Custom grit sizes, diameters, and lengths are available with reasonable minimum order quantities.

This flexibility allows you to optimize your cutting process rather than adapting to standard products. Your competitive advantage increases through precisely matched tooling.

Comprehensive Technical Support

Our support extends beyond product delivery. We provide cutting parameter recommendations, troubleshooting assistance, and process optimization guidance.

Whether you're implementing wire saw technology for the first time or optimizing existing operations, our team offers practical expertise. Your success directly reflects our commitment to partnership.

Frequently Asked Questions

Q: What causes wire breakage during high-speed slicing operations?

A: Wire breakage typically results from three primary factors. Uneven tensioning creates stress concentration points that exceed the core's tensile strength. Excessive linear speeds beyond 1500 m/min without adequate cooling cause thermal degradation. Pre-existing micro-cracks in the steel core propagate under cyclic loading. Regular tension calibration and proper cooling systems prevent most breakage incidents.

Q: How does diamond grit size affect my cutting outcomes?

A: Grit size directly influences the balance between cutting speed and surface quality. Finer grit produces superior surface roughness (Ra) and lower Total Thickness Variation but reduces material removal rate. Coarser grit increases cutting speed but may introduce subsurface damage requiring additional finishing operations. Your application's priority—speed versus finish—determines optimal grit selection.

Q: What is the shelf life of electroplated diamond wire?

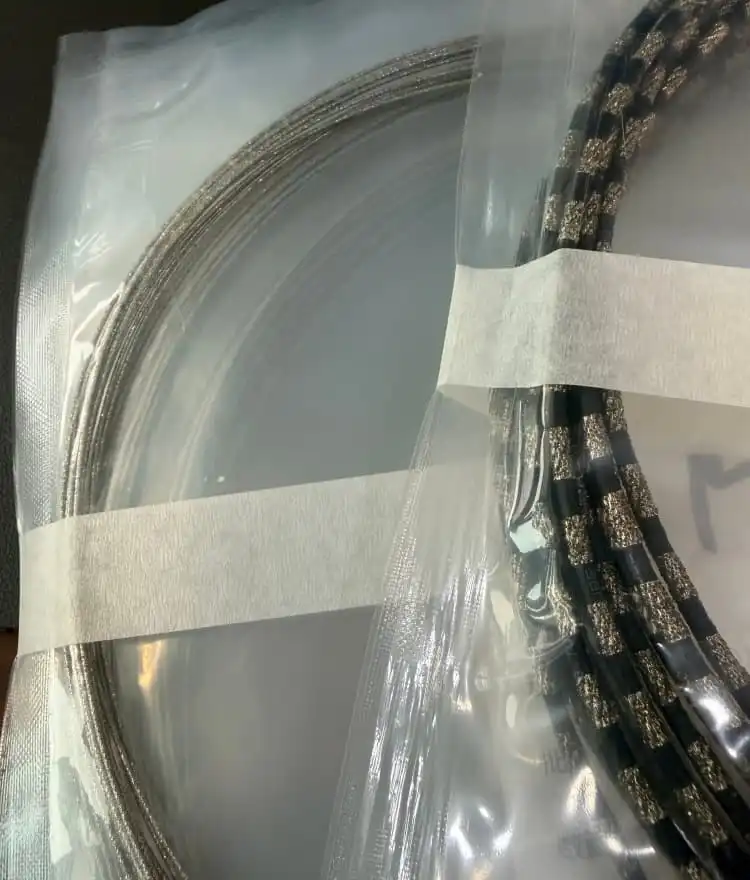

A: When stored properly in vacuum-sealed packaging within low-humidity environments, the wire maintains full integrity for 6-12 months. Moisture exposure can cause steel core oxidation or nickel-matrix degradation, compromising performance. Always store unused spools in climate-controlled conditions and use moisture barrier packaging.

Q: Why choose electroplated wire over resin-bonded alternatives for Silicon Carbide?

A: Silicon Carbide's exceptional hardness (Mohs 9-9.5) requires the superior diamond concentration and bonding strength that electroplating provides. The nickel matrix withstands the high-pressure grinding forces necessary for SiC processing. Resin bonds lack sufficient mechanical strength for these demanding applications, leading to rapid tool wear and inconsistent results.

Q: How should I optimize coolant selection for diamond wire cutting?

A: Select synthetic coolants formulated specifically for diamond wire applications with high lubricating properties. Maintain pH within the range specified for nickel-plated tools to prevent electrochemical corrosion. Ensure adequate flow rate for effective chip evacuation and thermal management. Regular filtration removes abrasive particles that accelerate wire wear. Proper coolant management significantly extends wire life and maintains cutting precision.

Get Started with Precision Cutting Solutions Today

eady to enhance your cutting efficiency and material yield? Our technical team is prepared to discuss your specific application requirements and recommend optimized configurations for Diamond Fine Wireand Electroplated Diamond Wire Saw.

Contact Us at sales@goldfenwiresaw.com for detailed specifications, customization options, and competitive quotations. Let's build your precision cutting solution together.
