Best multi-strand diamond wire for CNC granite profiling machines

When selecting cutting tools for CNC granite profiling, the choice of granite profiling diamond wire becomes a defining factor in operational success. Multi-strand diamond wire technology delivers unmatched precision for executing complex shapes in hard stone materials, while dramatically reducing material waste and labor-intensive finishing steps. Our joint-less endless design eliminates connection-point vibrations and enables small-radius turns with exceptional stability, making it the preferred solution for stone fabricators, monument manufacturers, and architectural stone contractors seeking to balance cutting quality with production efficiency.

Understanding Multi-Strand Diamond Wire for Granite Profiling

What Makes Multi-Strand Design Superior

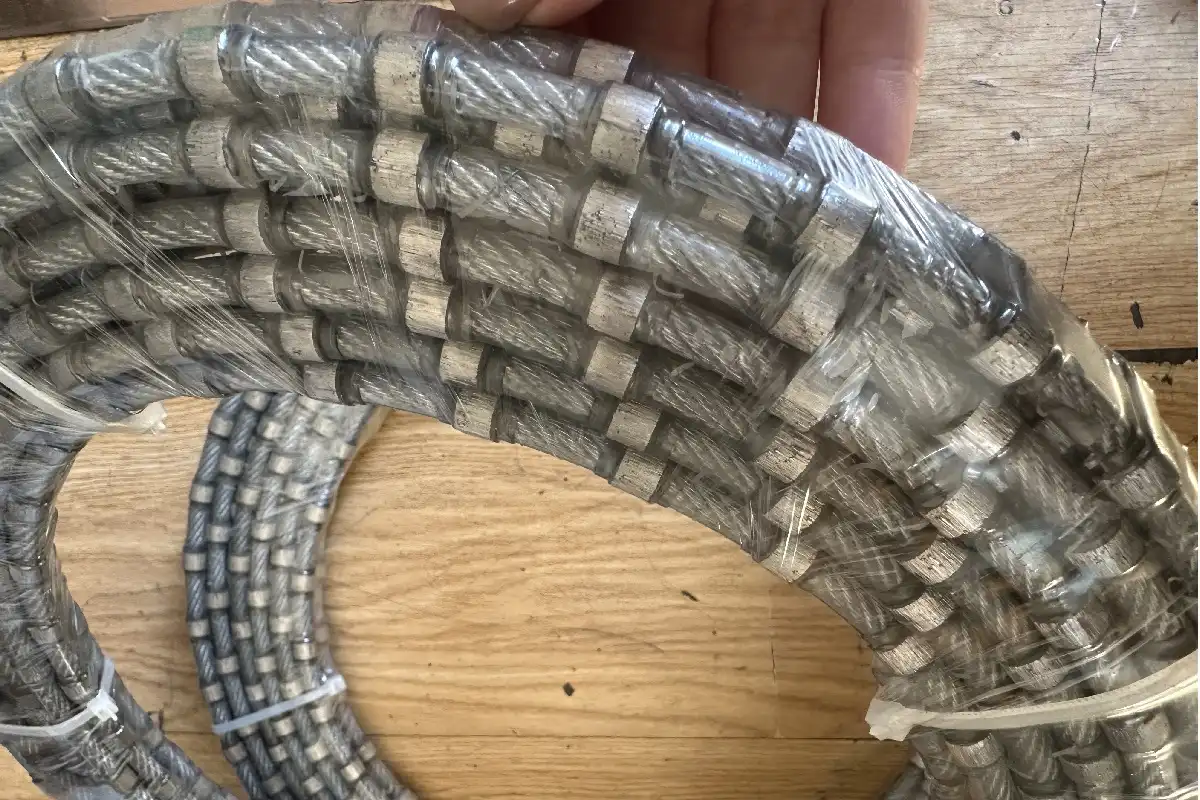

Granite profiling diamond wire has a core made of high-tensile steel that is filled with industrial-grade diamond particles that are bonded together using special electroplating or sintering methods. When compared to single-strand options, which are rigid and wear out quickly, multi-strand designs spread the cutting forces evenly across many steel cables. Because of this design benefit, the wire can keep its tension even during high-curvature profiling operations. This stops the "bowing" effect that happens with deep cuts in thick granite types.

Getting the right bead density and diamond grit spread is at the heart of granite profiling diamond wire engineering. Depending on the toughness level of the granite, standard specs include 37 to 40 beads per meter and diamond mesh sizes between 30/40 and 40/50. The outer protective coating, which is usually injection-molded vulcanized rubber or thermoplastic polyurethane, keeps the steel core safe from the rough granite slurry and keeps the exact spacing of the beads even when centrifugal forces are higher than 2000 kg tensile load.

How Diamond Wire Interacts with Granite

The mechanism for cutting doesn't use mechanical slicing but abrasive erosion. As the wire moves along a straight line at speeds of 22 to 30 meters per second, tiny diamond particles break up the crystal structure of the granite. Continuous cooling with 25–30 liters of water per minute does two things: it clears the cutting zone of stone waste and keeps the diamond-metal link from breaking down due to heat. Our continuous electroplating process keeps the diamond grit in great shape, allowing cutting speeds of up to 60 meters per second. This creates mirror-like finishes on the surface, which cuts the time needed for polishing by up to 40%.

Technical Evolution and Current Standards

Early designs for rough cables were very different from the granite-rolling-diamond-wire we use today. Modern manufacturing methods that are ISO 9001-certified use cobalt-based or iron-cobalt alloy matrices that make diamond exposure rates best for different types of granite. Granites that are harder need softer, cobalt-rich bonds that wear away on purpose to reveal new diamond layers. Stones that are softer, on the other hand, do better with harder, cheaper iron-based recipes. This new development in material science solves the problem of how to make wire last a long time while still cutting stones with different thicknesses consistently.

Why Choose Multi-Strand Diamond Wire for CNC Granite Profiling?

Performance Advantages Over Traditional Methods

Complex measuring projects can't use circular saws or other hard cutting tools because they have strict geometric limits. With traditional methods, a lot of kerf waste is made—often more than 15 mm per cut—and complicated shapes need more than one tool change. With granite profiling diamond wire, kerf loss is kept to less than 9 mm, and continuous curved paths can be cut without having to reposition the tool. When stone fabricators switch from traditional cutting methods to modern wire technology, they save 12 to 18% on materials for high-value granite blocks.

The 8.8 mm wire diameter standard is the best of both worlds when it comes to structural strength and operating freedom. This size lets you make the small-radius turns that are needed for building details, cutting monuments, and high-end interiors. When working with absolute black or Indian red granite, which is known for chipping at the edges when cut aggressively, fabricators can get clean profiles with few surface flaws by using the right granite profiling diamond wire.

Operational Cost Reduction

The total cost of ownership goes down when wire-cutting technology is used. When compared to gang saw processes, the cutting device needs about 20% less mechanical force, so less energy is used. Because automated CNC profiling gets rid of the need for manual template tracing and finishing, labor costs go down by a lot. Maintenance times are longer because there aren't as many heavy mechanical parts that can get out of alignment. Our large collection of spare parts also makes sure that new beads, guide wheels, and tension components arrive within the usual 10–30 day shipping window.

Real-World Production Gains

Monument makers who make 50 to 80 handmade headstones every month say that using CNC wire profiling tools cuts cycle time by 35%. When architectural stone contractors cut tapered columns and curved balustrades, they can achieve dimensional tolerances of just ±0.5mm, which is impossible to do by hand. These changes directly give us a competitive edge when taking on high-precision projects and let us take on rush orders that we couldn't handle before.

How to Select the Best Multi-Strand Diamond Wire for Your CNC Granite Profiling Machine

Matching Wire Specifications to Application Requirements

Selection begins with accurate assessment of your material range and production number. Granite is rated from Class 1 (softest) to Class 5 (hardest), and each level needs a different amount of diamonds and a different type of link. When working with a lot of Class 4-5 granites, like Kashmir White or Steel Grey, you need quality diamond loads and cobalt-rich matrices to keep the granite profiling diamond wire cutting well for as long as it lasts.

Wire diameter has a direct effect on how well it cuts and how well it works with other machines. Most CNC profiling machines can work with the 8.8 mm diameter standard, which also ensures structural integrity for tough jobs. While smaller diameters allow for tighter radius cuts, they lower the tensile strength. On the other hand, larger diameters increase durability but limit the geometric flexibility. Make sure that the width of the wire matches the specs of the machine's guide wheel and tension pulley. This will keep both the wire and the machine's parts from wearing out too quickly.

Evaluating Cutting Speed and Wire Lifespan

Linear cutting speed is an important measure of performance. Our engineering standards allow speeds of up to 60 meters per second for marble, jade, and other soft stones. Harder granites, on the other hand, usually work best at 22 to 25 meters per second. Diamond "glazing" happens when you go faster than what is recommended for high-density materials. This is when heat builds up and stops the diamond from properly exposing itself and cutting.

Wire lifespan depends on many things that are all connected: the hardness of the material, how it is handled by the operator, how well it is maintained, and how well the cooling system works. Good granite-rolling diamond wire can cut through medium-hard granites for 40 to 60 hours under controlled conditions with the right amount of water flow and tension management. Setting standard performance measures during the first use helps procurement teams plan when to replace things and keep extra stock on hand so that production doesn't stop.

Understanding Total Value Beyond Initial Investment

Cost-effectiveness isn't just about how much something costs. Look at the suppliers' warranty coverage, how quickly they respond to technical support requests, and the availability of spare parts. A reasonably priced wire that comes with 24/7 technical support and assured arrival of spare parts is often a better deal than cheaper options that leave you stuck during key production times. Our structured support ecosystem includes installation guides, operation training modules, and documentation for preventative maintenance that help staff learn faster.

When standard configurations don't meet specific needs, the ability to customize is important. We manufacture wires with grit sizes that can be changed to meet the particular needs of cutting performance, material challenges, and output goals. This flexibility is very helpful for fabricators who work with rare granite varieties or serve niche markets that aren't covered by standard products.

Maintenance, Usage, and Safety Tips for Multi-Strand Diamond Wire

Installation Best Practices and Parameter Optimization

The success of granite profiling Diamond Wires depends on how well they are installed. Our joint-less endless design stops vibration at the connection point, but you still need to pay attention to how the tension is set and how the wheels are aligned during installation. Initial tension should give the wire 1.5 to 2 twists per metre of length. This will give the wire the rotational momentum it needs to wear evenly. Under-tensioning causes uneven cutting and failure before its time, while over-tensioning puts too much stress on the steel core, which is not safe for use.

CNC feed speed needs to be changed based on the shape of the cutting path. When there are quick changes in direction, slow down the feed rates by 30 to 40 percent to avoid rapid stress spikes that can break the wire. To find the best machine parameters, people often have to try different speed combinations on sample cuts, write down the results, and come up with standard operating methods for different types of stone and more complicated profiles.

Routine Maintenance Protocols

Granite- and diamond- profiling wires should be inspected regularly, usually every 8 to 10 hours of operation. Visual inspection can find early warning signs like uneven bead wear, the breakdown of a rubber coating, or fraying in a steel cable. With these signs, you can change wires before they fail catastrophically and stop production. Once a week, use high-pressure water to clean the stone slurry that has built up on the guide wheels and tension pulleys. This will keep waste from building up and speeding up the wear on the parts.

When granite profiling diamond wire gets dull but isn't completely worn out, "opening" procedures bring back its cutting ability. You need to run the wire through soft, rough cleaning bricks that remove the old metal framework and reveal new diamond grit. When done properly and at the right times, this upkeep method increases the useful service life by 15 to 25 percent.

Safety Guidelines and Risk Mitigation

The biggest safety risk in profiling work is that granite profiling diamond wires could break. Keep the flow of cooling water at the set 25 to 30 litres per minute, directing streams precisely at the wire entry and exit points to keep the rubber coating from failing because it gets too hot. If you don't cool it down enough, the protective layer will peel off, leaving the steel strands open to faster corrosion and structural damage.

Operator training should emphasize emergency shutdown procedures and proper personal protective equipment usage. Install machine guard systems that contain broken wire segments, and establish inspection protocols that verify safety mechanisms function correctly before each production shift. These precautions protect personnel while minimizing equipment damage during failure events.

Procurement & Supply Chain Insights for Multi-Strand Diamond Wire

Sourcing from Reliable Supply Partners

Building relationships with reliable manufacturers guarantees consistent granite profiling diamond wire quality and quick customer service. Direct factory engagement gets rid of markups for distributors and makes output capabilities and quality control methods clear. We encourage procurement professionals to visit the plant and see live examples of the equipment. This way, they can check that the standards for manufacturing are met and look at the quality control procedures that rule wire production.

Planning the supply line is affected by geography. Shorter wait times and easier logistics are offered by domestic providers. On the other hand, foreign makers may offer a wider range of products or unique formulations that aren't available locally. When comparing options from different sourcing regions, you should look at the total landed cost, which includes shipping, clearing customs, and any possible delays.

Managing Inventory and Lead Times

Strategic inventory management weighs the costs of keeping items in stock against the risks to production continuity. Keep a buffer stock that is 1.5 to 2 times your normal monthly consumption. Change the amount you keep on hand based on changes in lead times and seasonal changes in demand. Standard granite profiling diamond wire setups can be shipped in 15 to 25 days, but unique specs need 30 to 45 days to be made. When project deadlines call for quick delivery, our fast-track priority schedule can meet urgent needs.

Bulk purchasing negotiations with manufacturers yield meaningful cost advantages. Annual volume commitments often secure preferential terms, including extended payment periods, priority allocation during supply constraints, and technical support service level agreements that guarantee response times for critical issues.

Understanding Warranty and Support Terms

A full warranty guards against problems with the way the product was made and sets clear performance standards. Carefully read over the warranty terms and make note of the exclusions for improper use, poor upkeep, or activity outside of the limits that were stated. Premium providers offer strong after-sales support, such as online troubleshooting help, fast delivery of new parts, and expert advice for tough cutting problems.

When evaluating a supplier, you should carefully look at their return policies and how they handle quality disputes. Set clear acceptance criteria that are linked to measurable performance measures. Write down the basic requirements that all new shipments must meet. This discipline stops disagreements about how to rate quality subjectively and makes it easier to solve problems when goods don't meet contractual requirements.

Conclusion

By choosing the right granite profiling diamond wire technology, CNC granite profiling capabilities are completely changed, leading to measured improvements in cutting accuracy, material economy, and production speed. Jointless endless construction, optimized bead density, and advanced diamond bonding processes all work together to solve the main problems that stone fabricators and architectural contractors face in their daily work. Instead of just looking at upfront costs, procurement professionals set their companies up for long-term competitive advantage in stone processing markets that are becoming more demanding by evaluating suppliers based on their technical ability, support infrastructure, and supply chain reliability.

FAQ

1. What causes wire to snap during radius cuts?

Snapping usually happens when the granite profiling diamond wire isn't rotated enough (not enough 1.5 to 2 twists per meter) or when there is too much stress for tight-radius operations. When the wire path changes direction quickly, slow down the CNC feed speed by 30 to 40 percent. This will let the wire redistribute stress more gradually instead of having sudden loading spikes.

2. How do I select the right bead bond for different granite types?

Class 5 granites are harder, so they need softer, cobalt-rich bond formulas that wear on purpose to show diamonds all the time. Harder, more affordable iron-based bonds work well with softer types of granite and keep the structure strong over long cutting cycles.

3. What linear speed works best for profiling hard granite?

Aim for speeds of 22 to 25 meters per second for materials made of hard granite. When you go faster than 30 meters per second on thick stone, the diamond "glazes," which means that too much heat builds up and stops the diamond from cutting properly.

4. How can I prevent rubber coating from peeling?

Peeling happens when the skin gets too hot and doesn't cool down enough. Keep the water flow at 25 to 30 liters per minute and direct streams directly at the wire entry and exit points, which are where most of the contact heat is generated during profiling operations.

Partner with Goldfen Machinery for Premium Granite Profiling Diamond Wire Solutions

Goldfen Machinery has the best granite profiling diamond wire technology on the market. They have been making specialized products for over 20 years and have quality management systems that are ISO 9001 approved. Our process of continuous electroplating and construction of jointless endless wires gets rid of common failure points and allows cutting speeds of up to 60 meters per second for better surface finishes. We offer customized wire specs, thorough technical training, and quick spare parts fulfillment with delivery windows of 10 to 30 days, whether you run a high-volume stone fabrication plant or are in charge of complex architectural projects. Get in touch with our engineering team at sales@goldfenwiresaw.com to talk about your specific granite profiling needs and find out how our premium wire solutions can lower your total cost of ownership while improving the accuracy of your cuts. As a well-known company that makes granite profiling diamond wire and sells to customers all over the world, we offer direct factory access, clear quality assurance, and quick customer service that turn procurement partnerships into competitive advantages.
