Wire Saw Drive Wheel

Wire Saw Drive Wheel – Professional Factory-Direct Solution for Stone & Concrete Cutting

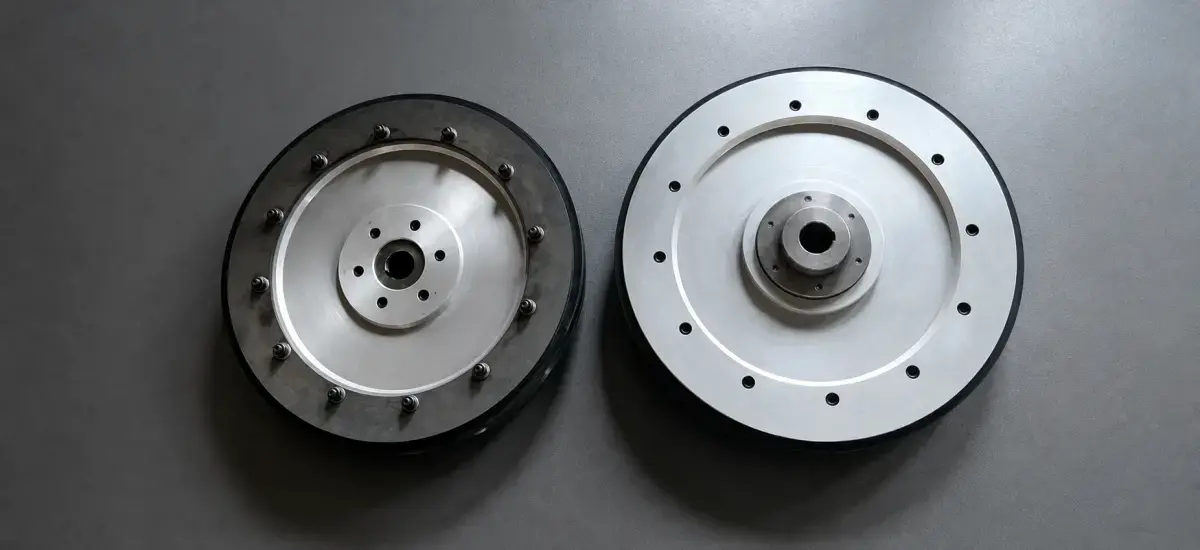

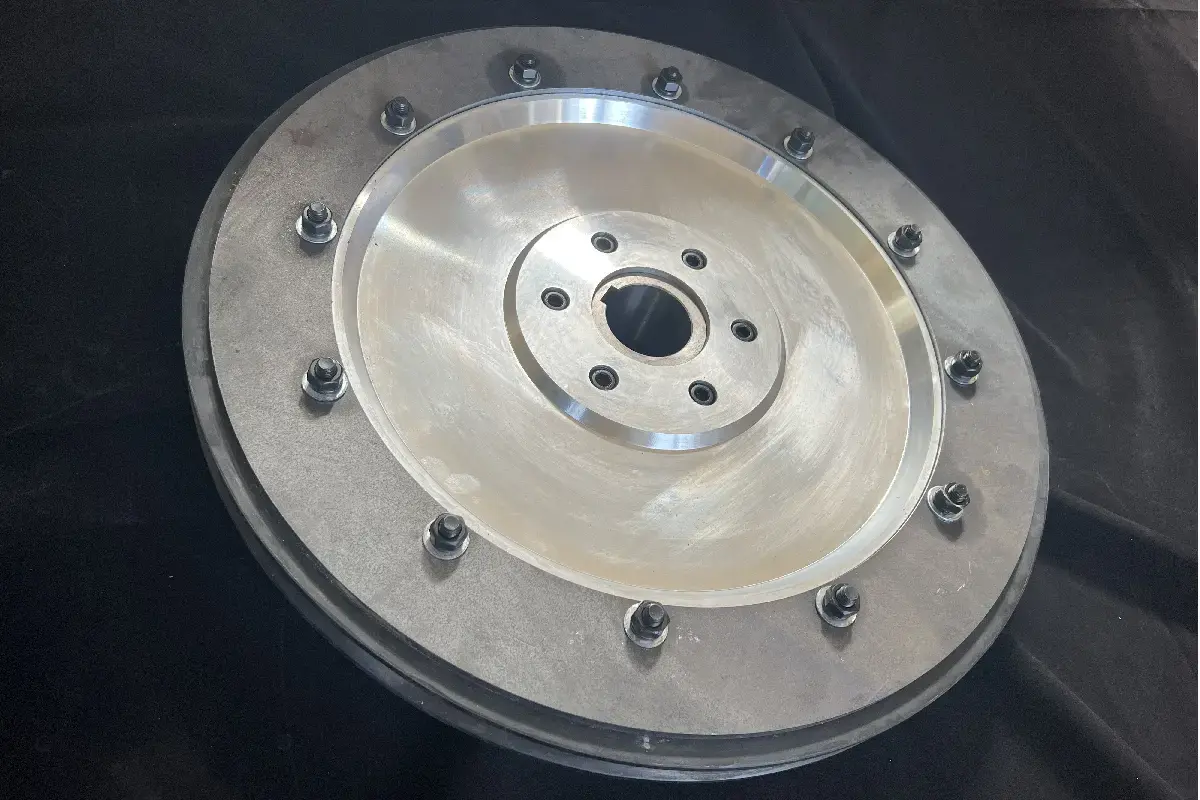

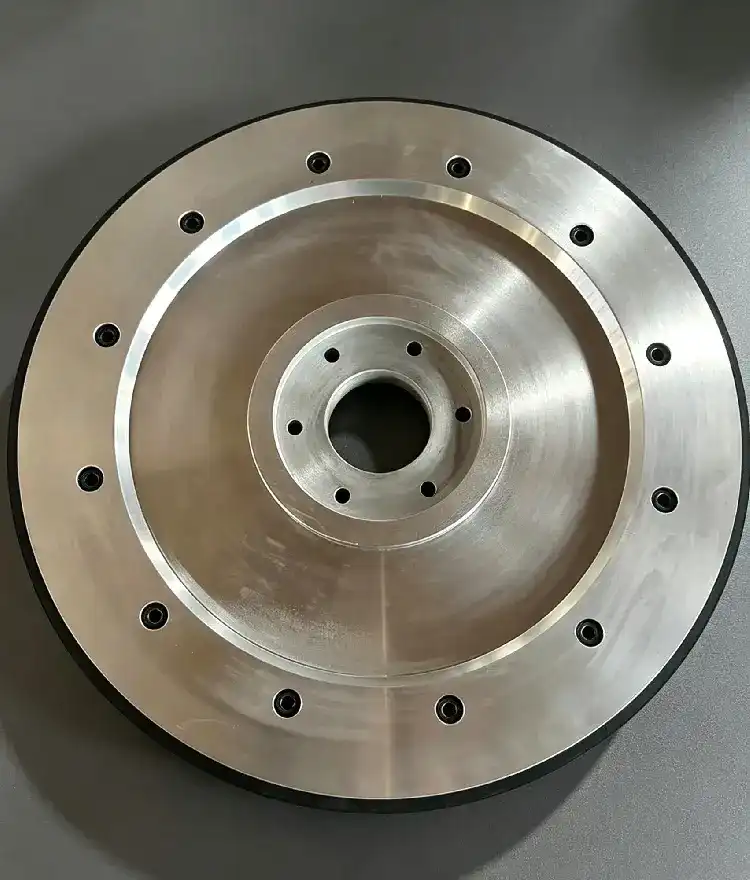

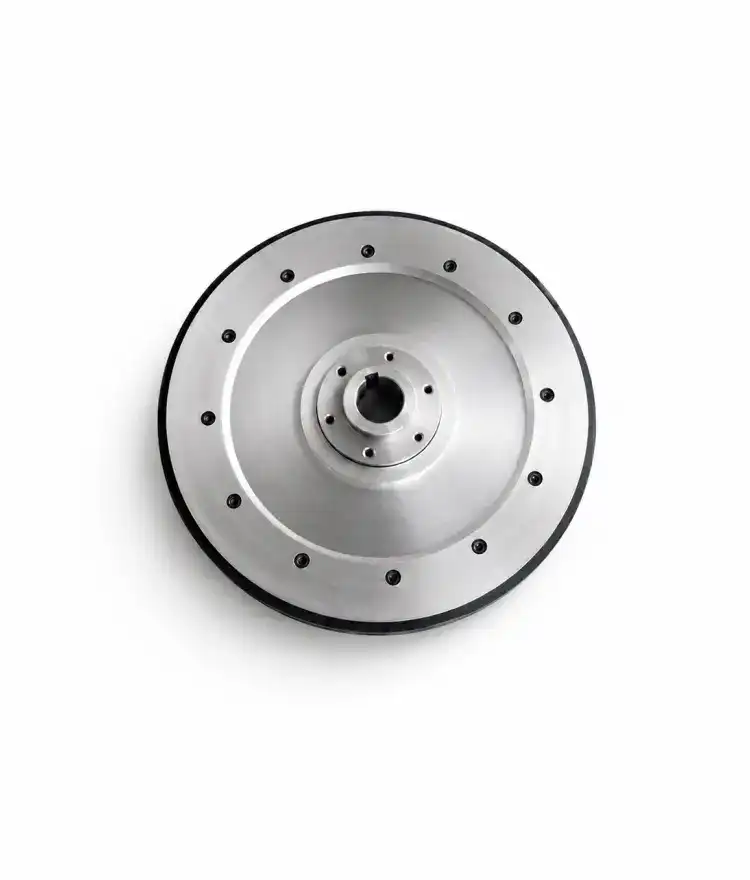

When precision cutting meets industrial durability, the Wire Saw Drive Wheel becomes your most critical component. Our drive wheels, which are produced by Laizhou Jinfuen Machinery Co., Ltd. with more than 30 years of wire saw experience, perform exceptionally well in difficult situations. Each wheel is designed to endure linear speeds of up to 40 m/s while retaining dynamic balance in accordance with standards thanks to aircraft-grade 6061-T6 aluminum hubs and exclusive PU cold-bonding technology. Diamond wire service life can be increased by up to 15% thanks to our high-precision CNC machining, which guaranties concentricity tolerance within 0.05mm and prevents wire slippage. These wheels are specifically designed for granite quarrying, demolition of reinforced concrete, and continuous heavy-duty operation. They have a Shore A hardness calibration between 90 and 95 and thermal stability up to 80°C.

What Makes Our Drive Wheels Different

Your cutting efficiency depends on reliable power transmission. Our drive wheels solve the industry's most persistent problems: premature wire breakage, inconsistent tension, and costly downtime.

Traditional wheels fail because of poor bonding between the hub and liner. We've eliminated this risk through proprietary cold-bonding technology that creates molecular-level adhesion. This means zero delamination even under extreme centrifugal force.

The lightweight aluminum design reduces rotational inertia by 30% compared to steel alternatives. You get faster start-stop cycles and significantly less strain on your motor bearings. Yet when ultra-high torque is required, our heavy-duty carbon steel hubs deliver uncompromising strength.

Every Wire Saw Drive Wheel undergoes ultrasonic flaw detection and dynamic balancing tests. We verify Shore hardness across the entire circumference using ASTM D2240 standards. Your wheel arrives ready for immediate installation with consistent performance guaranteed.

Technical Specifications & Parameters

Core Advantages That Protect Your Investment

Aircraft-Grade Materials & Precision Engineering

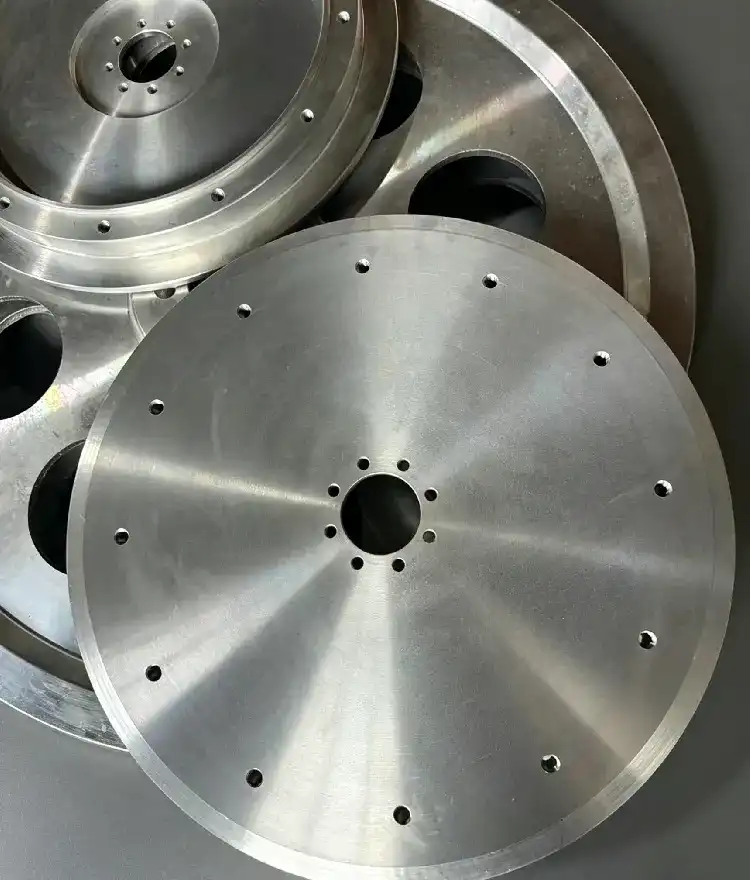

We start with forged aluminum alloy used in aerospace applications. This material choice isn't just about weight reduction—it's about dimensional stability under thermal cycling.

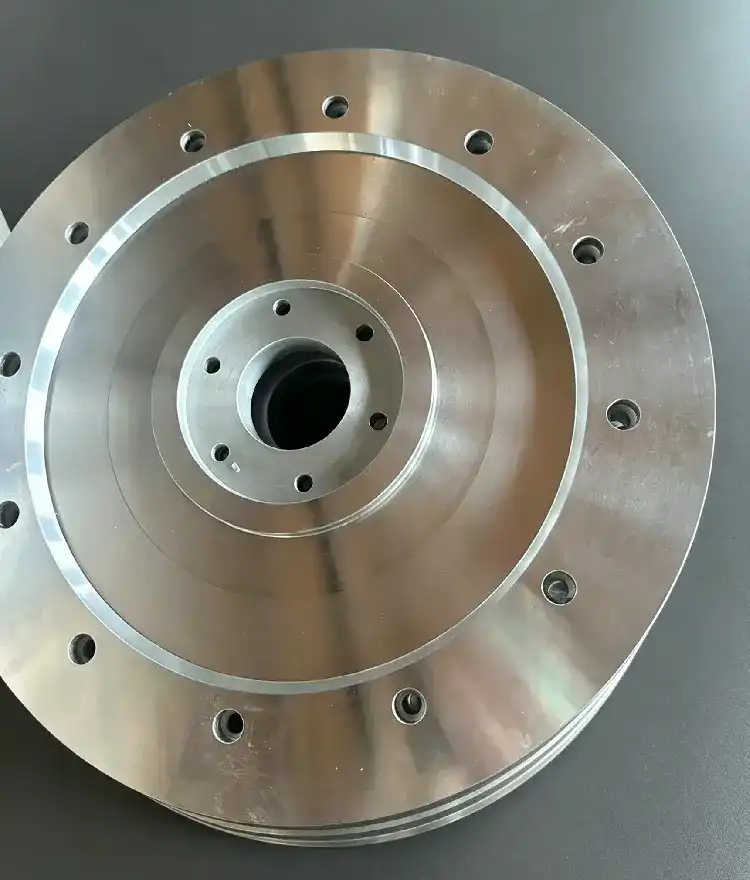

High-precision CNC machining creates perfect groove geometry. Your diamond wire seats consistently in the same position with every rotation, eliminating the micro-vibrations that cause fatigue failures.

Extended Diamond Wire Service Life

Unbalanced wheels create harmonic oscillations that destroy expensive diamond wire. Our strict balancing protocol prevents this entirely.

The PU liner maintains its grip characteristics across the full temperature range you'll encounter. From cold morning starts to sustained afternoon cutting, your wire tension stays constant.

100% Brand Compatibility

Whether you operate Pellegrini, Benetti, or any other manufacturer's equipment, we provide exact-fit replacements. Our engineering team maintains a comprehensive database of OEM specifications.

Need a custom diameter or groove profile? We manufacture wheels from 400mm to 1200mm diameter with lead times as short as 15 days.

Where Performance Matters Most

Granite & Marble Quarrying

In primary block extraction, your drive wheels face abrasive stone dust and extreme UV exposure. Our wheels resist environmental degradation while providing the high torque necessary for efficient squaring cuts.

Quarry operators report 20% longer liner life compared to standard wheels. That means fewer replacement cycles and more productive cutting days per season.

Reinforced Concrete Demolition

Bridge cutting and building dismantling present variable loads and sudden wire pinching. Our wheels maintain traction even when unexpected rebar contact creates momentary shock loads.

The quick-disassembly design allows your crew to swap wheels in under 15 minutes. Minimize downtime and keep projects on schedule.

Engineering & Construction Cutting

When precision matters, our wheels deliver micron-level consistency. Contractors working on infrastructure projects choose our wheels for their predictable performance and reliable tension control.

Quality Control You Can Verify

We don't just claim quality—we prove it with rigorous testing protocols that exceed industry standards.

Dynamic Balancing: Every wheel spins on electronic sensors to eliminate eccentric mass. This protects your motor bearings from premature failure.

Shore Hardness Verification: We test multiple points around the circumference using ASTM D2240 procedures. Consistent hardness means even wire wear and predictable service life.

Adhesion Strength Testing: Following ASTM D429, we verify the bond between hub and liner can withstand operational centrifugal forces with a safety factor of 3:1.

Runout Measurement: Dial indicators confirm the wheel rotates on a true axis within 0.05mm. This precision prevents the wire vibration that leads to breakage.

Ultrasonic Flaw Detection: Metal hubs undergo complete internal inspection. No casting voids, no hidden defects, no catastrophic failures.

You're welcome to visit our factory and witness these quality checks firsthand. We believe transparency builds trust.

Common Challenges We Help You Solve

Why Is My Diamond Wire Slipping?

Slippage typically indicates three issues: worn PU liner, incorrect tension settings, or excess lubricant contamination. If your groove depth exceeds the manufacturer's specification by 2mm, replacement is necessary.

Our liners maintain their friction coefficient longer because of superior polymer formulation. You'll experience consistent grip throughout the liner's service life.

How Do I Know When to Replace the Liner?

Inspect every 200-300 cutting hours for visible signs. Look for cracking at the groove base, glazing (a shiny, hardened surface), or uneven wear patterns.

We offer professional re-lining services where we strip the old elastomer, sandblast the hub, and cast a new liner to original specifications. This costs 60% less than buying a complete new wheel.

Does Wheel Quality Really Affect Wire Life?

Absolutely. An unbalanced Wire Saw Drive Wheel with excessive runout creates vibrations that propagate along the wire length. These harmonic oscillations cause premature cable fatigue and unpredictable breakage.

Our customers consistently report 15-20% longer wire life after switching to our precision-balanced wheels. That's measurable cost savings on every project.

Can I Use Aluminum Hubs for Heavy-Duty Applications?

For most quarrying and demolition work, aluminum hubs provide the optimal balance of weight and strength. The reduced inertia allows smoother acceleration and less motor strain.

However, for ultra-high torque applications—such as cutting extremely hard granite formations—our carbon steel hubs deliver unmatched durability. We'll help you select the right material based on your specific cutting conditions.

What About Chemical Resistance?

Our polyurethane formulation resists all common cutting fluids, hydraulic oils, and stone slurry. The liner won't swell, soften, or delaminate during continuous wet-cutting operations.

We've tested compatibility with both synthetic and mineral-based coolants. You can switch lubricants without worrying about wheel degradation.

Why Global Contractors Choose Jinfu'en

Factory-Direct Pricing: We eliminate middlemen to provide exceptional value. You get manufacturer pricing with professional engineering support included.

Complete Product Ecosystem: Beyond drive wheels, we supply guide wheels, tension wheels, flywheel assemblies, and complete wire saw machines. One supplier for your entire cutting system simplifies procurement and ensures compatibility.

Proven Global Export Experience: Our wheels operate in 40+ countries across demanding applications. We understand international logistics, provide comprehensive export documentation, and support smooth customs clearance.

Technical Consultation Included: Need help calculating optimal linear speed for your material? Unsure about proper tensioning procedures? Our engineering team provides free project evaluation and cutting solution design.

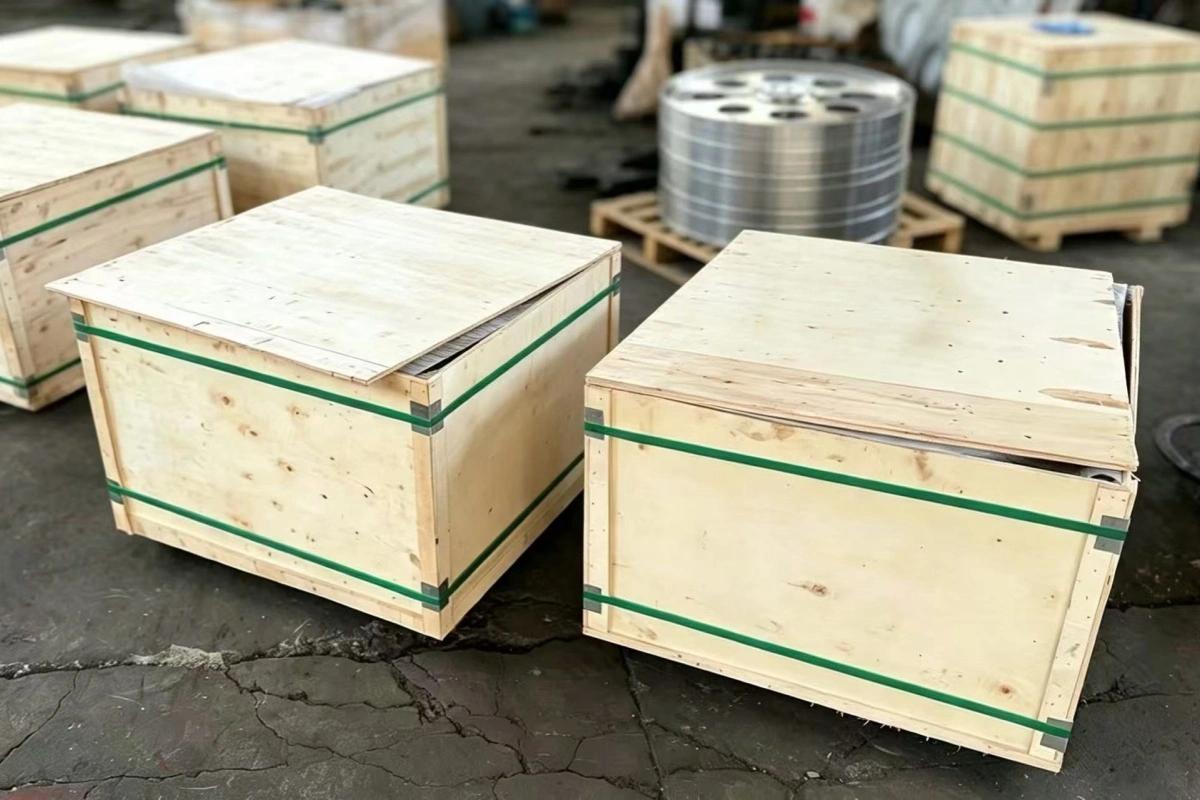

Industrial-Grade Packaging: Anti-corrosion treatment and reinforced export packaging ensure your wheels arrive in perfect condition, regardless of shipping distance.

Frequently Asked Questions

Q: What's your typical lead time for custom wheels?

A: Standard sizes ship within 7 days. Custom diameters or special groove profiles require 15-20 days for manufacturing.

Q: Do you provide installation support?

A: Yes. We supply detailed installation manuals, video guides, and remote technical support. For large orders, on-site commissioning is available.

Q: How do I determine the right wheel size for my machine?

A: Send us your current wheel's diameter, bore size, and groove dimensions. We'll confirm compatibility and recommend the optimal specification.

Q: What warranty do you offer?

A: We guarantee manufacturing defects for 12 months from delivery date. Wear items like PU liners are warrantied against premature failure within the first 100 operating hours.

Q: Can you match my existing wheel's specifications exactly?

A: Yes. We can reverse-engineer from photos, technical drawings, or a sample wheel you send us. Our replication accuracy is within ±0.5mm of original specifications.

Get Your Custom Drive Wheel Solution Today

Ready to reduce downtime and extend your diamond wire life? Our engineering team is ready to recommend the perfect Wire Saw Drive Wheel configuration for your specific cutting requirements.

Contact Us at sales@goldfenwiresaw.com for technical consultation, pricing, or to schedule a factory inspection. Experience the difference that 30 years of manufacturing expertise makes.
