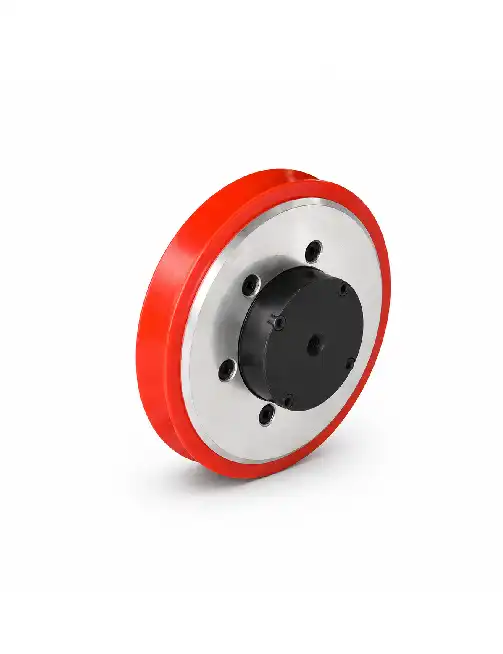

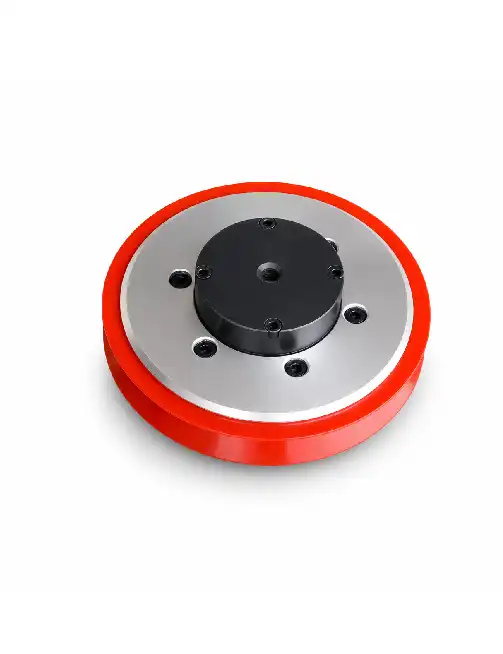

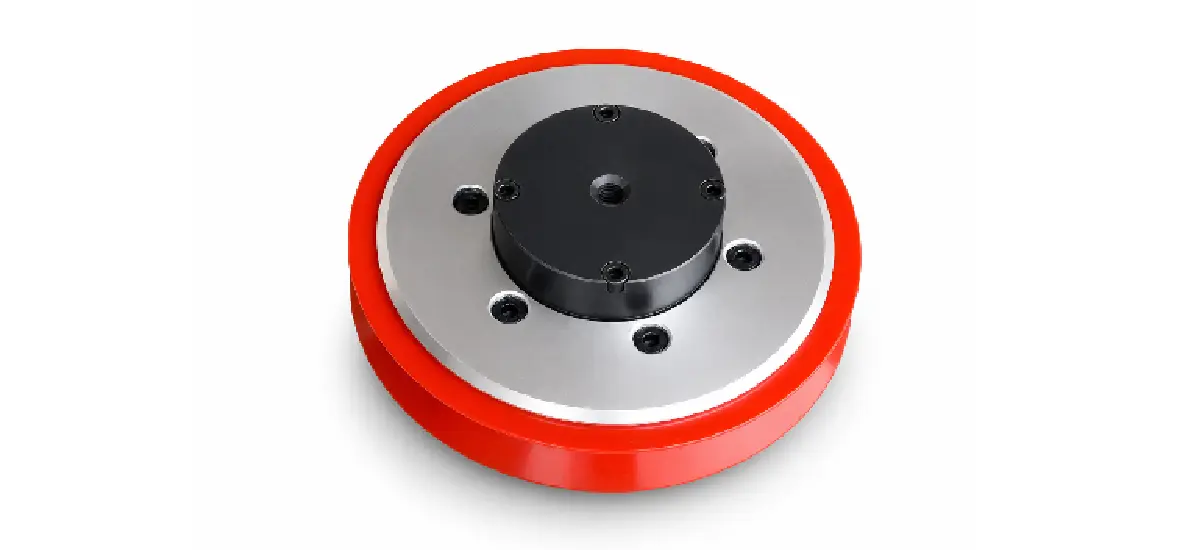

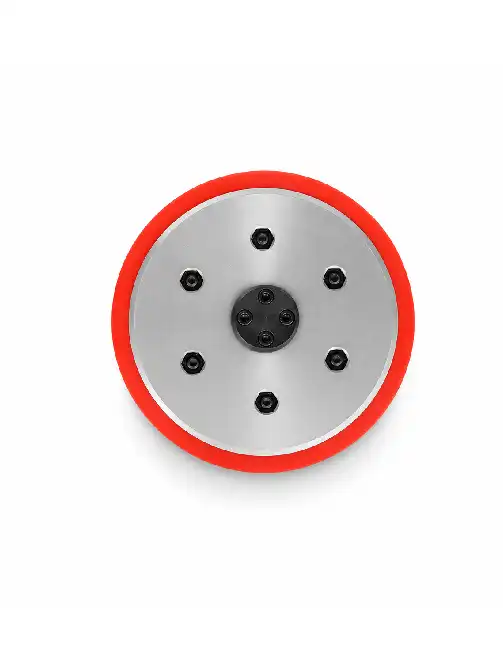

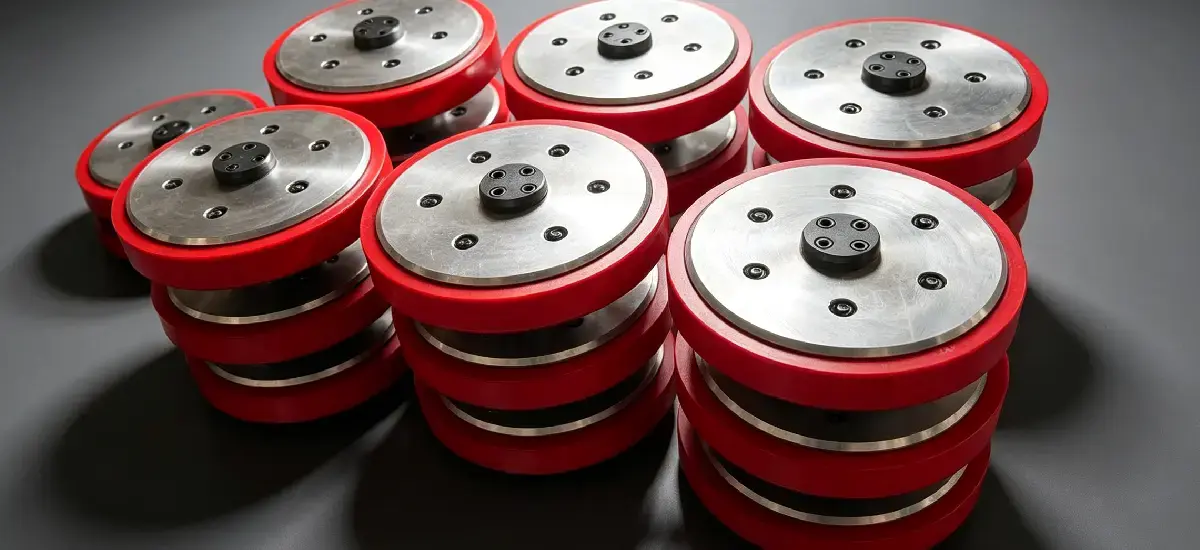

Wire Saw Guide Wheel – Precision-Engineered for Heavy-Duty Cutting Applications

Laizhou Jinfuen Machinery Co., Ltd. manufactures industrial-grade Wire Saw Guide Wheels built for continuous performance in demanding environments. With over 30 years of factory experience, our guide wheel assemblies combine aircraft-grade aluminum cores with proprietary PU cold-bonding technology to deliver exceptional wear resistance and rotational stability. Each unit undergoes precision CNC machining to maintain Total Indicated Run-out (TIR) within ≤0.05mm, ensuring consistent wire trajectory during high-speed operation. Our in-house production supports tool-free disassembly for rapid replacement and custom specifications tailored to your machine compatibility requirements. These components are engineered to reduce diamond wire consumption by up to 15% while extending service life in quarrying, construction cutting, and stone processing applications.

Technical Specifications

Why Choose Our Guide Wheel Assembly?

Superior Durability in Harsh Conditions

Our guide wheels resist extreme UV exposure, temperature fluctuations, and abrasive debris common in granite and marble quarrying. The high-strength PU coating maintains groove integrity even under heavy load cycles.

Extends Diamond Wire Service Life

Precision-engineered U-groove and V-groove profiles minimize friction contact. This design reduces wire fatigue and prevents premature breakage during continuous cutting operations.

Universal Compatibility & Fast Maintenance

We support 100% brand compatibility with major wire saw machines. The tool-free disassembly feature allows your team to complete wheel replacement in minutes, reducing costly downtime.

Lightweight Yet Heavy-Duty

Aircraft-grade aluminum construction cuts rotational inertia while maintaining structural integrity. This balance improves cutting efficiency and reduces motor load during extended operation cycles.

Factory-Direct Quality Control

Every wheel passes concentricity testing. Our inspection process ensures zero-defect delivery to your job site.

Industrial Applications

Our Wire Saw Guide Wheels excel in three critical sectors:

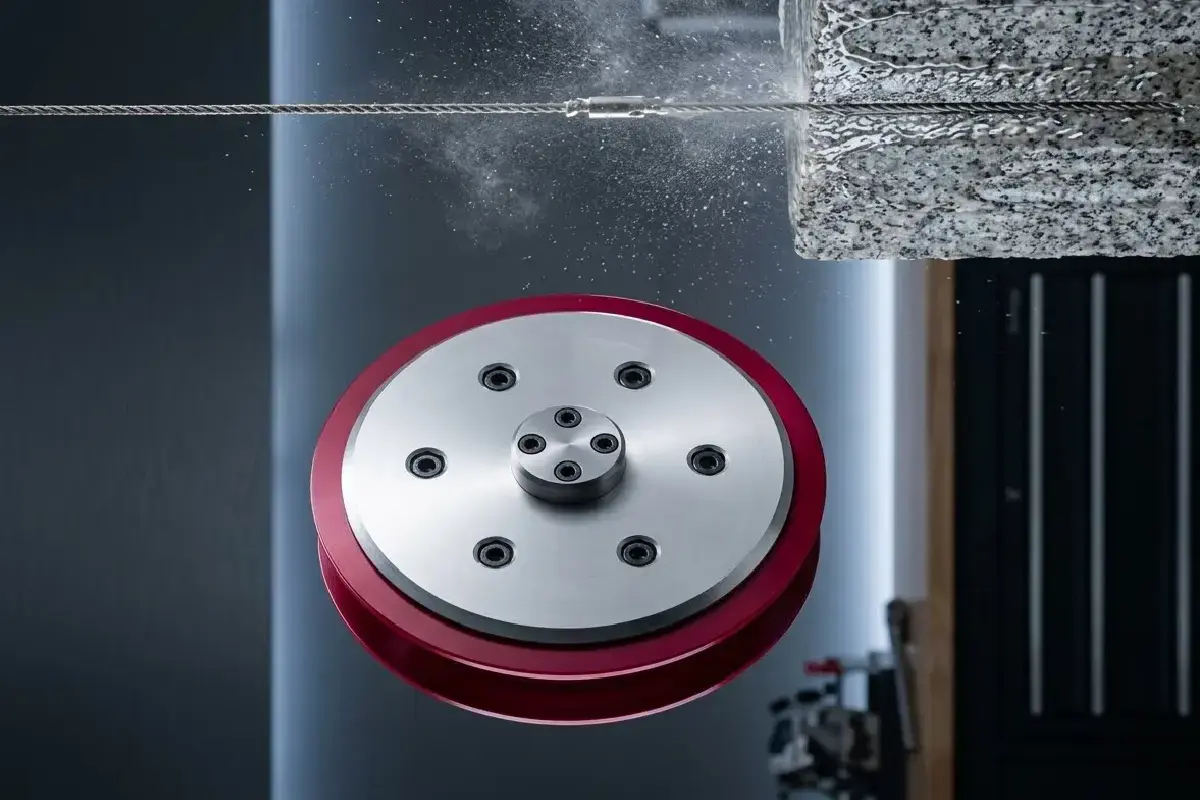

Stone Quarrying & Block Squaring

utilized in massive diamond wire extraction devices for marble and granite. In dirty outdoor settings, the wheels sustain constant tension throughout several hours of cutting.

Reinforced Concrete Cutting

vital for operations involving the demolition of buildings and bridges. When cutting through rebar-reinforced parts, the anti-jamming construction stops wire deviation.

Special-Shaped Stone Processing

Supports precision contouring in monument fabrication and decorative stone shaping. Low vibration characteristics ensure smooth surface finishes on complex geometries.

Competitive Advantages

Proprietary PU Cold-Bonding Technology

Our cold-bonding procedure removes thermal stress cracks, in contrast to traditional hot-vulcanization techniques. In addition to preventing delamination under strong centrifugal forces, this leads to enhanced adhesion strength.

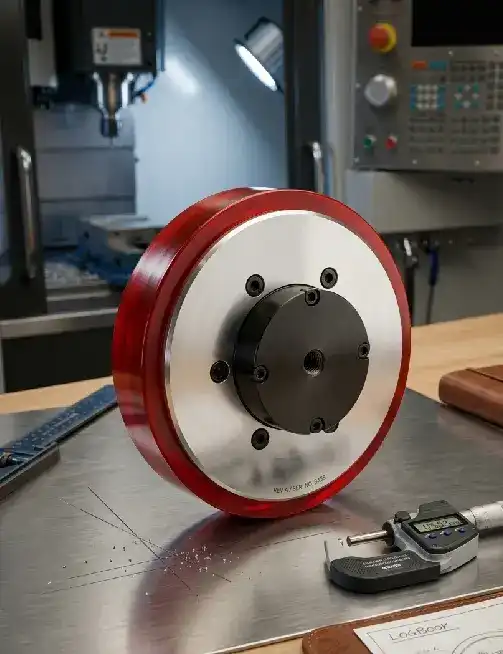

High-Precision CNC Machining

Computer-controlled manufacturing ensures groove profile accuracy within micron-level tolerances. This precision reduces Total Thickness Variation (TTV) in cutting applications.

Proven ROI Performance

Customers report average reductions of 12–18% in diamond wire replacement costs. Lower consumable wear translates directly to improved total cost of ownership (TCO).

Frequently Asked Questions

Q1: How do I select the correct groove profile for my diamond wire?

A: Match the groove geometry to your wire diameter. U-groove profiles are recommended for standard quarrying with 4–11.5mm wires. Custom V-groove designs are available upon request.

Q2: What maintenance schedule do you recommend?

A: Check groove wear depth every 200 operating hours. Replace wheels once groove depth exceeds the factory limit to avoid wire damage and preserve cutting precision.

Q3: Can your wheels fit non-Jinfuen wire saw machines?

A: Yes. Our guide wheels fit most mainstream wire saw brands. Send your machine model and shaft dimensions for accurate compatibility confirmation.

Q4: How does your PU coating compare to MC Nylon alternatives?

A: Our PU material delivers 40% higher abrasion resistance (Taber wear index below 30mg) and better resistance against cutting slurry chemicals than regular MC Nylon.

Q5: Do you provide technical support for installation?

A: We supply remote installation guidance, operation training and fault troubleshooting. On-site technical service can be arranged for large equipment projects.

Quality You Can Verify

We welcome factory inspections and live machine demonstrations at our Laizhou facility. Our transparent production process includes real-time quality monitoring from raw material selection through final dynamic balance verification.

Get Your Custom Solution Today

Looking to reduce wire costs and improve cutting stability? Our engineering team provides free project evaluation and ROI analysis based on your specific cutting requirements.

Contact Us now at sales@goldfenwiresaw.com for technical specifications, volume pricing, or custom Wire Saw Guide Wheel configurations. Experience factory-direct reliability backed by 30+ years of manufacturing expertise.
