Wire Saw Mounting Frame

Wire Saw Mounting Frame – Professional Heavy-Duty Cutting Support System

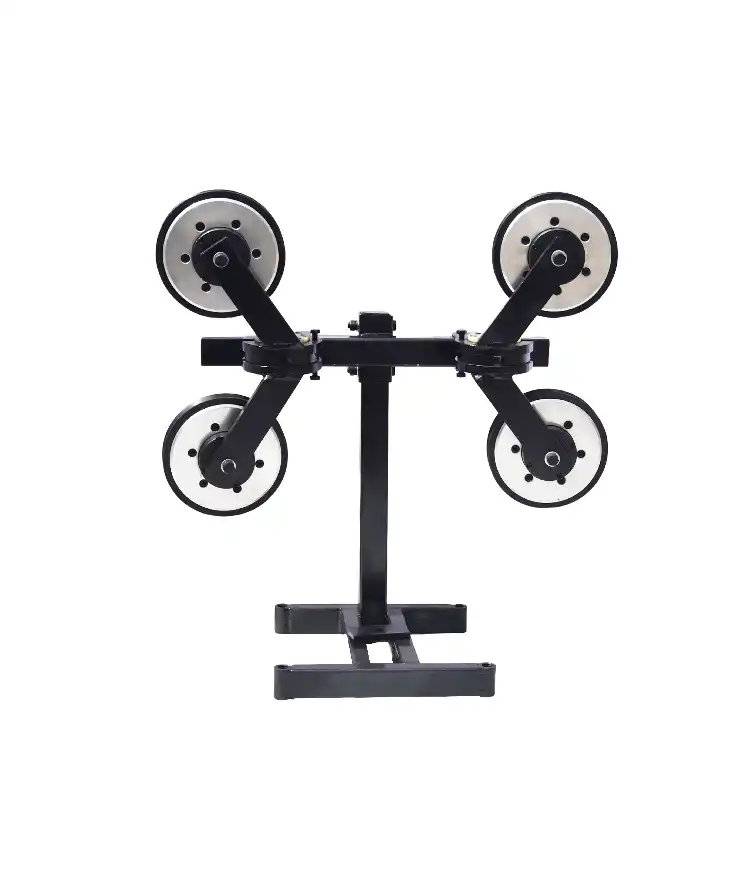

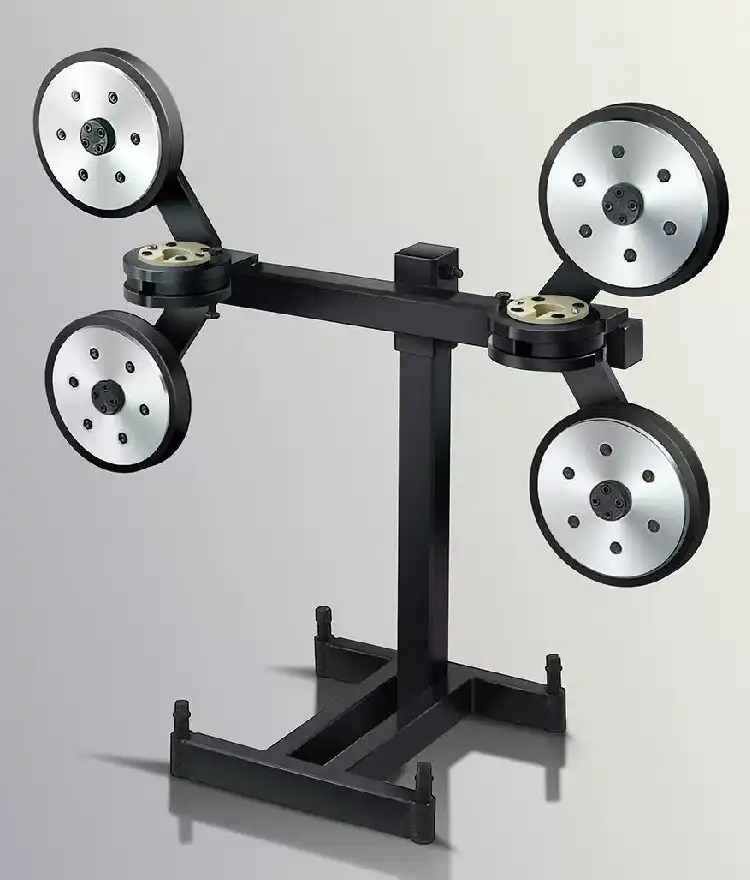

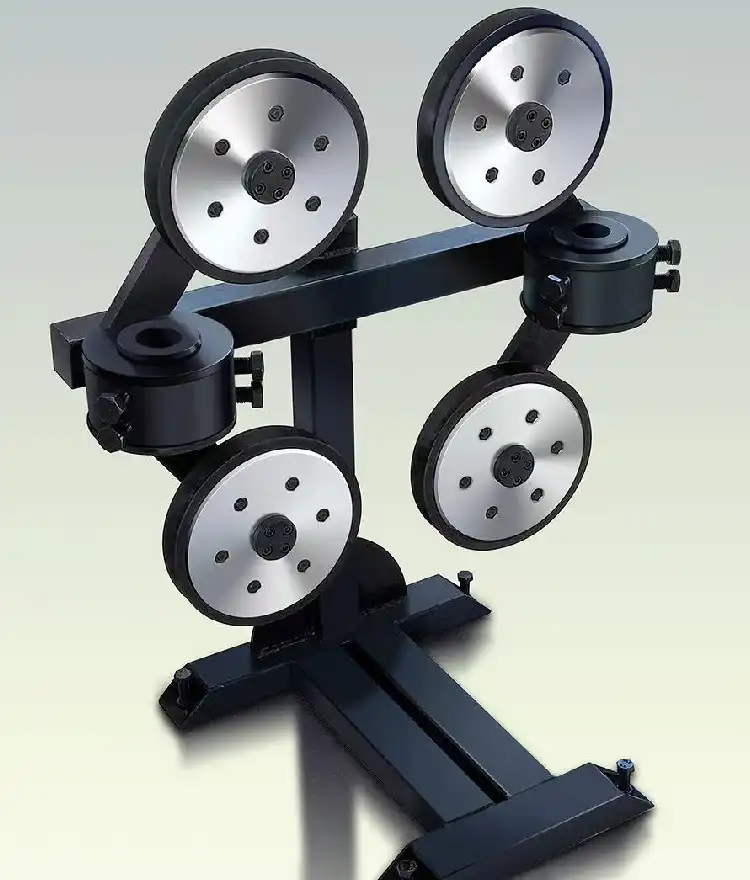

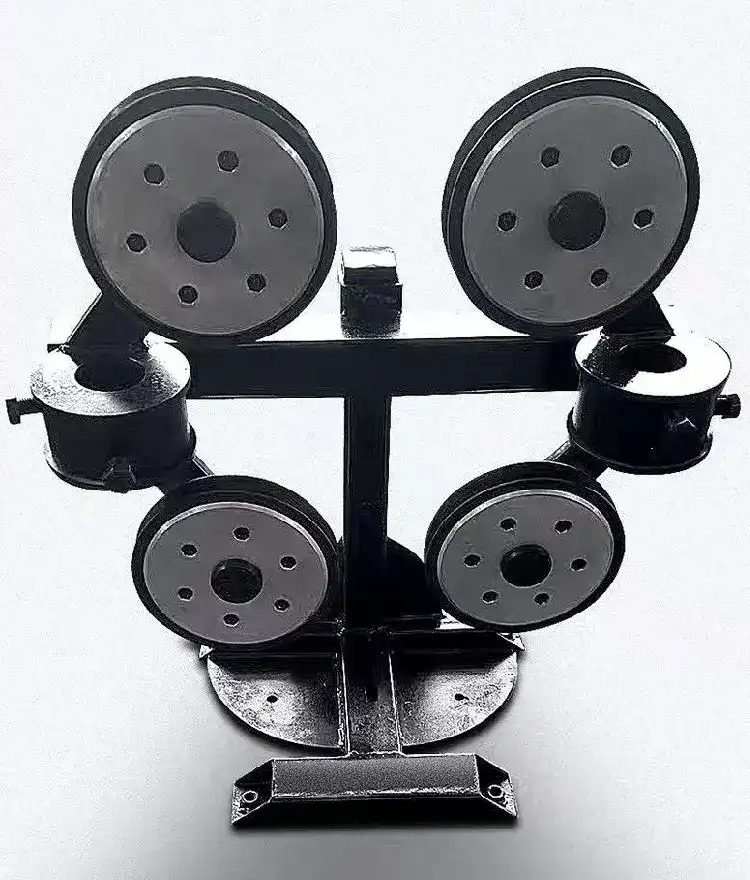

Laizhou Jinfuen Machinery Co., Ltd. offers a professional-grade Wire Saw Mounting Frame engineered for precision and durability in demanding industrial applications. Our four-wheel universal pulley frame offers outstanding stability and wire guidance precision thanks to more than 30 years of production experience. In quarrying, concrete demolition, and engineering projects, the high-strength structural design ensures consistent cutting performance by minimizing wire variation within ±0.05mm parallelism tolerance. This unit offers seamless horizontal and vertical wire redirection while drastically lowering operational wear and maintenance expenses because it is made of reinforced materials with tensile strengths greater than 450 MPa.

Why Choose Our Wire Saw Mounting Frame?

Cutting precision directly impacts your project profitability. Our mounting frame addresses critical operational challenges you face daily.

During high-speed cutting operations, the sturdy design absorbs harmonic vibration. This increases the lifespan of consumables by up to 15% and stops wire breakage.

Your equipment must function dependably in challenging conditions. Our frames have heavy-duty parts built for continuous operation and corrosion-resistant treatments.

When project timelines are tight, installation simplicity is crucial. Without the need for specialist tools, the modular design enables rapid setup and adjustment.

Before any frame leaves our plant, strict quality control guarantees that it satisfies industrial standards. Non-destructive testing verifies structural dependability and weld integrity.

Industrial Applications

Stone Quarrying Operations

Your marble and granite extraction requires precision block cutting. The frame maintains wire trajectory accuracy during vertical and horizontal bench cuts, maximizing raw block yield in abrasive slurry conditions.

Concrete Demolition Projects

When cutting reinforced concrete structures like bridge piers or dam walls, stability under tension is non-negotiable. Our Wire Saw Mounting Frame operates reliably in confined spaces and submerged environments where precision determines project success.

Engineering Cutting Tasks

Heavy construction and controlled demolition demand equipment that withstands extreme loads. The frame's torsional rigidity ensures consistent cutting pressure across thick structural elements.

Special-shaped stone processing benefits from the smooth wire guidance system. Reduced friction translates to cleaner cuts and lower diamond wire consumption.

Performance Advantages

Superior Structural Integrity

The reinforced design handles high-load continuous operation without structural fatigue. You get reliable performance throughout extended cutting cycles.

Minimal Wire Wear

Precision-aligned guide pulleys counteract centripetal forces. This prevents wire "walking" and deviation that cause premature consumable failure.

Quick Deployment Capability

The high power-to-weight ratio allows rapid field setup. Your crew spends less time on installation and more time on productive cutting.

Long Service Life

Durable materials and wear-resistant coatings reduce replacement frequency. Lower total cost of ownership improves your investment returns.

Versatile Compatibility

Interchangeable pulley inserts accommodate various wire diameters. One frame serves multiple cutting applications across different projects.

Frequently Asked Questions

Q: How does the frame maintain cutting accuracy under heavy loads?

A: High-rigidity side supports and precisely fitted components keep the wire path within micron tolerances. The structural design absorbs working vibration to avoid cutting deviation.

Q: What maintenance schedule do you recommend?

A: Carry out visual inspection every 50 working hours. Full alignment calibration is needed every 500 hours, and the cycle can be adjusted according to material abrasion and working conditions.

Q: Can this frame be used for underwater cutting?

A: Yes. It adopts marine-grade stainless steel fittings and sacrificial anodes to resist galvanic corrosion. With regular maintenance, it can work reliably for over 5,000 submerged hours.

Q: Is the frame applicable to extreme temperature environments?

A: The selected alloy retains good impact toughness at -20°C. Heat-resistant surface treatment ensures stable performance under high friction up to +60°C.

Q: How to adjust tension during cutting?

A: The frame supports hydraulic or pneumatic tensioning connections. Real-time slack adjustment can be done to sustain uniform cutting force throughout the whole process.

Quality Assurance Process

Every Wire Saw Mounting Frame undergoes multi-stage inspection before delivery. Ultrasonic testing validates weld joint integrity. Surface hardness verification ensures coating durability against abrasive environments.

Dynamic load simulation confirms structural stability across operational frequency ranges. Tension calibration against certified load cells guarantees accurate performance specifications.

We support factory inspections and live demonstrations. You can verify manufacturing capability and quality standards before making your purchase decision.

Get Your Reliable Cutting Solution Today

Ready to improve your cutting precision and reduce operational costs? Contact our technical team for customized solutions tailored to your specific application requirements. Email us at sales@goldfenwiresaw.com for detailed specifications and competitive factory-direct pricing.
